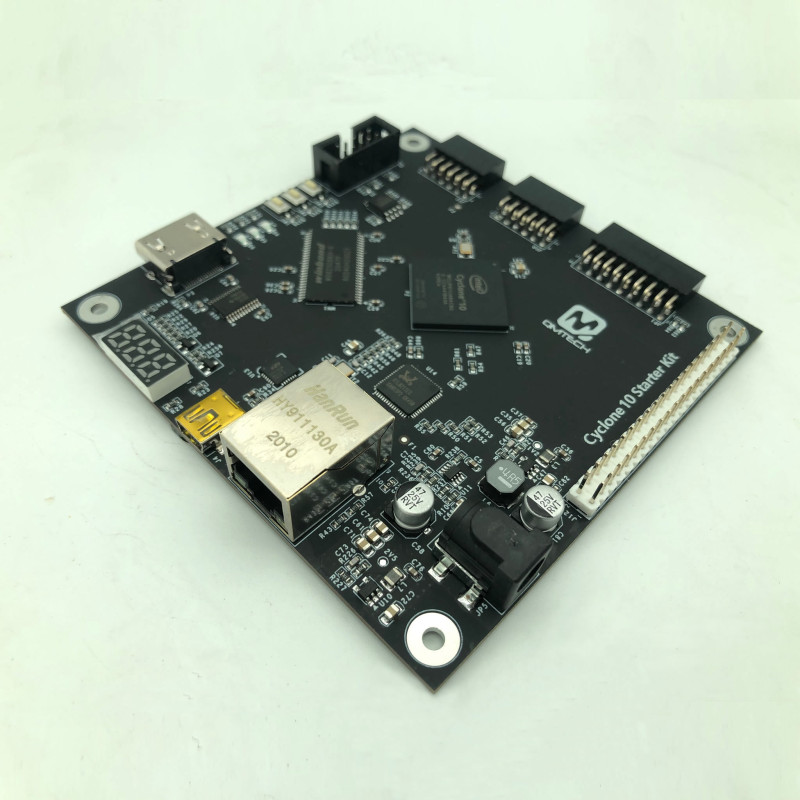

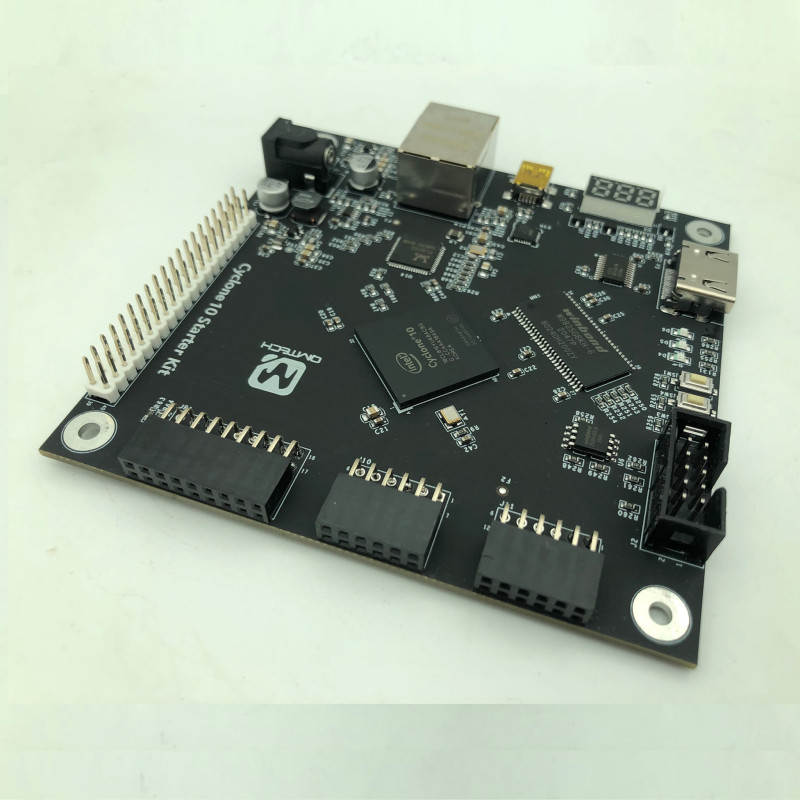

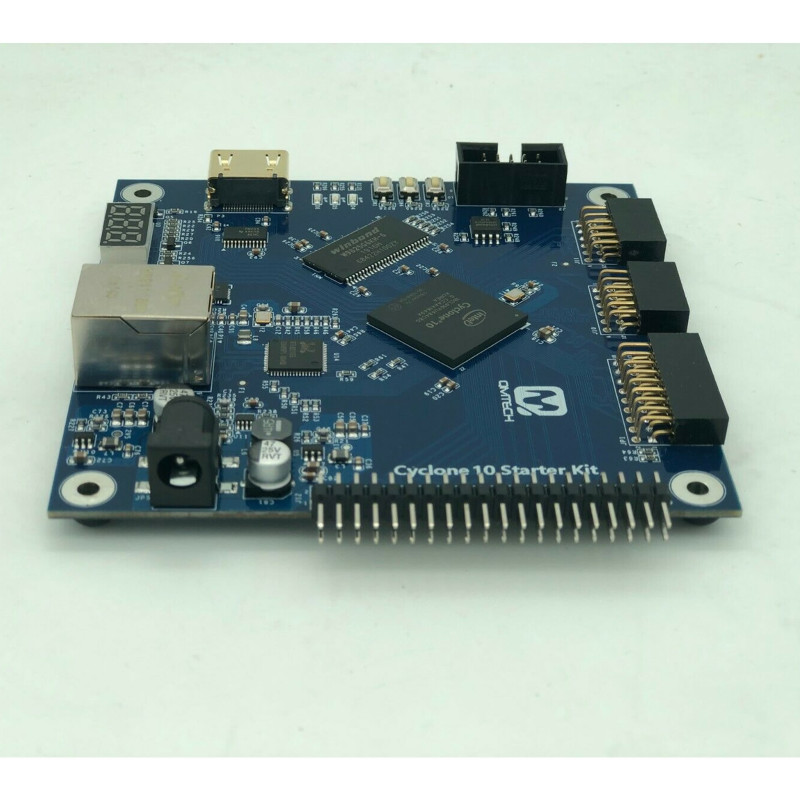

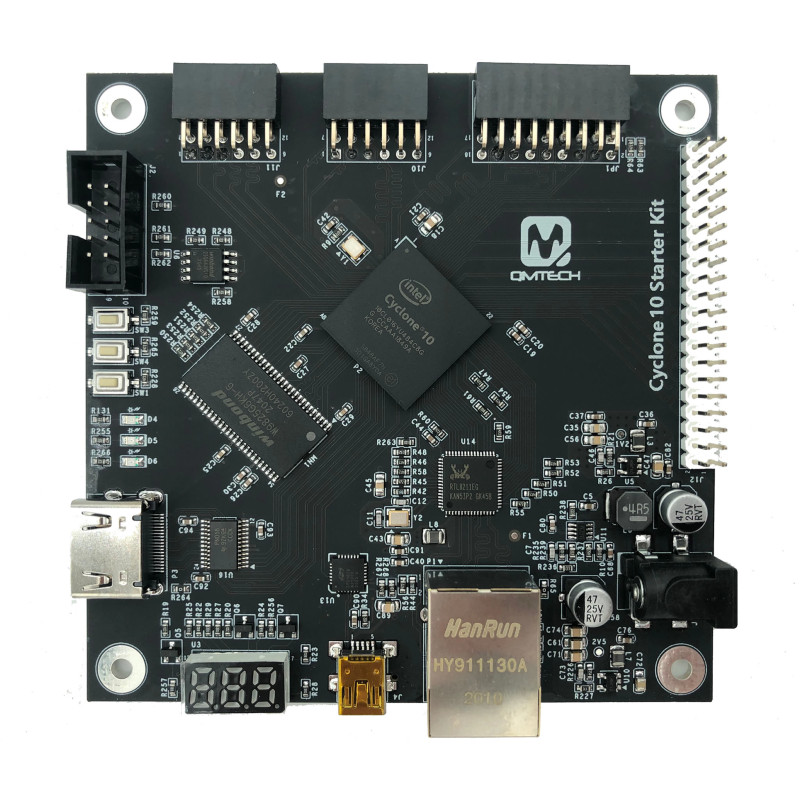

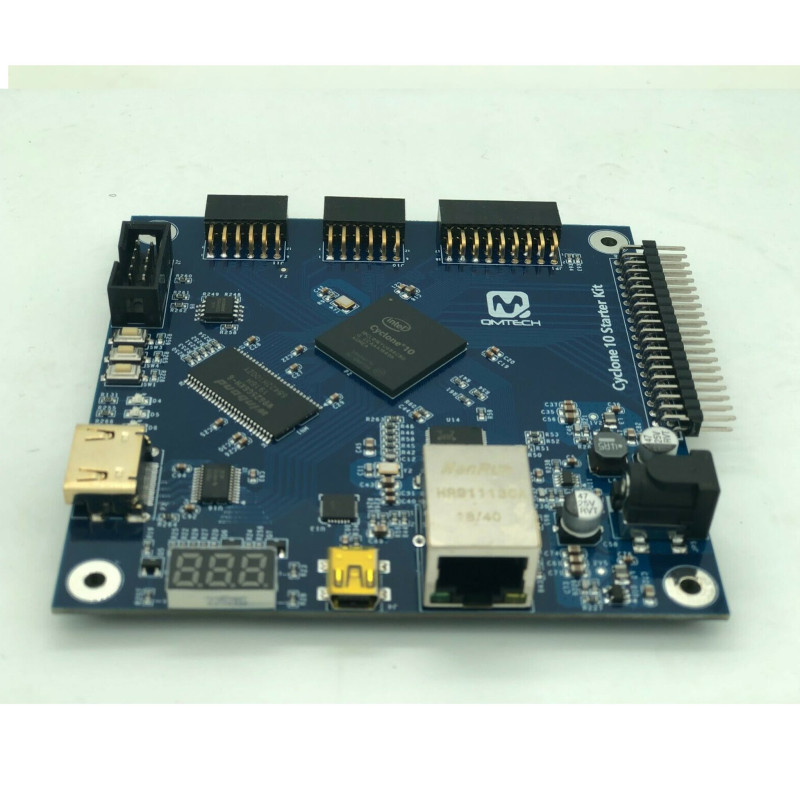

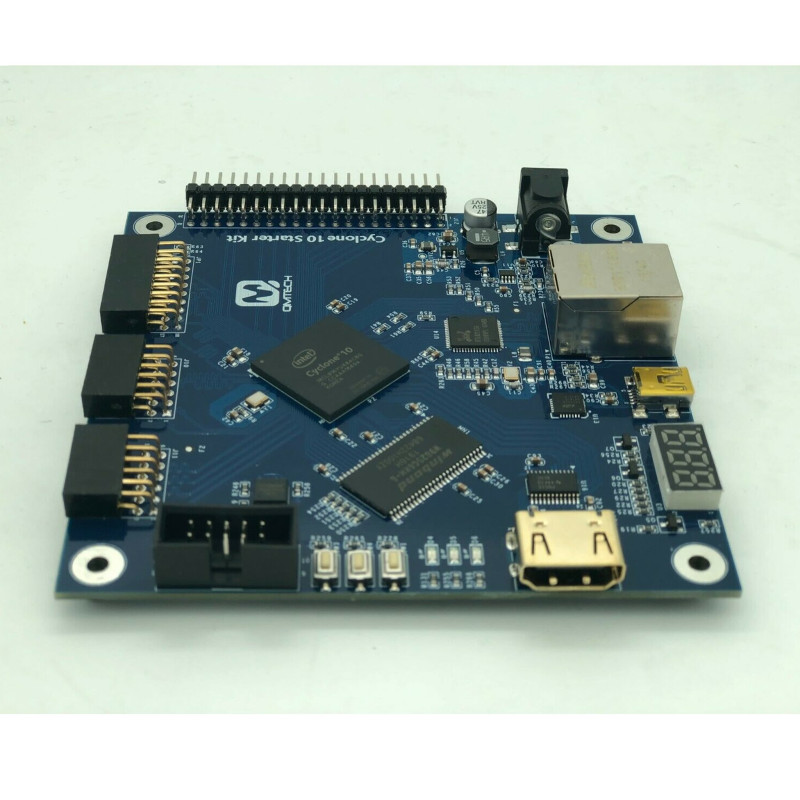

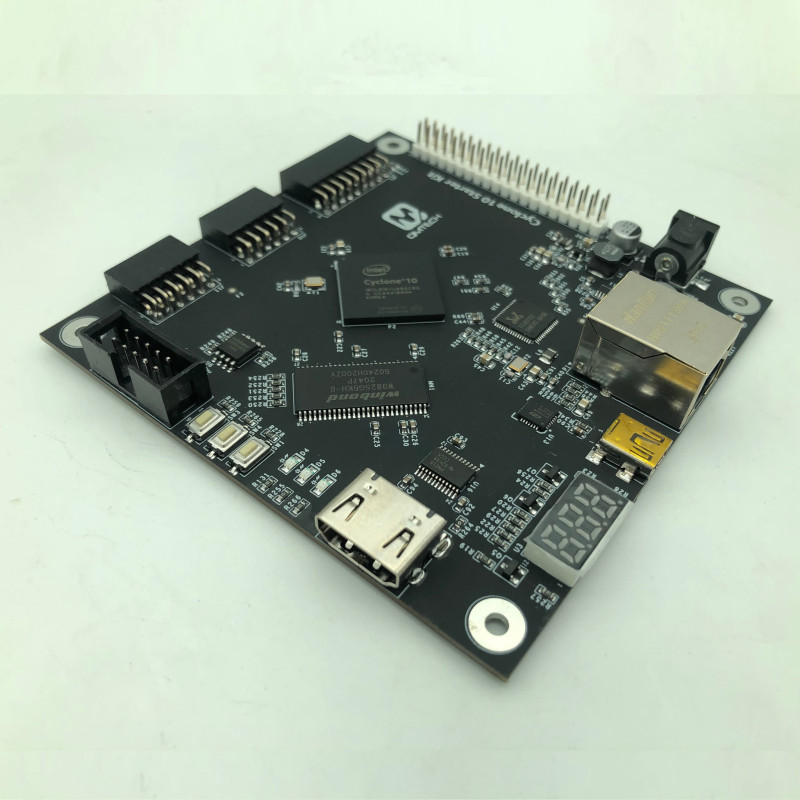

QMTECH Altera Intel FPGA Development Board

Cyclone 10 Cyclone10 10CL016 SDRAM Starter Kit HDMI

Specification:

    On-Board FPGA: 10CL016YU484C8G;
    On-Board FPGA external crystal frequency: 50MHz;
    10CL016 has rich RAM resource;
    10CL016 has 16K logic cells;
    On-Board Winbond SPI Flash W25Q64, 8M bytes for user configuration code;
    On-Board 32MB Winbond SDRAM, W9825G6KH-6;
    On-Board 3.3V power supply for FPGA by using MP2315 wide input range DC/DC;

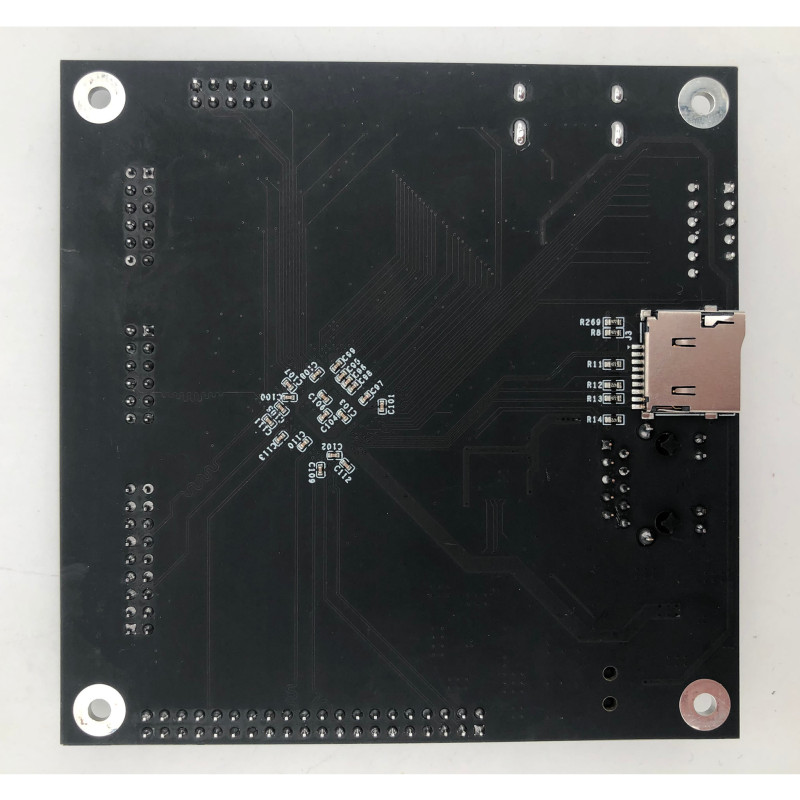

    Cyclone 10 Starter Kit provides camera interface, 2xPMOD headers, one TF Card Slot and 40P Male header for User IOs;
    Cyclone 10 Starter Kit has 3 user switches;
    Cyclone 10 Starter Kit has 3 user LEDs;
    Cyclone 10 Starter Kit has JTAG interface, by using 10p, 2.54mm pitch header;
    Cyclone 10 Starter Kit provides GMII Ethernet by using RealTek RTL8211EG;
    Cyclone 10 Starter Kit provides 7-SEG LEDs;
    Cyclone 10 Starter Kit provides USB to UART serial port by using CP2102N;
    Cyclone 10 Starter Kit provides HDMI compatible interface;
    Cyclone 10 Starter Kit PCB size is: 9.96cm x 9.96cm;
    Default power source for board is: 1A@5V DC, the DC header type: DC-050, 5.5mmx2.1mm;

Packing List:

    One QMTECH_CYCLONE_10_STARTER_KIT Development Board.
    One USB 2.0 cable Type A to Mini B, Male to Male 5Pin.
    One USB to 5V cable.
    Schematic, User Manual, Test Program are provided via Github. Please search keyword CYCLONE_10_STARTER_KIT in Github.
