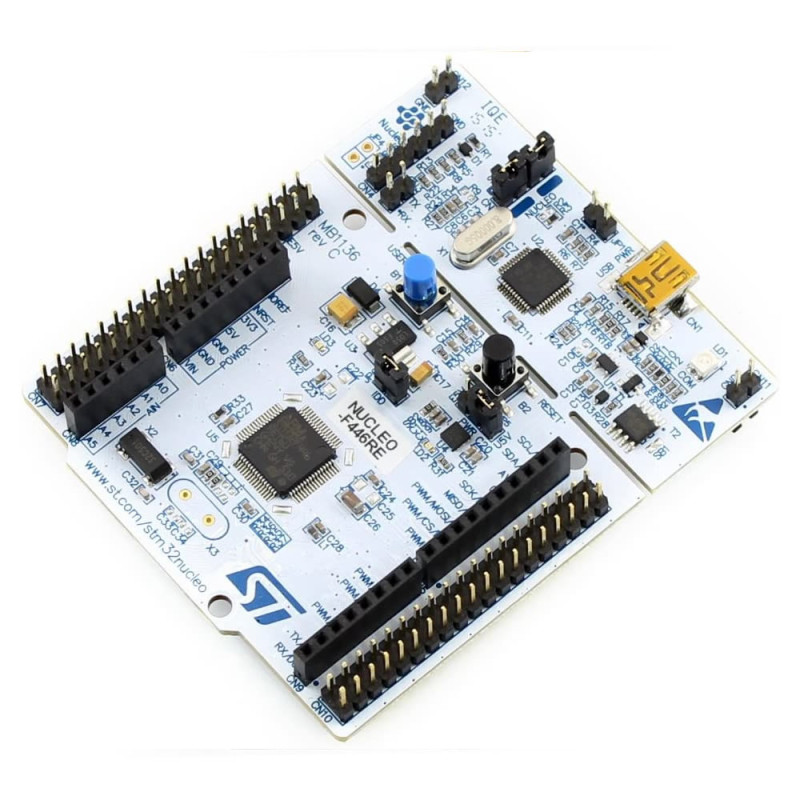

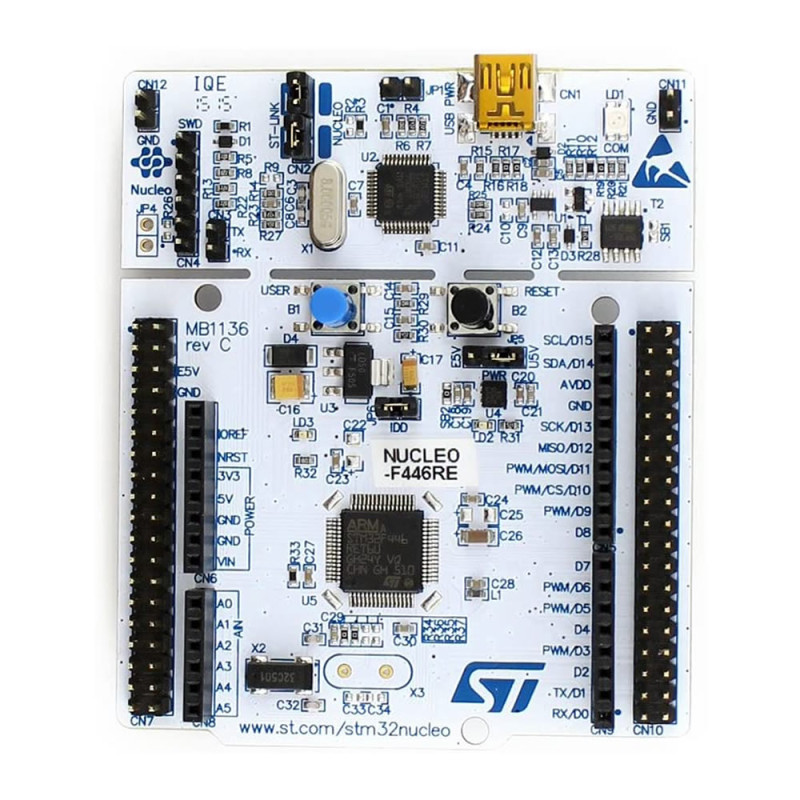

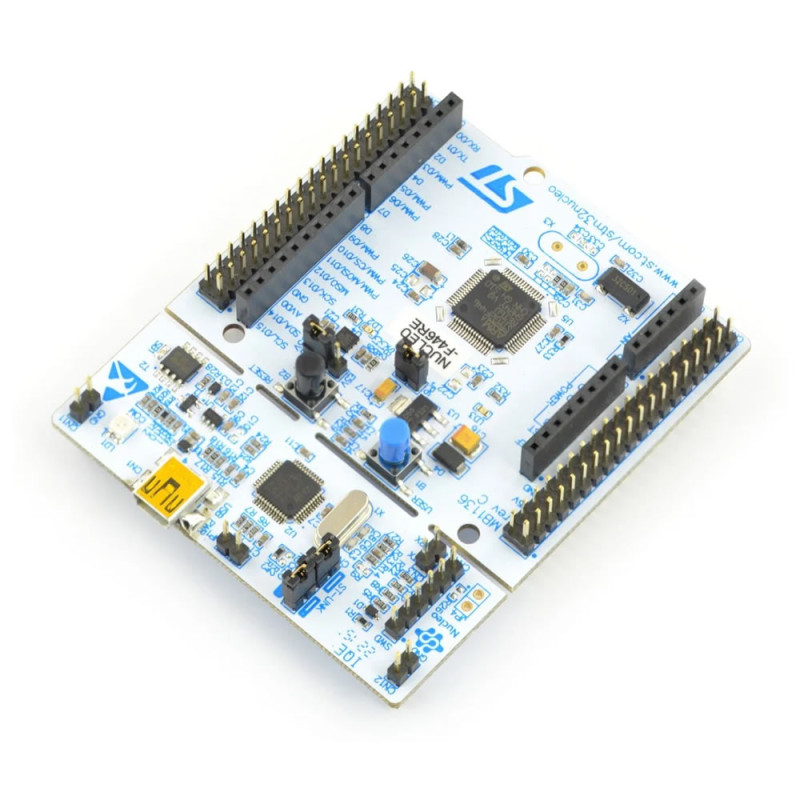

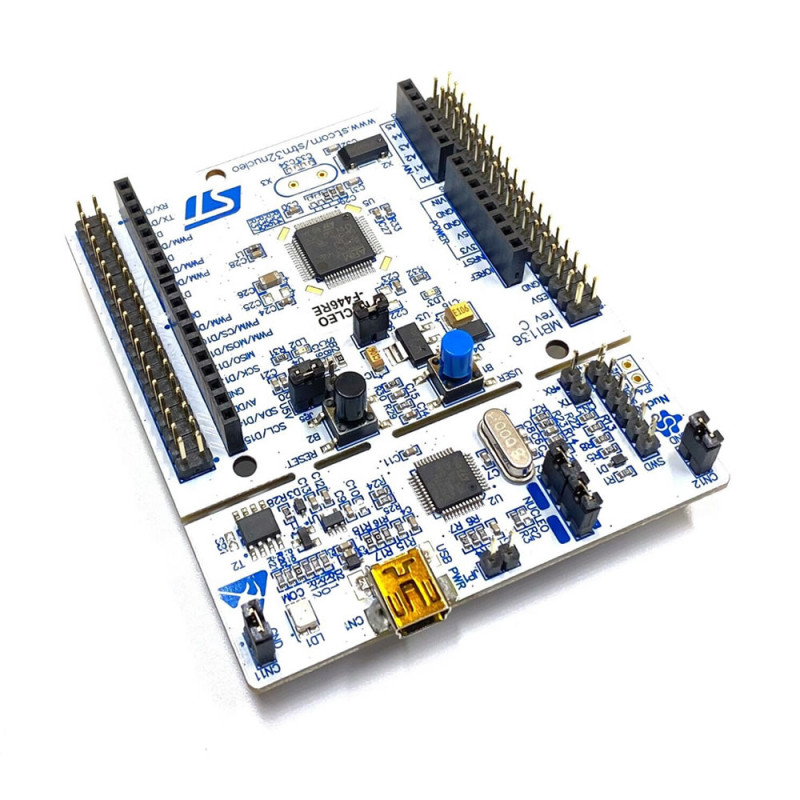

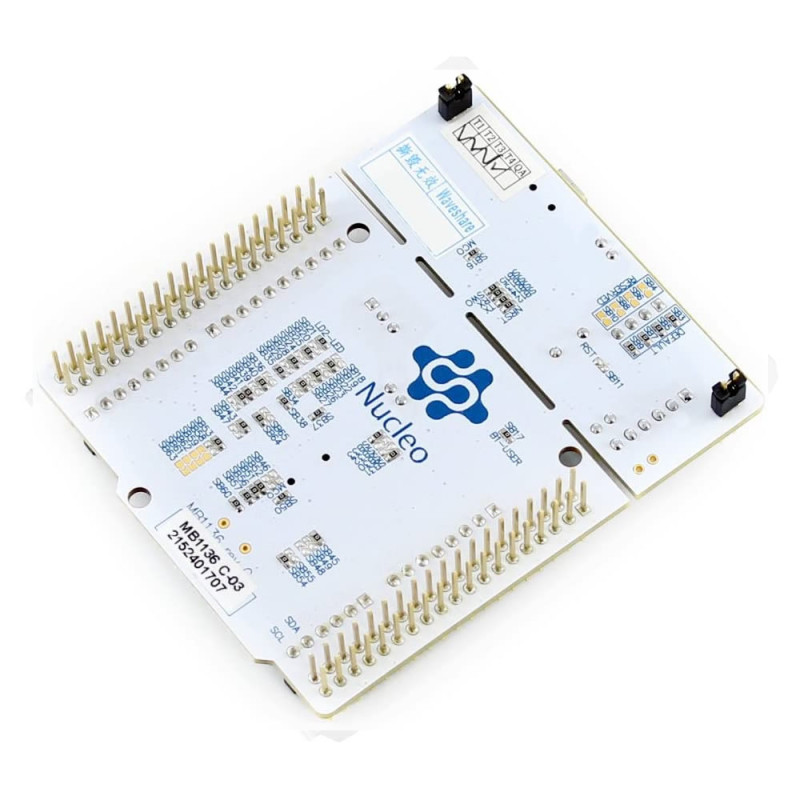

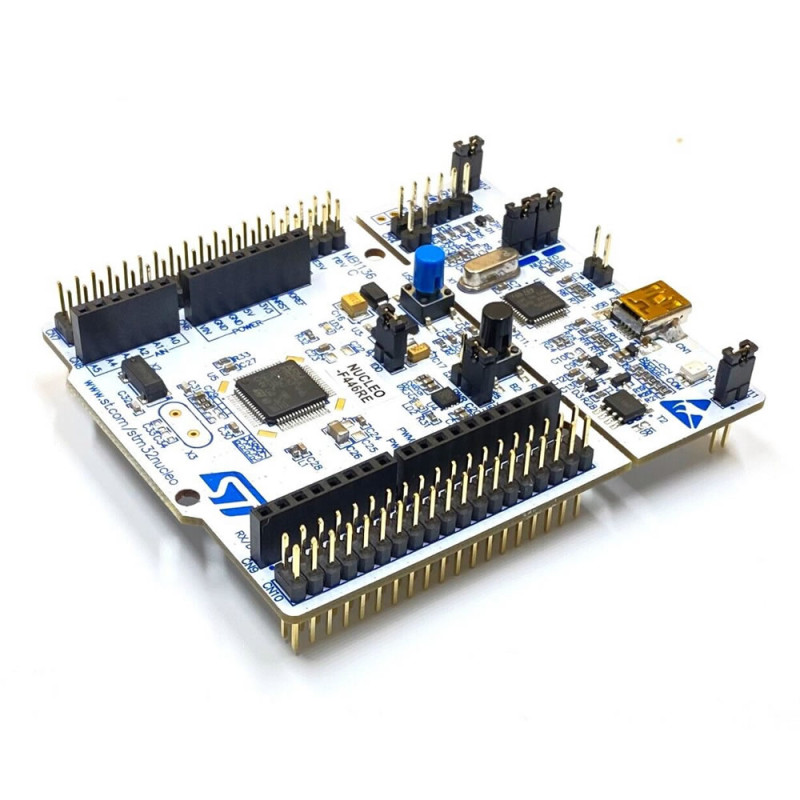

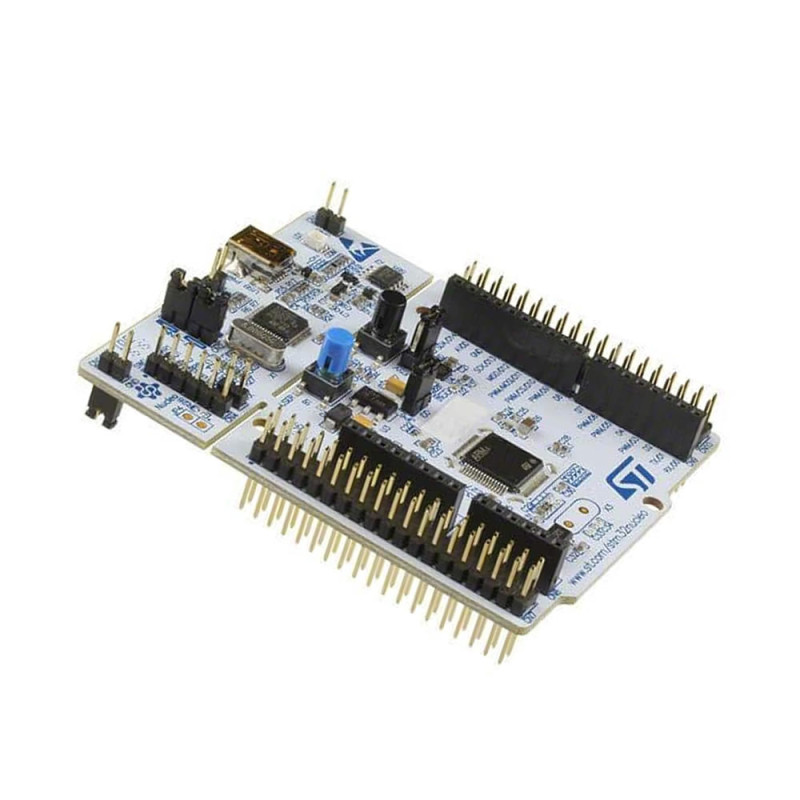

ST NUCLEO-F446RE Nucleo Kit

ST NUCLEO-F446RE Nucleo Kit

STM32F446RET6 32 Bit Arm Cortex M4 180MHz Mcu STM32 Geliştirme Kartı ST-LINK V2 Jtag Programlayıcı Arduino 512Kb Flash DSP FPU ART Accelerator

     The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

     The Arduino connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

Features:

•        Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
•        512 Kbytes of Flash memory
•        128 Kbytes of SRAM
•        Flexible external memory controller with up to 16-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memories
•        Dual mode QuadSPI interface
•        LCD parallel interface, 8080/6800 modes
•        Clock, reset and supply management
•        1.7 V to 3.6 V application supply and I/Os
•        POR, PDR, PVD and BOR
•        4 to 26 MHz crystal oscillator
•        Internal 16 MHz factory-trimmed RC (1% accuracy)
•        32 kHz oscillator for RTC with calibration
•        Internal 32 kHz RC with calibration
•        Low power
•        Sleep, Stop and Standby modes
•        VBAT supply for RTC, 20×32 bit backup registers plus optional 4 KB backup SRAM
•        3× 12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
•        2× 12-bit D/A converters
•        General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
•        Up to 17 timers: 2x watchdog, 1x SysTick timer and up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to four IC/OC/PWM or pulse counter
•        Debug mode
•        SWD and JTAG interfaces
•        Cortex-M4 Trace Macrocell™
•        Up to 114 I/O ports with interrupt capability
•        Up to 111 fast I/Os up to 90 MHz
•        Up to 112 5 V-tolerant I/Os
•        Up to 20 communication interfaces
•        SPDIF-Rx
•        Up to 4× I2C interfaces (SMBus/PMBus)
•        Up to four USARTs and two UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
•        Up to four SPIs (45 Mbits/s), three with muxed I2S for audio class accuracy via internal audio PLL or external clock
•        2x SAI (serial audio interface)
•        2× CAN (2.0B Active)
•        SDIO interface
•        Consumer electronics control (CEC) I/F
•        Advanced connectivity
•        USB 2.0 full-speed device/host/OTG controller with on-chip PHY
•        USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
•        Dedicated USB power rail enabling on-chip PHYs operation throughout the entire MCU power supply range
•        8- to 14-bit parallel camera interface up to 54 Mbytes/s
•        CRC calculation unit
•        RTC: subsecond accuracy, hardware calendar
•        96-bit unique ID

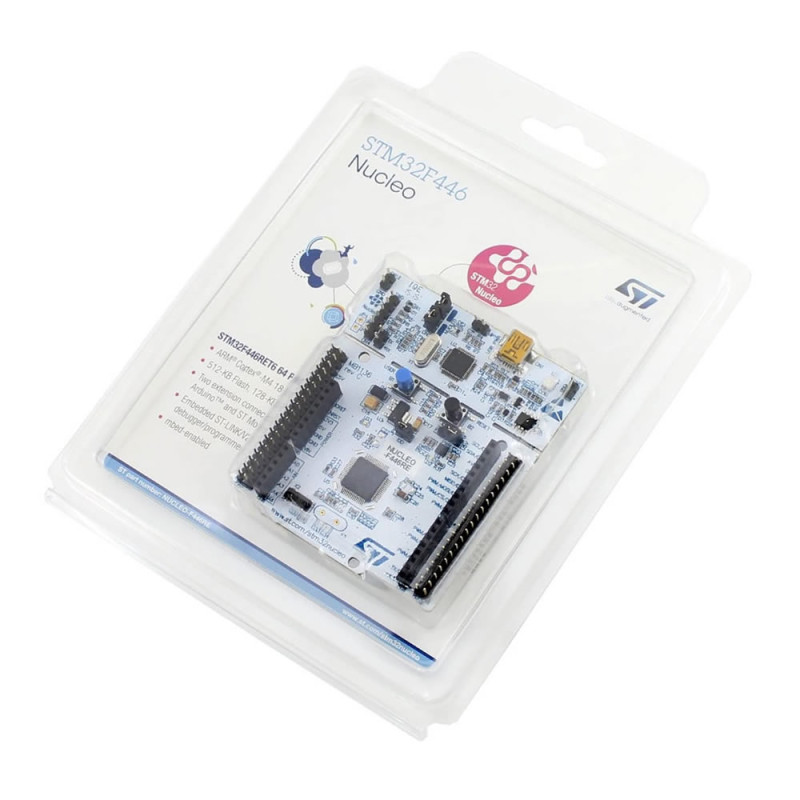

Paket İçeriği:

•     1 Adet ST NUCLEO-F446RE Kit

Dikkat = Paket içerisinden mini usb kablo çıkmaz.
