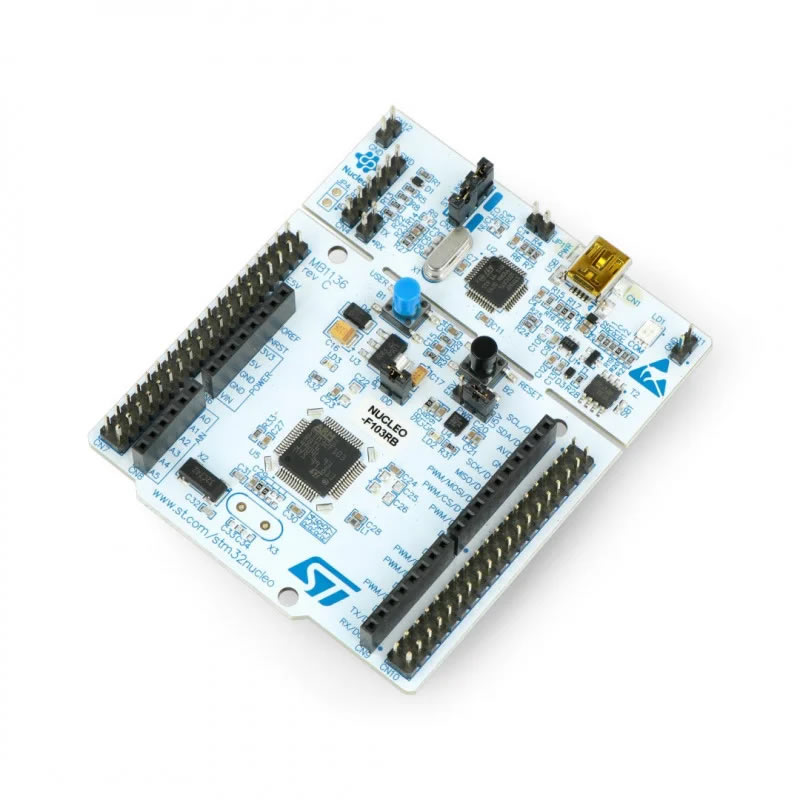

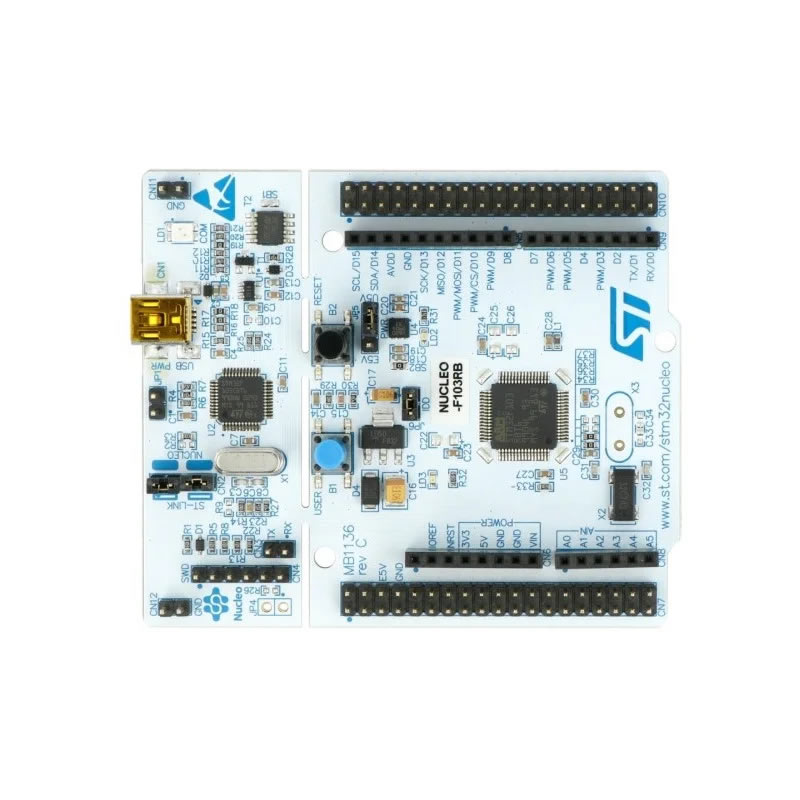

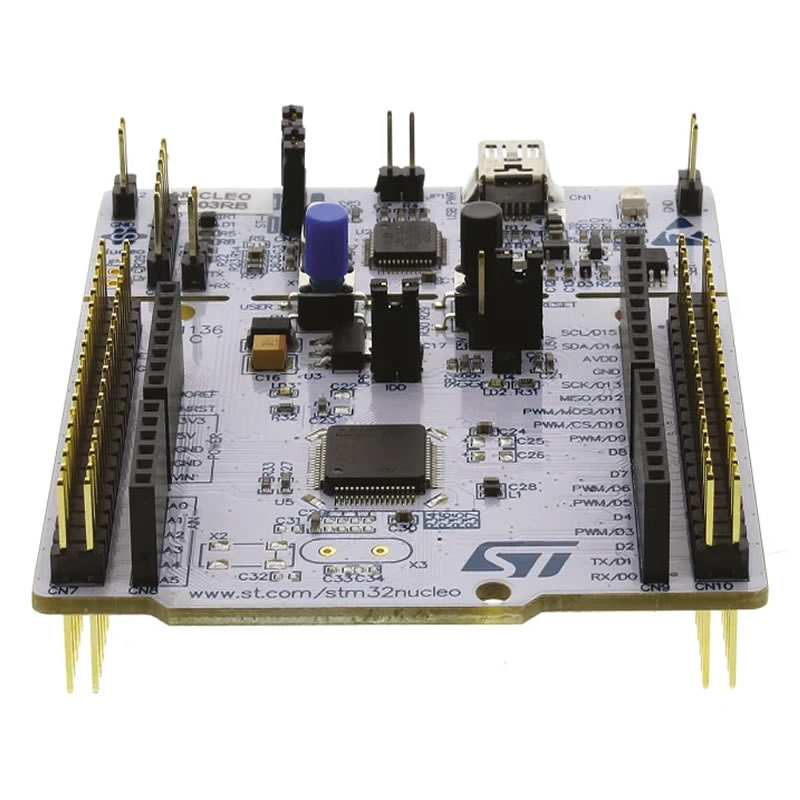

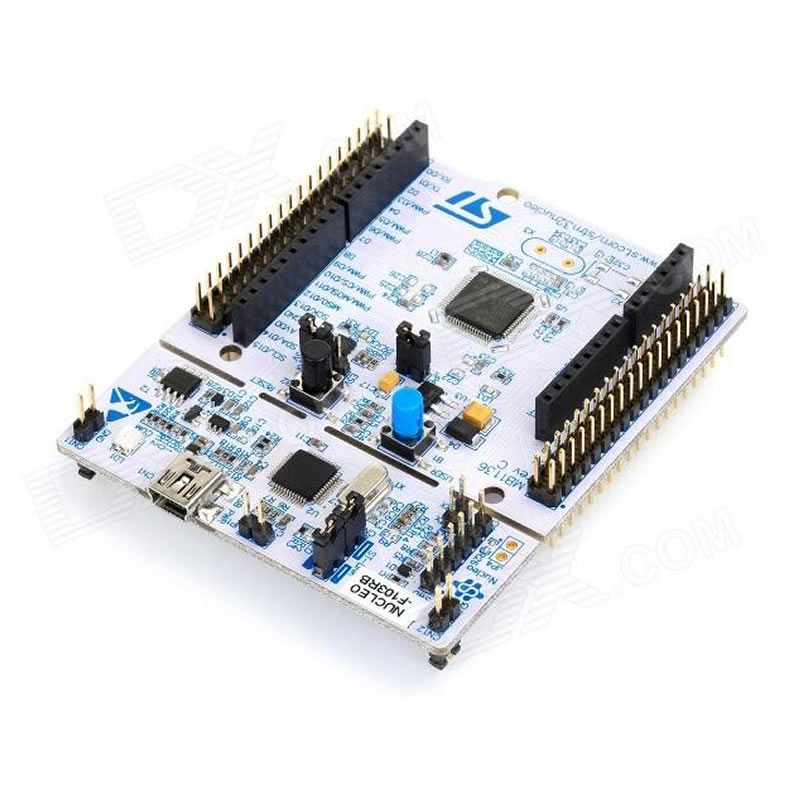

NUCLEO-F103RB

ST NUCLEO-F103RB Nucleo Kit

STM32F103RBT6 Arm Cortex-M3 72MHz Mcu Stm32 Geliştirme Kartı ST-LINK V2 Arduino 128Kb Flash Motor Kontrol Usb Can

     The Stm32 nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any Stm32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

     The Stm32 nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.

     The Stm32 nucleo-64 board comes with the Stm32 comprehensive free software libraries and examples available with the stm32 cube mcu package.

     The Aarduino Uno V3 connectivity support and the st morpho headers allow the easy expansion of the functionality of the stm32 Nucleo open development platform with a wide choice of specialized shields.

Microcontroller features

•     STM32F103RBT6 in LQFP64 package
•     ARM 32-bit Cortex-M3 CPU
•     72 MHz max CPU frequency
•     VDD from 2.0 V to 3.6 V
•     128 KB Flash
•     20 KB SRAM
•     GPIO (51) with external interrupt capability
•     12-bit ADC (2) with 16 channels
•     RTC
•     Timers (4)
•     I2C (2)
•     USART (3)
•     SPI (2)
•     USB 2.0 full-speed
•     CAN

Nucleo Features:

•     STM32 microcontroller in an LQFP64 or LQFP48 package
•     Two types of extension resources
•     Arduino Uno V3 expansion connector
•     ST Microelectronics Morpho extension pin headers for full access to all STM32 I/Os
•     On-board ST-LINK/V2-1 debugger programmer with SWD connector
•     Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
•     Flexible board power supply
•     Usb power or external source (3.3 V, 5 V, 7 - 12 V)
•     Power management access point
•     32.768 kHz crystal oscillator
•     User Led (LD2), Power led, Communication led
•     User push button
•     Reset push button
•     USB re-enumeration capability: three different interfaces supported on USB
•     Virtual Com port
•     Mass storage (USB Disk drive) for drag'n'drop programming
•     Debug port
•     Mbed support.
•     Comprehensive free software libraries and examples available with the STM32Cube MCU Package
•     Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench, MDK-ARM, and STM32 Cube IDE

Paket içeriği:

• 1 Adet NUCLEO-F103RB geliştirme kartı
