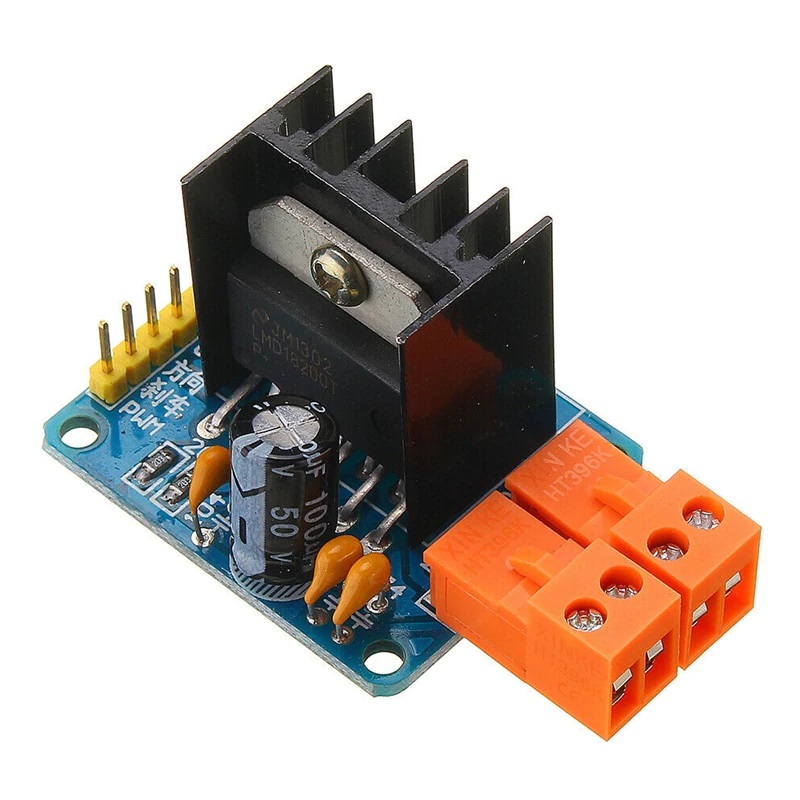

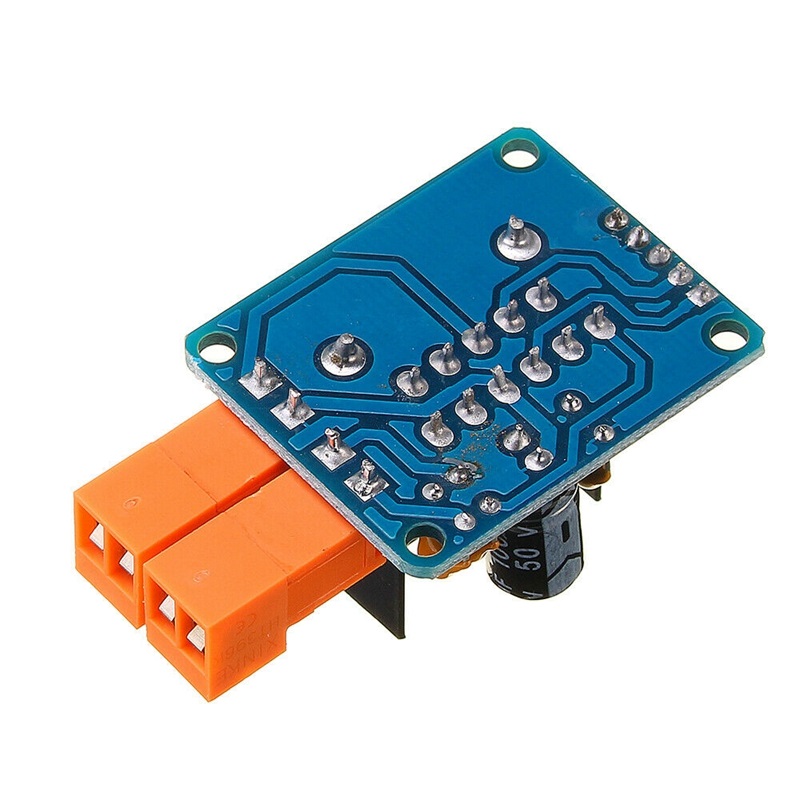

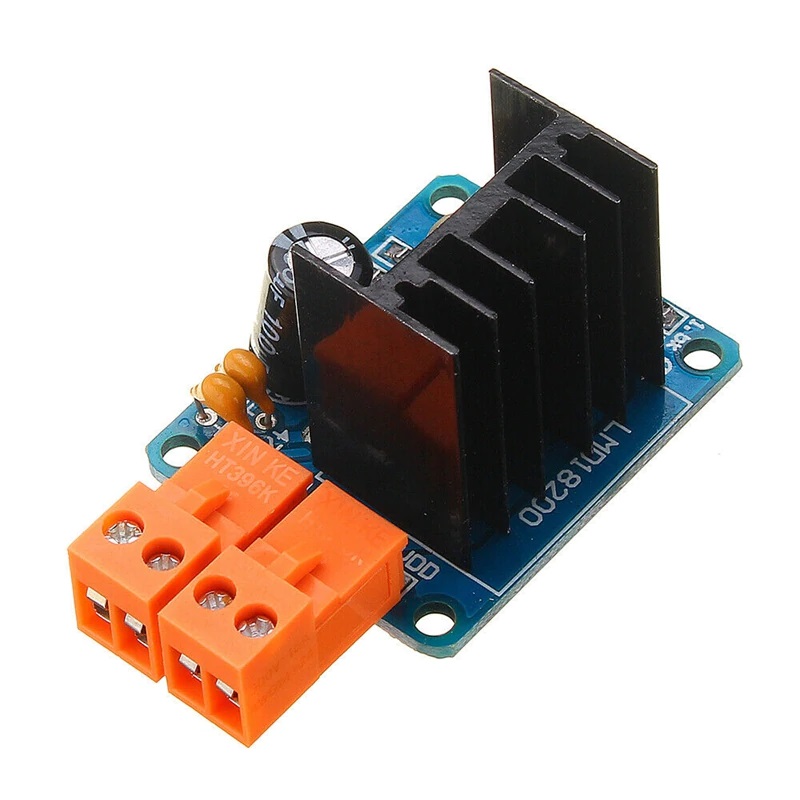

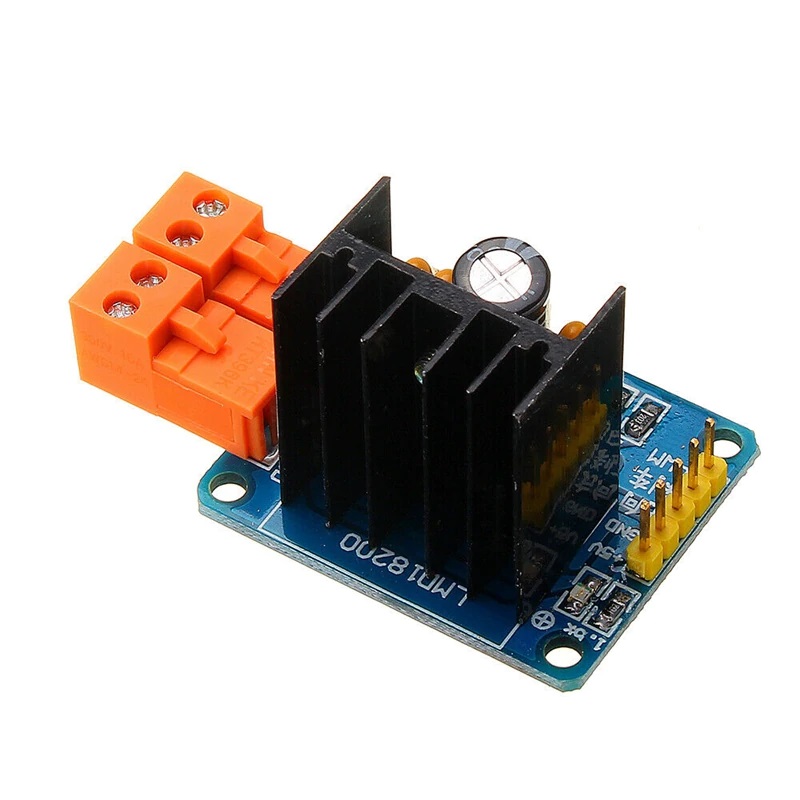

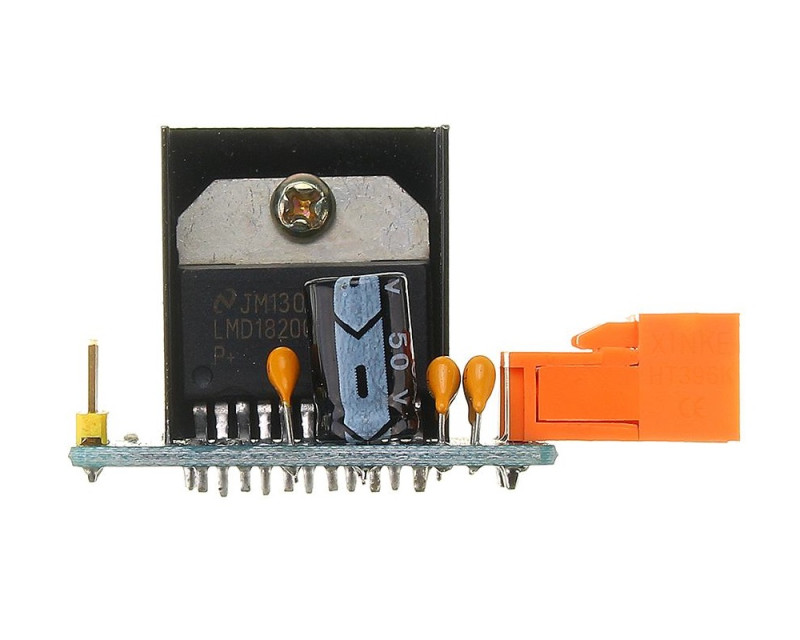

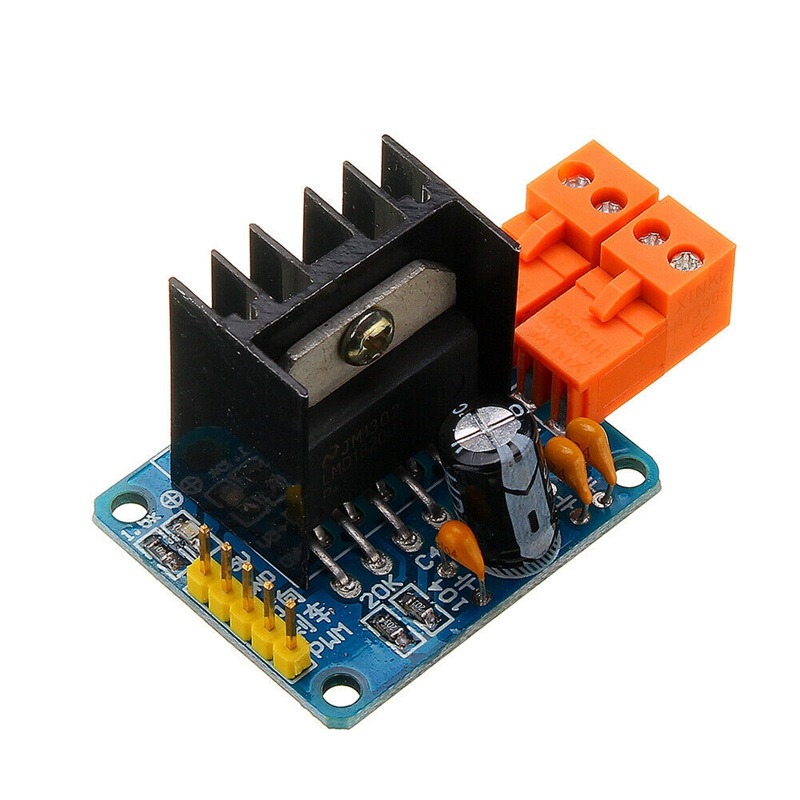

LMD18200 Motor Sürücü Modül
LMD18200 75 W H-Bridge DC Motor Sürücü
H-bridge DC motor sürücü entegre LM18200T entegresinin kullanıldığı modüldür. Full H-bridge yapısı ile güçlü motor sürme ve frenleme etkisine sahiptir. Haraket kontrol ( motion control ) uygulamaları için geliştirilmiştir. Maksimum 3A sürme (6A peak) akımına sahiptir. 55V a kadar giriş besleme gerilimi ile çalışabilmektedir.
Özellikler:
- Maksimum çıkış akımı: 3A ( 6A peak)
- Besleme voltajı : 55V
- Maksimum çıkış gücü: 75 W
- Düşük RDS(ON) : Tipik 0.33Ω
- Kontrol sinyali : DC 4.5 ~ 5.5 V
- Ayarlanabilir hız kontolü
- Kısa devre yük koruması
- Güç gösterge ledi

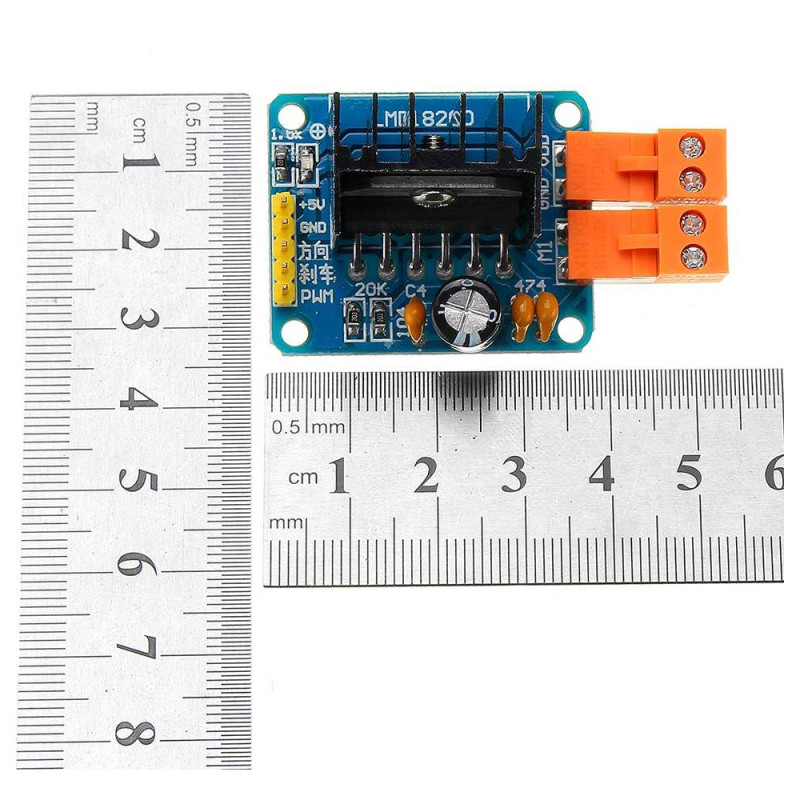

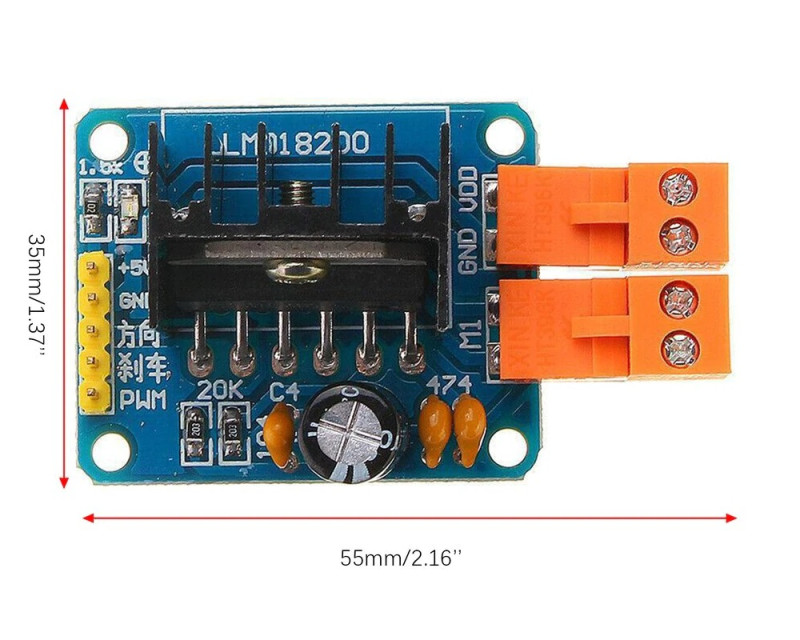

- Boyutu: 31 x 38 x 27mm
Features
- Delivers Up to 3A Continuous Output
- Operates at Supply Voltages Up to 55V
- Low RDS(ON) Typically 0.33Ω per Switch at 3A
- TTL and CMOS Compatible Inputs
- No “Shoot-Through” Current
- Thermal Warning Flag Output at 145°C
- Thermal Shutdown (Outputs Off) at 170°C
- Internal Clamp Diodes
- Shorted Load Protection
- Internal Charge Pump with External Bootstrap Capability
- With power indication
- Adjustable speed
- Strong anti-interference ability
- With freewheeling protection
- Can control one DC motor separately
- PWM pulse width smoothing speed regulation
- Can achieve positive and negative
- Strong driving ability and powerful braking effect!
Paket içeriği:
- 1 Adet LMD18200 Motor Sürücü Modül
