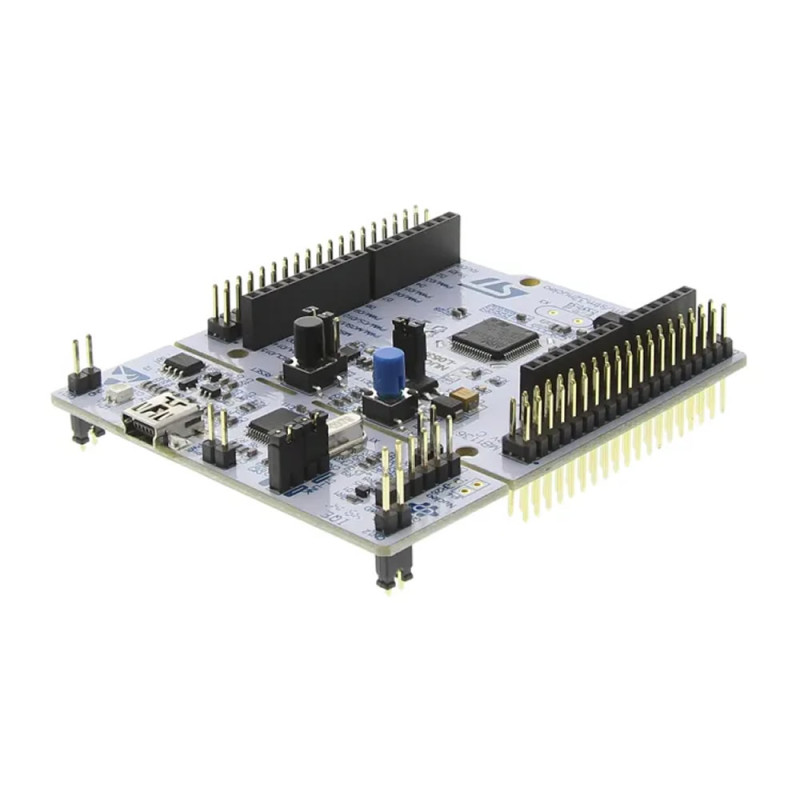

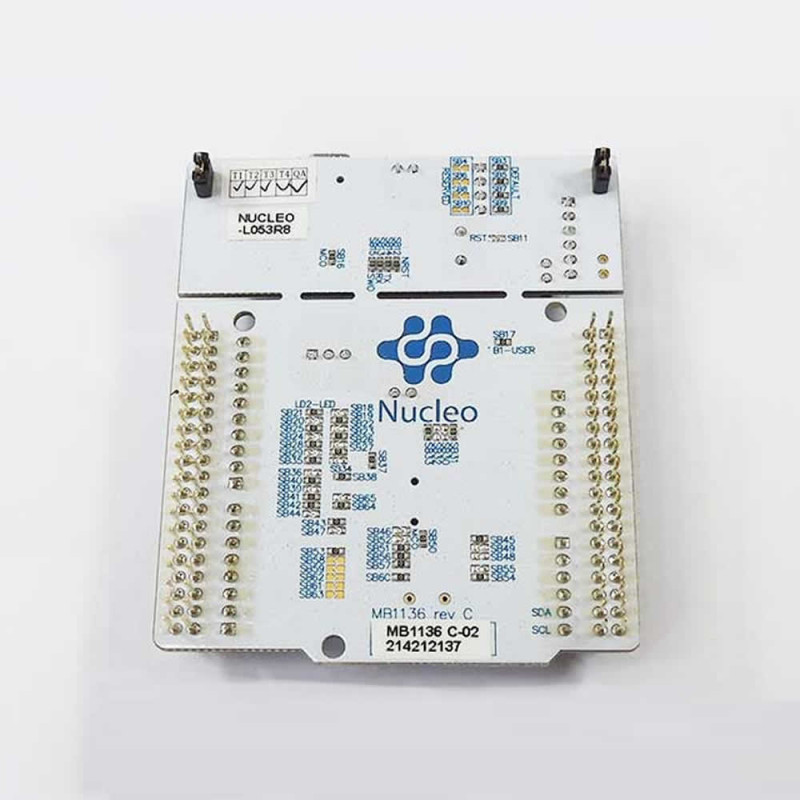

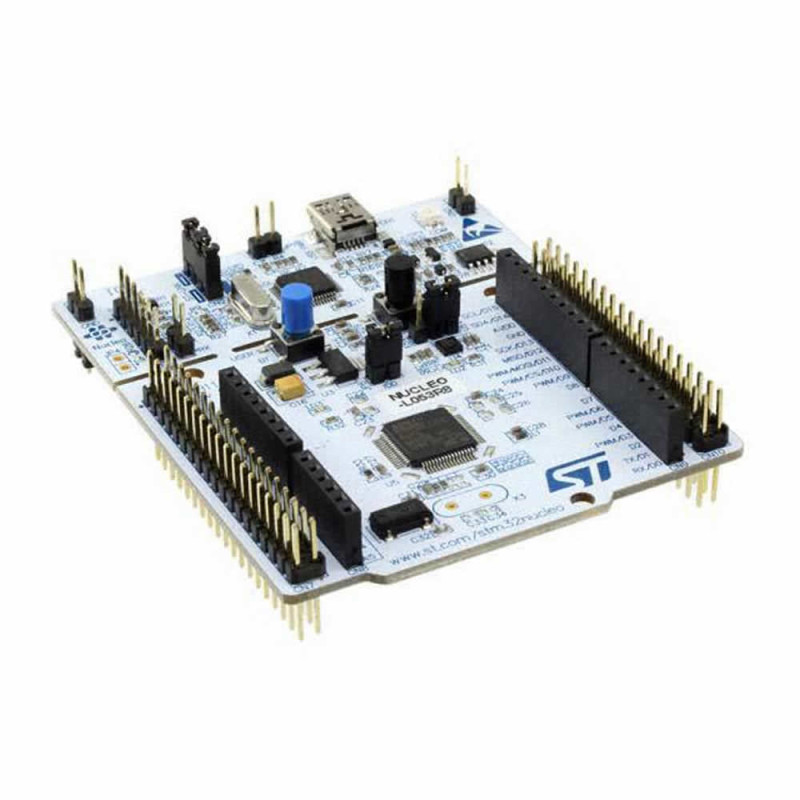

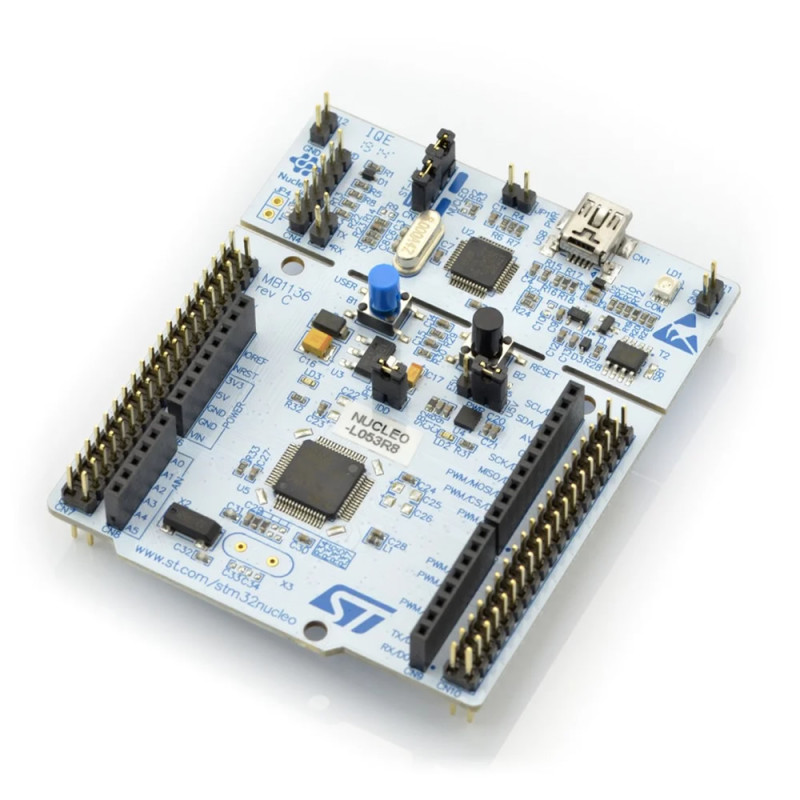

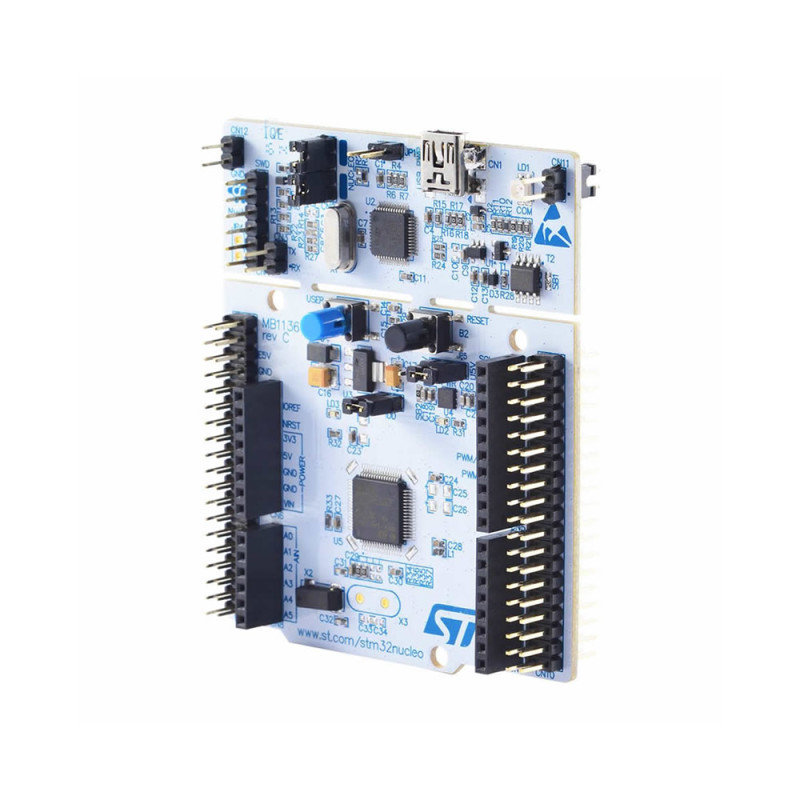

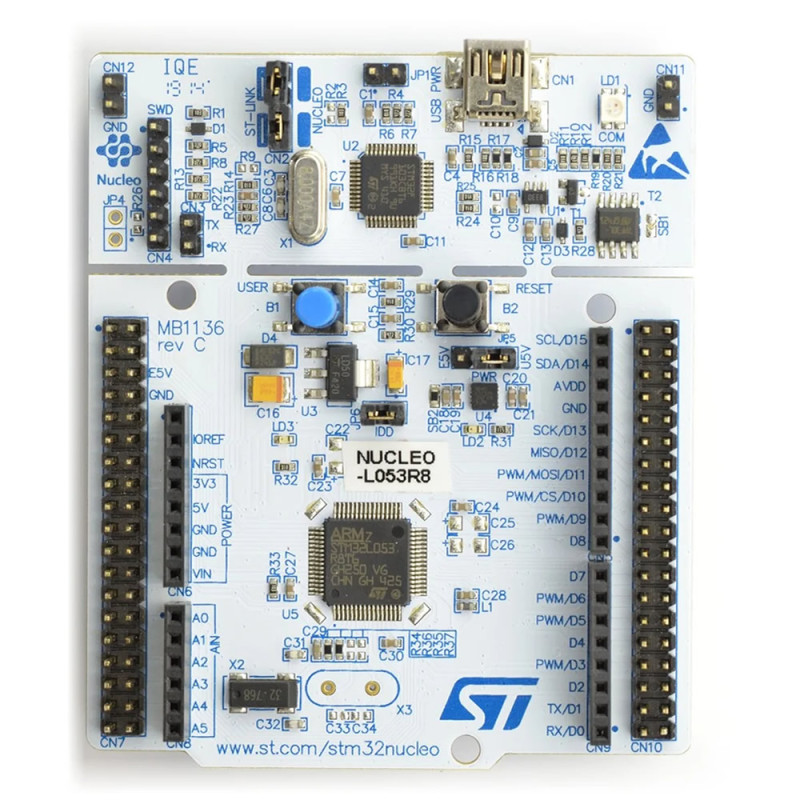

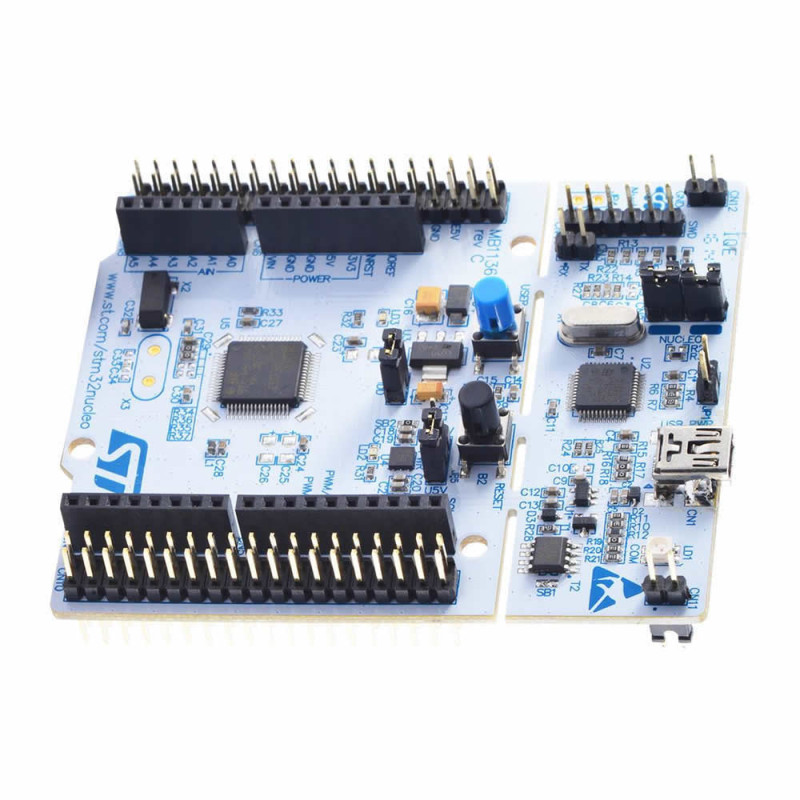

NUCLEO-L053R8



ST NUCLEO-L053R8 Nucleo Kit

STM32 STM32L053R8 Arm Cortex M0 32MHz Mcu STM32 Geliştirme Kartı ST-LINK V2 Arduino 64Kb Flash



      The STM32 Nucleo board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The Arduino Uno V3 connectivity support and the ST morpho headers allow to expand easily the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the ARM mbed online resources at   mbed.org .



Features:

  •     Processor: Ultra Low Power STM32L053R8T6
  •         Core: ARM Cortex M0 32-bit
  •         Clock frequency: 32 MHz
  •         Flash memory: 64 KB
  •         SRAM: 8 KB
  •         Analog-to-digital converter: 12-bit, 16-channel
  •         Digital-to-analog converter: 12-bit, 1-channel
  •         Number of Timers: 9
  •         Interfaces: 2x I2C, 2x USART, 2x SPI
  •     Two types of connectors:
  •         Connectors for shields compatible with Arduino Uno Rev3
  •         Standard pins STMicroelectronics Morpho enabling the access to the pins of the microcontroller
  •     The module is compatible with the system mbed (mbed.org)
  •     The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output
  •     The possibility to power through USB connector
  •         1 x for indication of supply voltage led
  •         1 x for indicating the connection led
  •         1 x at the user's led
  •         1 x Reset button
  •         1 x at the user's button
  •         Virtual COM port
  •         Mass memory
  •         Port for programming/debugging
  •         The module supports most of the popular environments; IAR, Keil and the platforms based on GCC compiler



Paket İçeriği:

  • 1 Adet NUCLEO-L053R8

Dikkat = Paket içerisinden mini usb kablo çıkmaz.
