500P/R E6B2-CWZ6C Omron Rotary Encoder

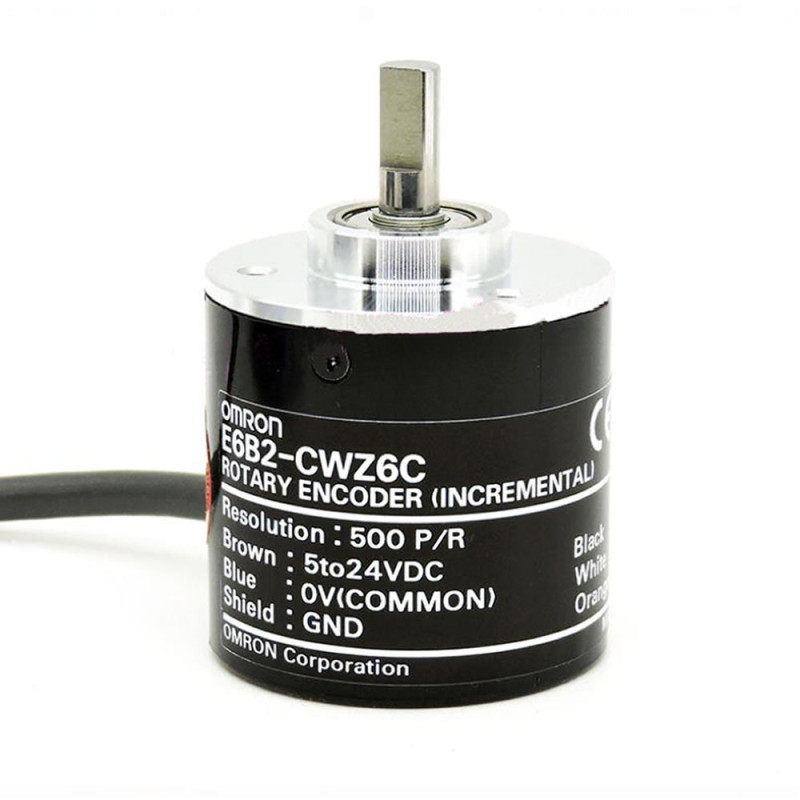

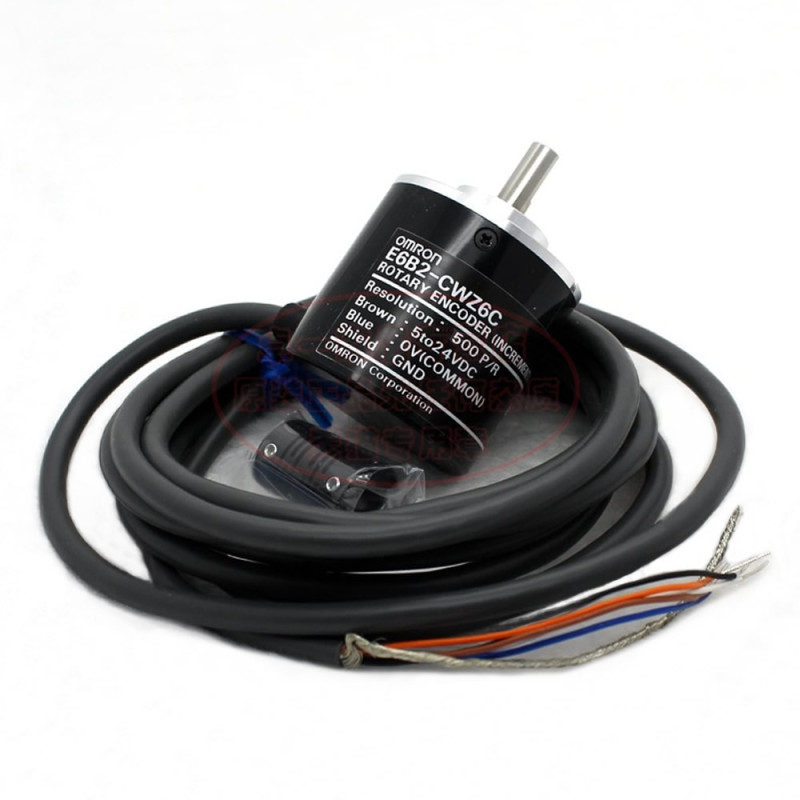

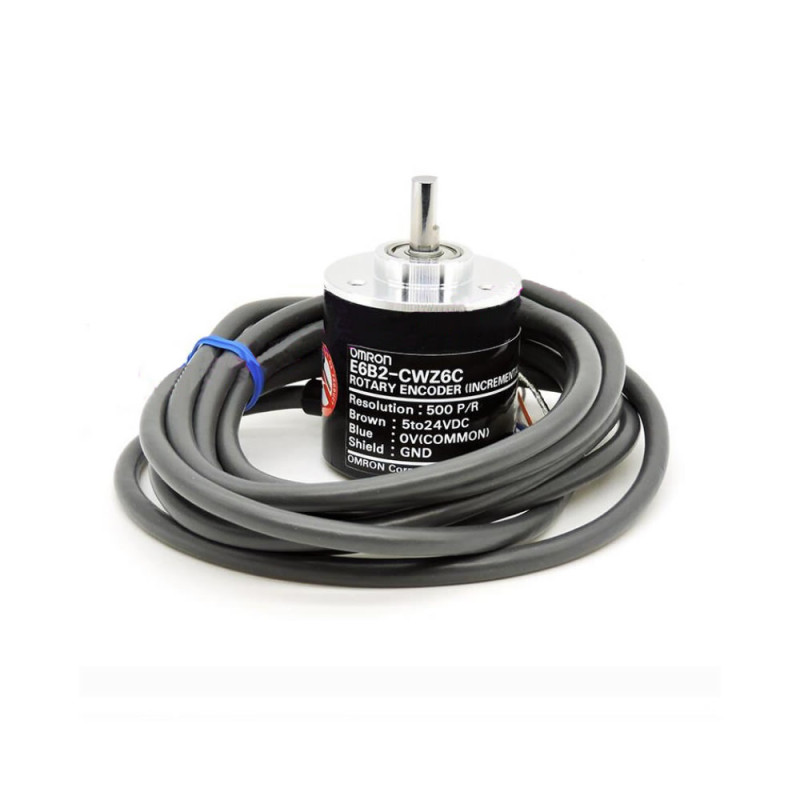

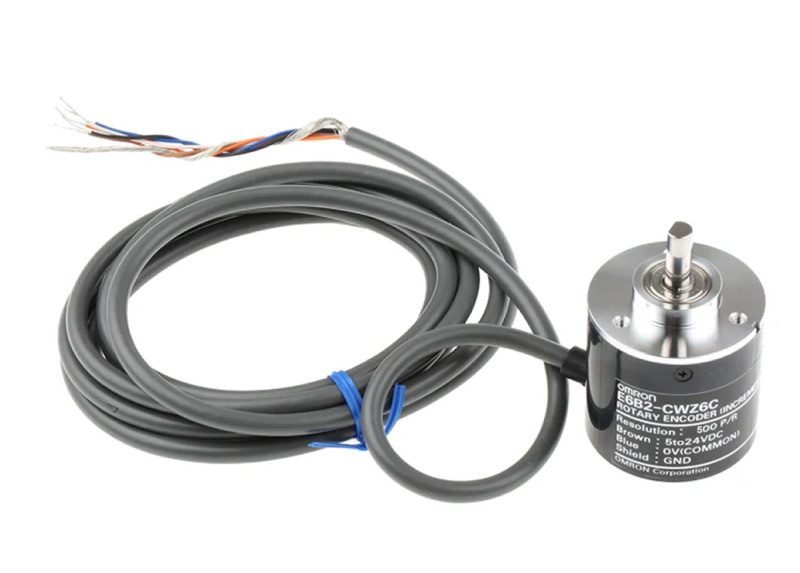

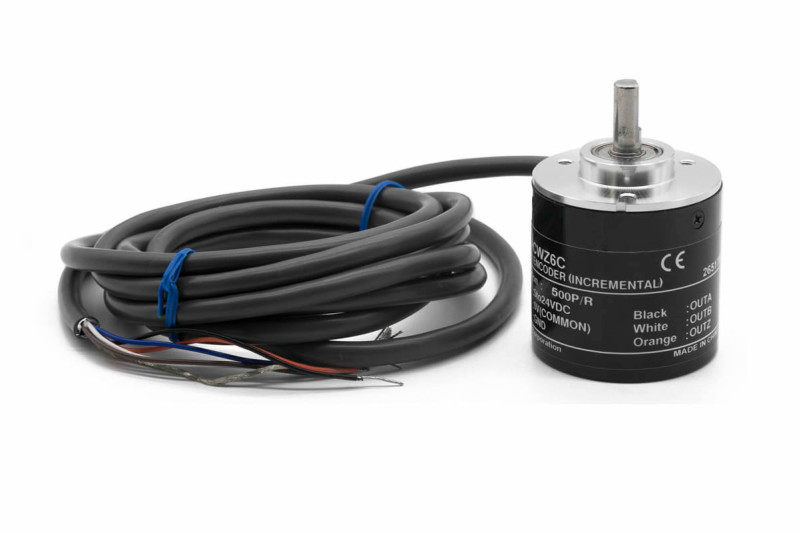

Omron E6B2-CWZ6C Rotary Encoder 500P/R

ABZ Phase 5-24V  500 Pals Optik Döner Enkoder



  • Encoding method     Incremental Shaft model
  • Cable length: 2 m
  • Resolution ratio : 500P/R 5-24v
  • Output phases : A, B, Z (reversible)
  • Control output     NPN open collector
  • Supply voltage : 5 VDC -10% to 24 VDC +15%; max.  5% ripple
  • Diameter     40 mm
  • Current Consumption     80 mA
  • Control Output     35 mA
  • Operating Temperature     -10 to 70 Degree Celsius
  • Storage Temperature     -25 to 85 Degree Celsius
  • Ambient Humidity     35 to 85%RH
  • Degree of Protection     IP50





Categorise Incremental Shaft model
Diameter 40 mm dia.
Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max.
Current consumption 80 mA max.
Resolution 500 P/R
Inrush current Approx. 9 A (0.3 ms)

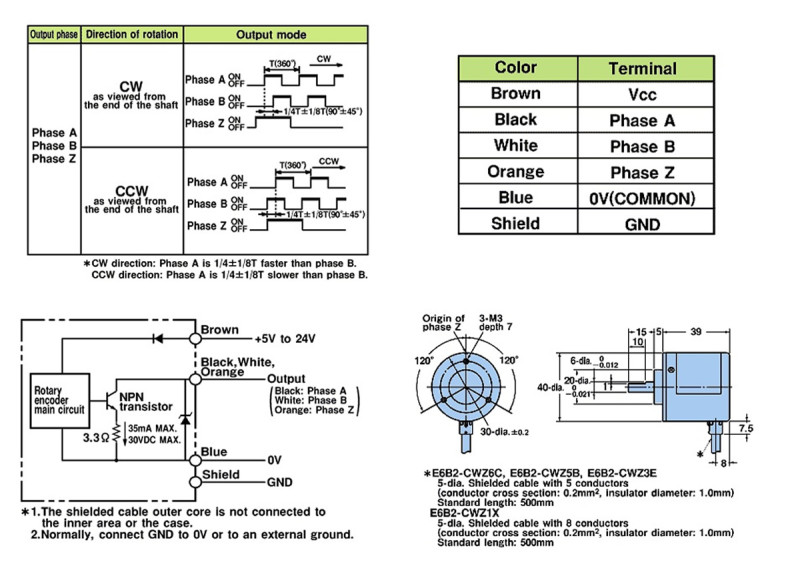

Output phases A, B and Z
Control output Output type NPN open collector
Load power supply voltage 30 VDC max.
Load current 35 mA max. (Sink current)
Residual voltage 0.4 V max. (at sink current 35 mA)
Starting positional point Supported
Max. response frequency 100 kHz
Phase difference on output 90±45 °between A and B (1/4 T ± 1/8 T)
Rise and fall times of output 1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ)
Starting torque Room temperature: 0.98 mN.m max.
Moment of inertia 1 x 10**-6 kg.m**2 max.
Shaft loading Radial: 30 N
Thrust: 20 N
Max. permissible rotation 6000 r/min
Protective circuit Output short-cut protection
Power supply reverse polarity protection
Ambient temperature Operating: -10 to 70℃
Storage: -25 to 85℃
Ambient humidity Operating: 35 to 85%
Storage: 35 to 85%
Insulation resistance Between charged parts and the case: 20 MΩ min. (at 500 VDC)
Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s**2 double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance Destruction: 1000 m/s**2 for 3 times each in X, Y, and Z directions
Degree of protection IEC: IP50
Connection method Pre-wired models (Cable length: 2 m)
Material Case: ABS
Main: Aluminum
Shaft: SUS420J2

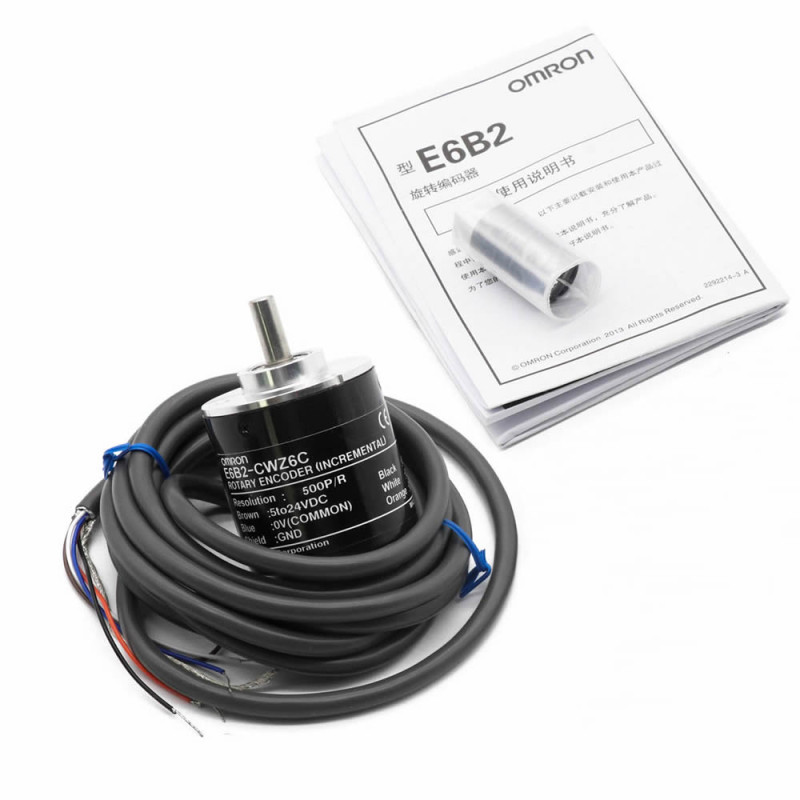

Accessories Instruction manual,Couplings,Hex-head spanner



Write a review

Note: HTML is not translated!
    Bad           Good

Captcha

500P/R E6B2-CWZ6C Omron Rotary Encoder

  • Brand: OMRON
  • Product Code: E6B2-CWZ6C OMRON ENCODER 500RPM
  • Availability: In Stock
  • Fiyat : 725.00TL
  • KDV Dahil : 855.50TL

Tags: 500 pals, Omron, E6B2-CWZ6C, Rotary Encoder, ABZ Phase, 5-24V, 500 Pulses, Incremental, Optical, Rotary Encoder
