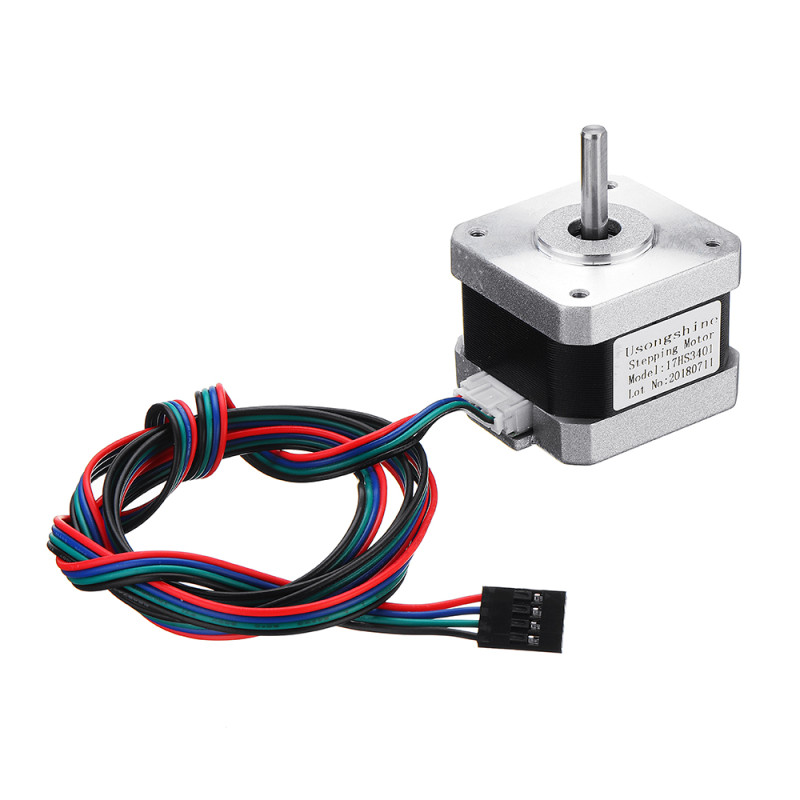

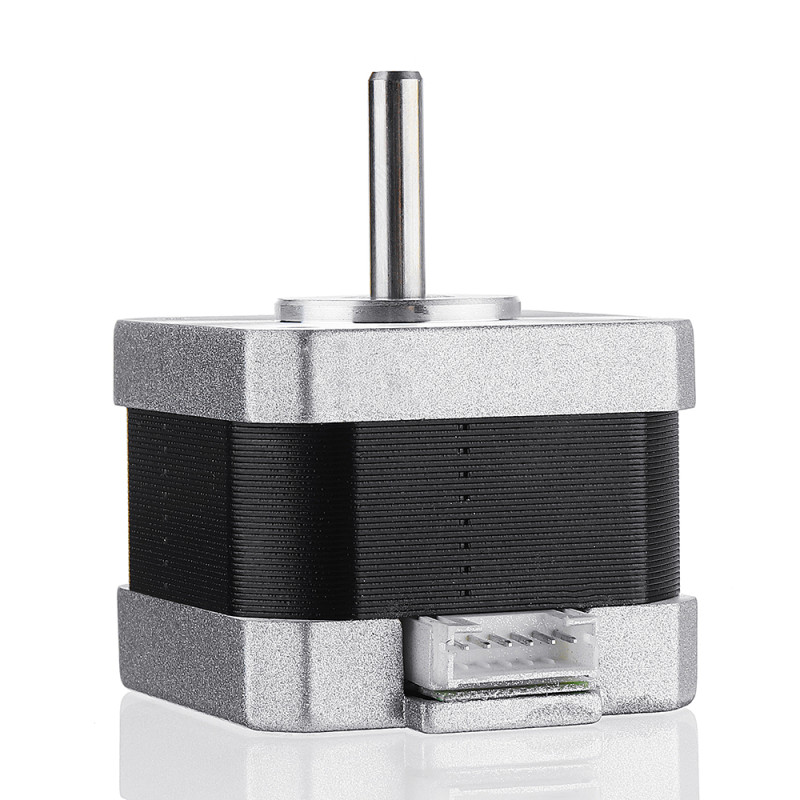

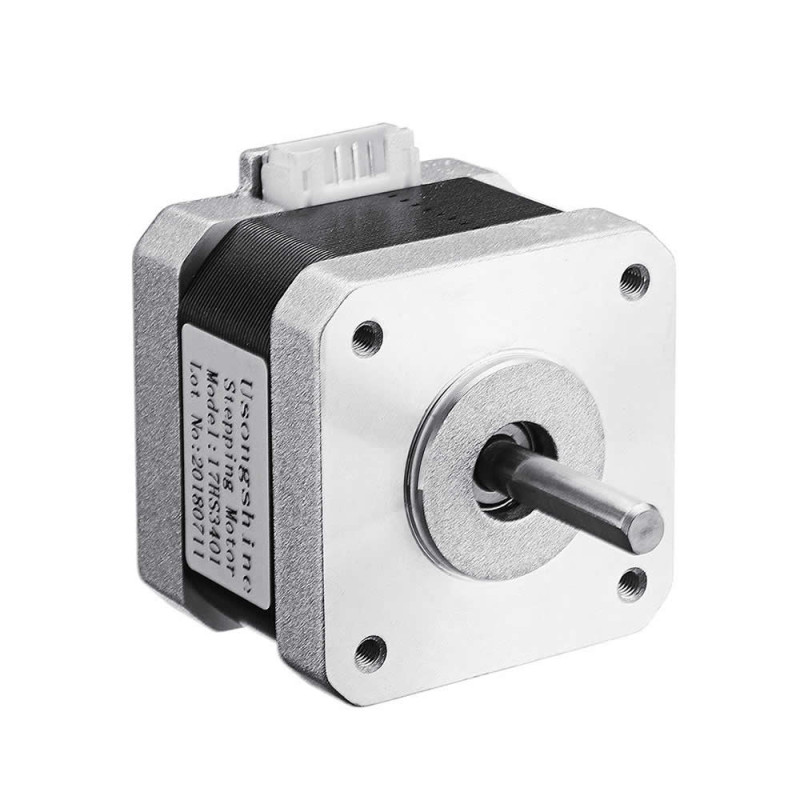

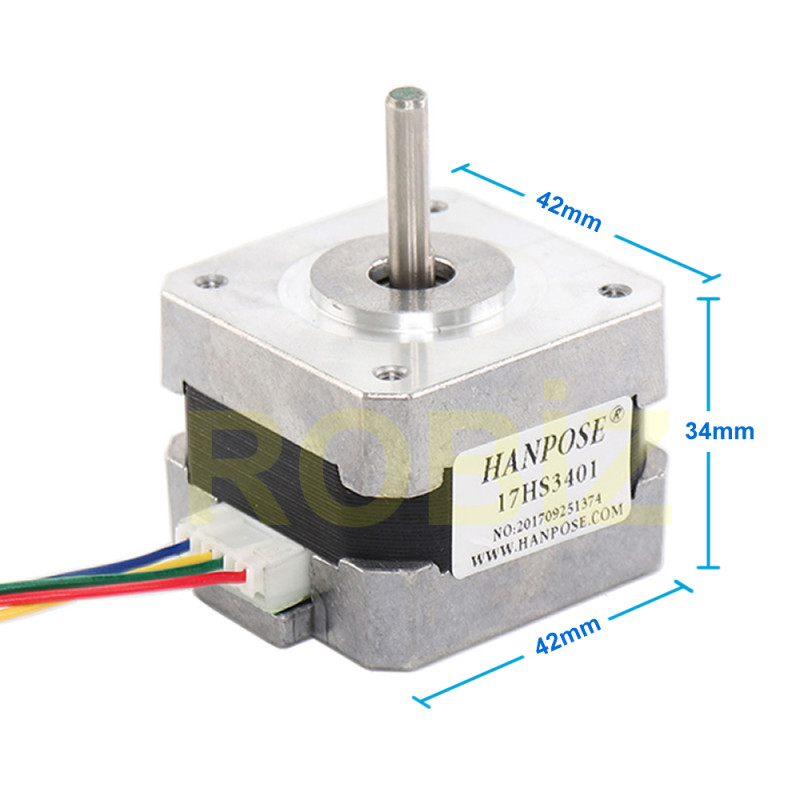

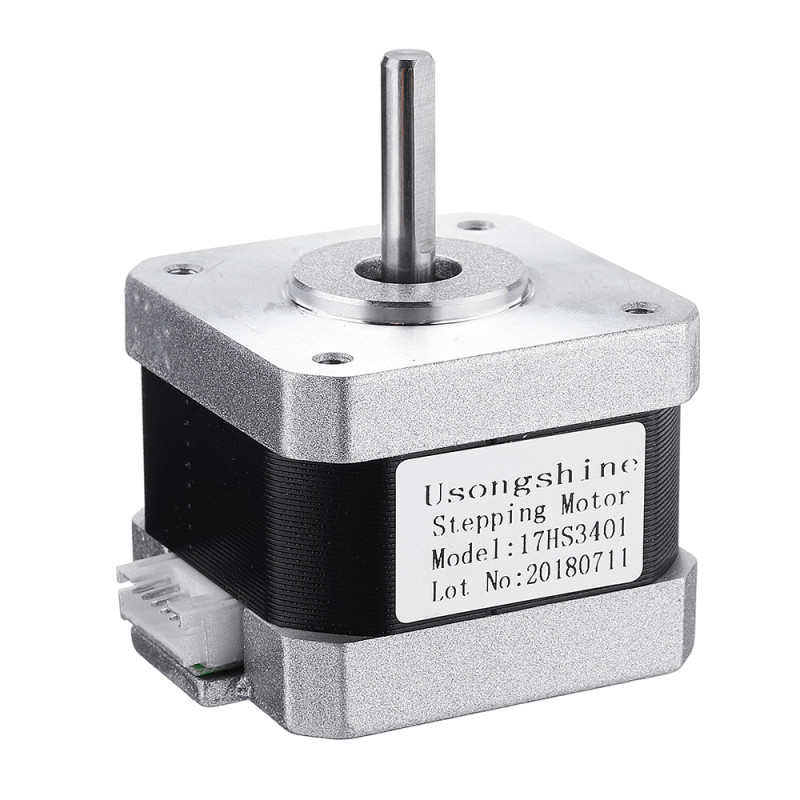

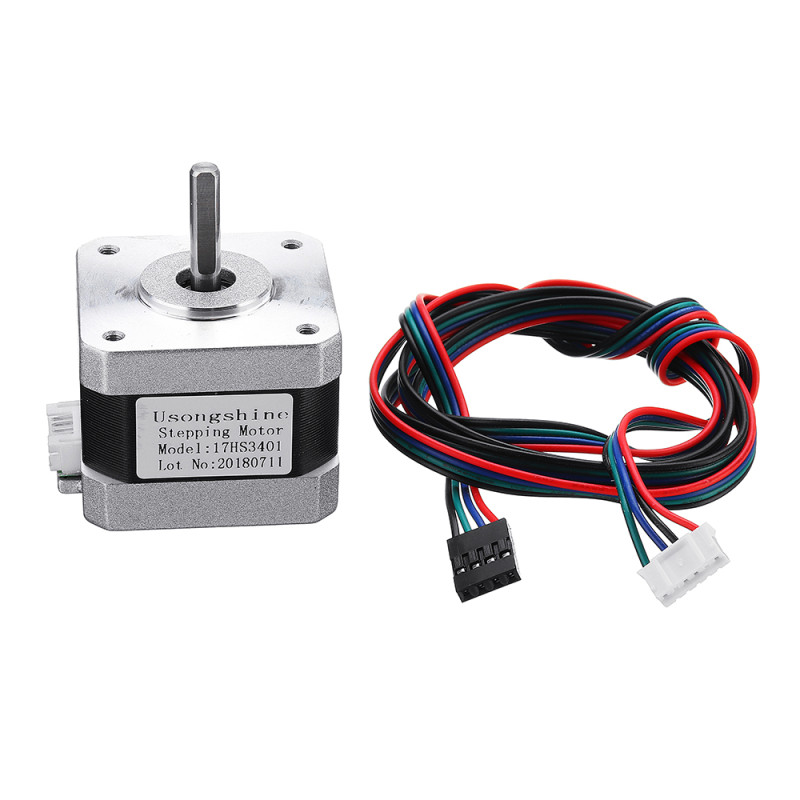

17HS3401 Nema 17 Step Motor

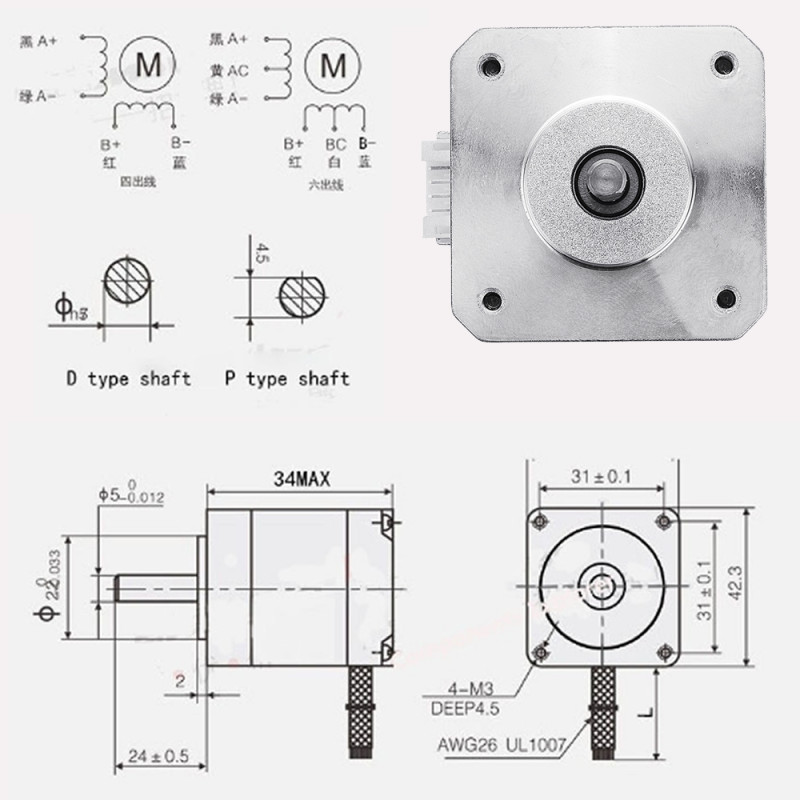

General Specification:
- Step angle accuracy: + - 5%(full step,not load)
- Resistance accuracy: + - 10%
- Inductance accuracy: + - 20%
- Temperature rise: 80deg Max(rated current,2 phase on)
- Ambient temperature ----------—20deg ~+50deg
- Insulation resistance:100MΩ Min,500VDC
- Insultion Strength--------500VAC for one minute
- 5mm diameter shaft

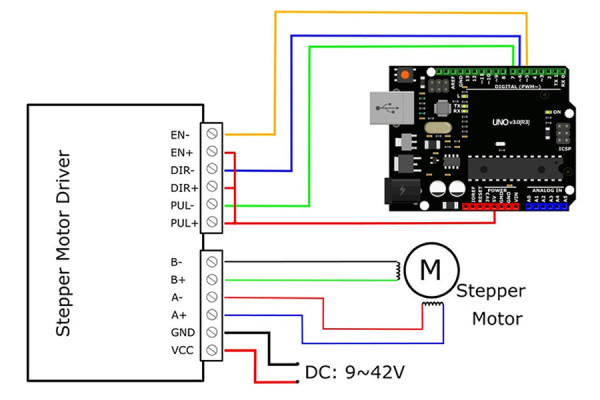

- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
| Model | Step Angle |
Motor Length |
Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Detent Torque | Rotor Inertia | Lead Wire | Motor Weight |
| (deg) | (mm) | (A) | (Ohm) | (mH) | (N.cm) | (N.cm) | (g.cm2) | (No) | (g) | |
| 17HS3401 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 28 | 1.6 | 34 | 4 | 220 |
Paket İçeriği :
- 1 Adet 17HS3401 Nema 17 Step Motor
