12V Mini Air Pump

12V Mini Air Pump

60KPa 2.8l/minute Vacuum Aquarium Medical Air Tank Gas Oxygen Motor Ventilation

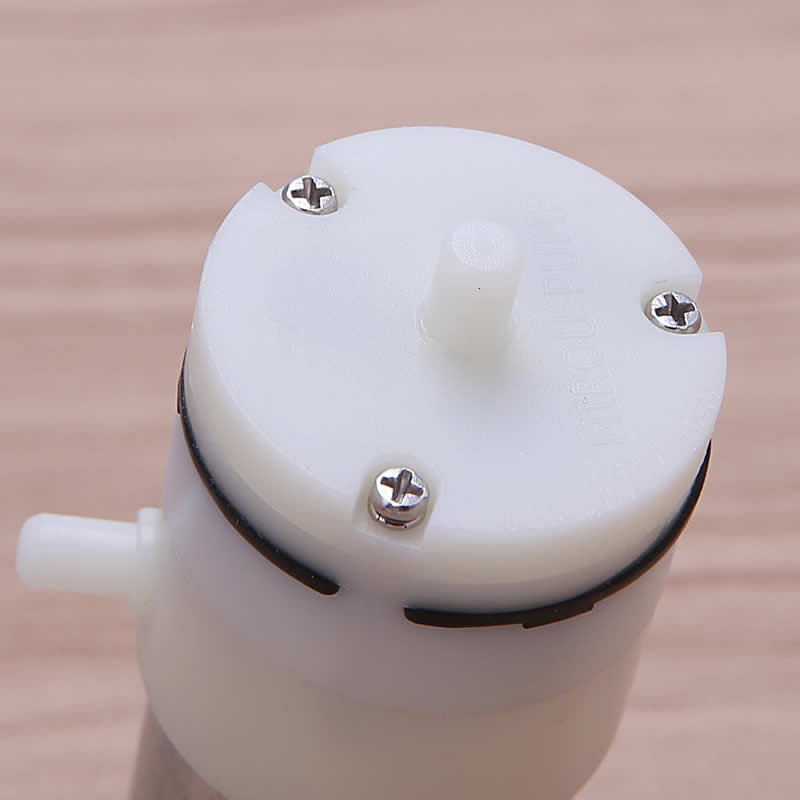

     The 12V mini air pump is a small diaphragm air pump driven by a 370 type DC motor. As the motor turns, the diaphragm in the pump head draws in and pushes out air; this provides a continuous air or gas flow to aquariums, hydroponic systems, blood pressure monitor cuffs and similar small volumes. One port is the suction port and the other is the outlet port; the suction port can also be used for small vacuum tasks.

     It is powered directly from a 12V DC adapter, a 12V battery or a 12V power supply; this is what separates it from the 6V mini air pump with the same body, and makes it suitable for 12V systems such as bait bucket aeration running from a 12V battery. It offers about 60KPa outlet pressure and an open-flow air flow of up to about 2.8l/minute. It also runs in the about 6V - 12V range; as the voltage drops, flow and pressure decrease.

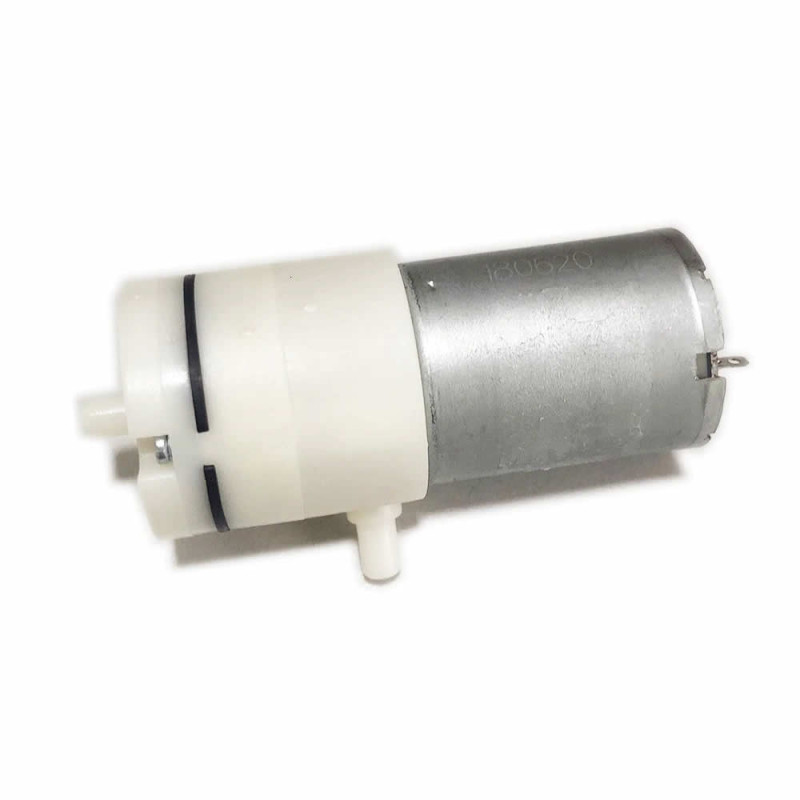

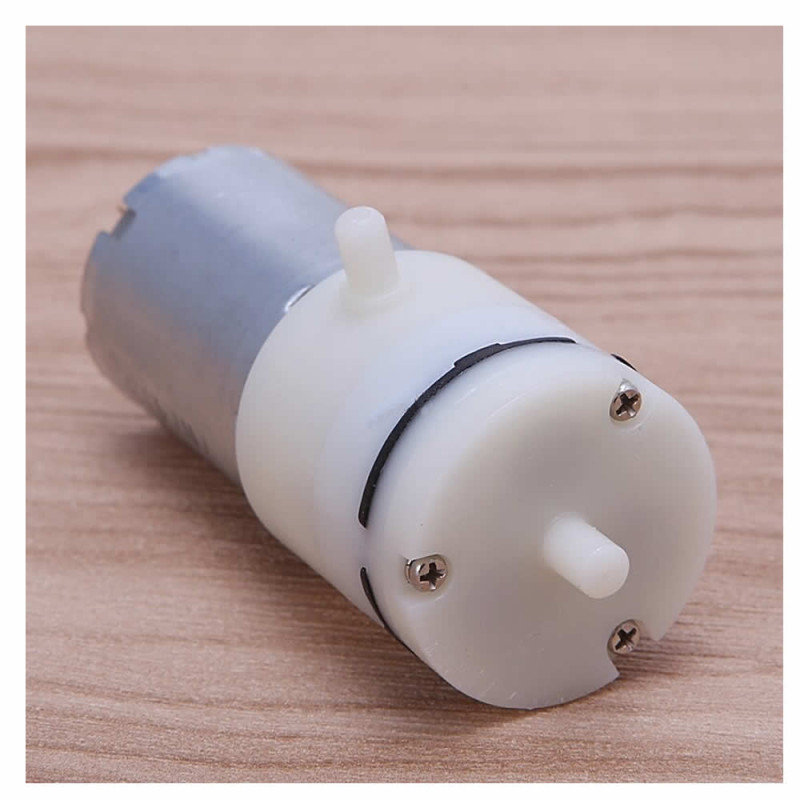

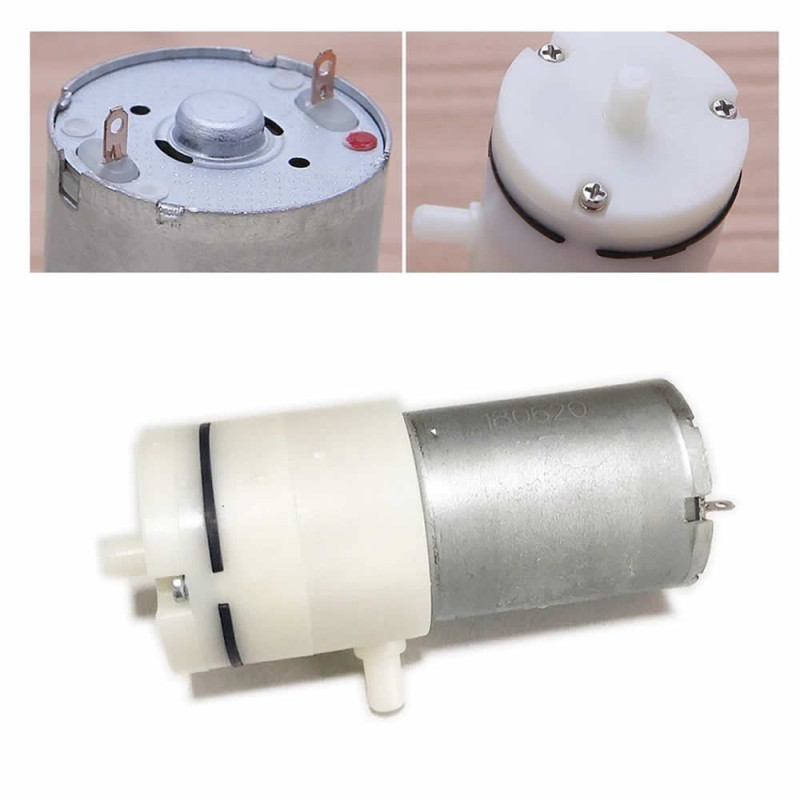

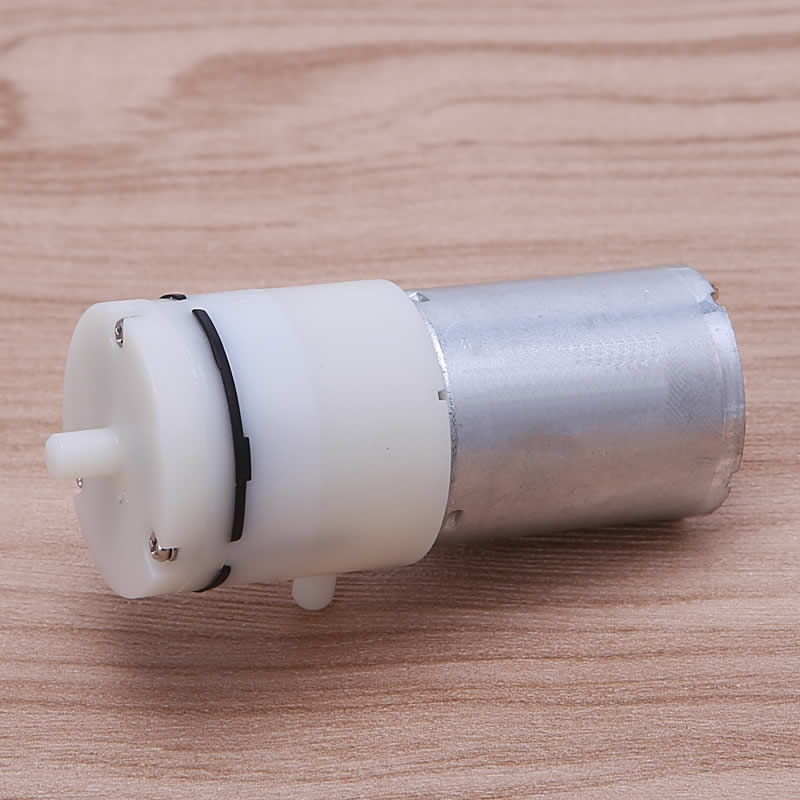

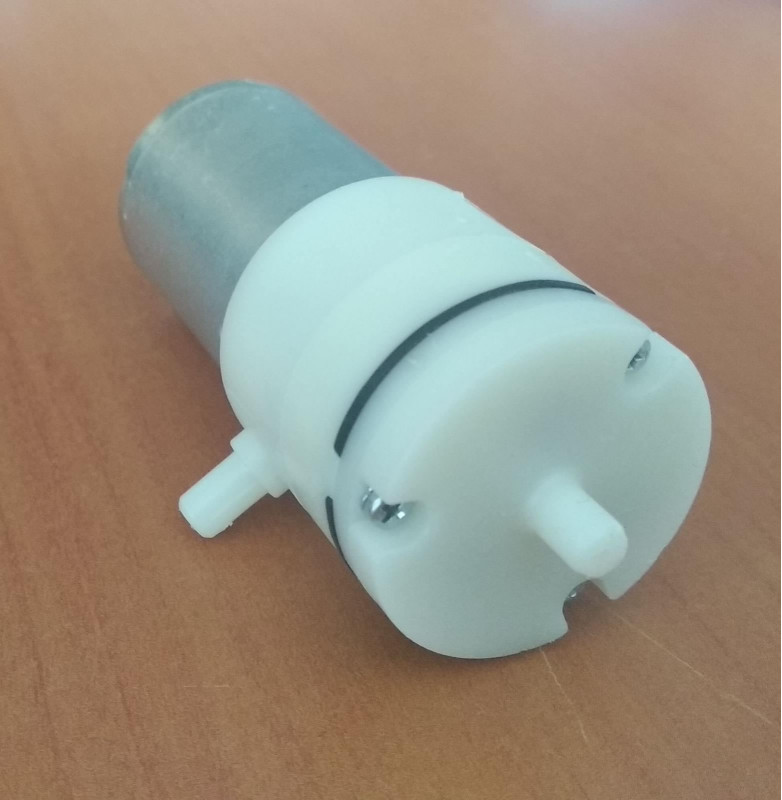

     With its small body of 68mm length and 27mm diameter and about 60gr weight it fits easily inside a device. It consists of a metal motor body and a plastic pump head; silicone or aquarium air tubing with about 4mm inner diameter fits onto the two air ports. It pumps only air and gas; it does not pump water or liquids.


Features:

• Product type: mini diaphragm air pump with 370 type DC motor
• Operating voltage: DC 12V (nominal)
• Operating range: about 6V - 12V (flow and pressure drop at lower voltage)
• Operating current: about 250mA (rises with load)
• Outlet pressure: about 60KPa (about 450mmHg)
• Vacuum (suction): about 400mmHg
• Air flow: up to about 2.8l/minute in open flow; drops as back pressure rises
• Medium: air and gas only; it does not pump water or liquids
• Ports: 2 air ports (one suction, one outlet)
• Tubing: silicone or aquarium air tubing with about 4mm inner diameter
• Flow adjustment: by lowering the supply voltage or by driving it with PWM
• Control: with Arduino, ESP32, timer and thermostat circuits through a MOSFET or relay module
• Noise: about 55dB - 65dB
• Life: at least 30000 cycles (10s on, 7s off cycle)
• Operating temperature: about 0°C - 55°C
• Material: metal motor housing, plastic pump head
• Colour: silver motor, cream white pump head

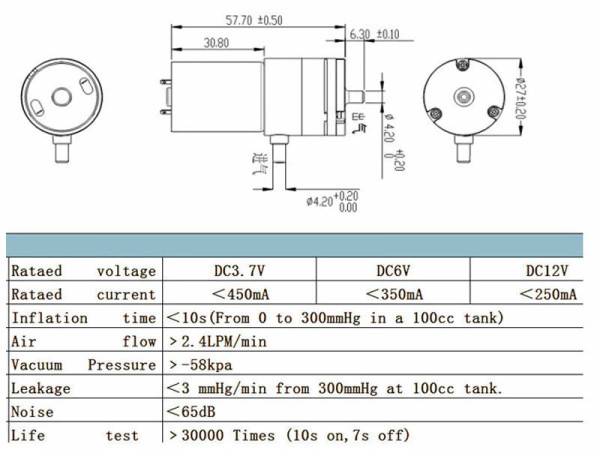

• Dimensions: about 68mm length x 27mm diameter
• Weight: about 60gr

Usage information:

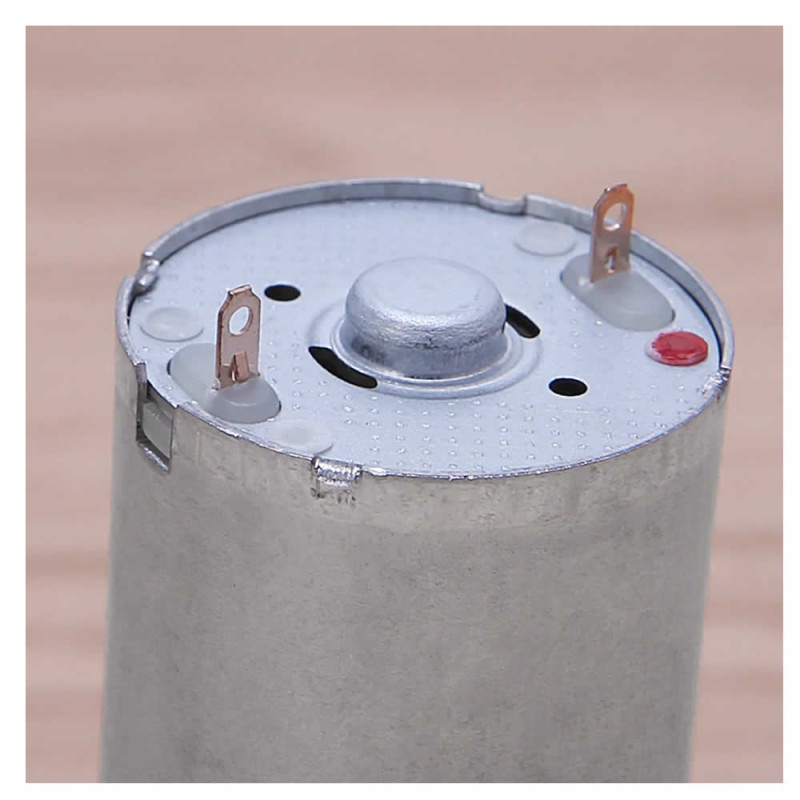

• Power the pump from a 12V DC adapter, battery or power supply that can deliver at least 500mA. Connect the 12V supply to the motor terminals.
• While it runs, find the outlet port by checking the ports with your finger and fit the 4mm inner diameter tubing to it. In an aquarium, fit an air stone to the underwater end of the tubing for finer bubbles.
• The pump draws about 250mA and the current rises with the load; do not power it directly from a control board pin, switch it on and off through a MOSFET or relay module and add a reverse diode across the motor terminals.

Application areas:

•  Aquarium and fish tank aeration (oxygen supply)
•  Aerating the nutrient solution in hydroponic and aquaponic systems
•  Bait bucket and live bait transport aeration from a 12V battery
•  Blood pressure monitor cuff and small air cushion inflation setups
•  Small balloon and inflation mechanisms
•  Suction cup (vacuum gripper) and robot gripper experiments
•  Drawing sample air to gas and air quality sensors
•  Massage and beauty device prototypes
•  Education, STEM and science experiment projects with Arduino and ESP32

Precautions:

•  The pump is for air and gas only. Do not draw water or liquids; if liquid gets into the pump head, the diaphragm and motor are damaged.
•  In an aquarium, place the pump above the water level. Fit a check valve on the tubing so that water does not flow back to the pump when the power is cut.
•  Do not run it for a long time with the outlet fully blocked; the motor heats up and its life shortens.
•  The nominal supply voltage is 12V. Do not run it continuously from a clearly higher voltage (e.g. the about 14V charging voltage in a running vehicle); the motor and the diaphragm are strained.
•  The life value is for intermittent operation; it can be shorter in continuous operation.

Package contents:

•  1 Piece 12V Mini Air Pump
•  Note: Air tubing, air stone, check valve, adapter and connection cable are not included in the package.
