10 Pcs 2 Way Easy Cable Connector

10 Pcs 2 Way Easy Cable Wire Connector Screwless Terminal Block

250V 32A 1mm/4mm Electrical Cable Connection Terminal Socket Lever Spring Cable Connector

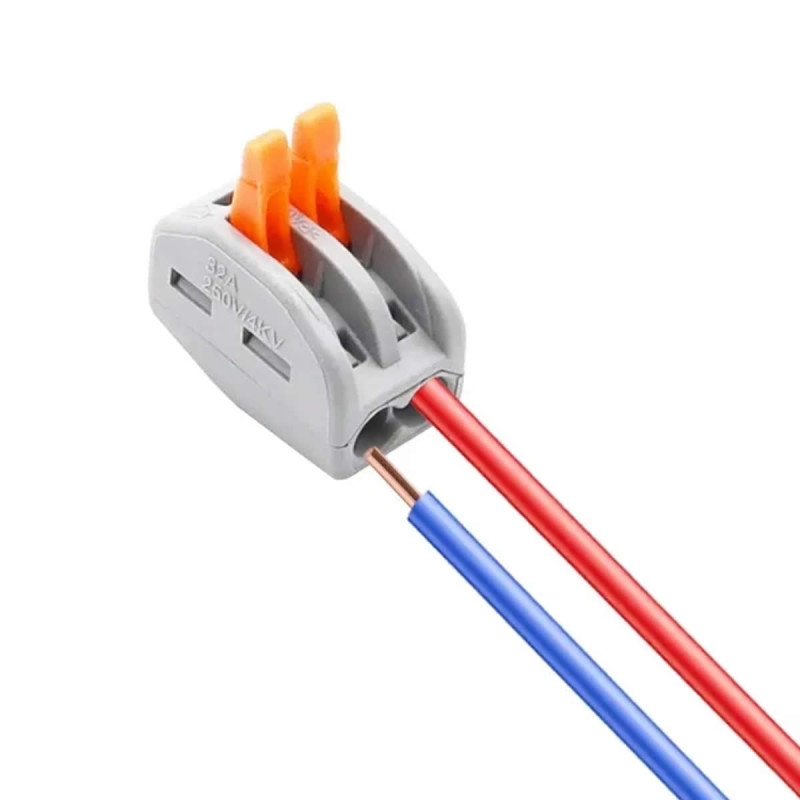

     It is used to join 2 conductor cables without any operation such as soldering or screwing. You can join flexible cables with thicknesses between 0.1mm and 4mm2. On single core cables it can join cables up to 4mm2. The small plastic levers on it are lifted. After the cables are inserted inside, the levers are clamped again. It allows you to carry out cable organizing and clutter removal operations in a very short time.

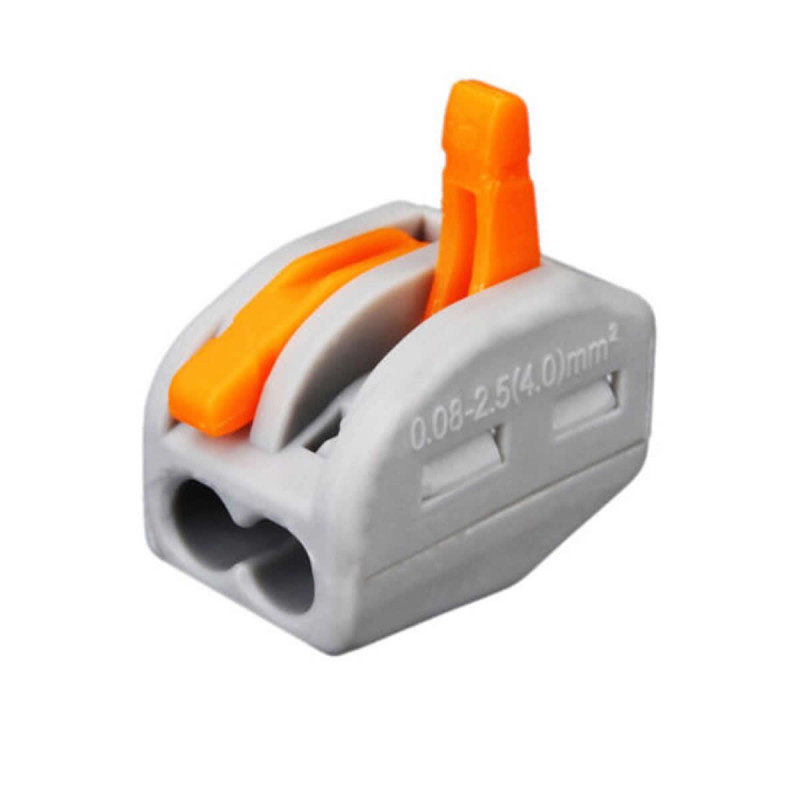

     This product is a spring connection connector for quickly joining two copper conductor cables without using screws or solder. After the cable end is stripped to a suitable length, the orange lever is lifted up, the cable is placed into the entry and the lever is pressed down to complete the connection.

     Each connector has 2 ports and the two entries are connected to each other on the same electrical line. Separate lines such as phase and neutral should not be joined inside the same connector. In such uses, a separate connector should be used for each line. It can be used in lighting connections, small electrical panels, cable organizing inside junction boxes, cable connection inside devices, test setups and quick cable joining operations.

     Since it does not require screw tightening, it shortens the installation time. Thanks to its structure suitable for removing and reinserting the cable, it provides practical use in maintenance, test and organizing operations. In high current or 220V connections, the appropriate cable cross section, fuse value and safe installation conditions must be taken into account.

Features:

• Type: 2 way cable connector
• Cable thickness: 0.08-2.5mm2  / 4mm2 on single core cable
• Connection structure: Spring pressed lever system

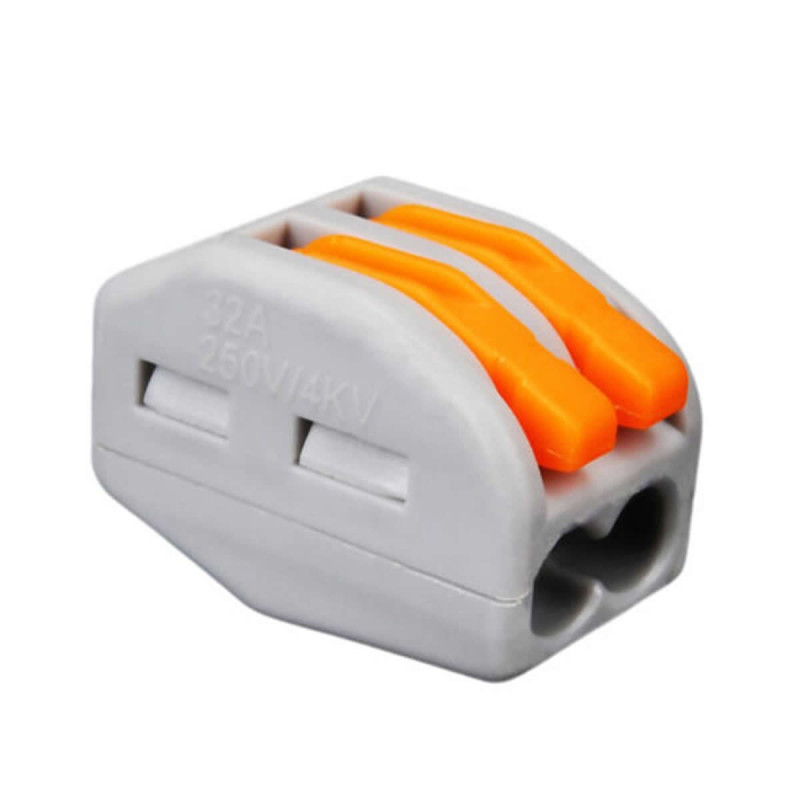

• Maximum current: 32A
• Maximum voltage: 250V
• Withstand voltage: 4KV ( short term )

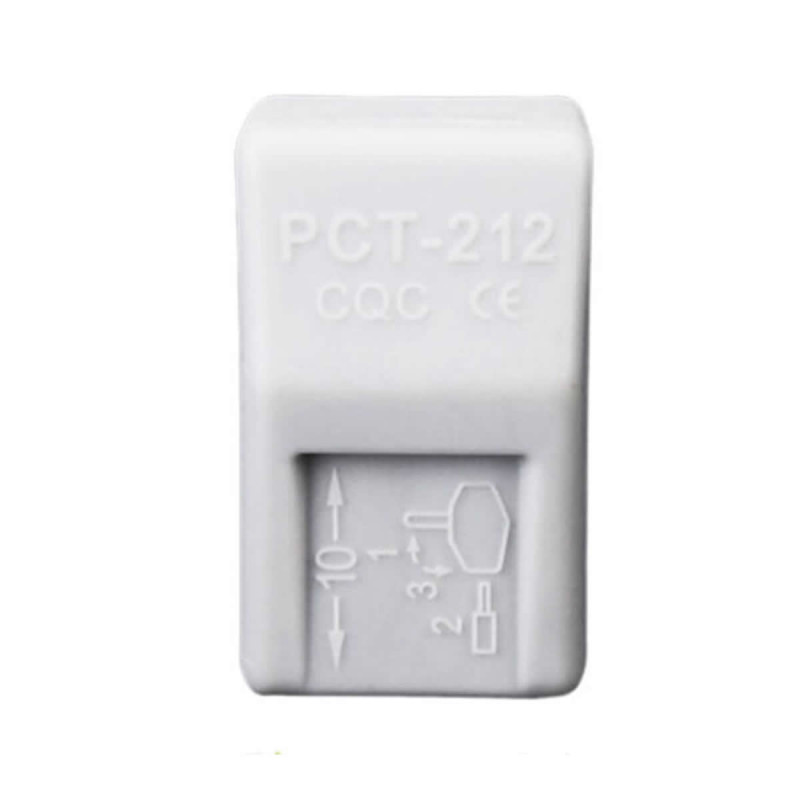

• Stripped cable length: 10mm
• Quick solderless connection.
• Can be easily separated in case of incorrect connection.
• Color: Gray / Orange
• Material: Plastic  / Metal

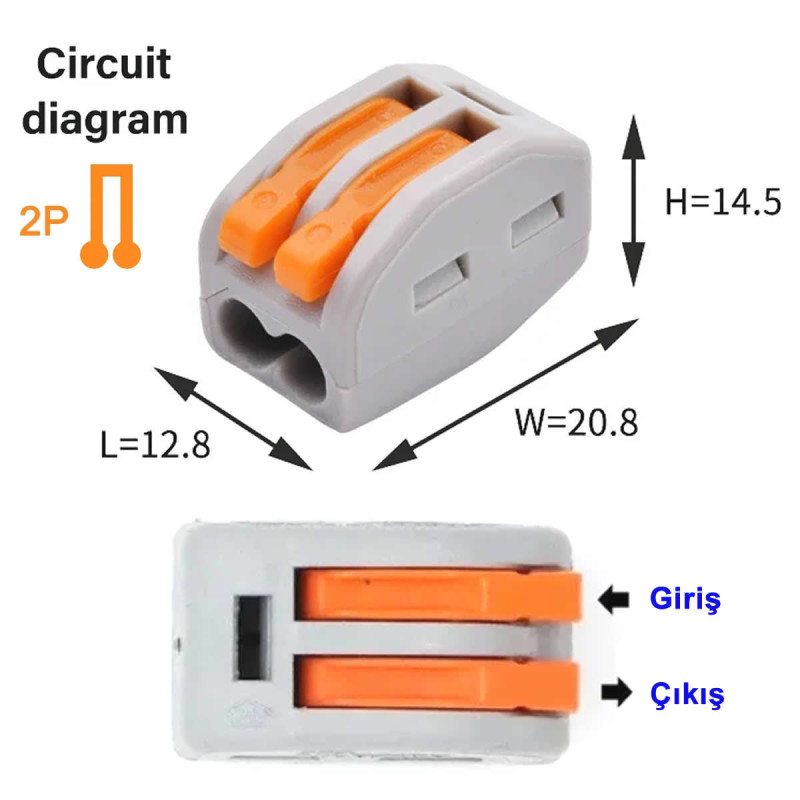

• Dimensions: 20.5mm x 12.4mm x 14.5mm
• Weight: 32gr

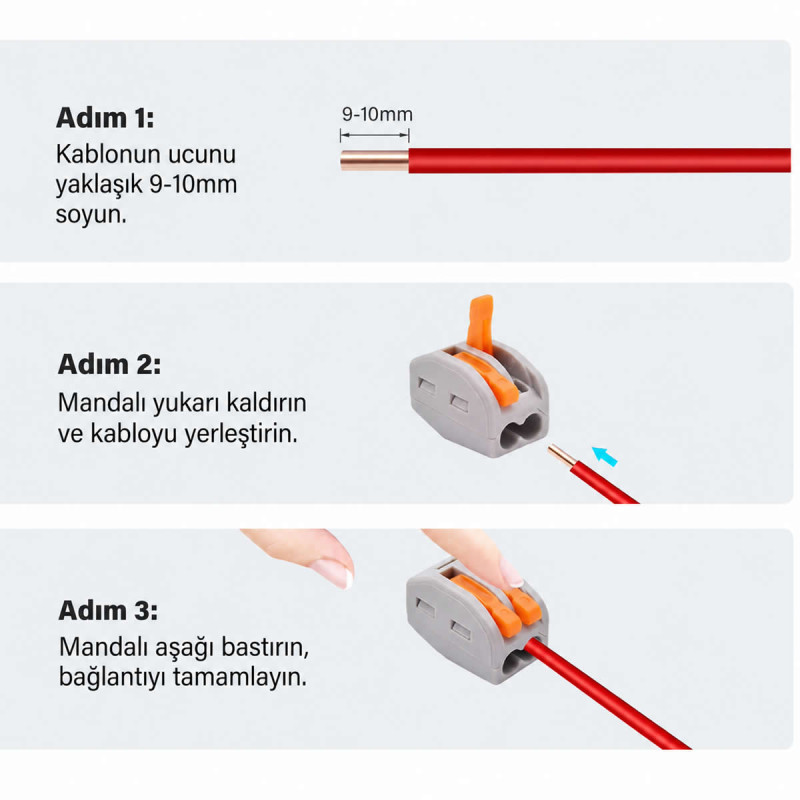

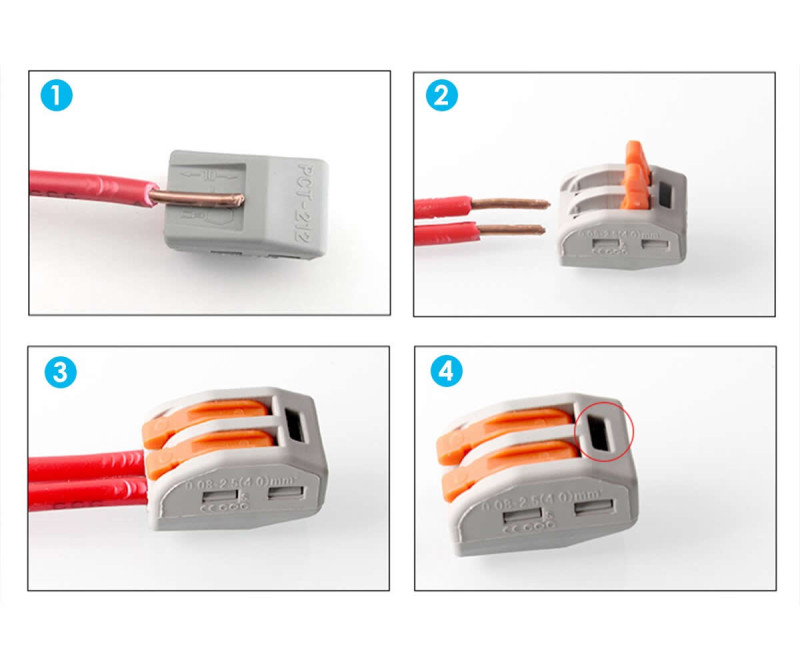

Usage description:

• Strip the cable end approximately 9-10mm.
• Lift the orange lever up.
• Place the cable into the entry all the way.
• Press the lever down.
• Check that the connection is secure by pulling the cable gently.

Package contents:

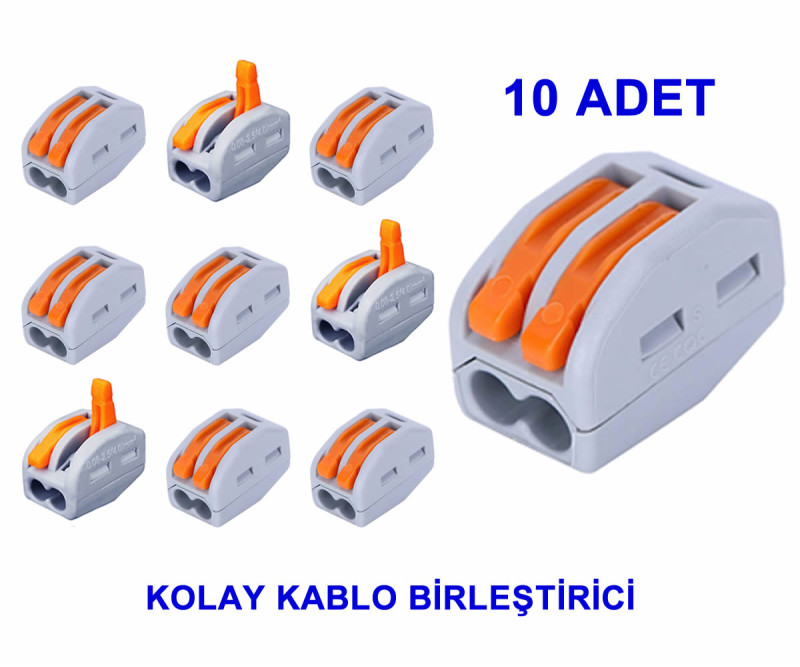

• 10 Pcs Easy Cable Connector
