55mm Propeller 1 Pair Red

1 Pair Red 55mm CW CCW Propeller Set

Mini Drone Plastic Blade Racing Fpv Rc Plane Quadcopter 1mm Hole Coreless Motor 8520

     This is a 55 mm diameter 2-blade plastic propeller set that can be used in mini drone, quadcopter, RC plane and small coreless motor projects. There is a 1 mm motor shaft hole at the center of the propellers. For this reason, it is especially suitable for use with small coreless DC motors having a 1 mm shaft diameter.

     The package contains a total of 2 propellers, 1 CW and 1 CCW, with opposite rotation directions. Thanks to the CW/CCW structure, it can be used to balance the torque created by opposing motors in mini quadcopters and similar multi-motor aircraft.

     Its lightweight plastic structure allows use at high speeds without placing unnecessary load on small motors. It can be used to replace broken or deformed mini drone propellers or in building your own RC plane, drone and educational projects.

Features:

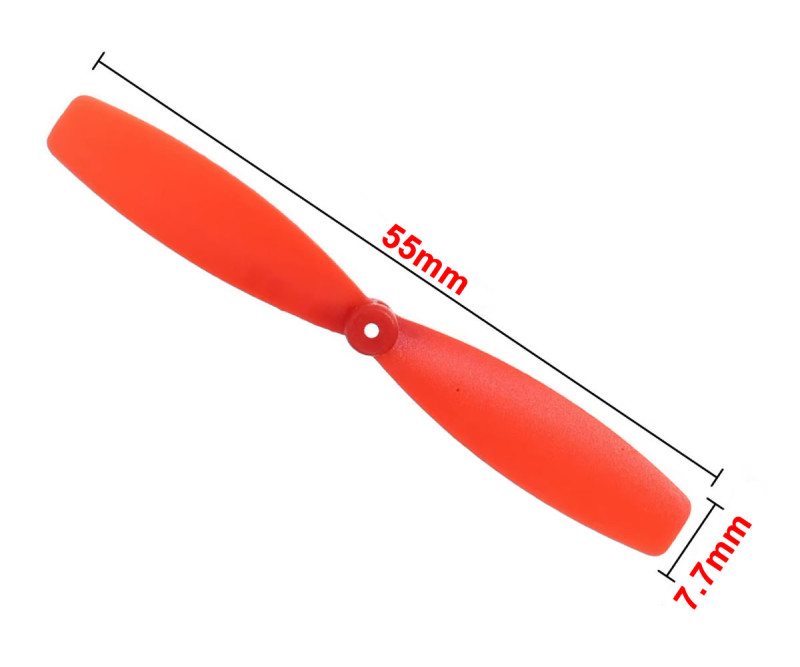

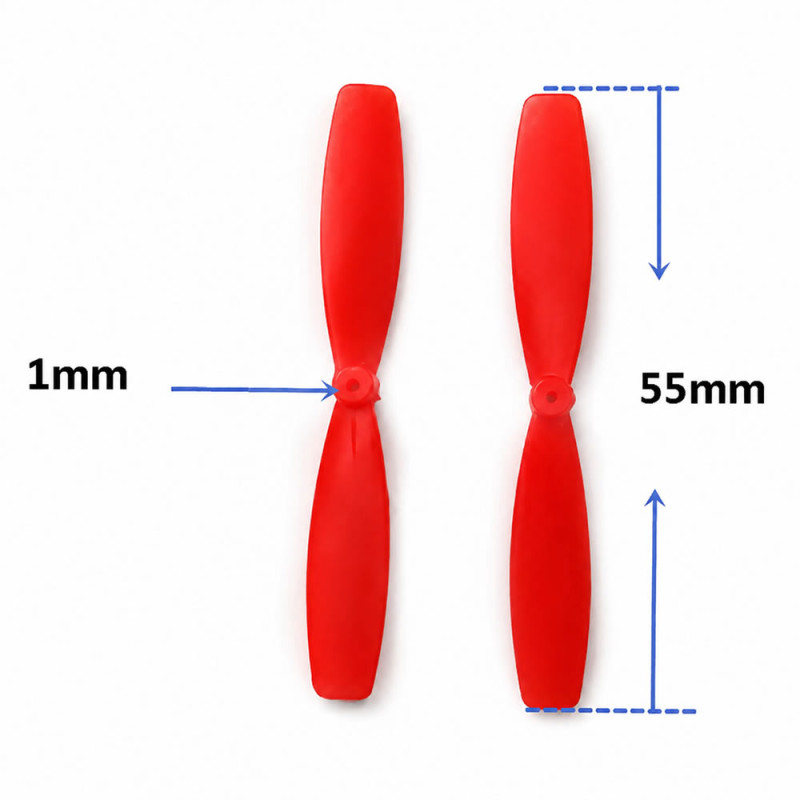

• Propeller diameter / total length: 55 mm

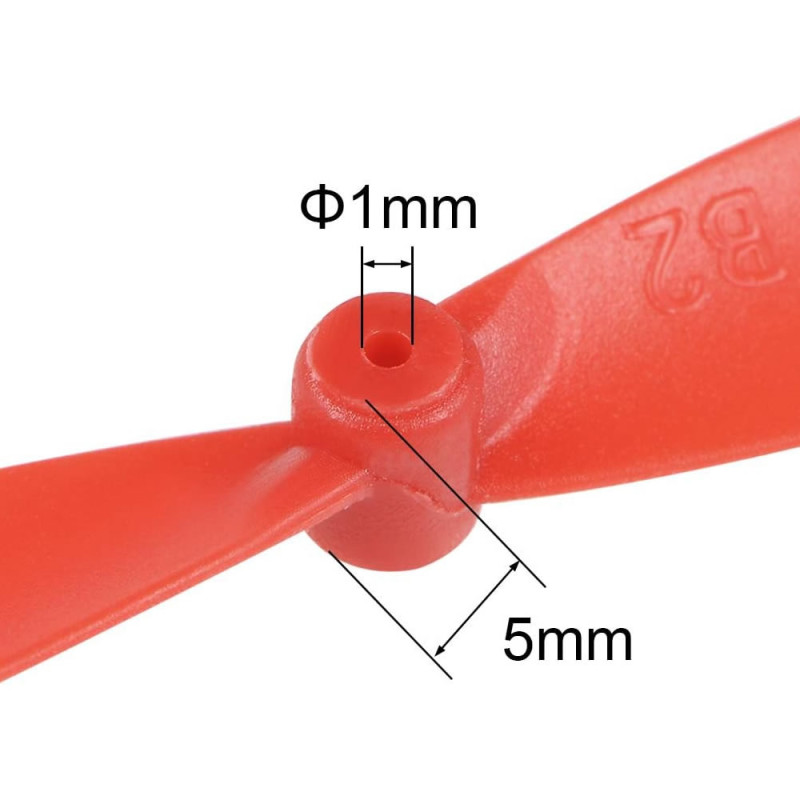

• Motor shaft hole: 1 mm
• Hub height: Approximately 5 mm
• Number of blades: 2
• Propeller direction: CW + CCW
• Material: ABS plastic
• Color: Red
• Structure: One-piece plastic propeller
• Compatible motor type: Mini coreless dc motors with 1 mm shaft
• Usage type: Pusher or puller system, according to motor and mounting direction
• Weight: 1.2gr

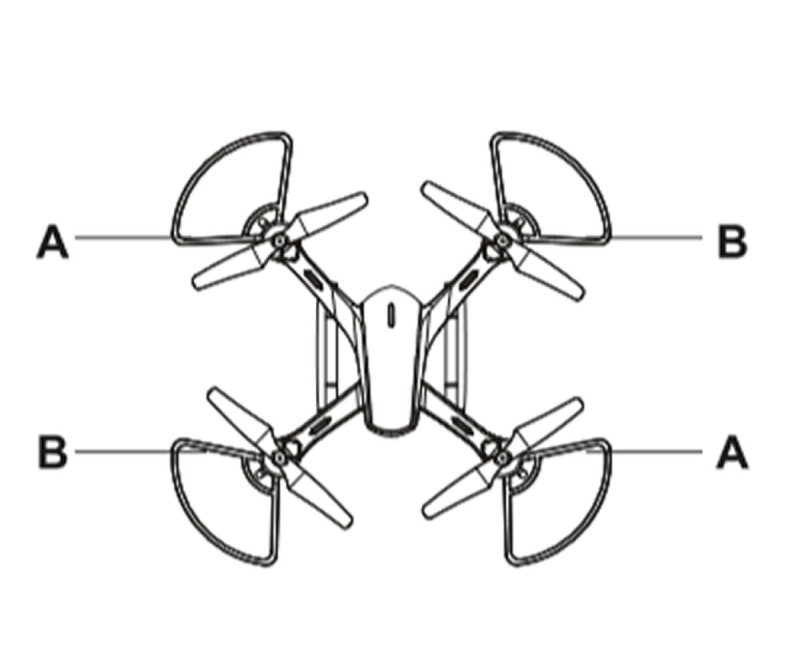

What are CW and CCW? : CW (Clockwise) refers to the propeller type operating clockwise, and CCW (Counter-Clockwise) to the one operating counter-clockwise. Especially in quadcopter systems, instead of all propellers rotating in the same direction, CW and CCW propellers are used together to balance the rotational moment created by the motors. When choosing a propeller, attention should be paid not only to the 55 mm size, but also to the shaft diameter and rotation direction of the motor to be used.

Areas of use

• Mini drones and quadcopters
• Micro aircraft with coreless motors
• Mini RC planes
• DIY aircraft projects
• STEM and educational projects
• Small motor-propeller experiments
• Replacement of damaged mini drone propellers
• Lightweight robotics and hobby projects

Mounting information:

• The center hole of the propeller is approximately 1 mm in diameter. Before purchasing, the diameter of the motor shaft to be used should be measured.
• The propeller should be fitted to the motor shaft properly and without axial misalignment. Crooked, loose or off-axis mounting may cause vibration at high speeds.
• The blade angles of CW and CCW propellers are opposite to each other. The propeller suitable for the rotation direction of the motor to be used must be selected.

Package contents:

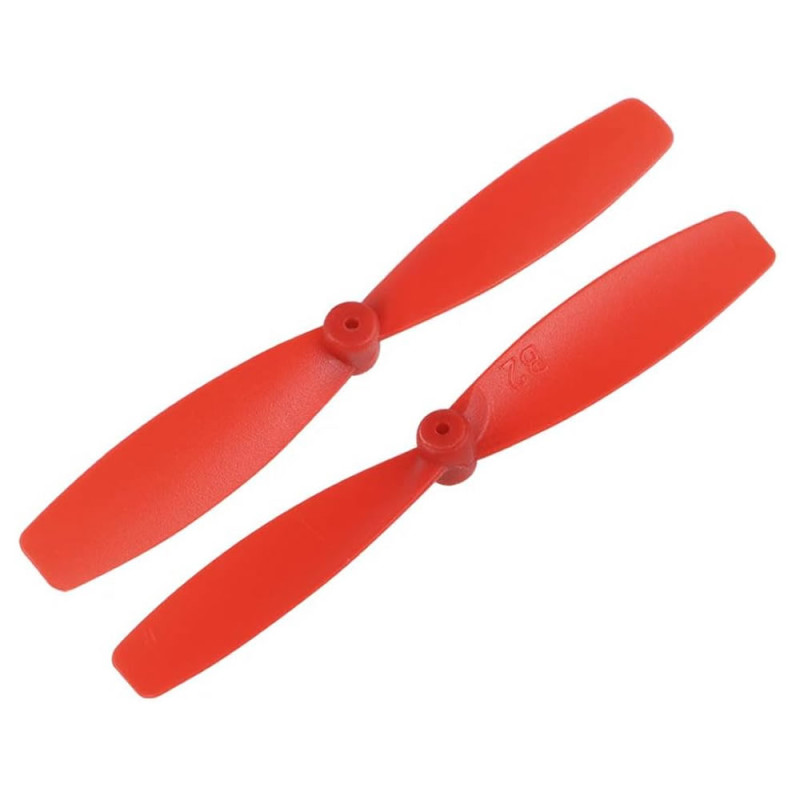

• 1 Pcs CW 55 mm Propeller Red
• 1 Pcs CCW 55 mm Propeller Red

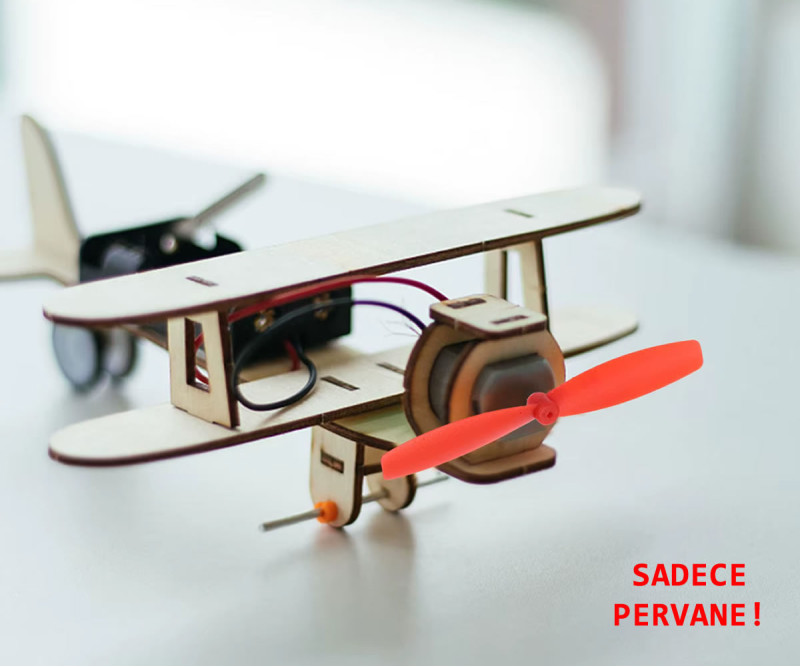

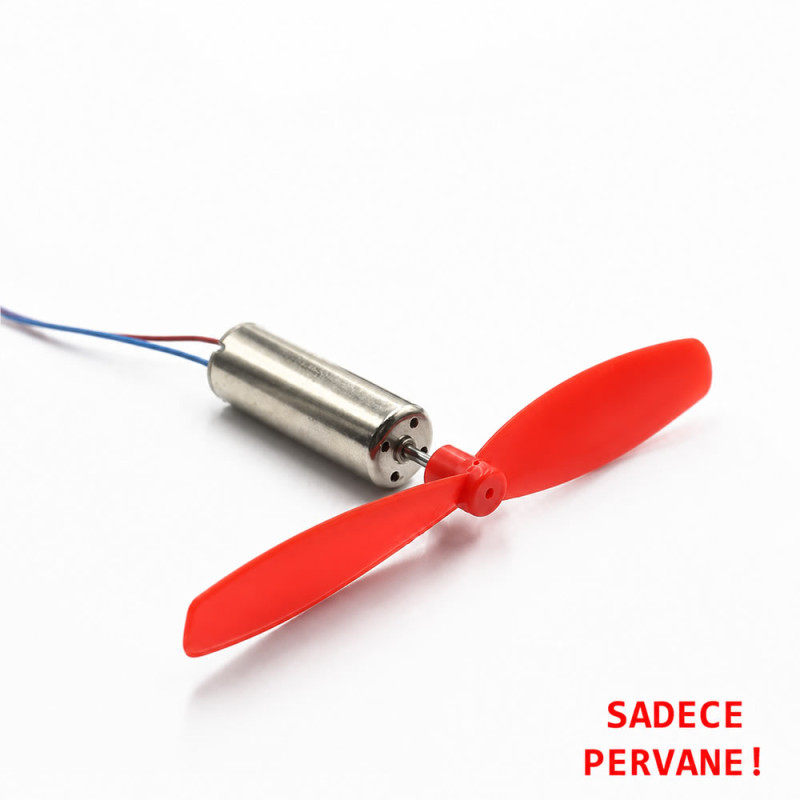

Note: The motor, drone, plane and other equipment that may be shown in the images for illustration purposes are not included in the package.
