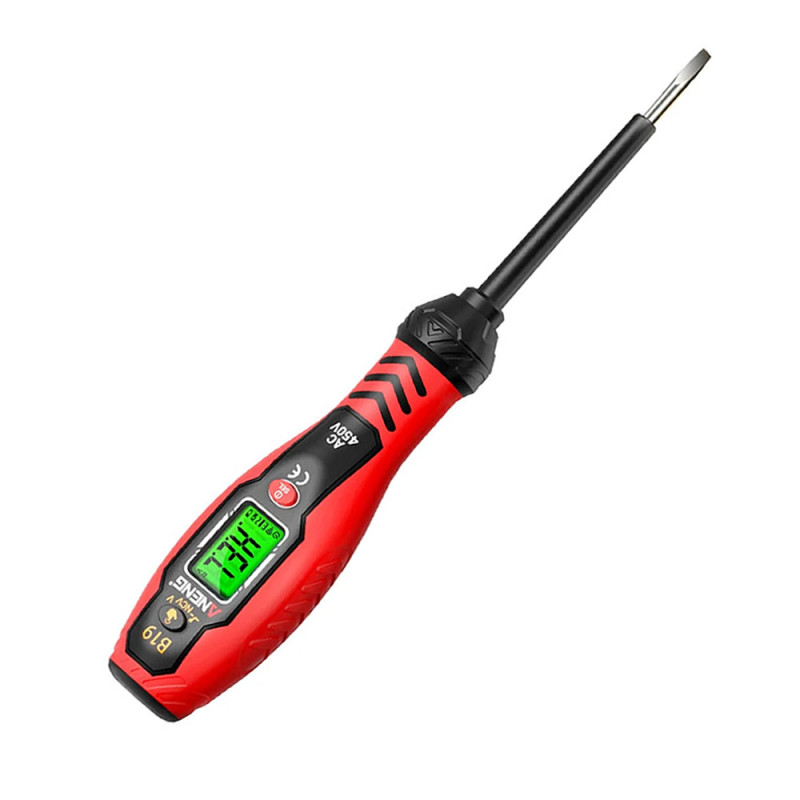

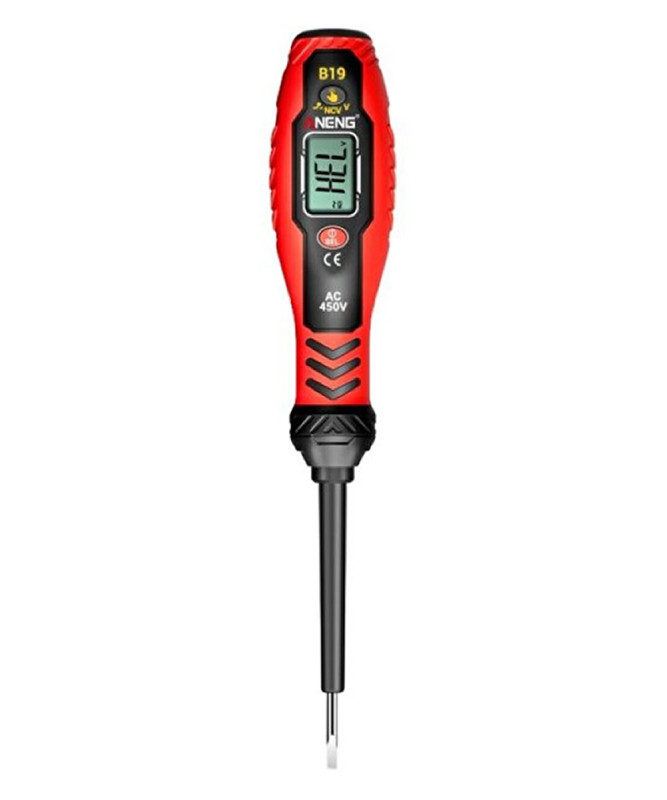

Aneng B19 Voltage Test Pen

Aneng B19 Voltage Test Pen Non-contact Ac Voltage Electricity Sensor Detector

Flat Tip NCV Digital Test Phase Neutral Control Pen 30V 1000V Lcd Indicator Audible Warning

The plastic bag will be opened, the battery will be installed and it will be packed after being tested.

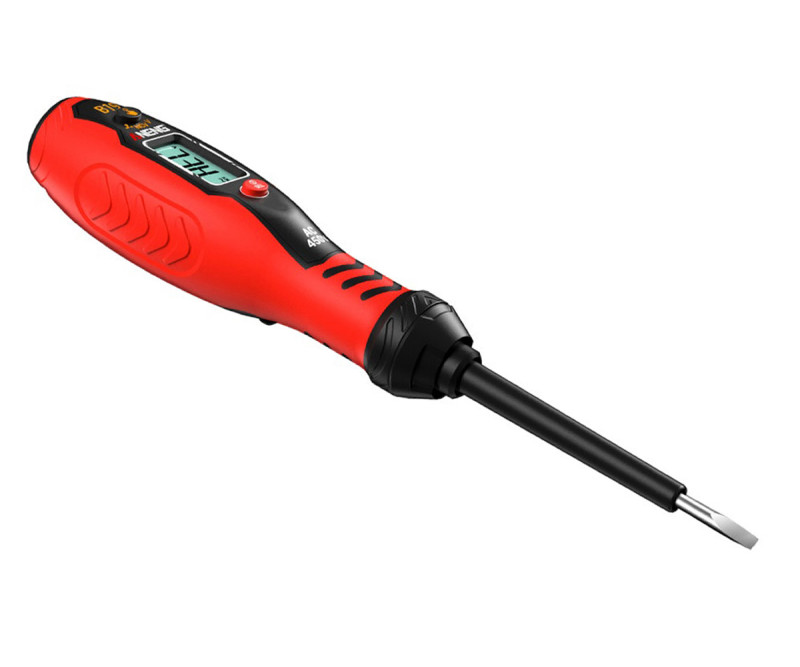

     The ANENG B19 is a multifunction voltage test pen with a digital display, designed for AC voltage checking, phase/neutral discrimination, line break checking and basic electrical fault detection on electrical lines. Thanks to the non-contact NCV detection feature, it can detect the electric field without touching the cable directly. In addition, with its flat screwdriver tipped probe structure, it offers contact measurement and practical use.

     Thanks to its insulated rubber coated handle, backlit LCD screen and audible/light warning system, it is a practical test device for both daily use and electrical maintenance and repair work.

NCV non-contact voltage detection: In NCV mode, the device can show whether there is voltage on the cable or the line by detecting the electric field. Since the check can be made without touching the cable directly, it provides a fast and safe preliminary check. When the electric field is weak, the screen gives a green backlight. When the electric field is strong, the screen turns red and the audible alarm is activated.

Line break check: In NCV mode, the point where the signal is cut can be detected by moving the probe tip along the cable. If there is a break or a broken point in the energized cable, the device stops detecting a signal in that area and the screen turns green, the audible warning stops. With this method, broken points in extension cables, installed lines and multi core cables can be located approximately without touching the cable sheath.

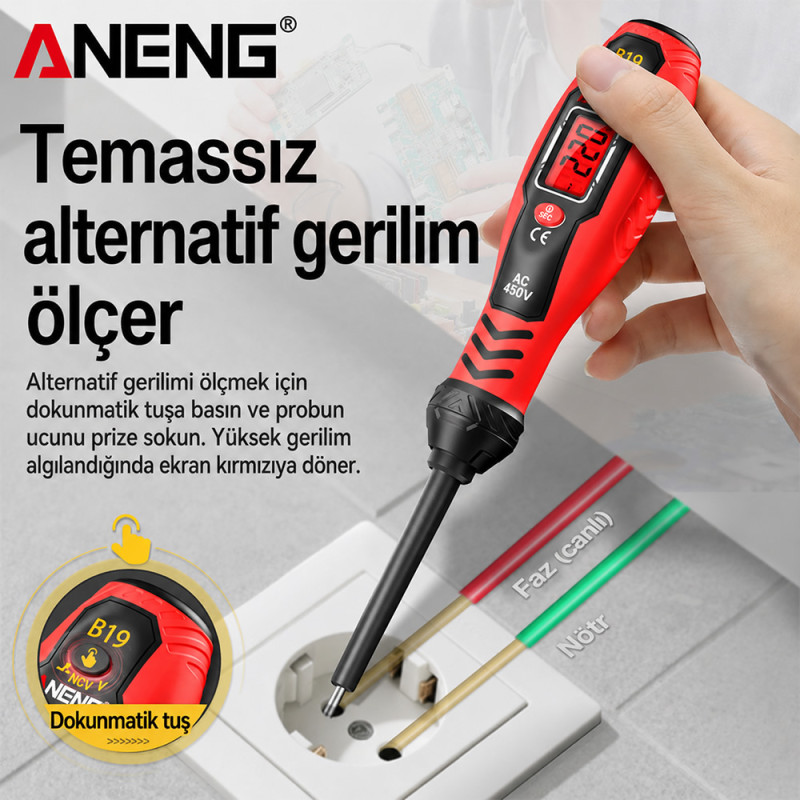

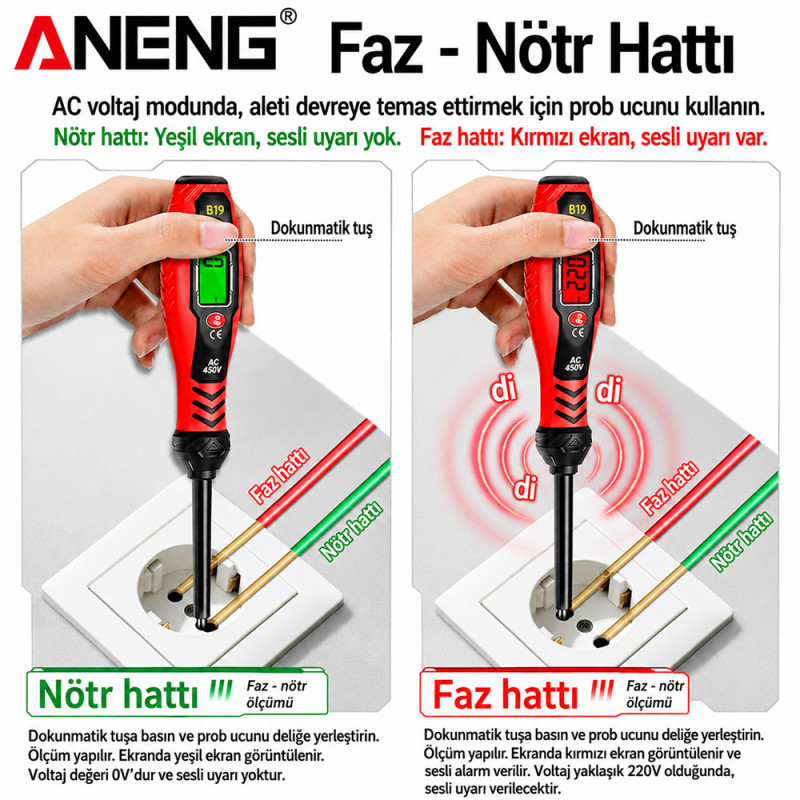

Phase / Neutral line detection: In AC voltage mode, phase and neutral can be distinguished by touching the probe tip to the socket or the line. Thanks to this feature, phase/neutral discrimination can be made practically on sockets, cables and electrical lines.

• Neutral line: Green screen, no audible warning
• Phase line:  Red screen, audible warning present

LCD backlit screen: It has a backlit digital LCD screen. In dark or low light environments, the screen values can be read more easily. According to the voltage detection status, the screen color changes and warns the user visually.

Safe and durable design: The insulated rubber coated handle structure provides a safe and comfortable grip. It offers durable use with its TPE body and chrome vanadium steel tip structure. The magnetic tip structure makes its use as a screwdriver more practical.

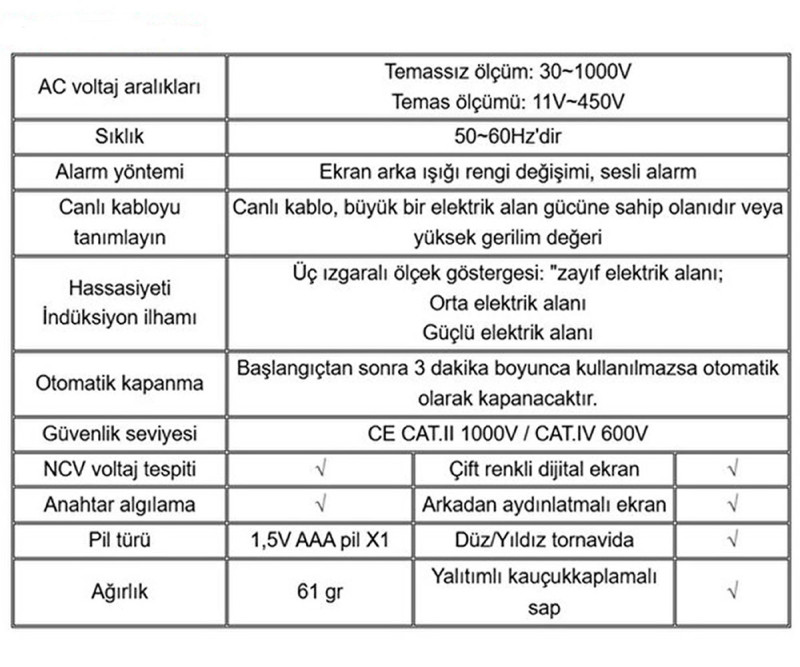

Features:

•     Model: Aneng B19
•     NCV Voltage Detection
•     Non-contact voltage detection range: AC 30V / 1000V
•     Contact measurement range:  AC  11V / 450V
•     Phase / neutral line discrimination
•     Electricity Present/Absent Check
•     Red and green screen warning
•     Audible buzzer alarm
•     Lcd backlit digital screen
•     Practical design with flat screwdriver tip
•     Automatic shutdown when no operation is made for 3 minutes
•     Insulated rubber coated safe grip handle
•     Compact and portable structure
•     Frequency range: 50Hz / 60Hz
•     Low battery warning
•     Operating temperature: -10C / +65C
•     Material:  TPE body + chrome vanadium steel tip
•     Handle structure: Insulated rubber coated handle
•     Color:  Red / Black
•     Power source: 1 pcs 1.5V AAA battery

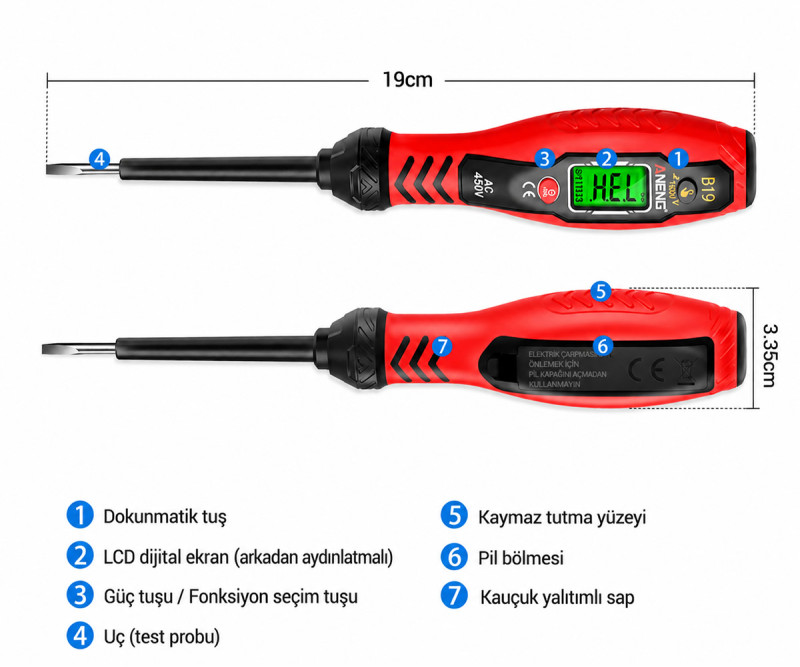

•     Dimensions: 33mm x 190mm
•     Weight: 84gr

Areas of use:

•     Phase line detection.  Neutral line detection
•     Cable break check
•     Checking whether there is power in the socket
•     AC voltage present/absent check
•     Non-contact voltage detection
•     Electrical sockets and outlets
•     Fuse boxes
•     Circuit breakers
•     Lamp sockets
•     Cable junction boxes
•     Extension cables
•     Light chains and faulty lamps
•     Fast voltage test in home, workshop, office and industrial areas

Safety warning: This product is used for checking and detection on electrical lines. The necessary safety precautions must be taken while working with electricity. Before working on high voltage systems, it is recommended to get support from authorized electrical personnel. Before measuring, it must be made sure that the device is intact and in working condition.

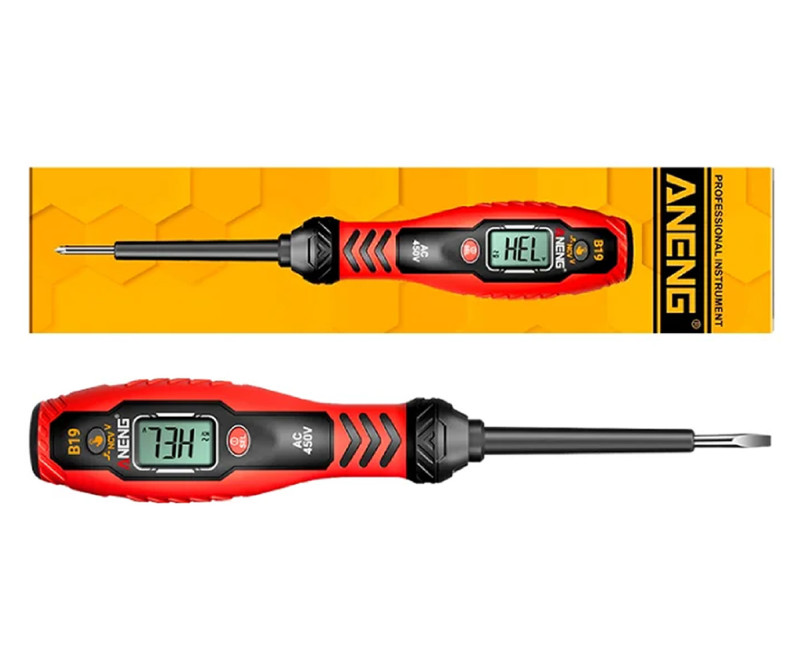

Package contents:

•     1 pcs Aneng B19 Voltage Test Pen Flat Tip
•     1 pcs english user manual
