Magnetic Hall Effect Sensor KY-003

 Magnetic Hall Effect Sensor Module  KY-003

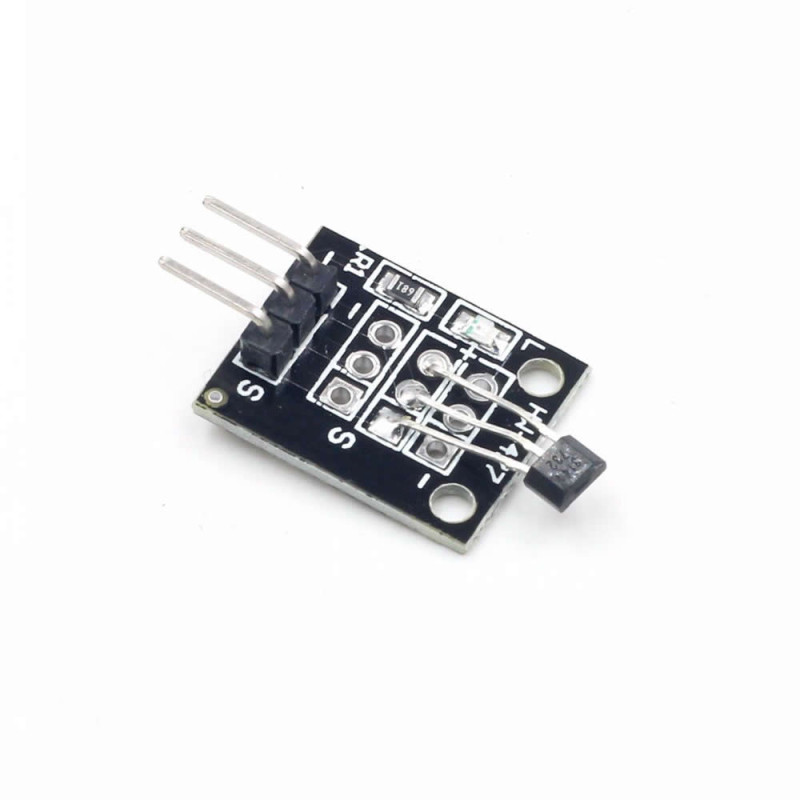

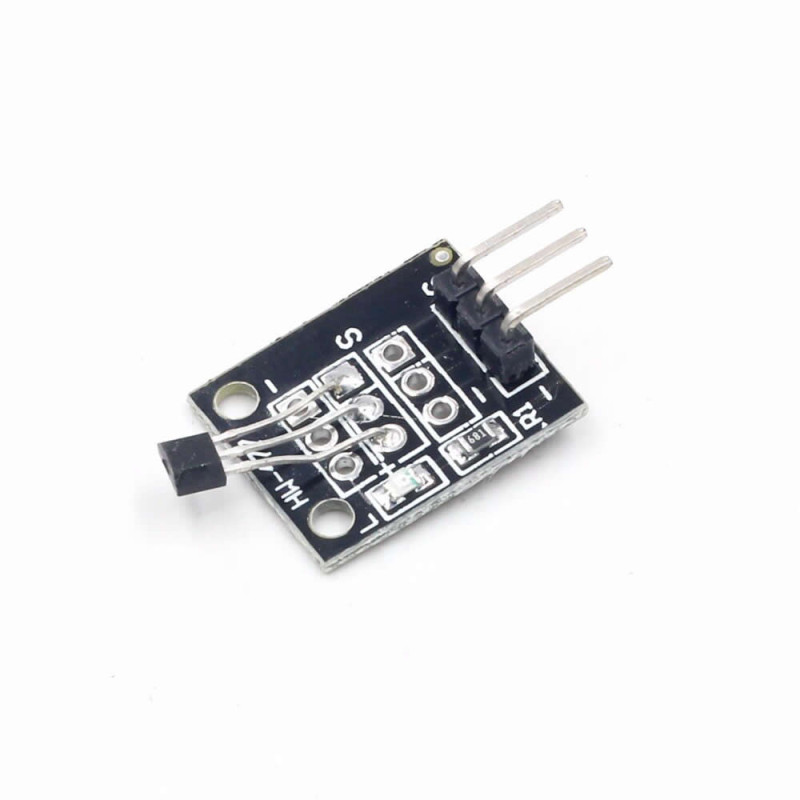

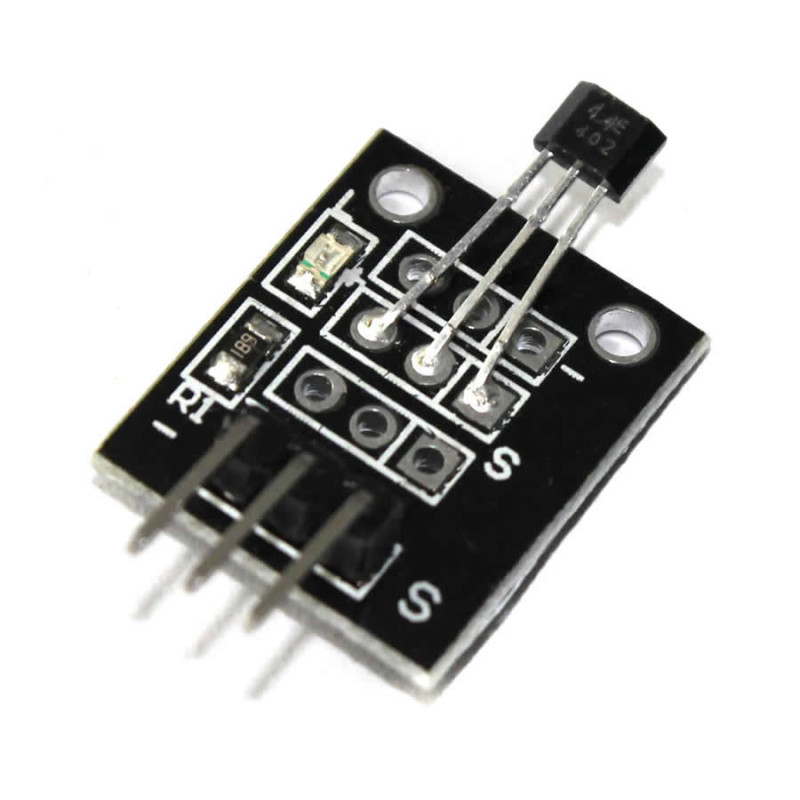

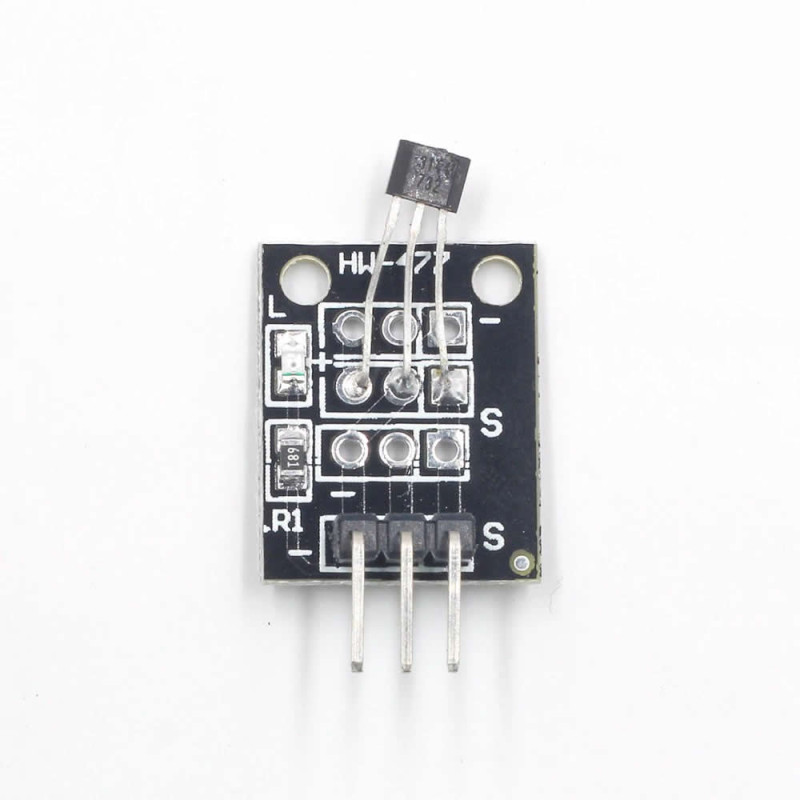

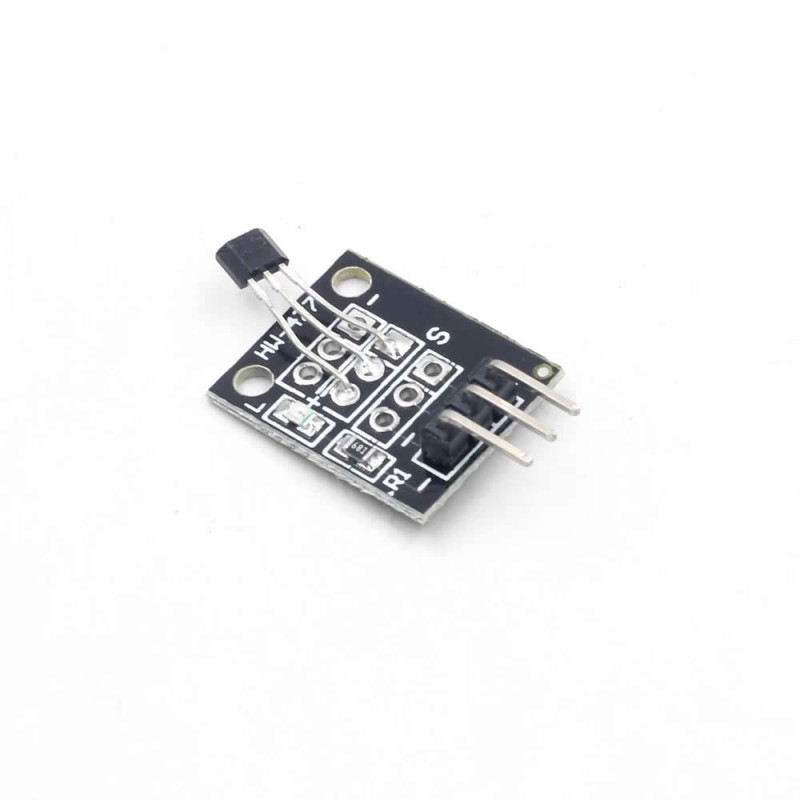

     It is built using the 3144 sensor. The KY-003 Magnetic Hall Effect Sensor Board is a sensor board that has a magnetic sensor on it and gives an output when it is brought close to an object that creates a magnetic field, such as a magnet.

• Operating Voltage:   4.5V to 24V
• Operating Temperature Range   -40C to 85C [-x°F to x°F]

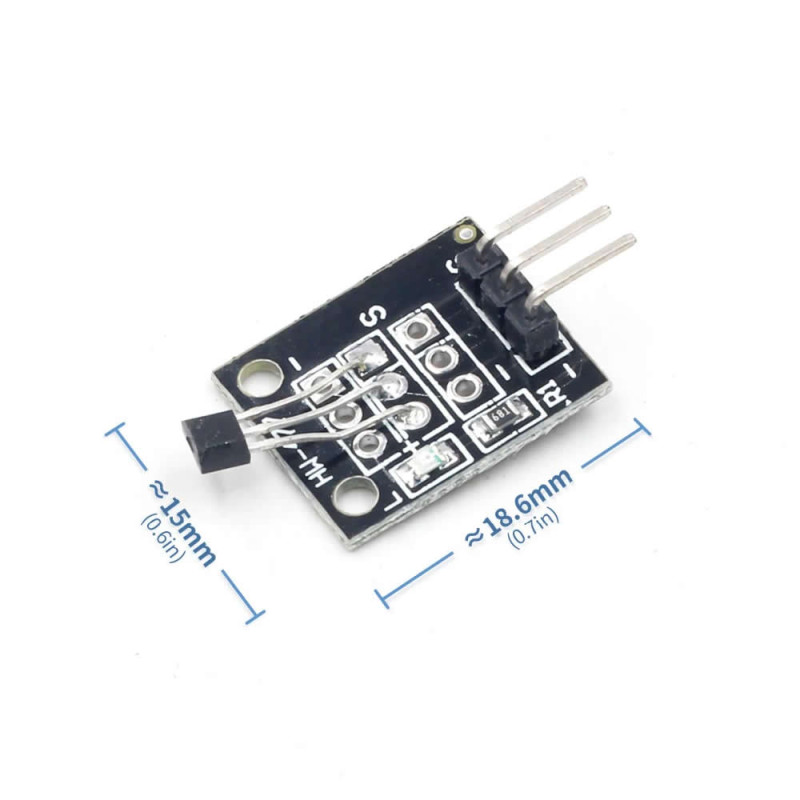

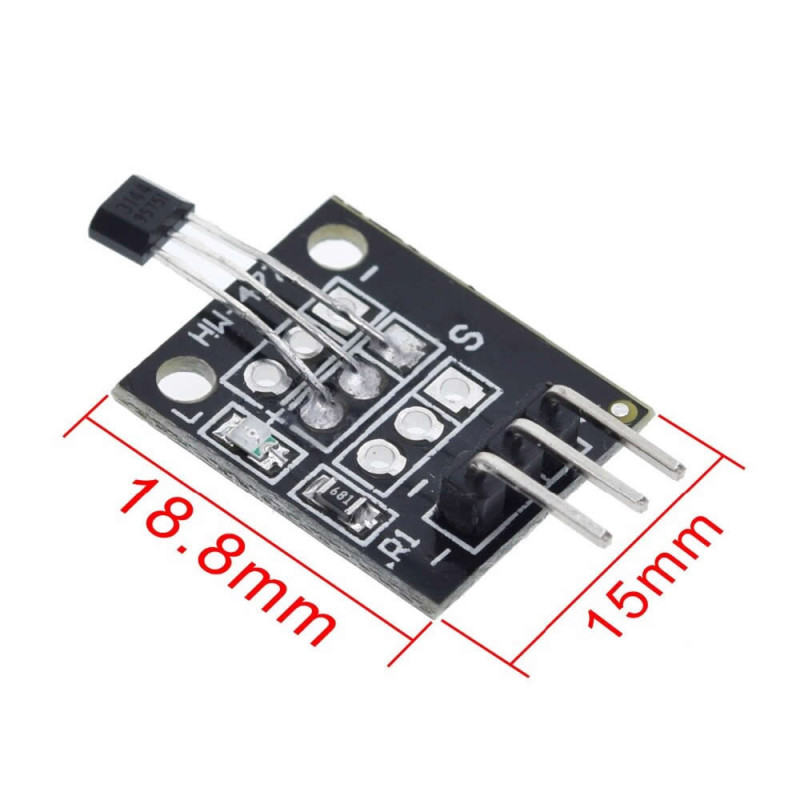

• Dimensions.:  18.5mm x 15mm

Description:

    Working voltage:4.5V-24V

    Series 3144, hall switch integrated circuit using hall effect principle, USES the semiconductor integrated technology manufacturing magnetic susceptibility of the circuit, it is by the voltage regulator, hall voltage generator, differential amplifier, schmidt triggers, temperature compensation and the open collector output stage circuit composed of magnetic sensitive sensor circuit, its input for the magnetic induction intensity, the output is a digital voltage signal.

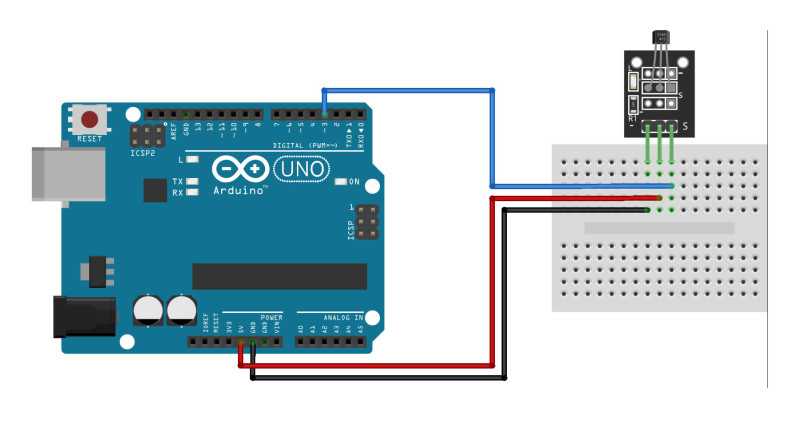

    Hall magnetic sensor module and a digital 13 interface with LED build a simple circuit, to produce a magnetic flasher .Use digital 13 interface with the LED, the Hall magnetic sensor connected to the force plate number 3 for ARDUINO interface. When the Hall magnetic sensor to a magnetic field signal , LED lights on, versa lights off.

Package contents :

•     1 pcs  Magnetic Hall Effect Sensor Module  KY-003
