Peltier Water Cooler Set 144W

144W Thermoelectric Dual Peltier Water Cooling System

120W Cooling Power Mini Air Conditioner Refrigerator Freezer Aquarium Computer Overclock Car Cooler TEC1206 CO2 Laser Tube Industrial Liquid Cooler DIY

     Peltiers are ceramic products that can create a temperature difference between their 2 surfaces when electricity is applied. While the temperature rises on one surface, the temperature decreases on the other surface. It is essential that the hot surface is additionally cooled with an external cooler. Otherwise, very high heat occurs on the hot surface side in a short time and the ceramic structure deteriorates irreversibly.

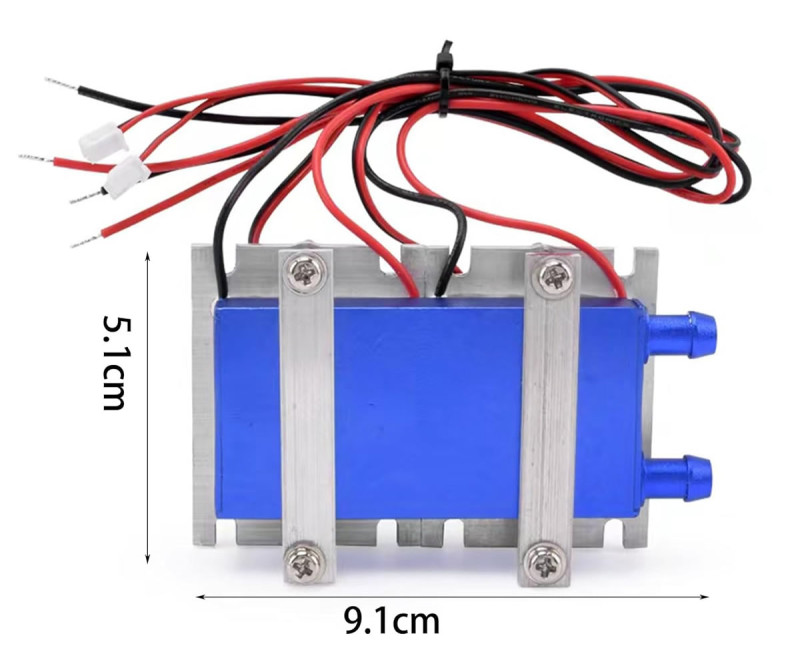

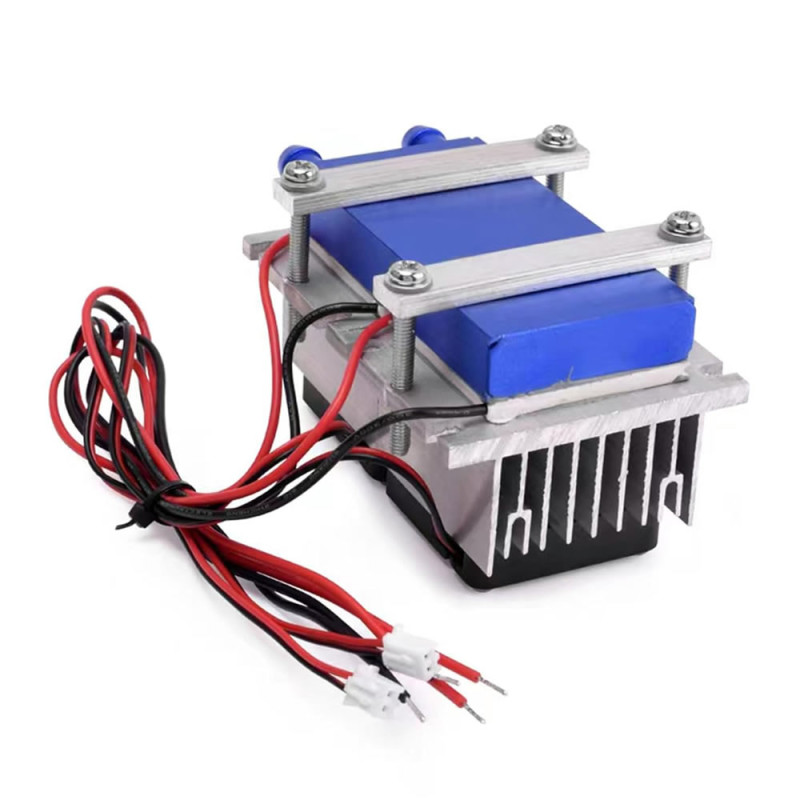

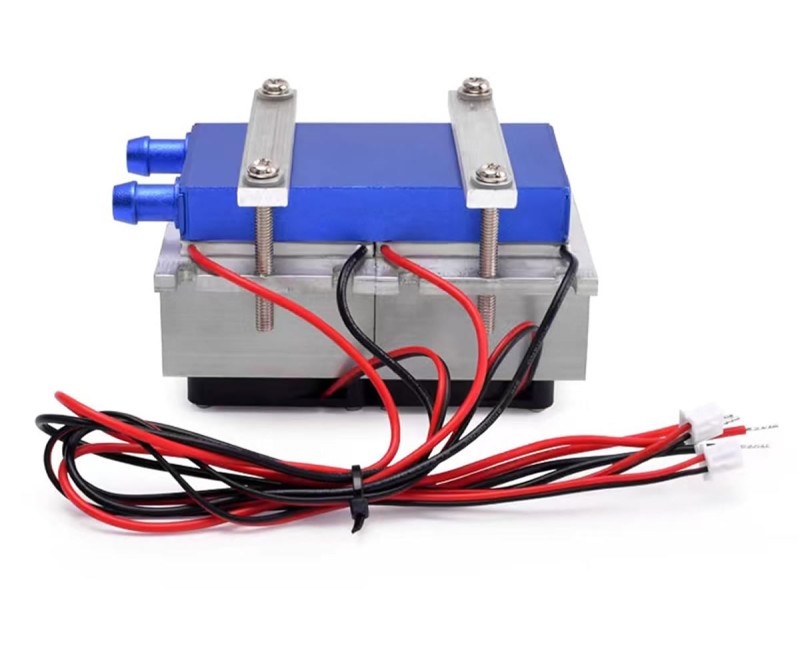

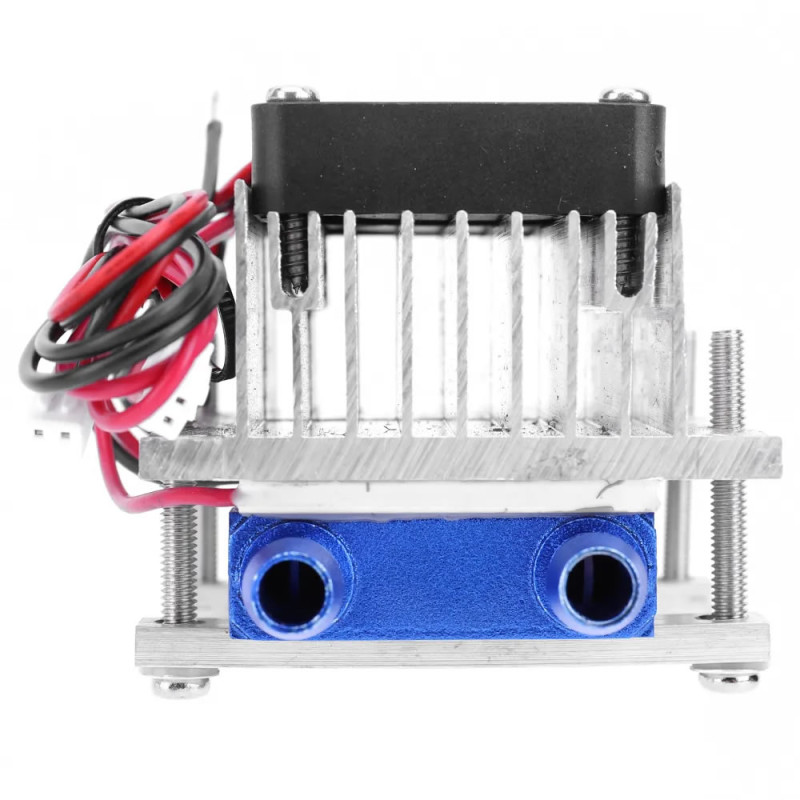

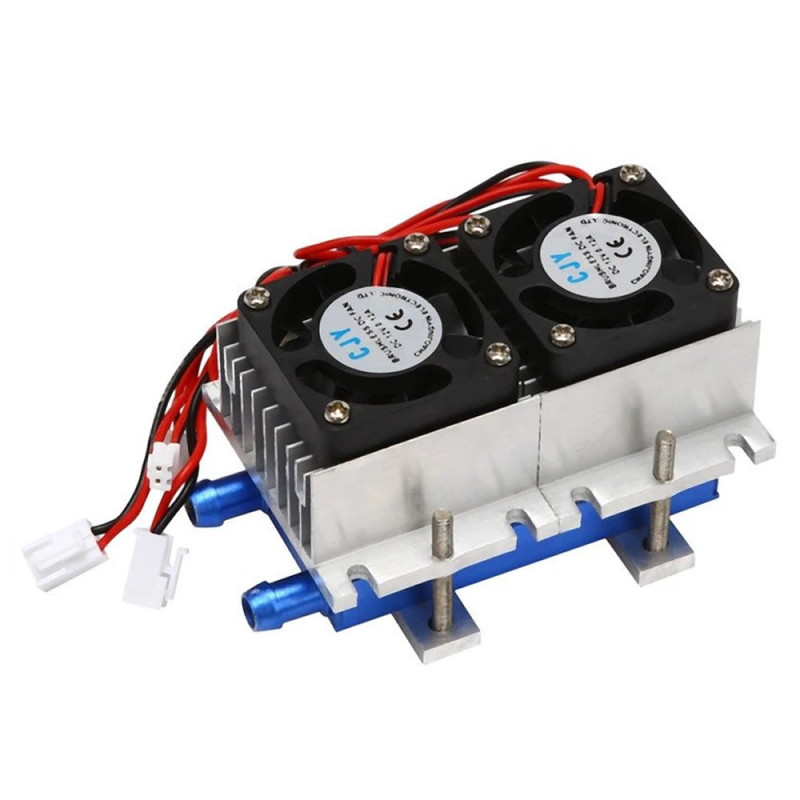

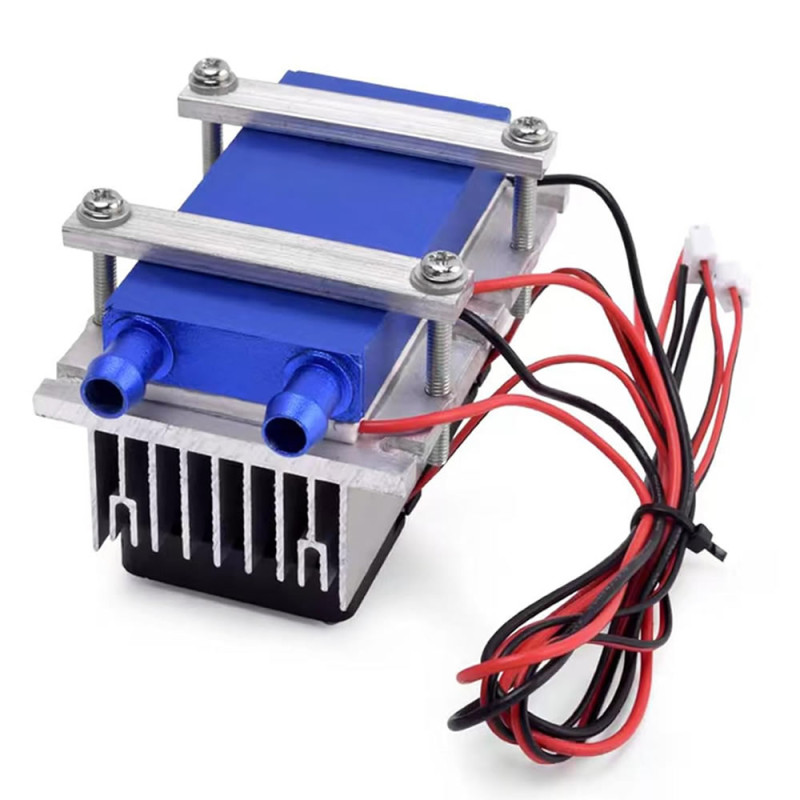

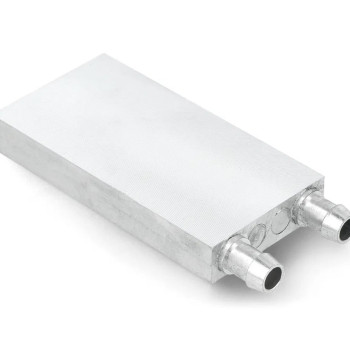

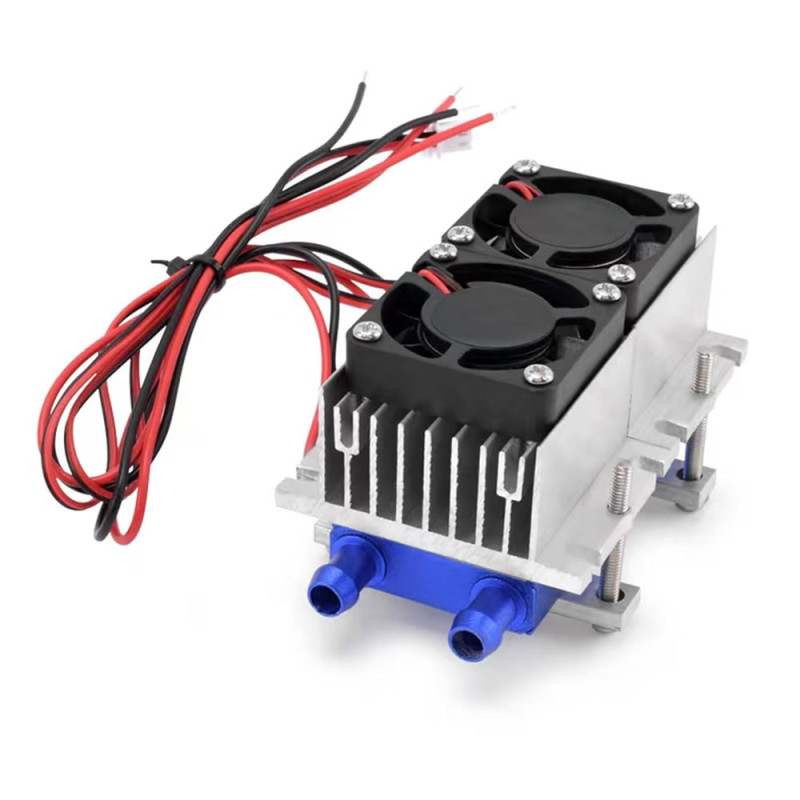

     It is a water cooling set made using 2 pcs 12706 peltiers. It is shipped assembled. It can be used by making only dc 12V supply connections. There is a 4x8cm aluminum water cooling block on the peltier cooling surface. The very low temperatures occurring on the cooling surface are used for cooling the water passing through the aluminum block. On the hot side, there are 2 pcs aluminum cooling blocks and 2 pcs 4x4cm fans on the blocks. It ensures that the heat occurring on the hot surface of the peltier is dissipated very quickly.

     The peltier and fan supply voltage is DC 12V. All 3 parts can be driven from the same source. A power supply of at least 150W must be used. In well insulated systems, depending on the ambient temperature, a drop of 10C to 25C can be obtained in the water temperature. The final performance depends on the ambient temperature, water volume, flow rate and insulation. It cannot be used in open areas. It is suitable for small closed areas.

Features:

•         Dual Peltier Water Cooler Set 144W
•         Peltier: 2 Pcs  TEC1-12706
•         Cooling structure: Water circulated block and fan supported heat dissipation
•         Temperature difference: 67C Maximum
•         Operating current: 12A (12V) Maximum
•         Cooling power: 120W Maximum
•         Power supply: 12V 15A
•         Operating environment: -55C /  83C ( Peltier )
•         Peltier voltage: DC 12V
•         Fan voltage: DC 12V
•         Comes assembled, easy to use.
•         Body material: Aluminum
•         Quick application
•         Material: Metal / Plastic
•         Color: Black / Silver / Blue

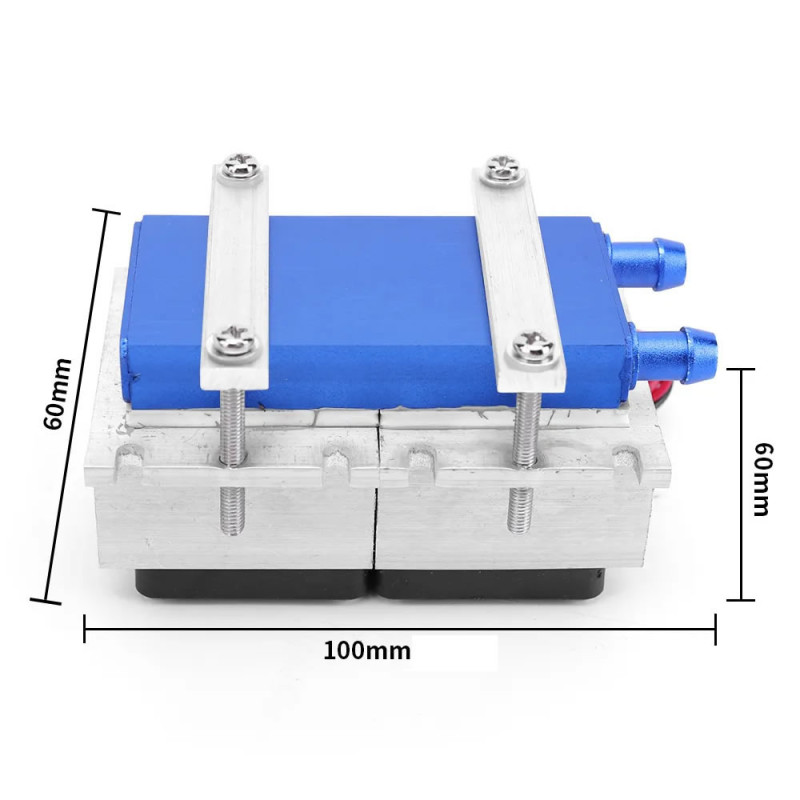

•         Dimensions: 60mm x 100mm x 60mm
•         Weight: 250 gr

Areas of use

• Small volume cooling projects
• Peltier cooling experiments
• Electronic test setups
• Mini cooler box applications
• Plate cooling studies
• Hobby and maker projects
• Home type experimental cooling systems

Warnings:   This product is not a ready closed device to be used directly like an air conditioner or refrigerator; it is a peltier cooling module for DIY applications. A suitable 12V high current power supply is required to operate it. In water connected use, it is important that the water circuit is in working condition and that the hot side is sufficiently cooled. If peltier modules are operated without the hot side being sufficiently cooled, performance drops or the product may be damaged.

Package contents:

•   1 Pcs  Peltier Water Cooler Set 144W
