RF Receiver + Transmitter 433Mhz

433Mhz RF Receiver  Transmitter Module Pair

Wireless Remote Control 10mW 4Kbps Garage Door Alarm Doorbell Sensor Weather Station Socket Light Curtain Toy Car

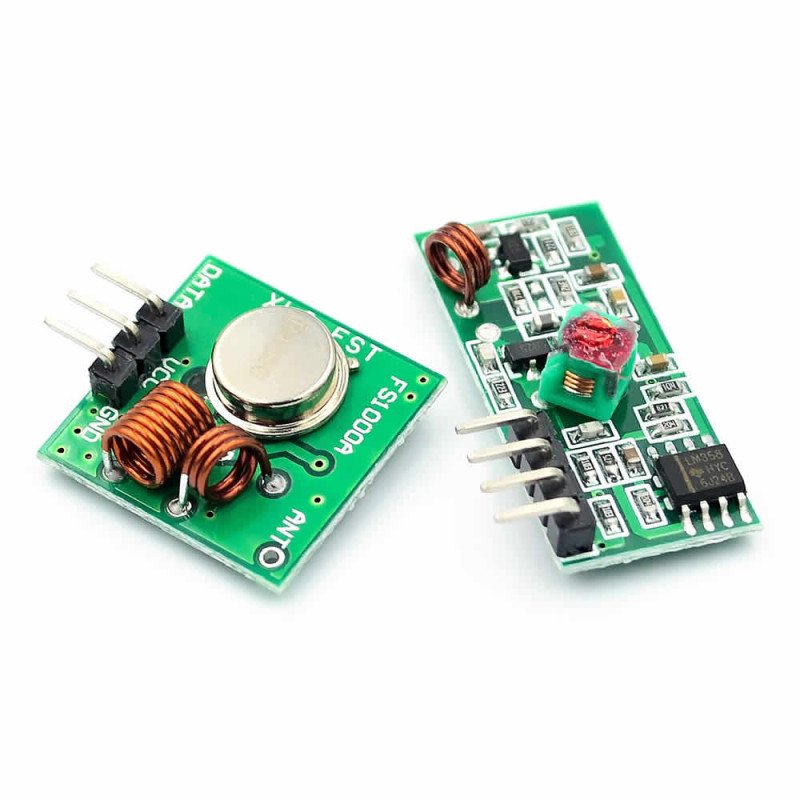

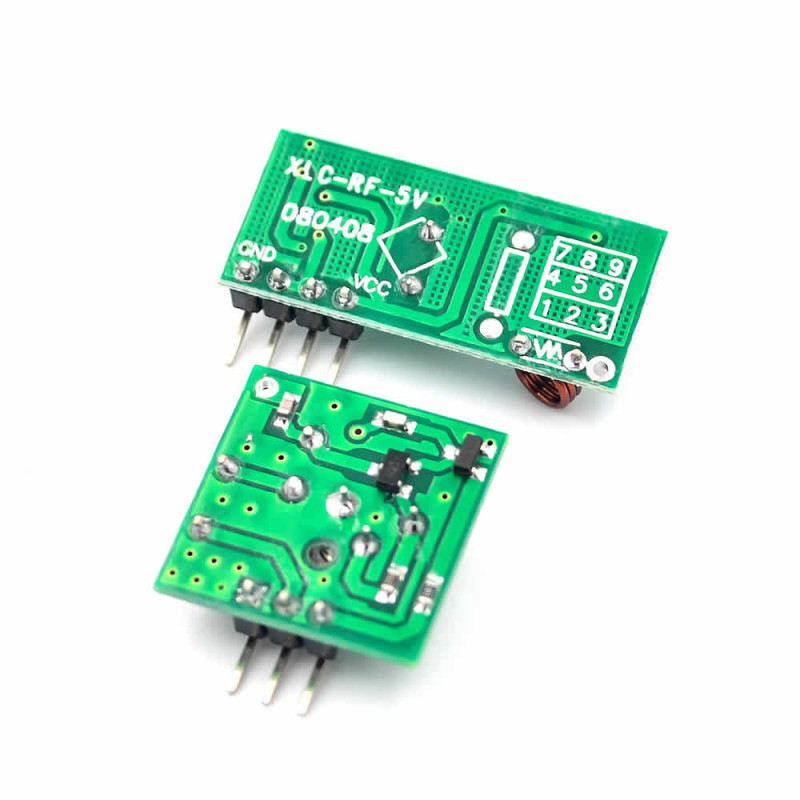

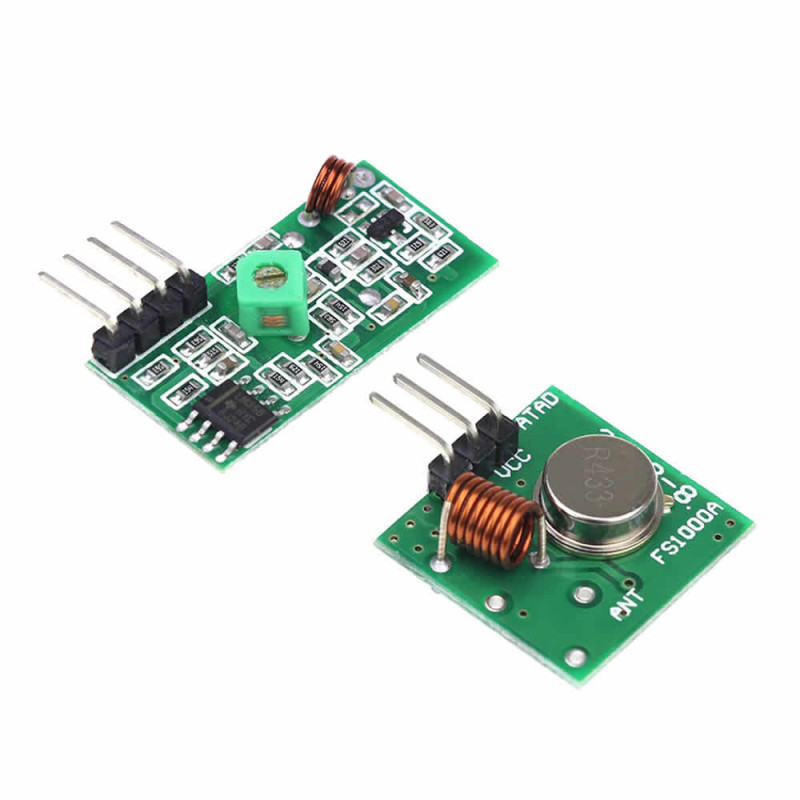

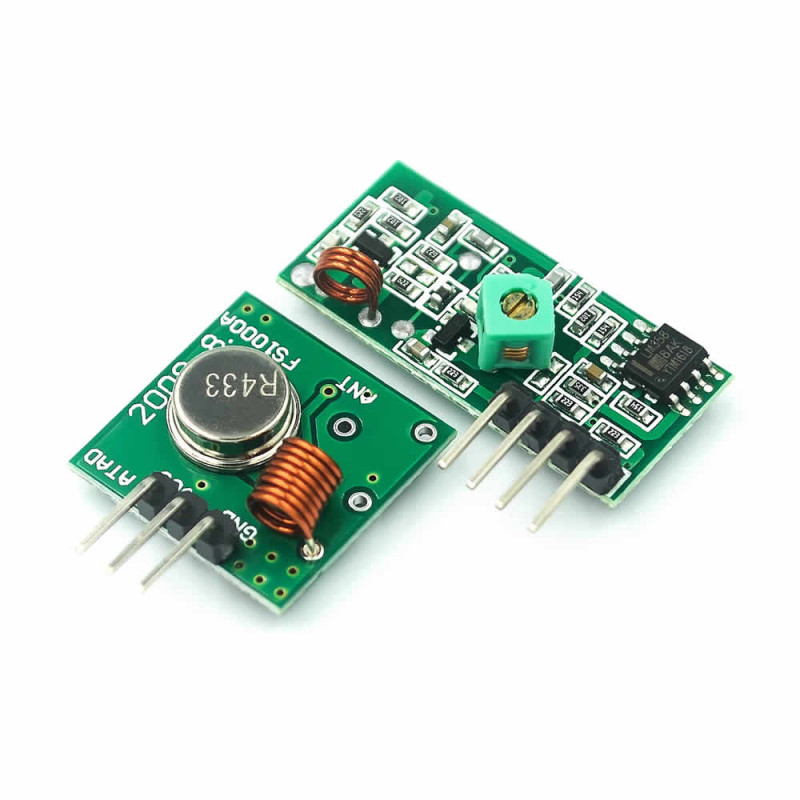

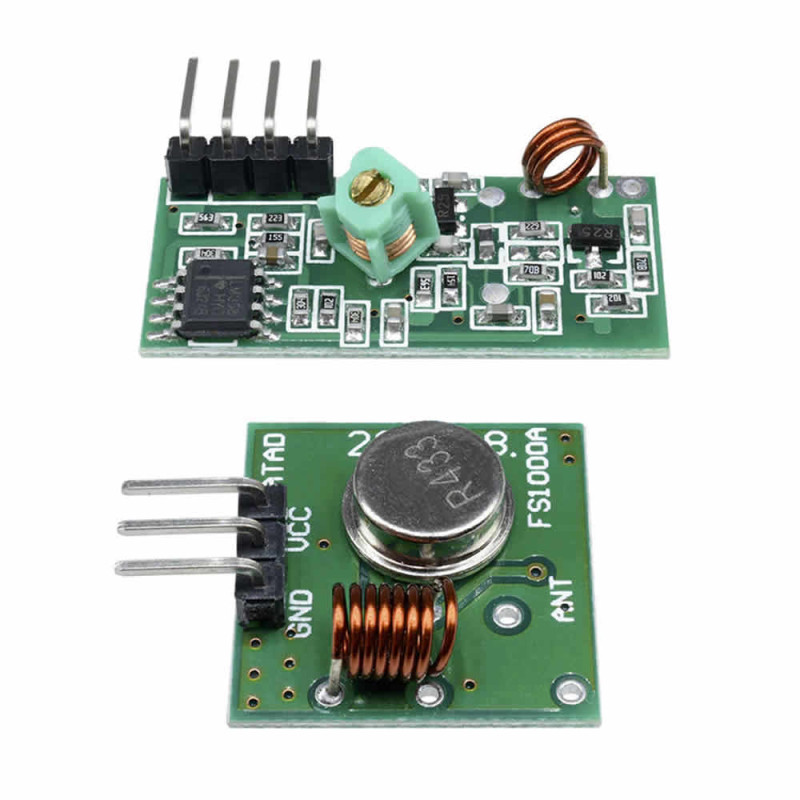

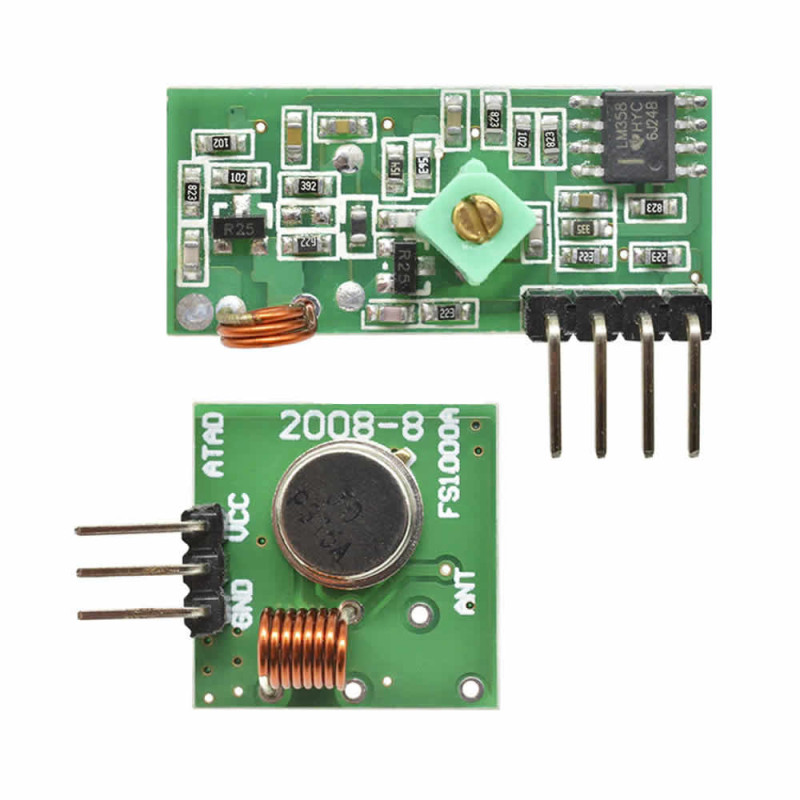

     This set is a one-way wireless communication pair consisting of an FS1000A transmitter module and an XY-MK-5V receiver module operating in the 433MHz band. The transmitter broadcasts the digital signal applied to its DATA pin with ASK (OOK) modulation at about 10mW; the receiver demodulates the signal and outputs it in the same form on its own DATA output. The data rate is up to 4Kbps; data travels only from the transmitter to the receiver.

     The transmitter works from 3.5V - 12V and its range increases with the supply voltage; with a suitable antenna and depending on the environment, communication of 20m - 200m is possible. The receiver is powered from 5V, draws about 4mA and has -105dBm sensitivity. The transmitter measures 19mm x 19mm and the receiver 30mm x 14mm; both have 2.54mm pitch pins fitted and plug directly into a breadboard.

     No antenna is fitted on the modules; a wire antenna of about 17cm (straight or wound as a spring) is soldered to the ANT hole. The modules do not encode data; a microcontroller (or an encoder / decoder IC) is used at both ends. It is a low-cost set suitable for wireless remote controls, doorbells, sending sensor data and simple on-off control.

Key features:

     Ready receiver + transmitter pair: A transmitter and a receiver working on the same frequency come together; a one-way wireless link is made between them without extra setup.

     Wide supply range (transmitter): The FS1000A transmitter works from 3.5V - 12V; it can be used in battery powered remote controls and sensor nodes, and range is highest at a 12V supply.

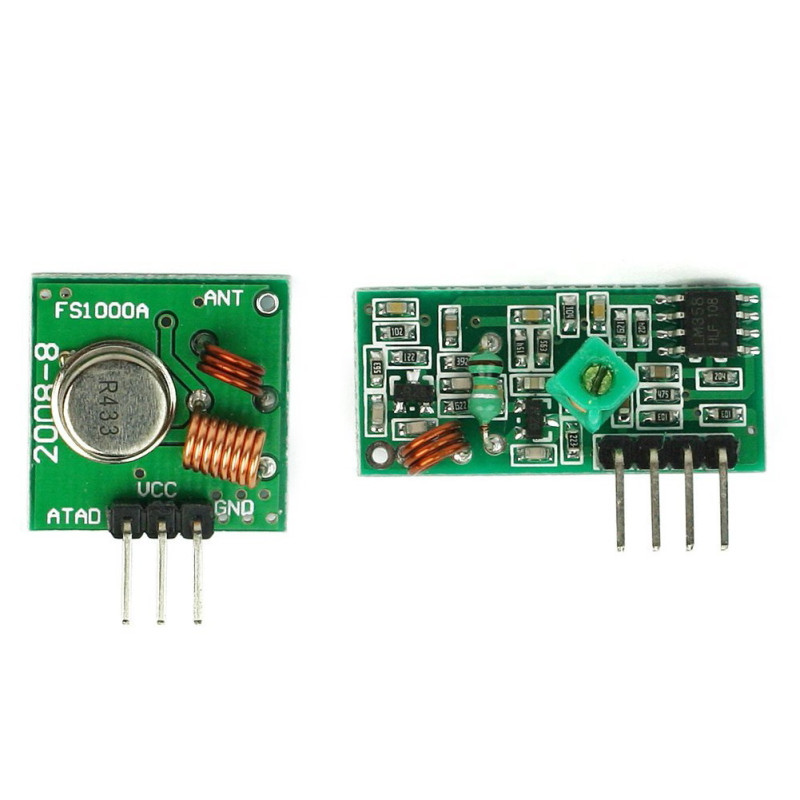

     Few pins, easy connection: The transmitter has DATA, VCC, GND pins; the receiver has VCC, DATA, DATA, GND pins. The DATA pins connect directly to a digital input / output pin of the microcontroller.

     Low current: The receiver draws about 4mA; the transmitter broadcasts only while the DATA pin is active and draws at most 40mA (12V).

     Compact build: The 19mm x 19mm transmitter and the 30mm x 14mm receiver fit into small enclosures and remote control circuits.

Features:

• Product type: 433MHz one-way RF receiver + transmitter module pair
• Model: FS1000A transmitter + XY-MK-5V receiver
• Operating frequency: 433MHz (433.92MHz)
• Modulation: ASK / OOK
• Data rate: up to 4Kbps
• Communication distance: 20m - 200m (depending on transmitter supply voltage, antenna and environment)
• Transmitter power: about 10mW
• Transmitter operating voltage: 3.5V - 12V DC
• Transmitter operating current: at most 40mA (at 12V); about 9mA at low supply voltage
• Transmitter pins: DATA, VCC, GND and ANT antenna hole
• Receiver type: super-regenerative receiver
• Receiver operating voltage: 5V DC
• Receiver operating current: about 4mA
• Receiver sensitivity: -105dBm
• Receiver pins: VCC, DATA, DATA, GND and ANT antenna hole
• Antenna: not fitted; a wire antenna of about 17cm is recommended
• Pin pitch: 2.54mm (pins fitted)
• Color: Green

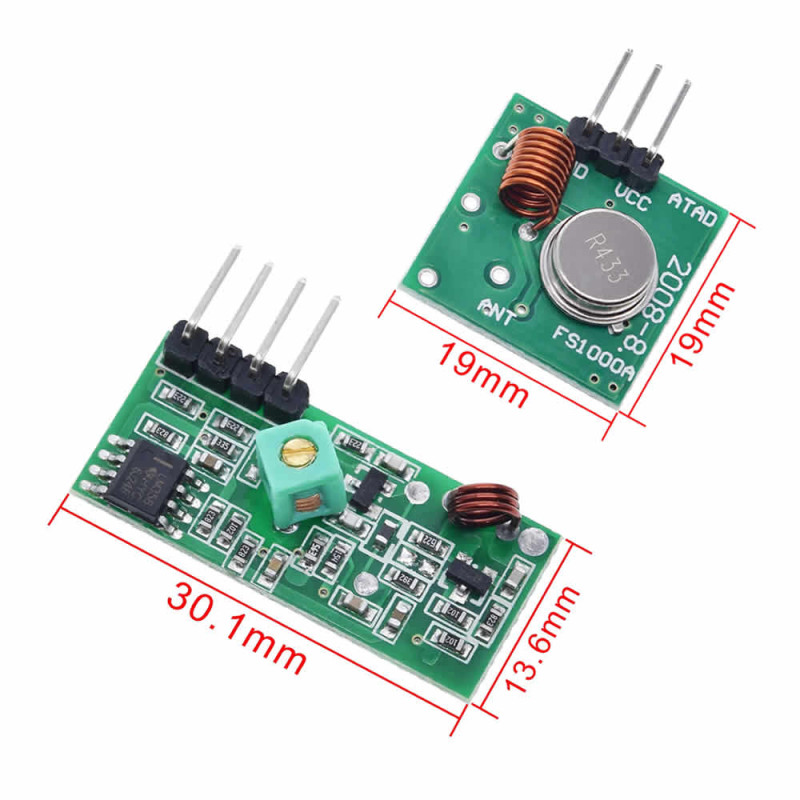

• Dimensions: transmitter 19mm x 19mm x approx. 8mm, receiver 30mm x 14mm x approx. 7mm
• Weight: about 2gr (both modules together)

Usage information:

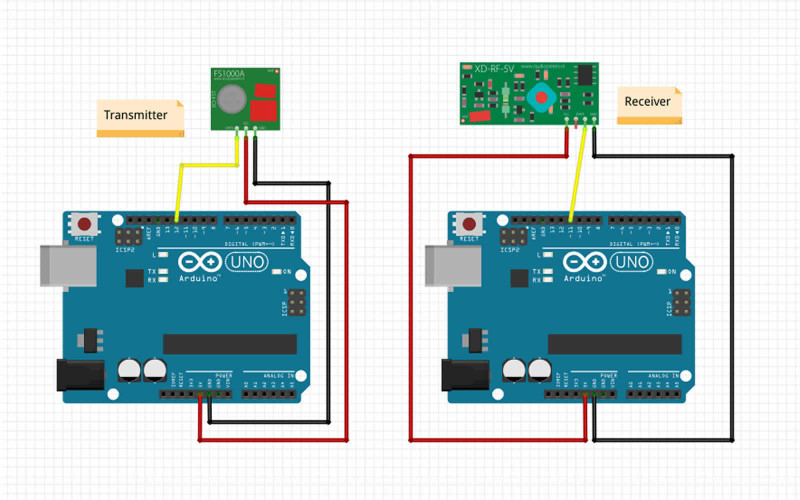

• Transmitter connection: connect VCC to a 3.5V - 12V supply, GND to common GND and DATA to a digital output pin of the microcontroller. If you use a separate supply, join the GNDs.
• Receiver connection: connect VCC to 5V, GND to GND and one of the two DATA pins to a digital input pin of the microcontroller (the two DATA pins are joined on the board).

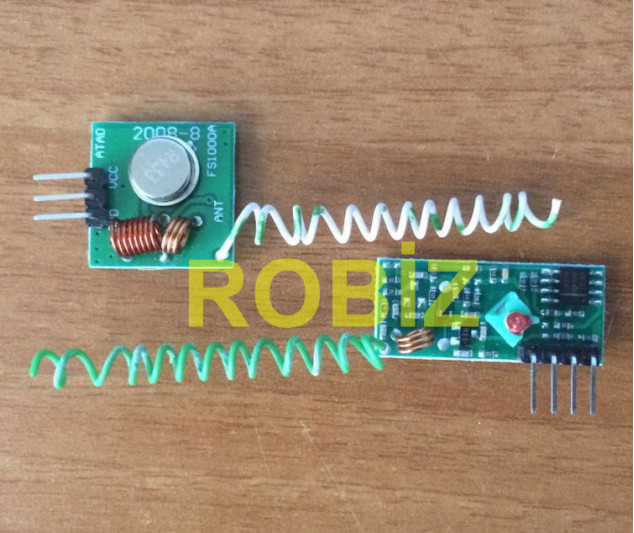

• Antenna: solder an insulated or bare single-core wire of about 17cm (quarter wavelength of 433MHz) to the ANT hole of each module; the wire can be left straight or wound as a spring to save space. Without an antenna the range becomes very short.
• The modules carry a raw ASK signal; for reliable data use a software library that does ASK encoding (e.g. RadioHead ASK, rc-switch) or an encoder / decoder IC at both ends.

Areas of use:

•  Wireless remote control and on-off control
•  Garage door and garden gate remote control
•  Wireless doorbell
•  Alarm and security sensors (door, motion)
•  Sending weather station and temperature sensor data
•  Remote controlled socket, light and curtain control
•  Remote controlled toys and model cars
•  Simple wireless data transfer trials and training sets
•  Wireless triggering for home automation

Precautions:

•  Communication is one-way: data travels only from the transmitter to the receiver. For two-way communication two separate pairs or a transceiver module such as the HC-12 is needed.
•  The receiver works from 5V; with 3.3V boards the receiver must be powered from 5V and its DATA output adapted to the input level of the board.
•  With no signal, the receiver gives random noise on its DATA output and is affected by other 433MHz devices in the same band; verify the data in software with a header and checksum.
•  No antenna is fitted on the modules; without a soldered antenna the range becomes very short.
•  Range values are for open space; walls and metal obstacles shorten the range.

Package contents:

•  1 pcs 433MHz FS1000A Transmitter Module
•  1 pcs 433MHz XY-MK-5V Receiver Module
•  Note: Antenna wire is not included in the package.
