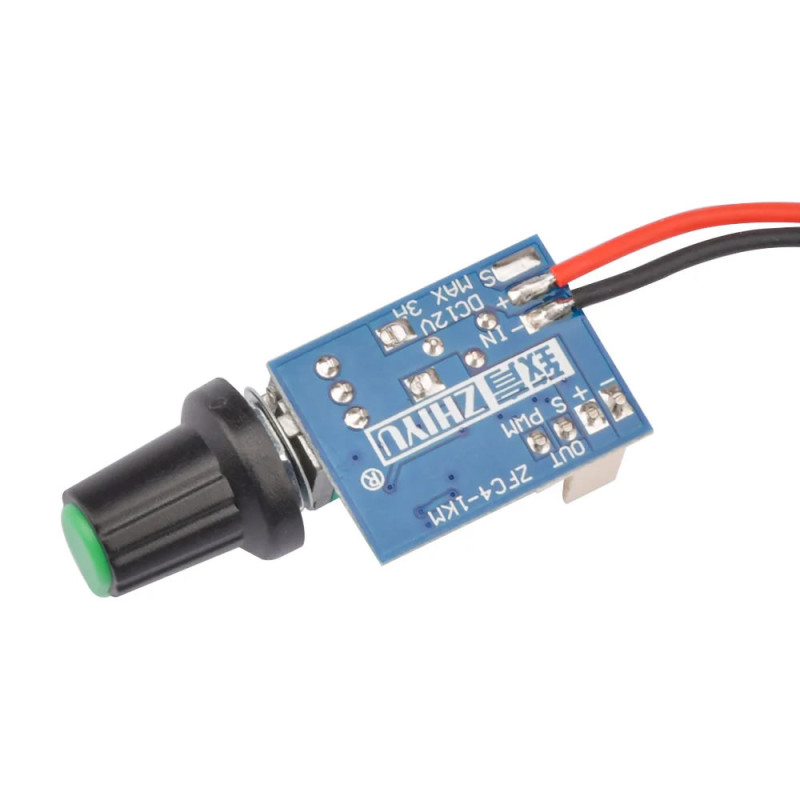

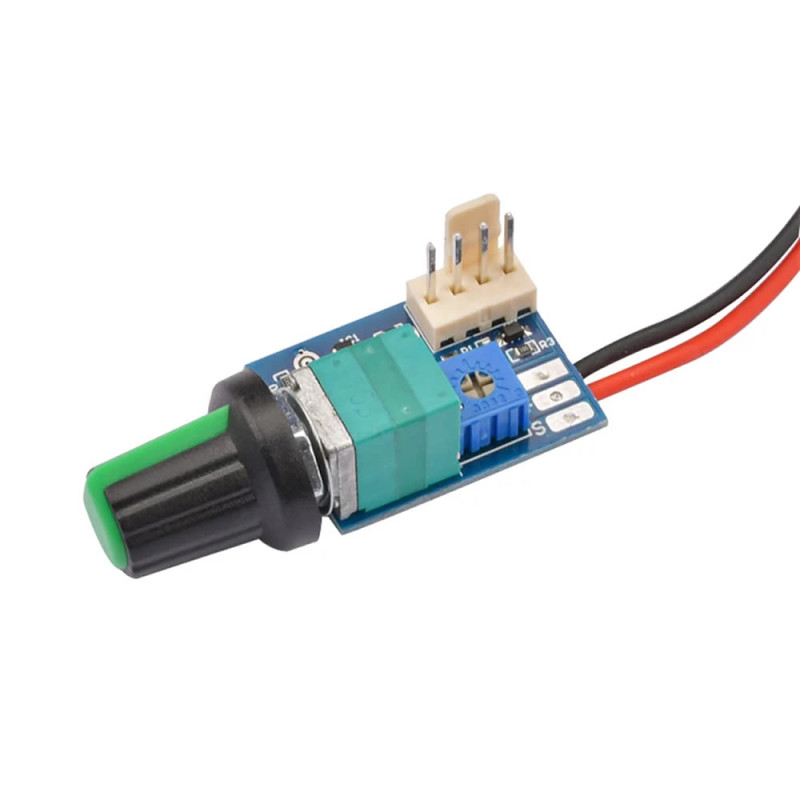

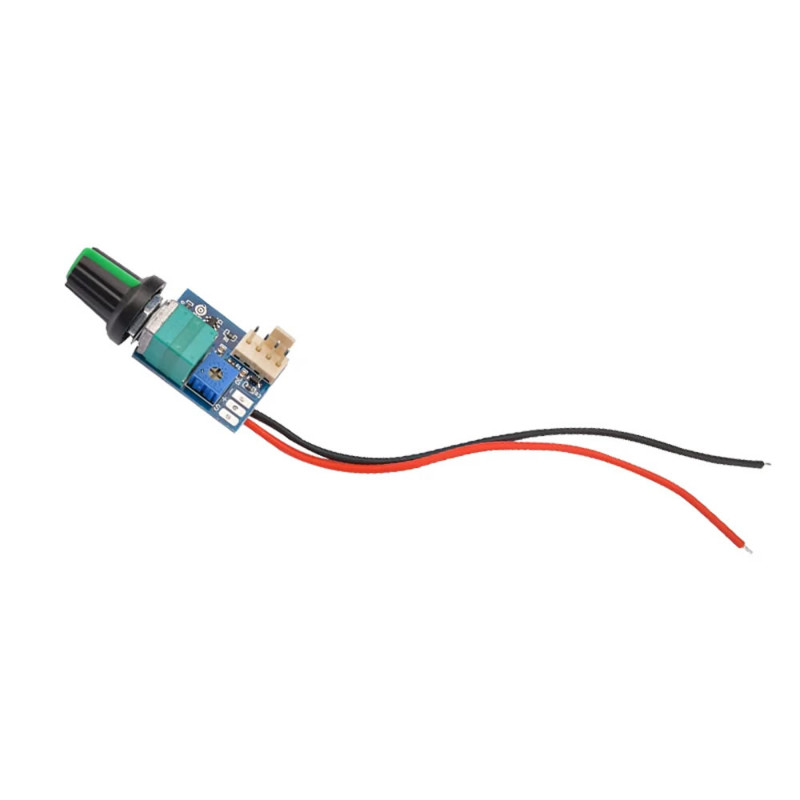

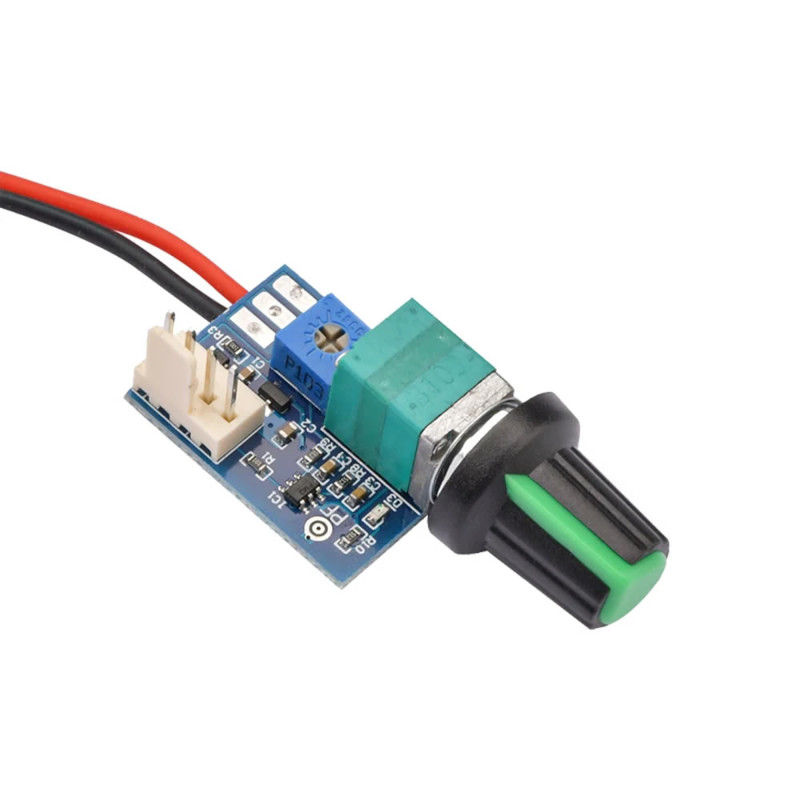

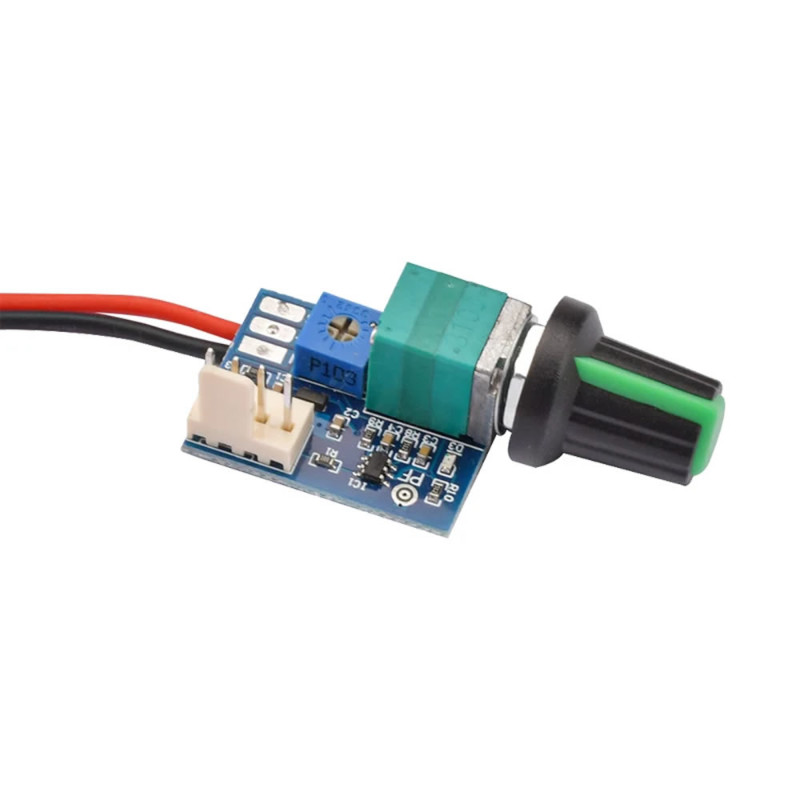

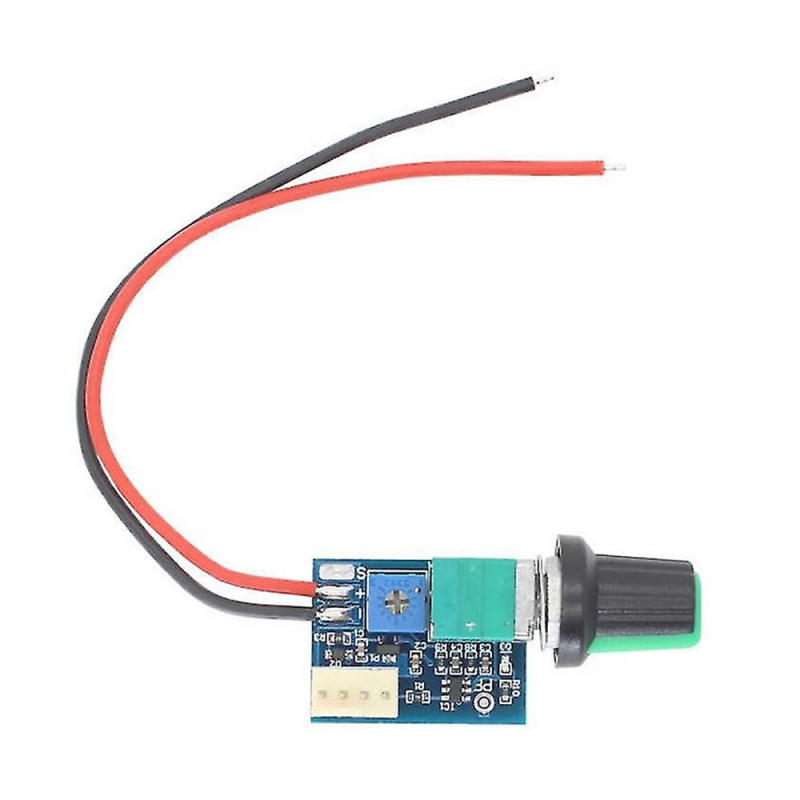

DC 12V PWM Fan Speed Control Circuit Zfc4-1km
With Adjustment Pot Switched Pc Cpu Cooler 4 Wire Fan Alarm Computer Temperature Control Noise Reducer

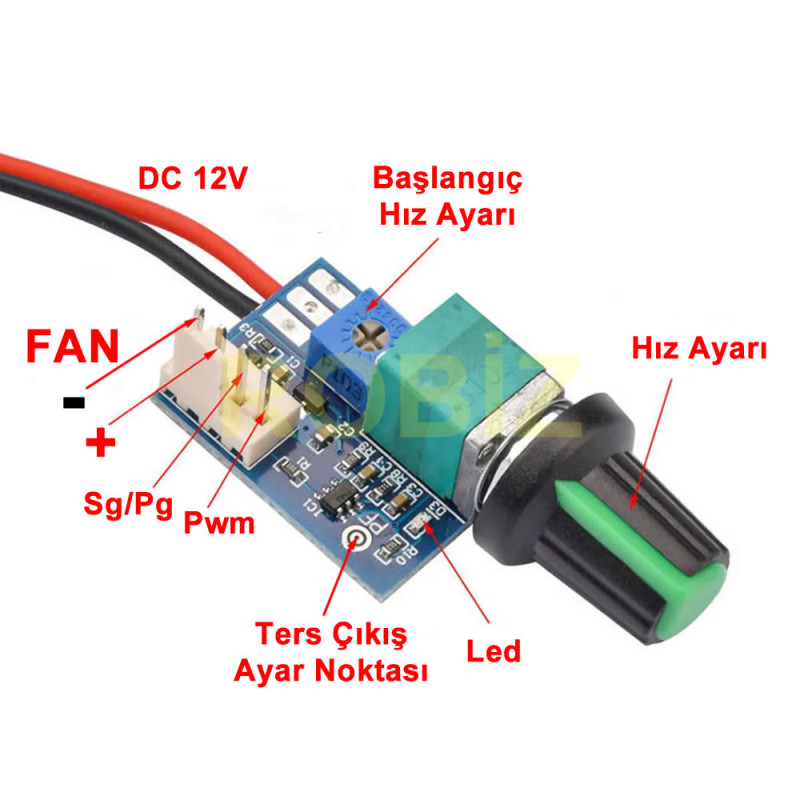

It is a DC 12v fan speed control board. There are 2 pots on the board. the small pot is for the start speed adjustment. The large pot is used for the speed adjustment. In addition there is an on off switch on it. The board takes its power over 2 supply cables. If the fan order is reversed it can be used by short circuiting the PF pads.
It is suitable for use in applications where the fan speed needs to be adjusted. It can also be used for reducing the fan noise. The rotation speed can be reduced. Thus the sound decreases. Of course the cooling power will also decrease.
Features:
- Model: ZFC4-1KM
- 4 Wire fan output socket.
- Operating voltage: Dc 12V ( DC 8V / 15V )
- Operating current: 20mA
- Fan current: 3A maximum
- Speed control pot
- Speed range: 0% / 100%
- It can be turned off with the on off switch on the pot
- Start speed adjustment pot
- Start speed range: 0% / 60%
- Supply indicator led
- Stable performance.
- Operating temperature: -10C / 80C
- 4 Pin 2.54mm fan connection socket

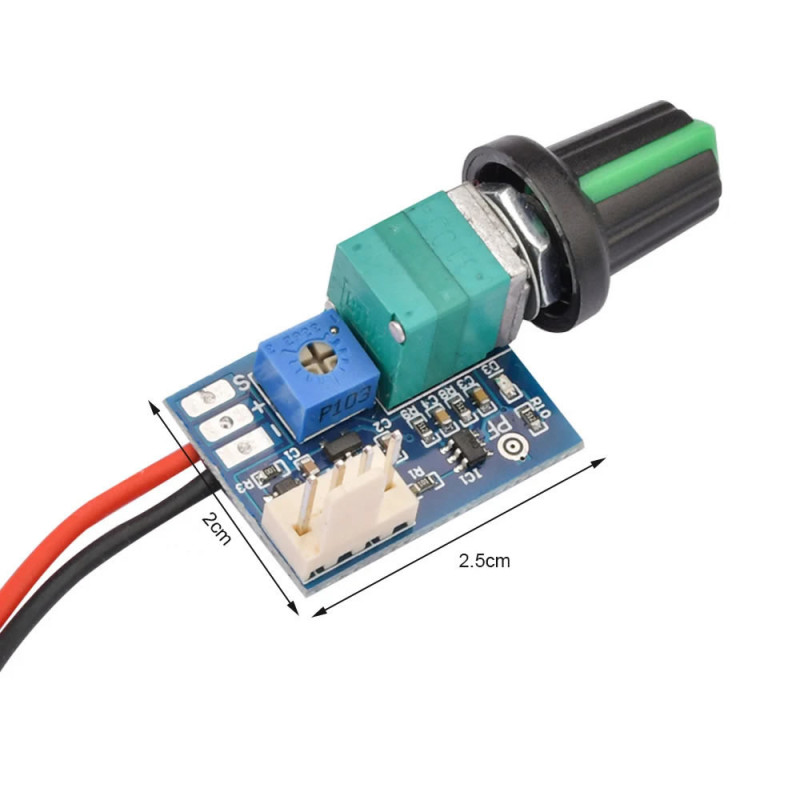

- Dimensions: 20mm x 25mm
- Weight: 10gr.
Package Contents:
- 1 pcs Fan Speed Control DC12V ZFC4-1KM
.
