4 Ohm 3W Speaker 4cm

Mini 4cm 4 Ohm 3W Speaker Round Speaker

40mm 3 Watt Sound Music Amplifier Sound Generator High Quality Toy Product Promotion

     The 4 Ohm 3W Speaker is a round mini speaker with an internal magnet, 40mm (4cm) in diameter and about 20mm high. With 4Ω impedance and 3W rated power it connects directly to the speaker output of small amplifier boards and reproduces speech, music, warning and notification sounds clearly. It weighs about 15gr.

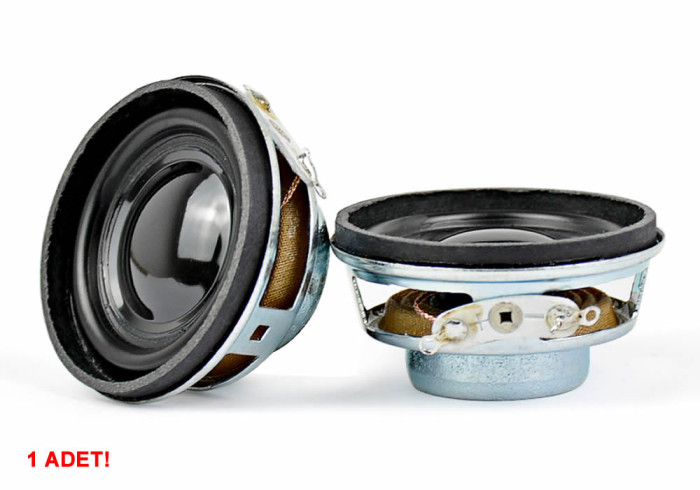

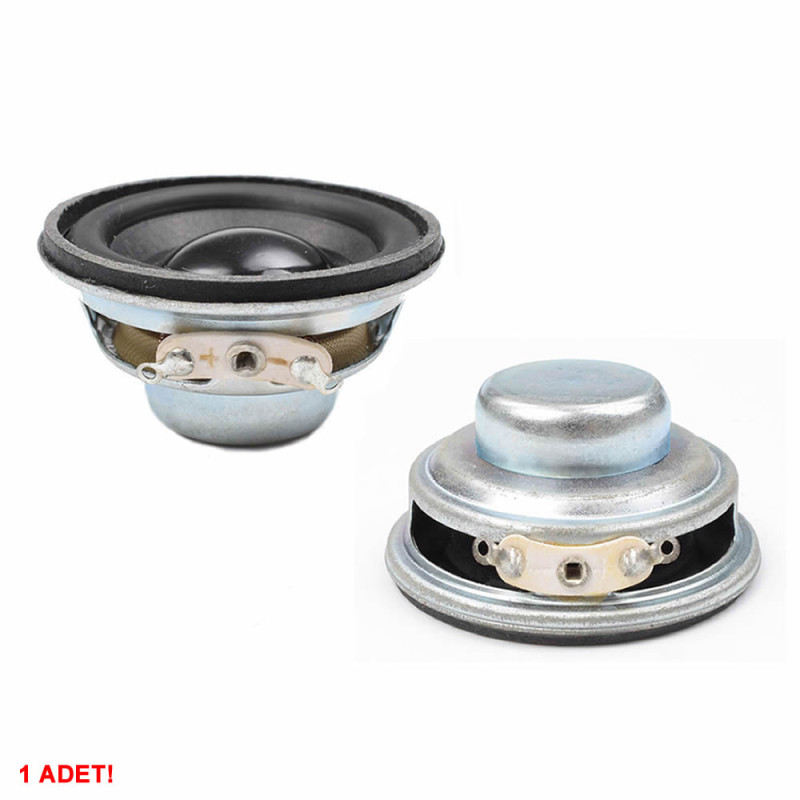

     The magnet sits inside the closed metal cup at the back of the speaker; since there is no exposed magnet outside, the speaker fits into narrow enclosures and has less magnetic effect on nearby parts. The black cone diaphragm is attached to the metal frame with a flexible surround; the windows on the sides of the frame let air flow behind the cone. Connection is made by soldering wires to the 2 solder tabs on the edge of the frame.

     Thanks to its small size it suits Bluetooth speaker boxes, internet radios, talking toys, doorbells, alarm and announcement systems and devices that give audible notifications. It can be used with mono or stereo amplifier modules delivering up to 3W (e.g. MAX98357, PAM8403).

Key features:

     4Ω, 3W: Most small amplifier boards deliver their highest power into a 4Ω load. With 3W rated power it connects directly to amplifier modules delivering up to 3W.

     Internal magnet body: The magnet is inside the closed metal cup at the back. With no exposed magnet outside, it saves space in narrow enclosures and has less magnetic effect on its surroundings.

     Small and light body: With 40mm diameter and about 20mm height it fits small speaker boxes, toys and device housings; at about 15gr it adds little weight to portable devices.

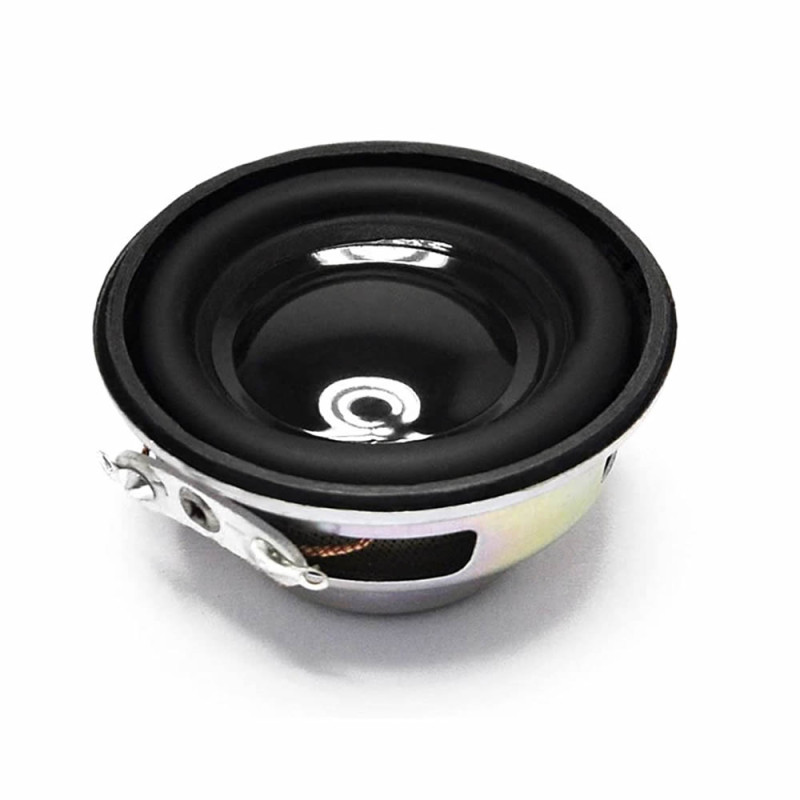

     Cone with flexible surround: The black cone diaphragm is attached to the frame with a flexible surround; the cone moves freely and gives clear speech, music and alert sounds for its small size.

     Solder tab connection: Wires of any length are soldered to the 2 solder tabs on the frame edge, so the cable length can be matched to the device.

Features:

• Product type: Round mini speaker with internal magnet
• Impedance: 4Ω (4 Ohm)
• Rated power: 3W
• Frequency response: approx. 200Hz - 20kHz
• Sensitivity: approx. 83dB
• Magnet structure: Internal magnet, inside the closed metal cup at the back
• Suitable amplifier: Amplifiers that support a 4Ω load and deliver up to 3W per channel
• Connection: 2 solder tabs
• Audio input: Analog; driven from an amplifier output

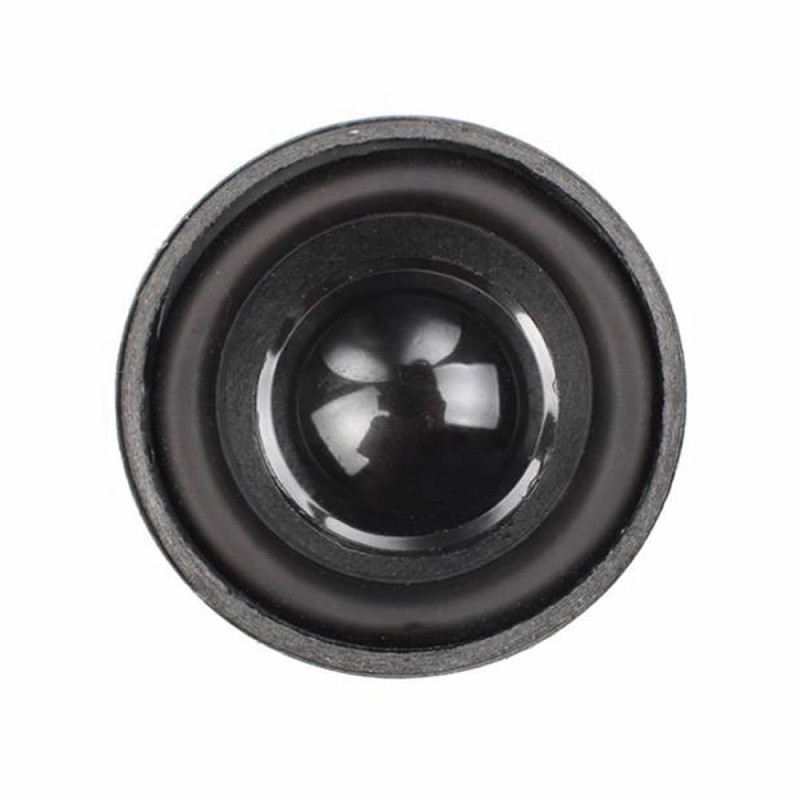

• Diaphragm: Black cone with dust cap in the centre
• Surround: Flexible black surround (suspension)
• Frame: Metal, with air windows on the sides

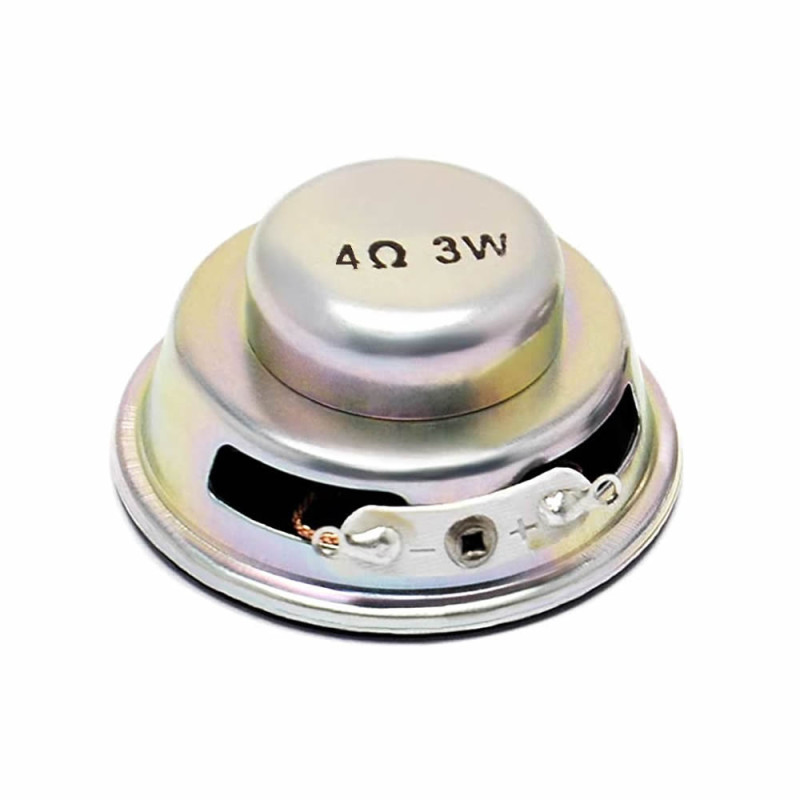

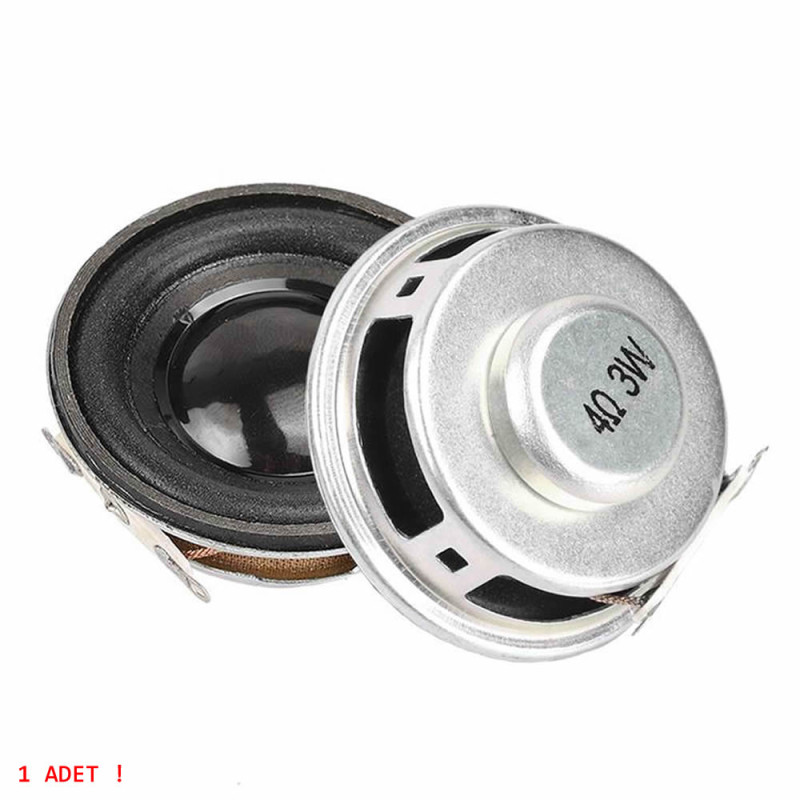

• Marking on the body: 4Ω 3W
• Material: Metal frame and magnet cup
• Colour: Black cone, silver metal body

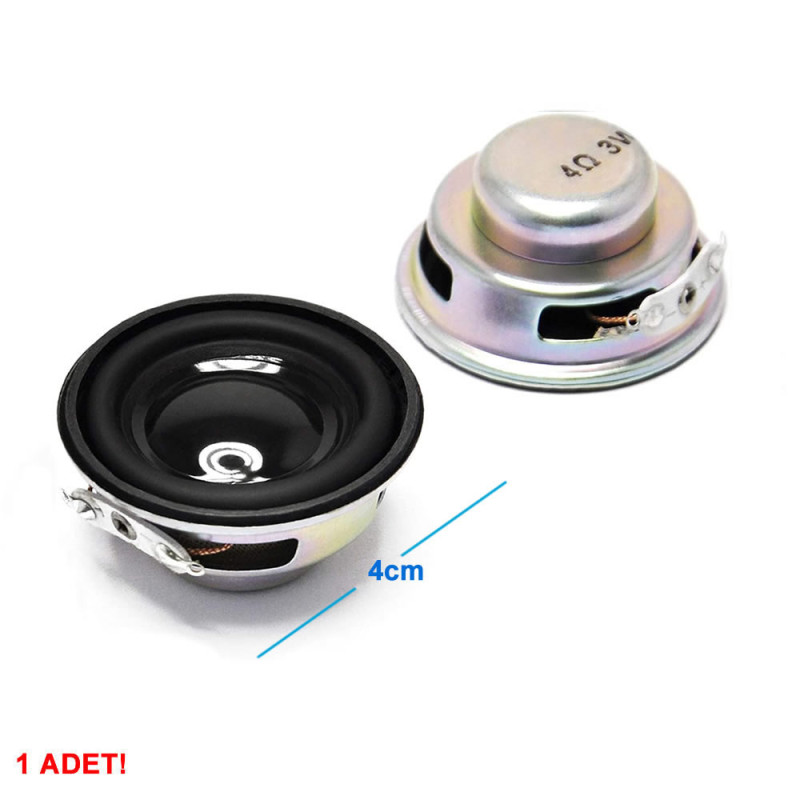

• Speaker diameter: 40mm (4cm)

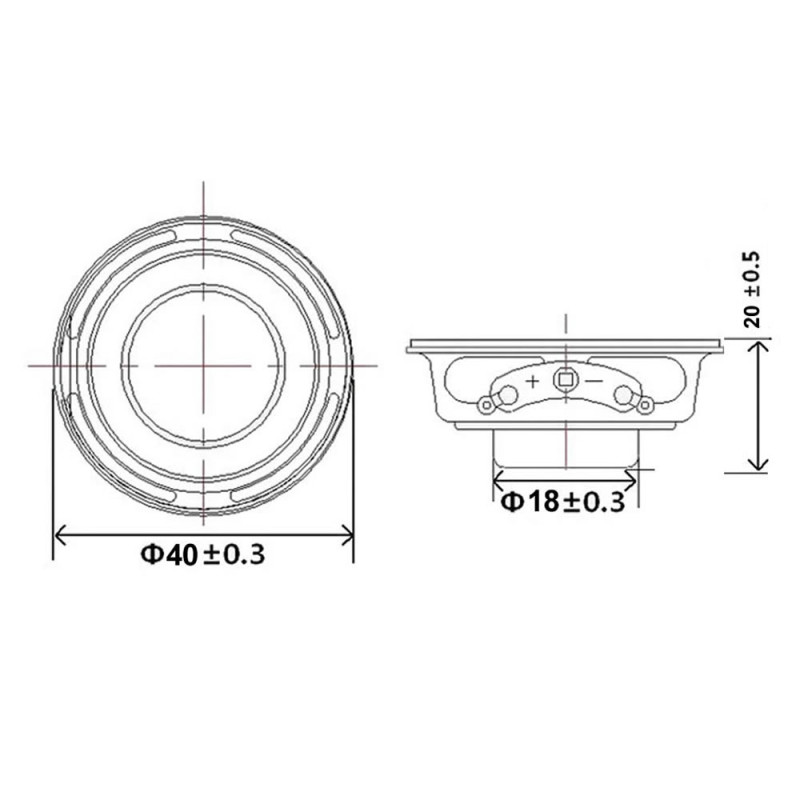

• Dimensions: 40mm diameter x approx. 20mm height
• Weight: approx. 15gr

Usage information:

• Solder wires to the two solder tabs of the speaker and connect them to the speaker output (+ and -) of the amplifier board. Heat the tab only briefly while soldering; long heating can damage the thin coil wires behind the tabs.
• In stereo use with two speakers, connect both speakers with the same polarity (+ tab to the amplifier + output); a speaker connected in reverse weakens the sound.
• When placing the speaker into a box or housing, open holes or a grille in front of it; separating front and rear sound inside a closed box strengthens the bass.

Application areas:

•  Bluetooth speaker box and portable speaker
•  Radio and internet radio
•  Music player and MP3 player setups
•  Doorbell and chime setups
•  Toys and talking figures
•  Robot sound output
•  Alarm and warning systems
•  Announcement and voice guidance devices
•  Voice assistant and voice command devices
•  Measuring and control devices with notification sounds


Things to consider:

•  Do not feed more than 3W of continuous power to the speaker. If you use a stronger amplifier, keep the volume low; excessive power heats the coil and deforms the cone.
•  The impedance is 4Ω. Make sure the amplifier supports a 4Ω load; do not connect it to an amplifier that only accepts 8Ω and higher loads.
•  The speaker does not produce sound on its own; an amplifier or an audio module with speaker output is required. Do not connect it directly to a signal pin of a controller board.
•  Do not press the cone or the flexible surround and do not touch them with sharp objects; a torn or dented cone distorts the sound.
•  It is a small diameter speaker and does not give deep bass. Use a larger speaker where strong bass is needed.

Package contents:

•  1 pcs 4 Ohm 3W Speaker 4cm
•  Note: Cable and amplifier board are not included in the package.
