5 Pieces 3 Pin Jst Sm 15cm Cable Pair

5 Pairs 3 Pin Jst Sm 15cm Cable Pair

3 Pin Male Female Connection Socket Led Connector Cable Led Strip Rgb WS2812B WS2811 WS2812 SK6812

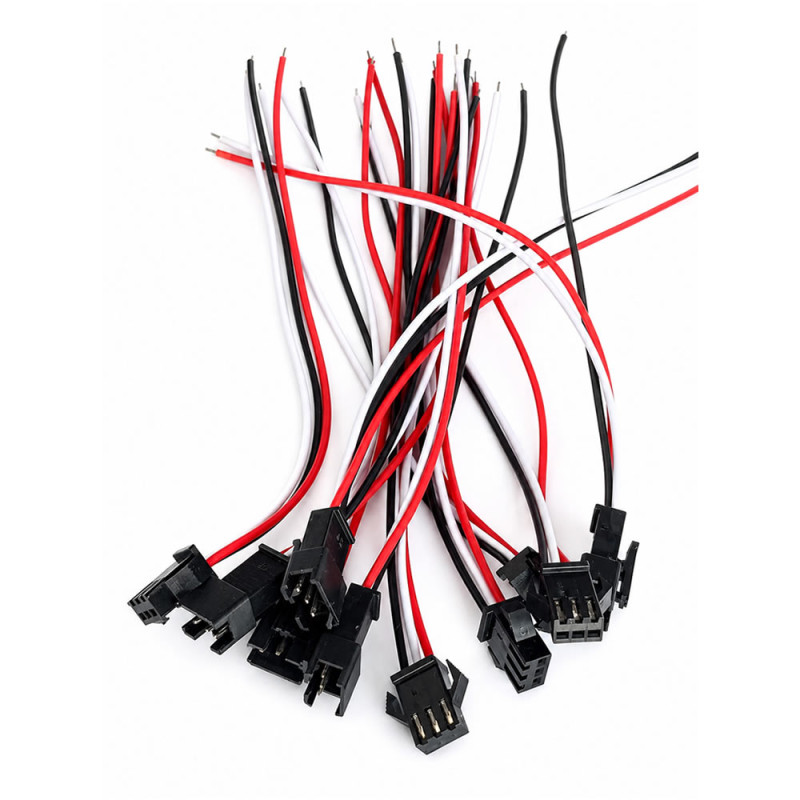

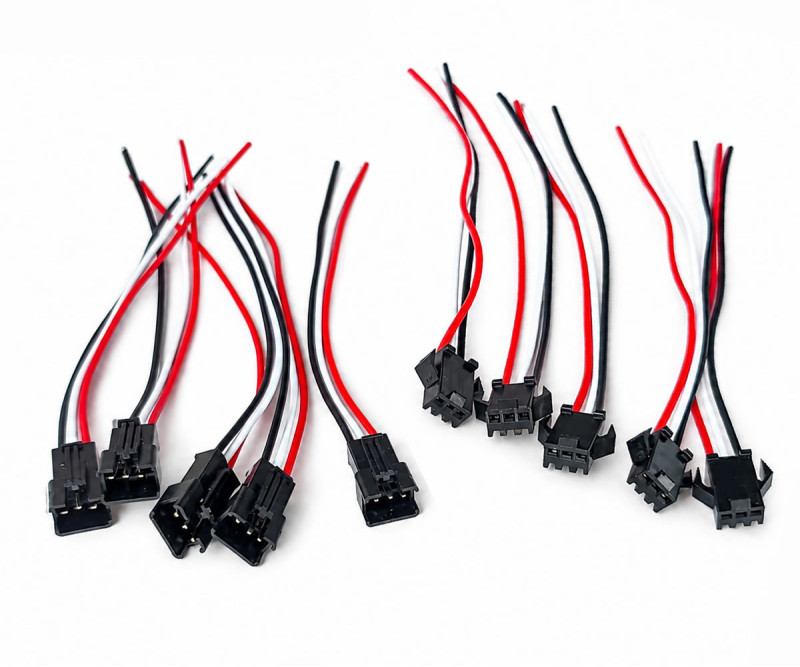

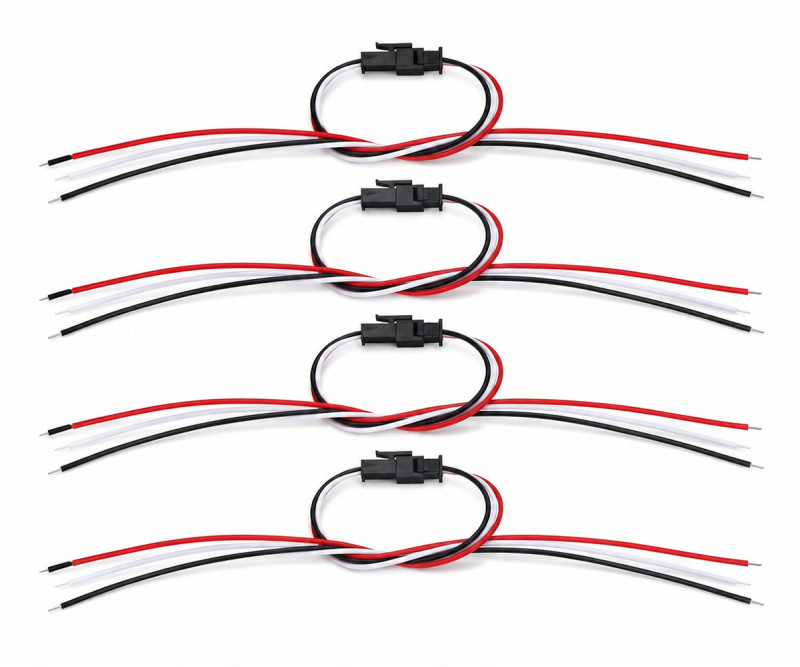

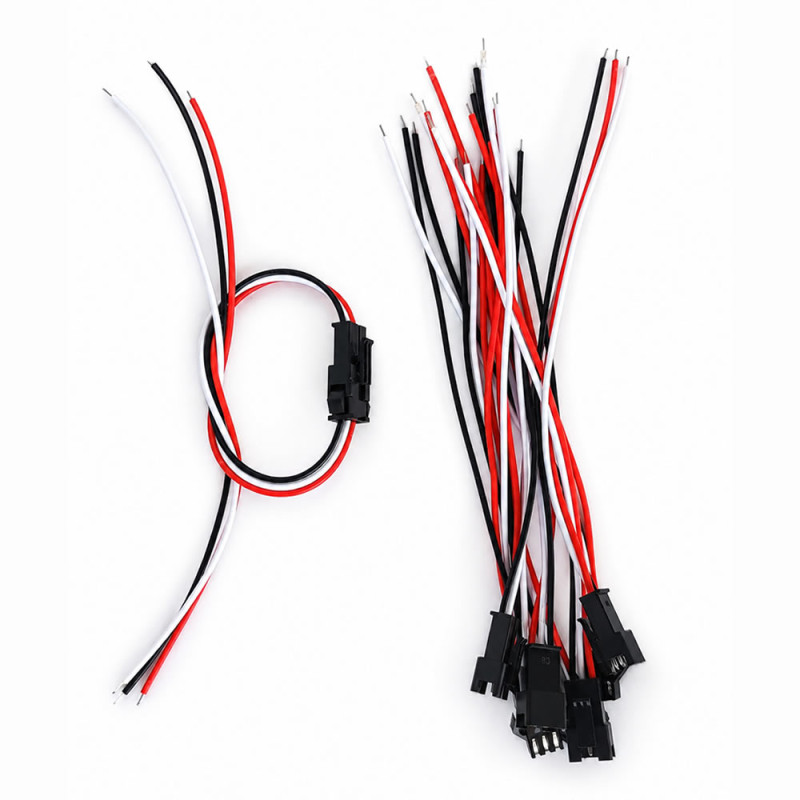

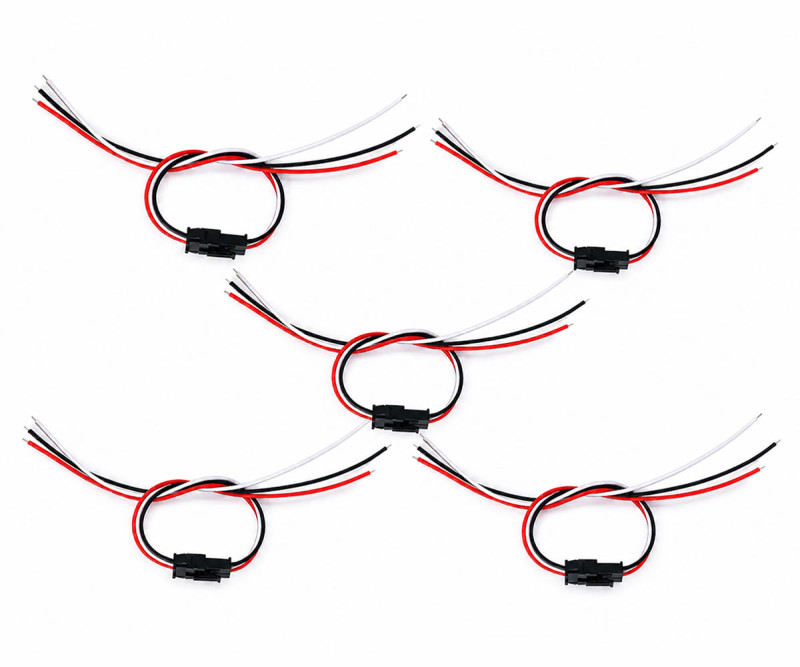

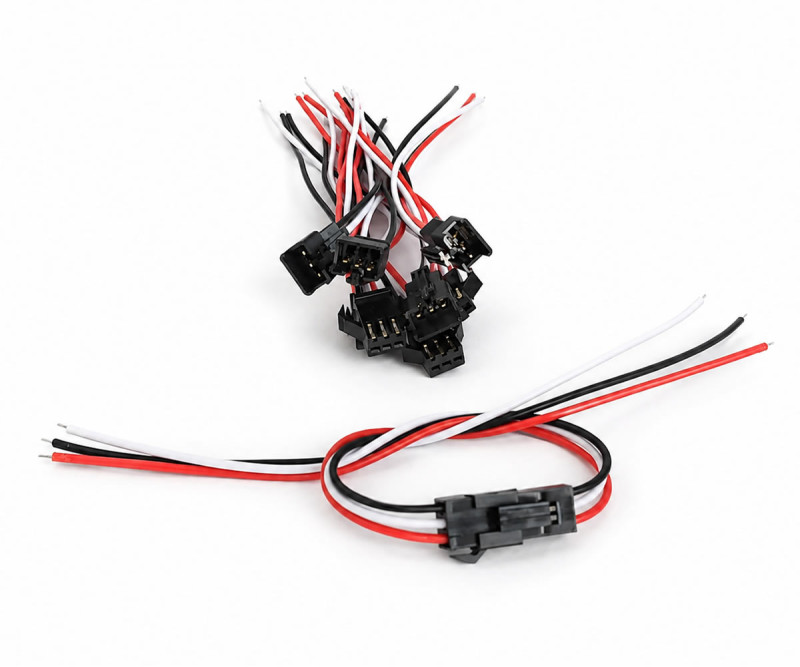

     The 15cm 3 pin JST SM male female cable pair is used to connect two circuits, modules or cable groups in a detachable way without soldering in 3 line low voltage connections. The set comes as 5 pairs, each pair consists of 1 male and 1 female cable. The male side is 15cm and the female side is 15cm long, when the two sides are plugged into each other the total cable length is around 30cm.

     Thanks to its locking structure, the JST SM series allows the connection to be separated and reattached easily. The red, white and black cable structure is suitable for 3 line connections such as power, signal/data and GND. It can be used in RGB led strip, WS2811, WS2812B, WS2812, SK6812, Arduino, sensor, small module, hobby electronics and low voltage cable connection applications.

     The product is not waterproof. In outdoor environments, humid environments or high current applications, additional insulation, heat shrink tubing, an enclosure or suitable protection must be used. Current capacity may vary depending on cable thickness, connection quality, ambient temperature and duration of use. The catalog current value of the JST SM series is 3A maximum; heat control must be performed at continuous high current.

Features:

• Product type: 3 pin JST SM male female cable pair
• Connector structure: Locking male female connection socket
• Operating voltage: DC 5V-24V low voltage systems
• Maximum current: 3A, depending on the application
• Number of pins: 3 pin
• Pin spacing: 2.5mm

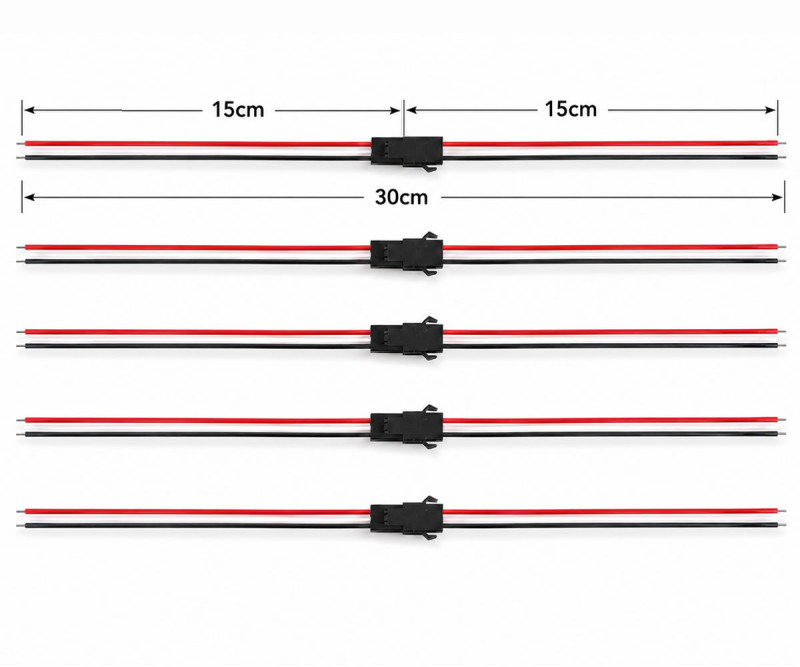

• Cable length: Male 15cm + female 15cm
• Cable thickness: 22AWG
• Material: Metal / Plastic
• Color: Red White Black
• Operating temperature: -25C / 65C
• Weight:  20gr

Areas of use:

• RGB led strip connections
• WS2811, WS2812B, WS2812, SK6812 led modules
• Arduino and microcontroller projects
• Sensor and small module connections
• Hobby electronics low voltage cable connections

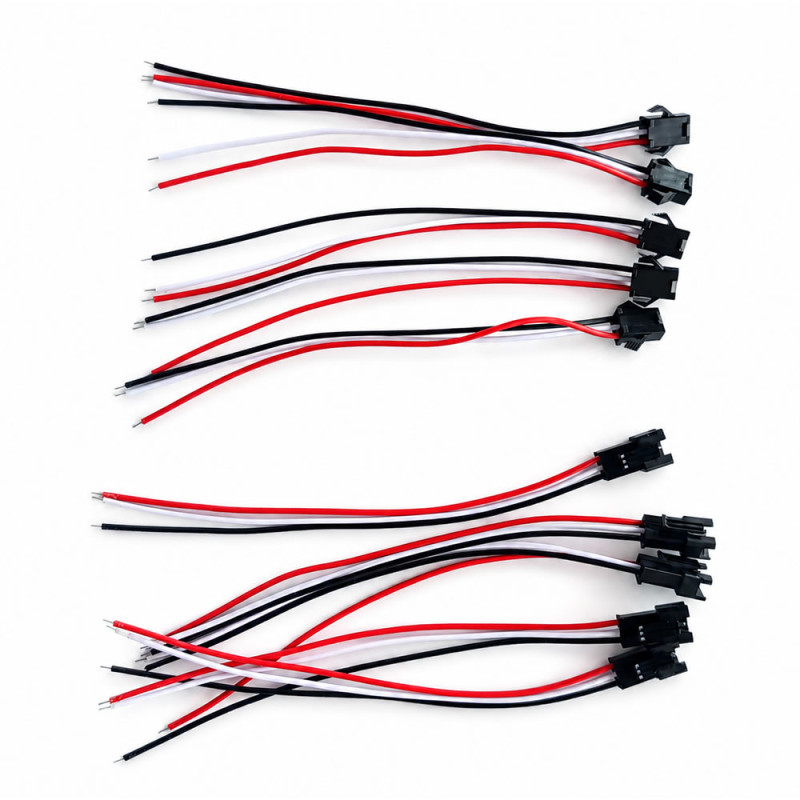

Package contents:

• 5 Pieces 15cm 3 Pin Male Jst Cable
• 5 Pieces 15cm 3 Pin Female Jst Cable
