JST SM Connector Set 200 Pieces

JST SM Connector Set 200 Pieces Boxed Set

2 3 4 5 Pin Male Female Terminal Connector Crimp Pin Electrical Wire Connection Cable Drone Led Electric Bicycle Scooter Car

     200 piece jst sm socket set. It consists of 2, 3, 4 and 5 pin male female sockets. There are 160 crimp pins with which cable connections can be made. It can be quickly mounted on your cables with its crimp terminal structure. Fast assembly can be done thanks to its plug-in structure that does not require soldering. The compatible design of the male and female ends offers a trouble-free experience in connections. It is a high quality and versatile cable connection solution designed for both professional electronics people and hobby users

     These connectors, produced from high quality plastic and metal materials, provide long lasting use. Thanks to their sturdy structure, they can be used safely even in vibrating or harsh environments. With the industry standard 2.54mm pitch, it is compatible with many cables and circuit boards on the market. This makes it indispensable in prototyping and production processes

Features:

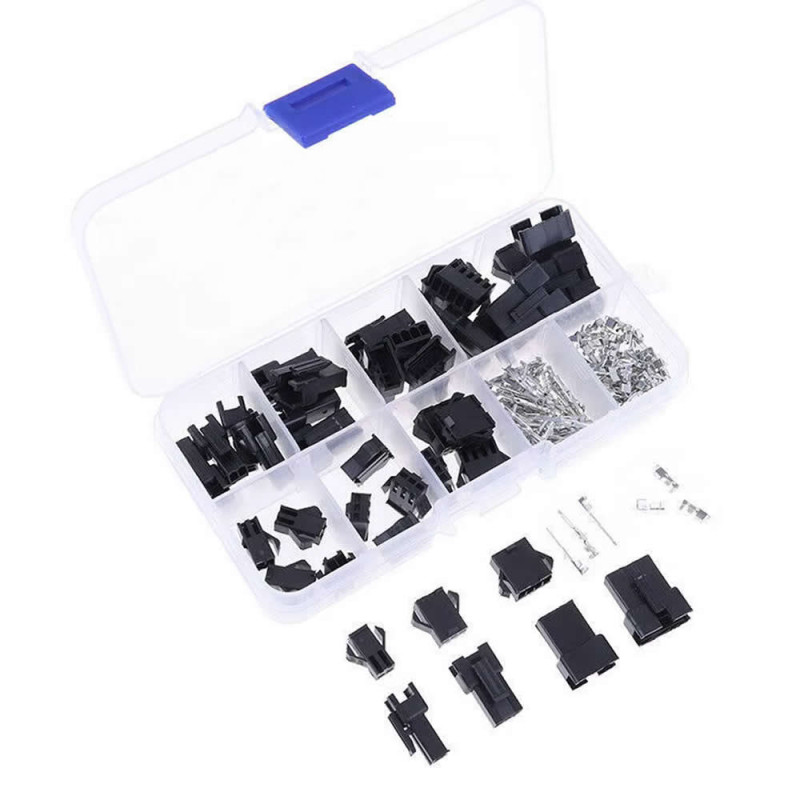

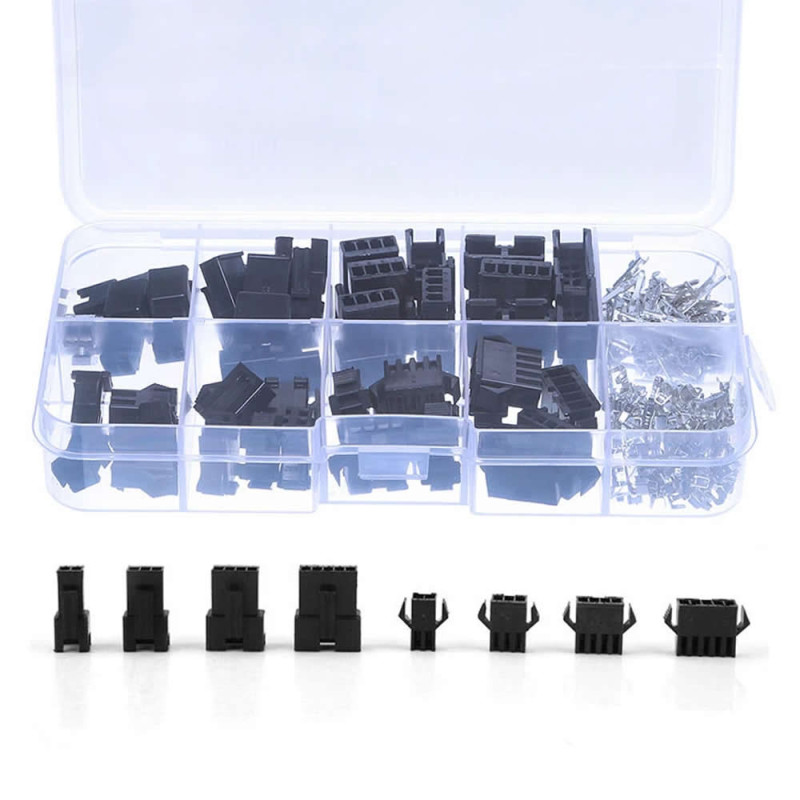

• 200 piece jst sm socket set boxed

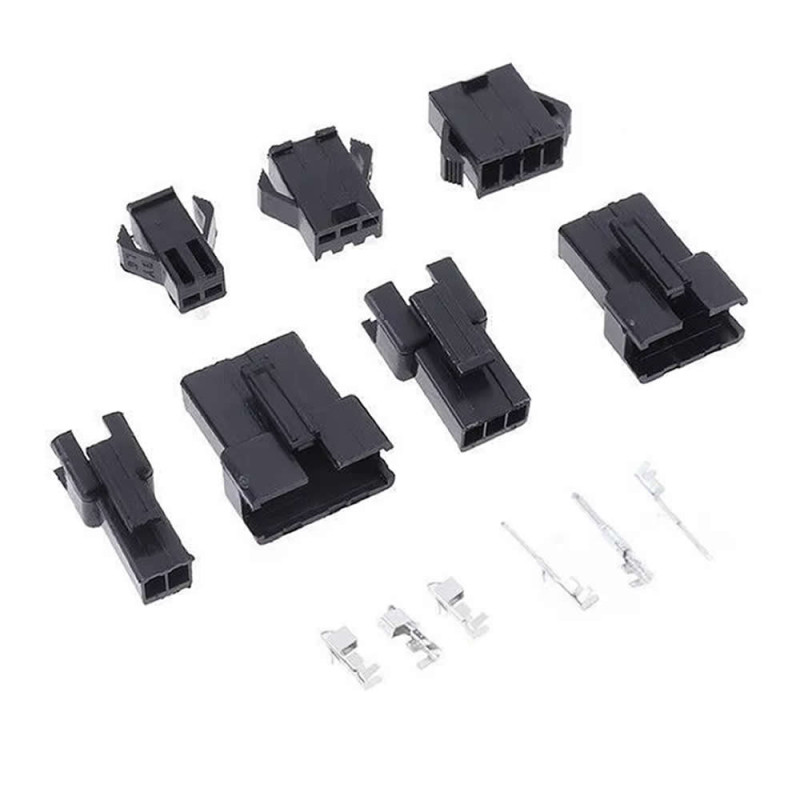

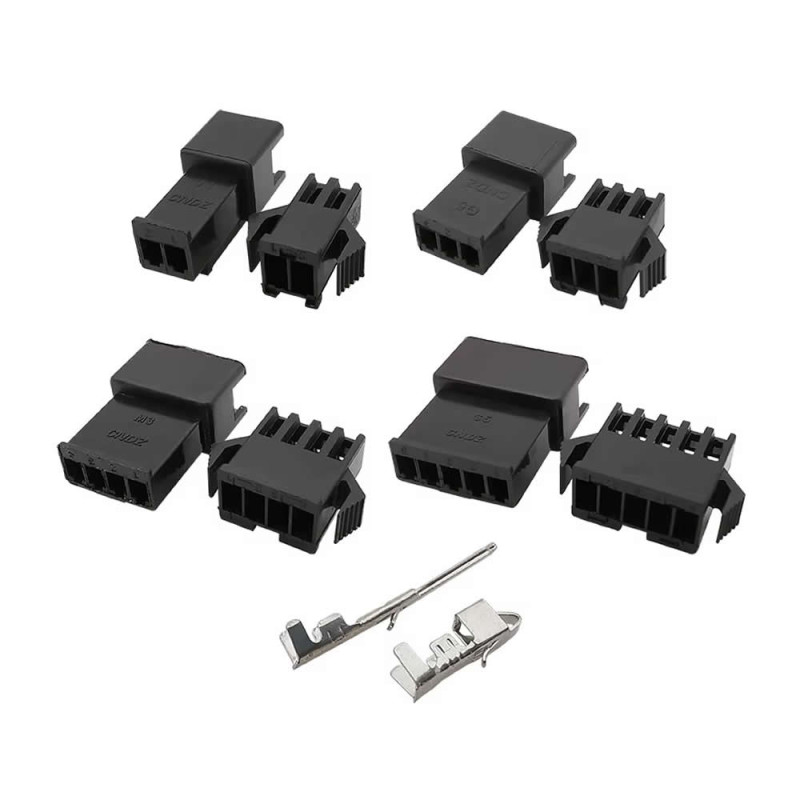

• 2 3 4 5 Pin male female jst sm sockets
• Connector type: Male and female set
• Pin pitch:  2.54mm (100mil)
• Cable thickness: 0.3mm / 28awg
• Operating voltage: Dc 30V Maximum  (Ac 250 at low currents)
• Operating current: 2A
• Connection direction: Straight
• Material: Plastic / Metal
• Easy to install easy to use
• Long lasting and widely used
• It is resistant to impact, wear and oiling.
• Operating temperature:  -10C  /  80C
• Color: Black
• Dimensions set: 130mm x 65mm x 22mm
• Weight:  60gr

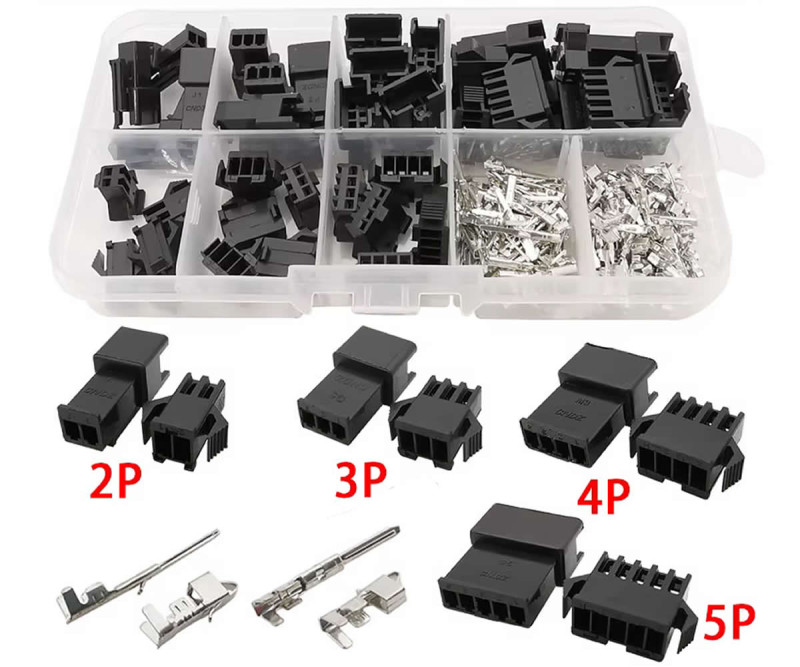

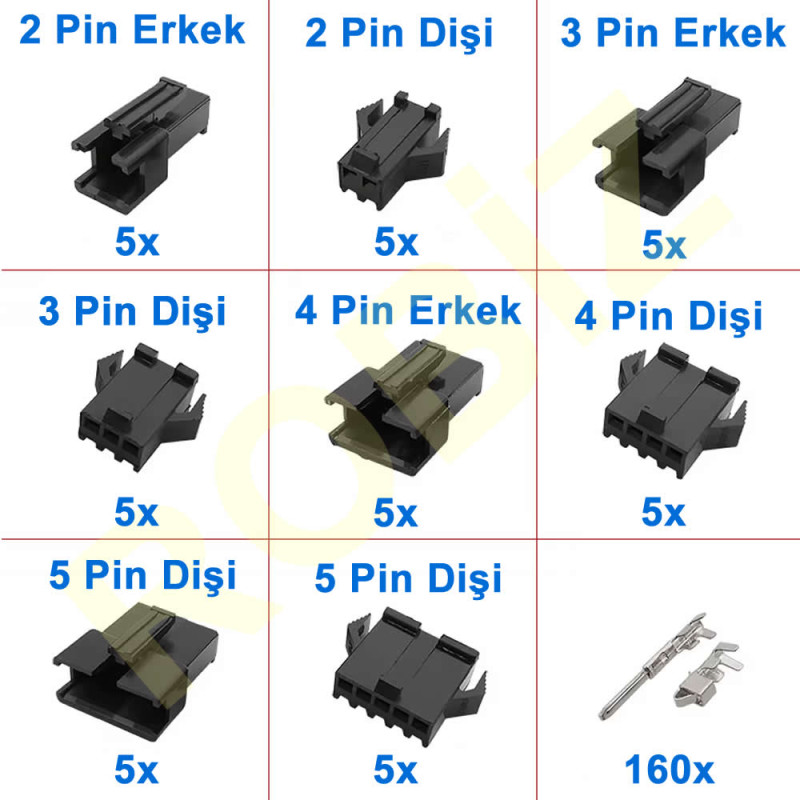

Socket types and quantities:

• 5 Pcs 2 pin male jst sm socket
• 5 Pcs 2 pin female jst sm socket
• 5 Pcs 3 pin male jst sm socket
• 5 Pcs 3 pin female jst sm socket
• 5 Pcs 4 pin male jst sm socket
• 5 Pcs 4 pin female jst sm socket
• 5 Pcs 5 pin male jst sm socket
• 5 Pcs 5 pin female jst sm socket
• 80 Pcs female crimp pin
• 80 Pcs male crimp pin

Package contents:

• JST SM Connector Set 200 Pieces

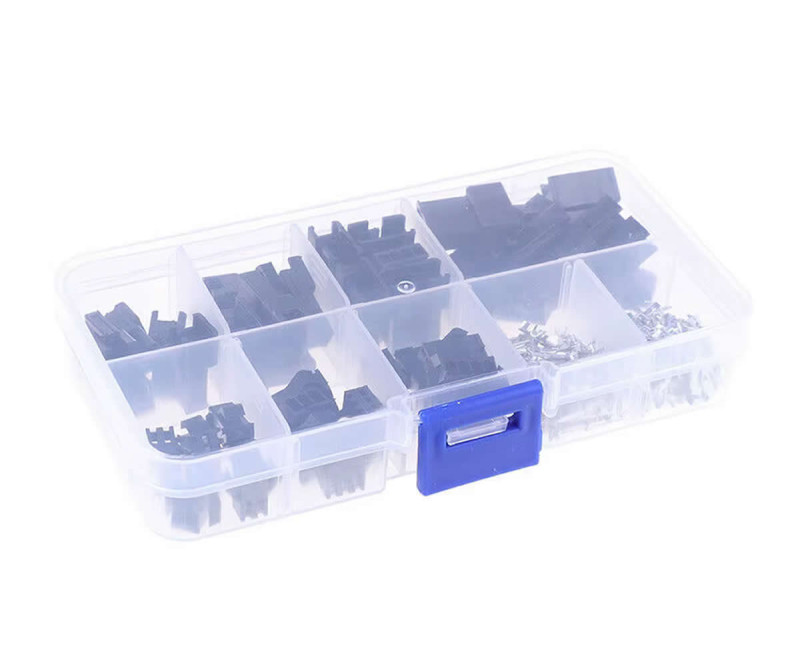

• 1 Pcs Transparent Material Box

.
