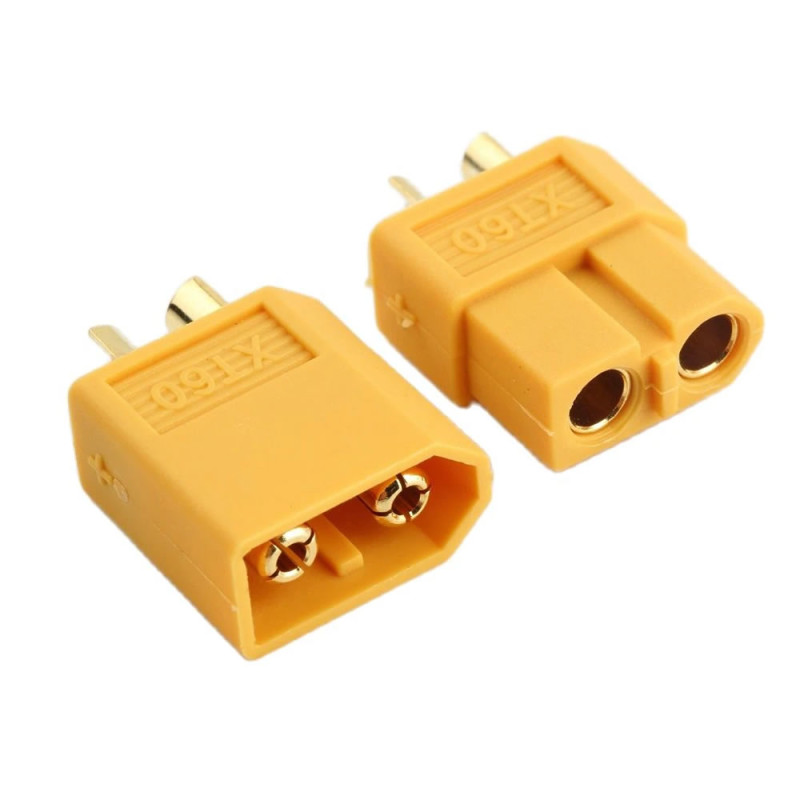

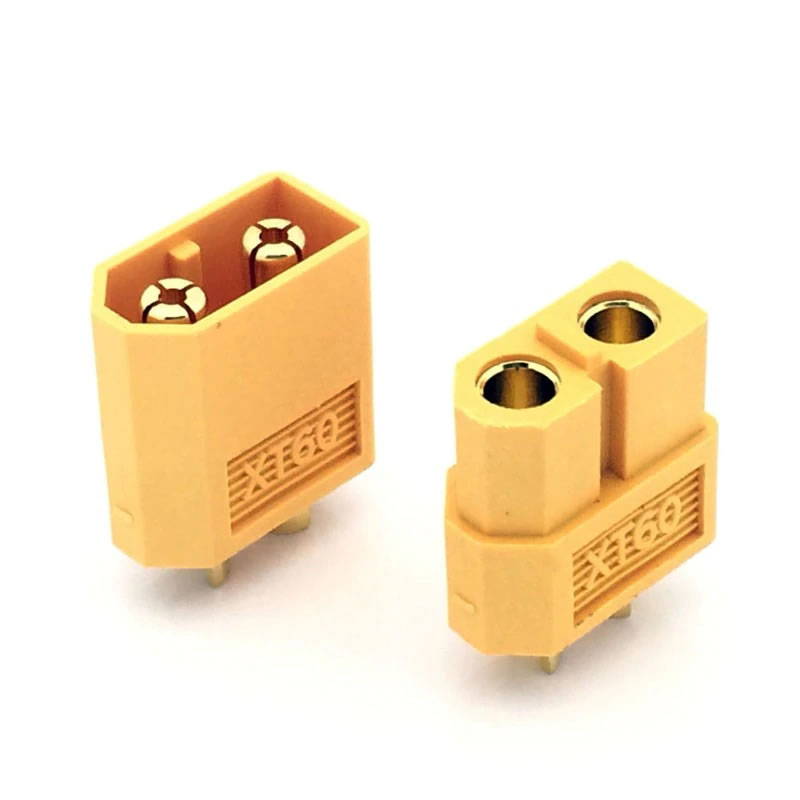

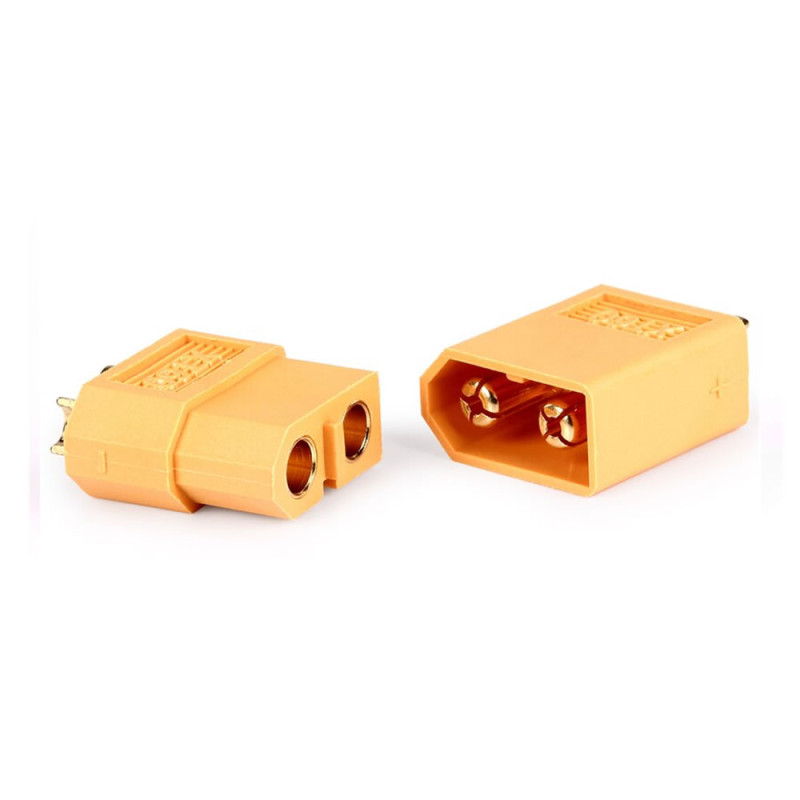

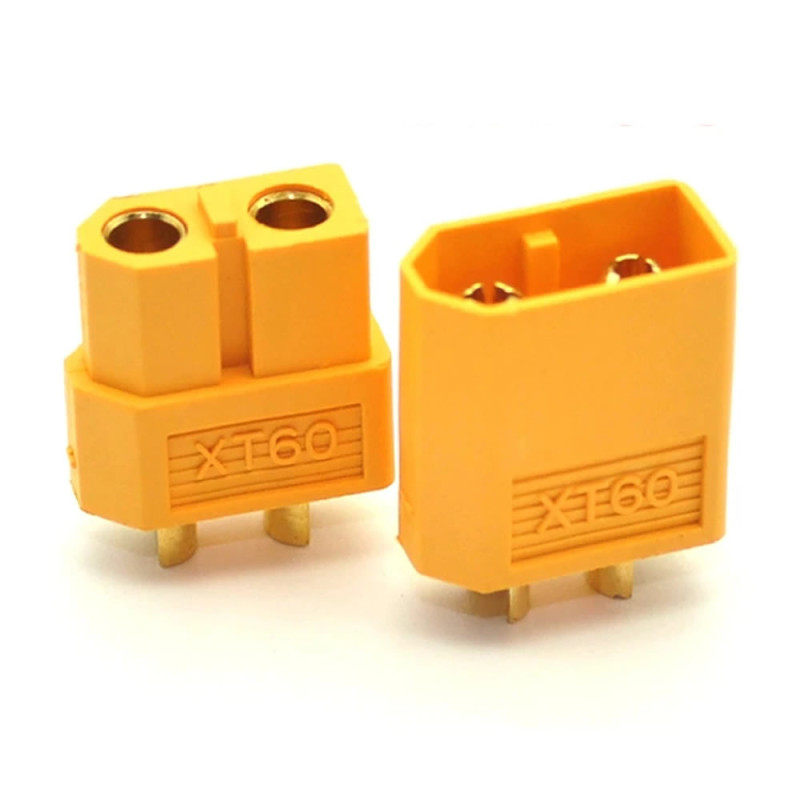

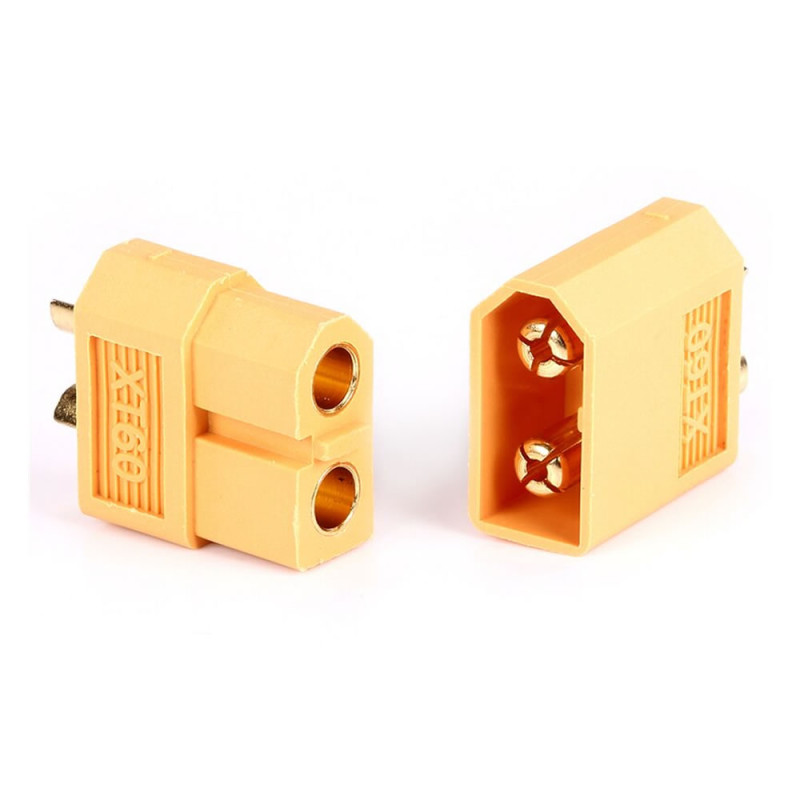

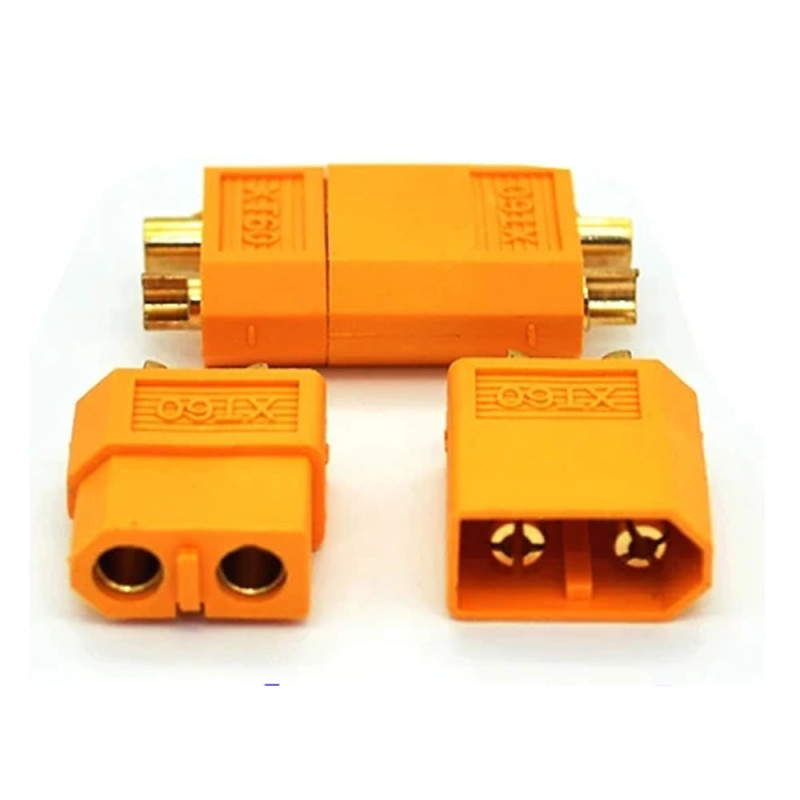

XT60 Connector Pair

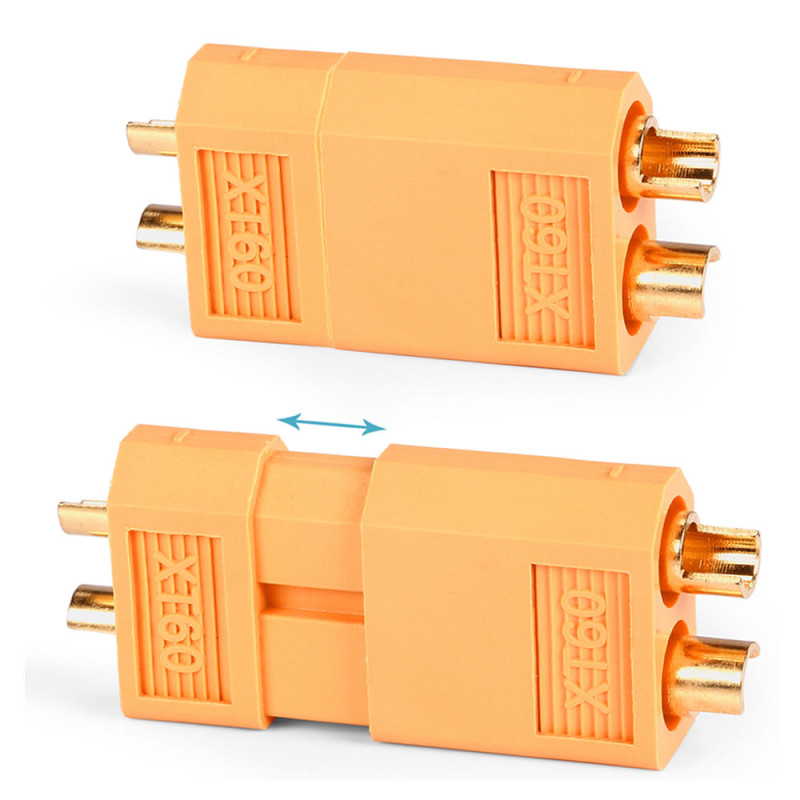

     XT60 are connection connectors produced from metals with low resistance and a high current carrying capacity of up to 60A. It comes as a female male pair. They fit tightly and fully into each other. The electrical connection is provided without any problems. There is a physical plastic housing design that prevents reverse connection. It is suitable for use with your high current capacity Lipo batteries.

     The plastic materials of the housings are structured to withstand the temperature that will occur as a result of high current. With these connectors, operations such as various connections, extensions, adapters and battery connections can be made. It can be used in Lipo batteries, RC vehicles, robots and high amperage connections. You can use it with brushless motors that draw high current.

Features:

• XT60 Connector Pair
• Female and male pair
• Current: 40A  /  60A 1 min   (We recommend using it at the 30A level.)
• Physical design that prevents short circuit and reverse connection.
• Angle: 180 Degrees
• The semi-open end provides convenience for soldering.
• 3.5mm bullet type socket structure
• Cable thickness: 12AWG  Maximum
• It is used for high current connections..
• Internal resistance: 0.8mohm
• Quality plastic
• Gold plated brass
• Mechanical life: 500 insertions and removals
• Operating temperature: -20C  /  120C
• Color: Yellow / Gold
• Weight: 6gr ( Pair )

Package contents:

•    1 Piece XT60 Male Socket
•    1 Piece XT60 Female Socket
