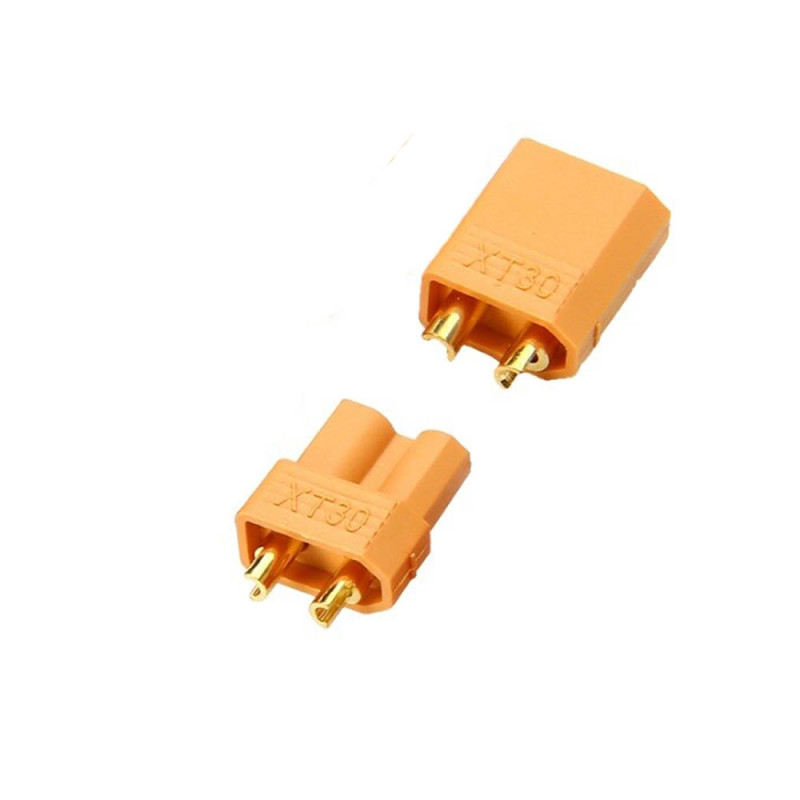

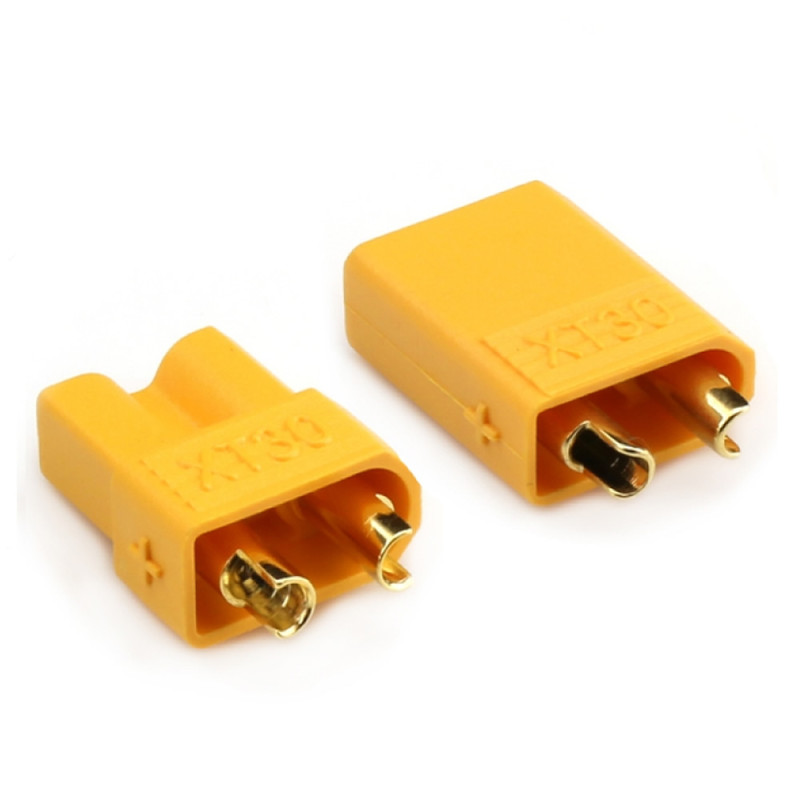

XT30 Connector Pair

XT30 Connector Female Male Pair 15A Continuous 30A Peak 2mm Gold Plated Solder Type LiPo Battery Socket

Mini Power Plug ESC Drone FPV Quadcopter RC Car Airplane Boat Robot Charger Adapter Battery Pack Electric Skateboard

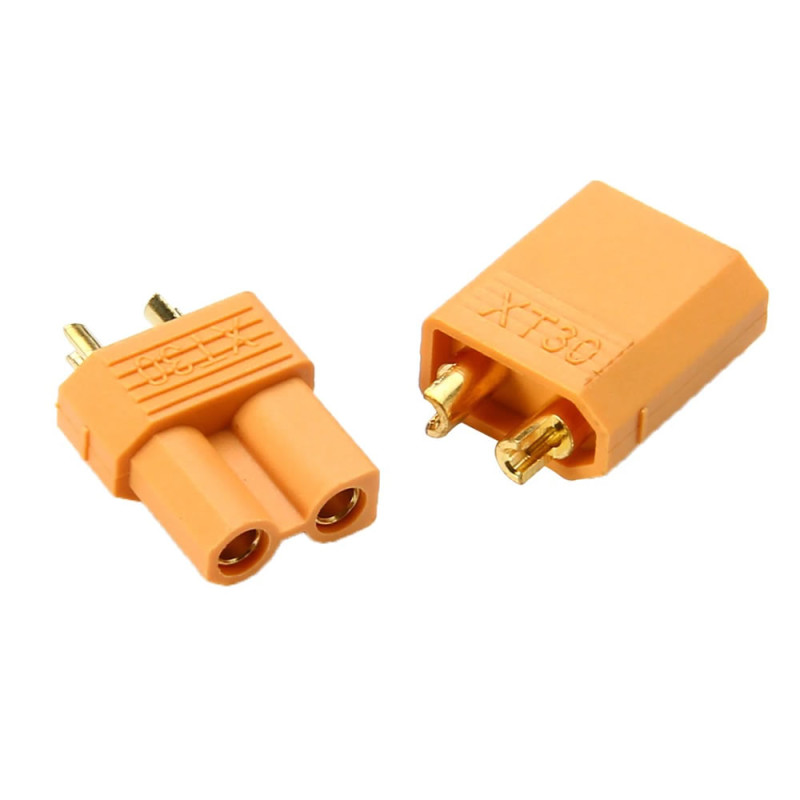

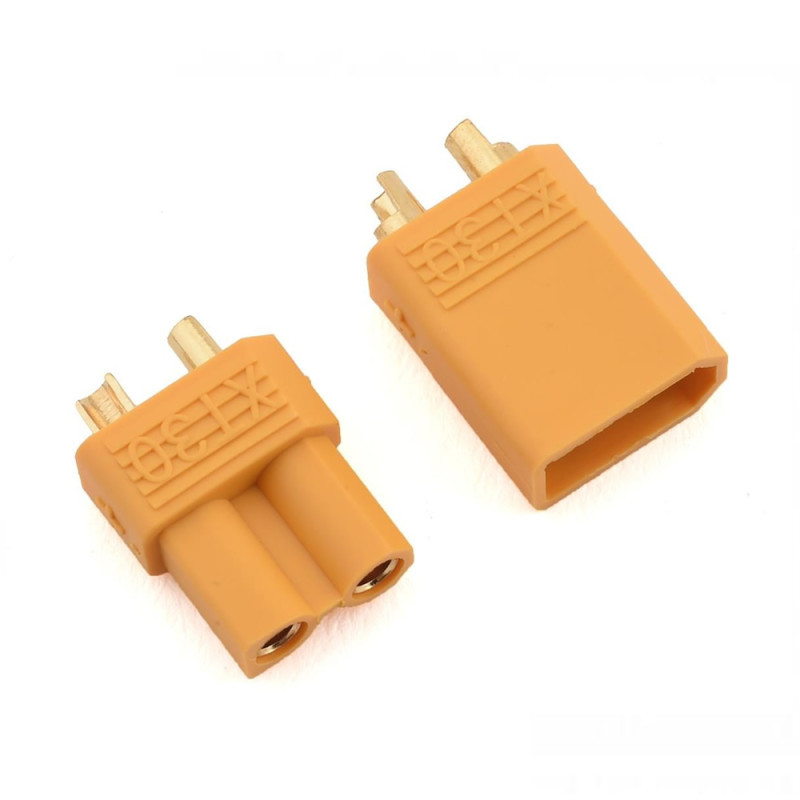

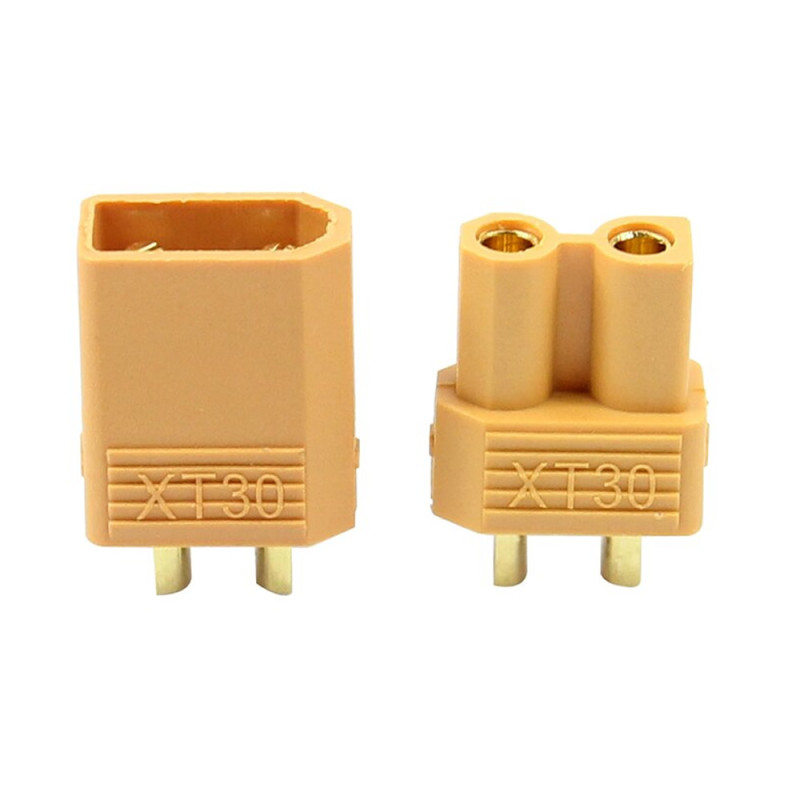

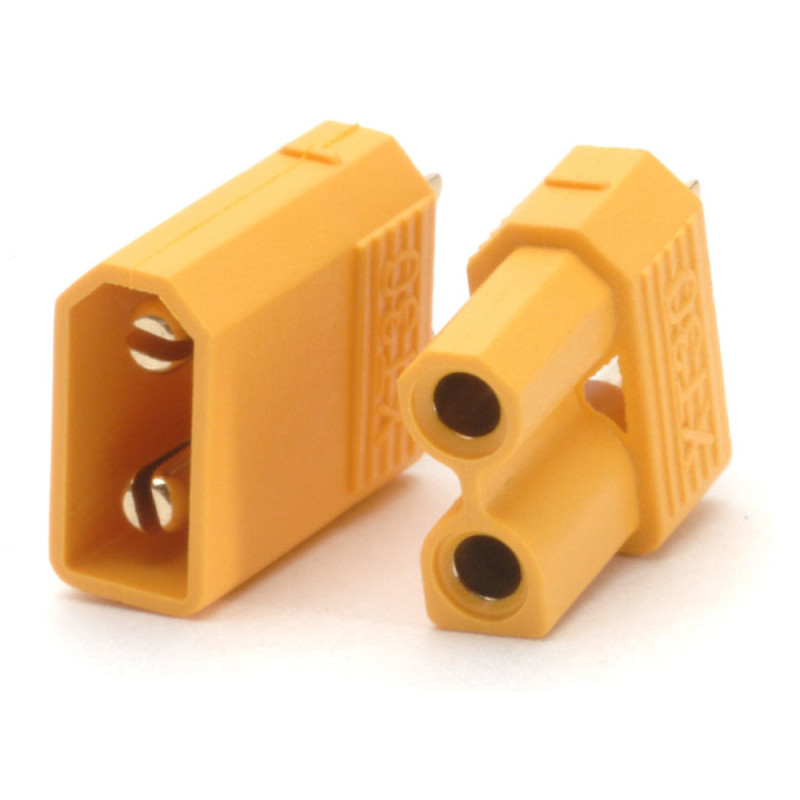

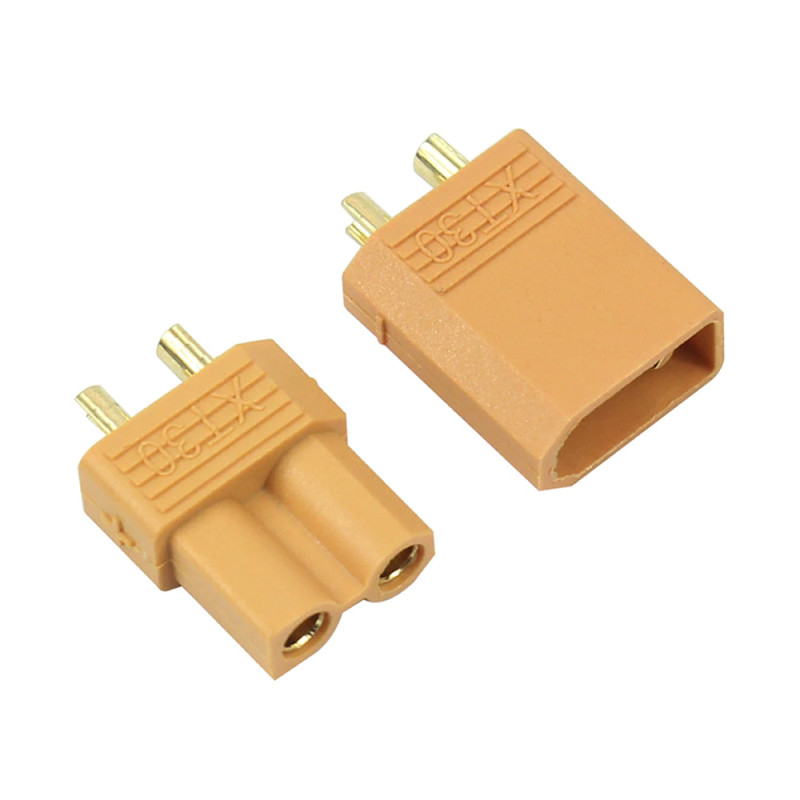

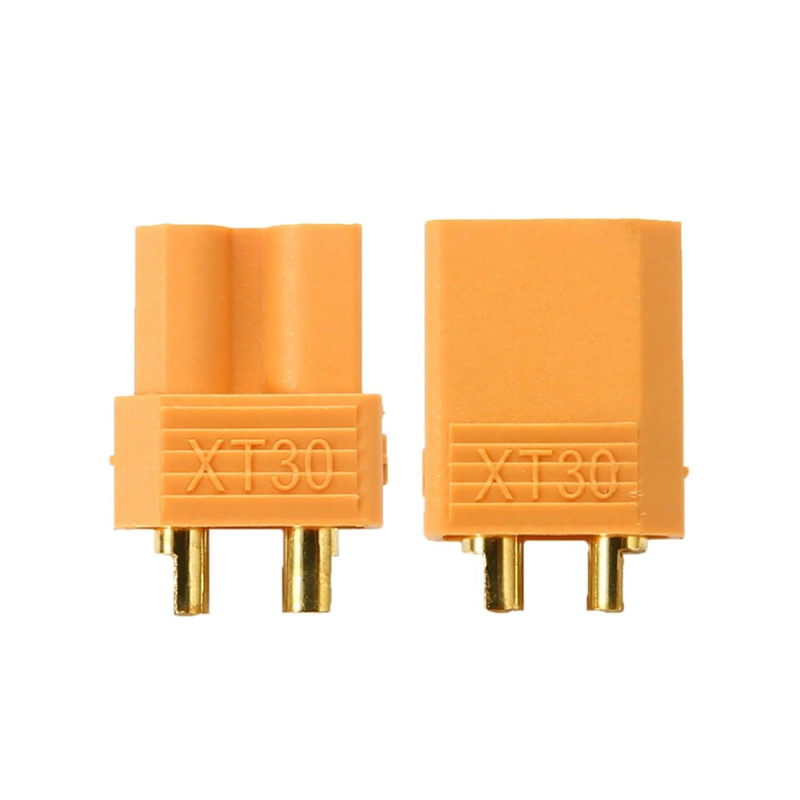

     XT30 is a 2-pin power connector used in small LiPo batteries and light RC vehicles. This package contains 1 male and 1 female XT30 connector; it is shipped without cable and the cable is soldered by the user. The contacts are 2mm diameter gold plated spring brass; the continuous current is 15A and the short-term (peak) current is up to 30A. The total weight of the pair is 1.8gr.

     One edge of the yellow nylon housing is chamfered; the male and female parts fit into each other in one direction only, so a reverse polarity connection is prevented. The mated pair fits tightly and fully. The half-open solder cup behind the contacts makes soldering 20AWG - 18AWG cable easy. The housing is built to withstand the heat produced during soldering and at high current; the operating temperature is -20°C - 120°C.

     The male part measures about 12mm x 11mm x 6mm and the female part about 13mm x 11mm x 6mm; it is clearly smaller and lighter than the XT60. That is why it is preferred for the battery connection of small drones and FPV vehicles, for ESC and charging cables, and for making extension and adapter cables.

Key features:

     15A continuous, 30A peak current, small body: The 2mm gold plated contacts carry 15A continuously and up to 30A for a short time. The total weight of the male and female part is only 1.8gr.

     Reverse insertion protection: Thanks to the chamfered housing, the male and female parts mate only in the correct direction; the battery poles cannot be connected in reverse.

     Easy soldering: The half-open solder cup behind the contacts takes 20AWG - 18AWG cable; the cable is laid into the cup and soldered.

     Heat resistant nylon housing: The yellow nylon housing withstands soldering heat and the temperature produced at high current; the operating temperature is -20°C - 120°C.

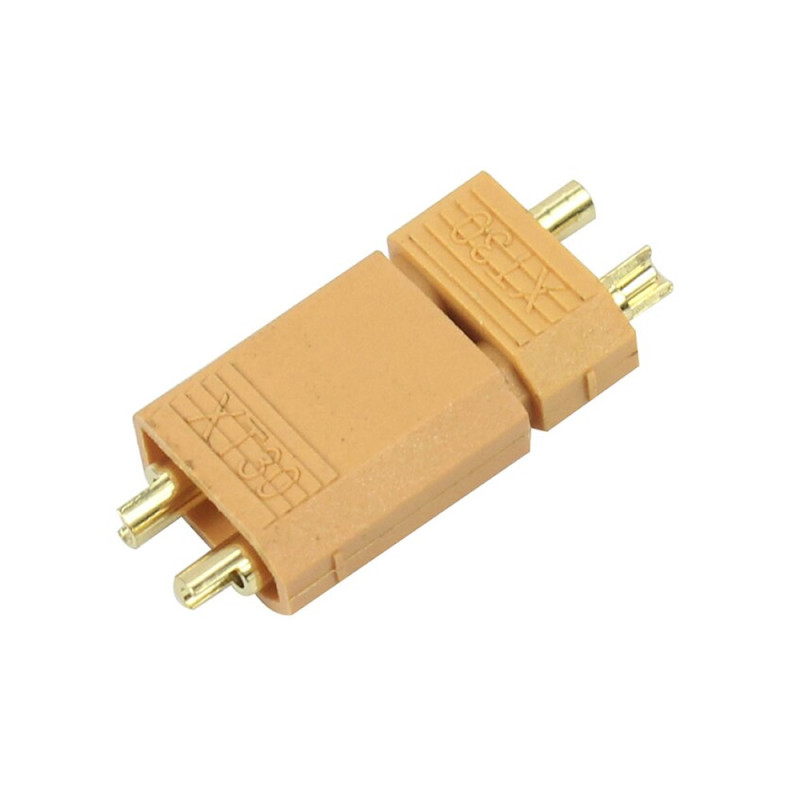

     Tight fitting spring contact: The male pins fit tightly and fully into the spring contacts of the female part; a low resistance, trouble-free electrical connection is provided.

Features:

• Product type: XT30 power connector, 1 male + 1 female (without cable, solder type)
• Current: 15A continuous, 30A short-term (peak)
• Voltage: Up to 500V DC
• Pin type: 2mm bullet contact
• Contact: Gold plated spring brass
• Number of pins: 2 (positive and negative)
• Reverse insertion protection: Chamfered housing, fits in one direction
• Solder end: Half-open solder cup
• Suitable wire gauge: 20AWG - 18AWG recommended
• Compatibility: LiPo batteries, ESCs and charging cables with XT30 socket
• Shipment: As a female and male pair
• Operating temperature: -20°C - 120°C
• Material: Heat resistant nylon housing, brass contact
• Colour: Yellow housing, gold coloured contact
• Dimensions: Male about 12mm x 11mm x 6mm, female about 13mm x 11mm x 6mm
• Weight: 1.8gr ( Pair )

Usage information:

• Slide heat shrink tubing onto the cable before soldering. Soldering the male and female parts while mated prevents the contacts from shifting under heat.
• Using the chamfered edge as reference, solder the positive (+) and negative (-) cable to the correct pin; a female connector is usually used on the battery side so that no bare pin is left at the open end.
• After soldering, pull the tubing over the contacts and heat it; leave no bare metal.

Areas of use:

•  Small LiPo battery packs
•  Mini drone, FPV and quadcopter battery connection
•  ESC and motor power cables
•  RC car, airplane and boat power connections
•  Robot power distribution cables
•  Charger and charging adapter cables
•  Electric skateboard and small electric vehicle batteries
•  Making battery pack extension and adapter cables

Precautions:

•  30A is only the short-term (peak) value; the continuous current should not exceed 15A. Under continuous load the cable cross-section, solder quality and ventilation also limit the current; if the connector heats up, reduce the load or use an XT60.
•  Do not hold the soldering tip on it for long; excessive heat can soften the nylon housing and shift the contacts.
•  Check the poles before soldering; a wrongly soldered connector connects the battery in reverse despite the chamfered housing.
•  This product does not mate with XT60 and XT90 connectors; it mates only with XT30.

Package contents:

•  1 Piece XT30 Male Connector
•  1 Piece XT30 Female Connector
•  Note: Cable and heat shrink tubing are not included in the package.
