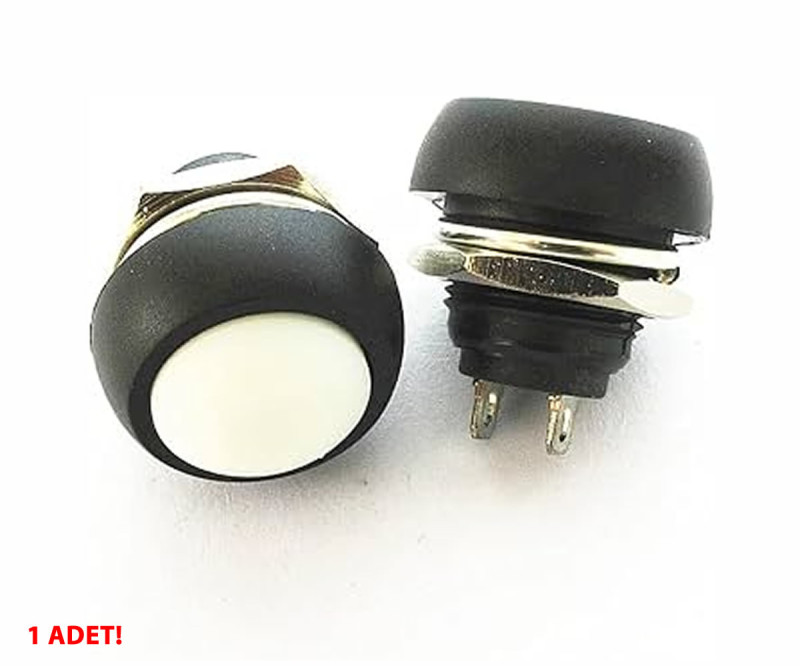

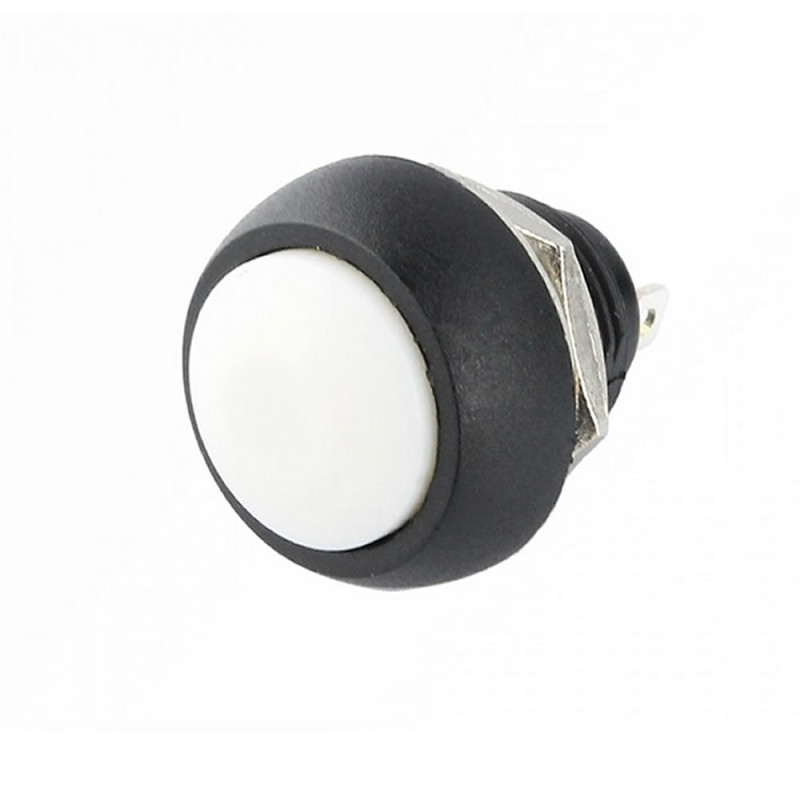

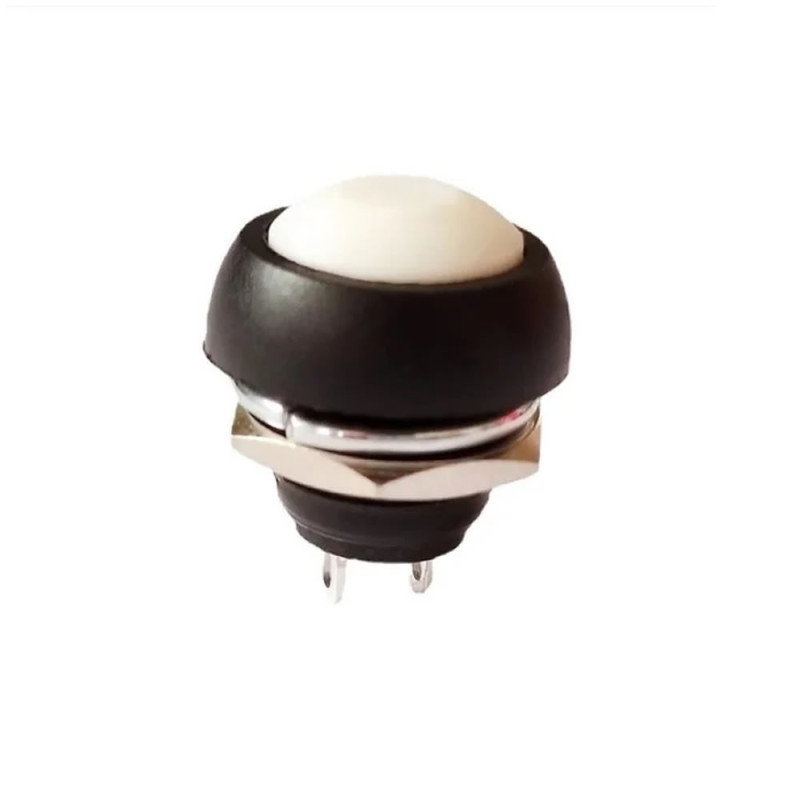

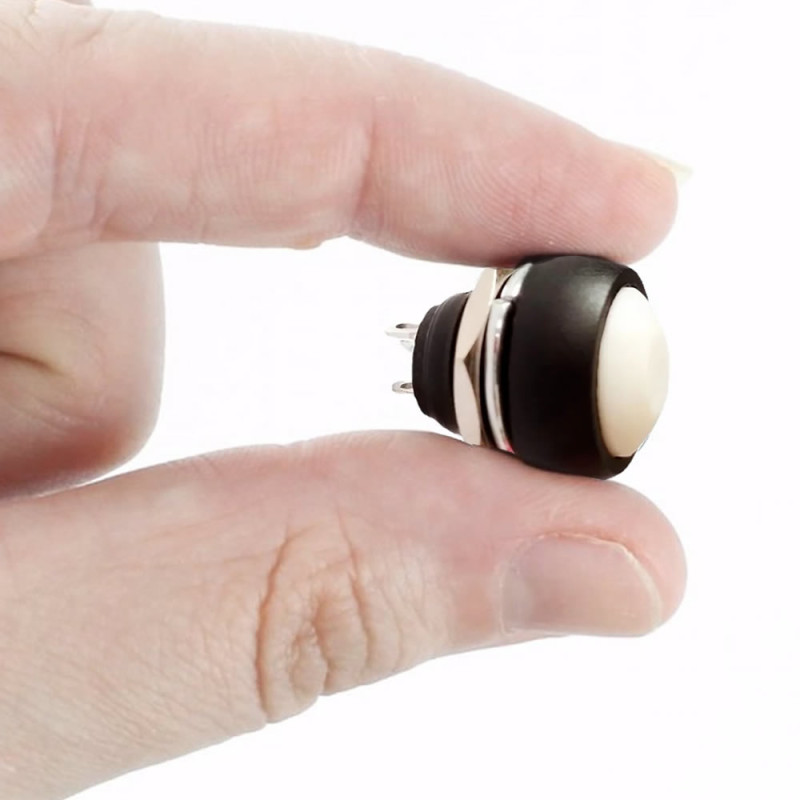

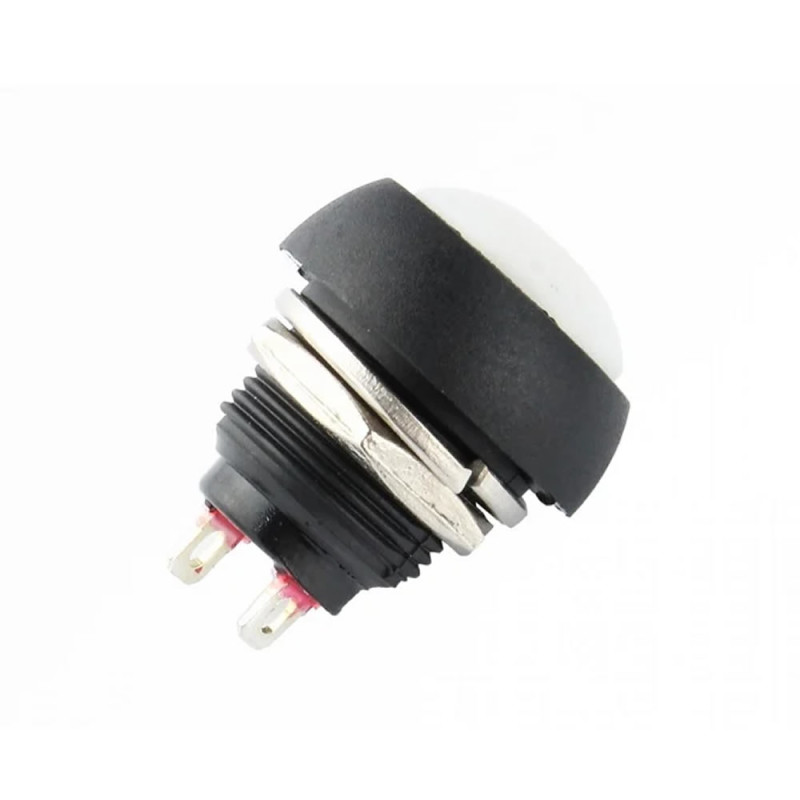

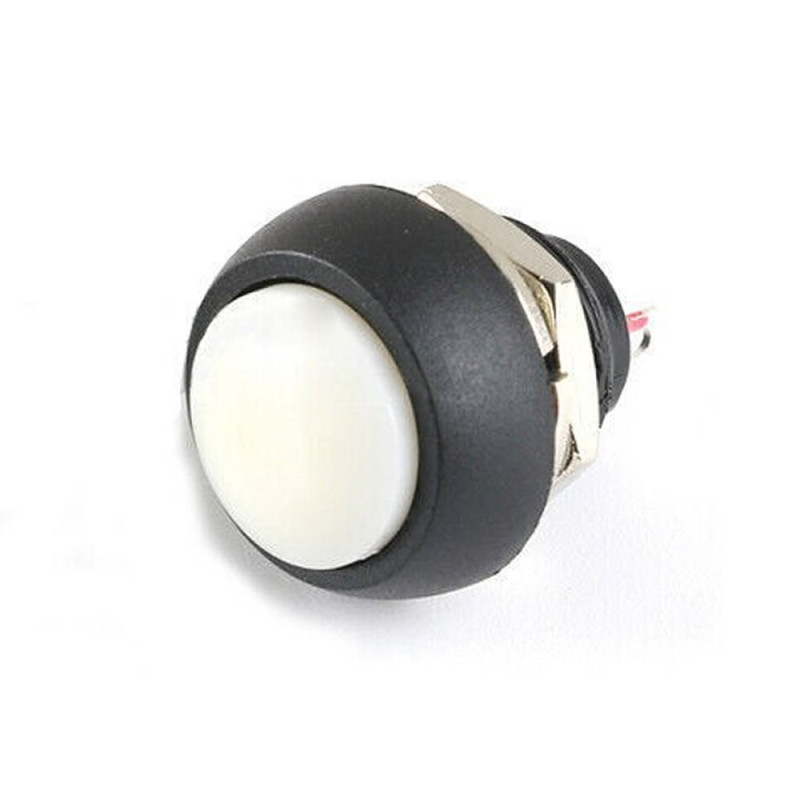

12mm PBS-33B Push Button White

12mm PBS-33B 2 Pin Push Button White

ON OFF 1A 250V Mini Round Waterproof Switch Momentary Switch

     2 pin black push button switch. It has a switching capacity of 1A 250V. NO is a normally open circuit. When the button is pressed, the switch becomes short circuit. When the pressing ends, it becomes an open circuit again.

Features:

• 2 Pin push button  ( Momentary )
• Model: PBS-33B
• Maximum current capacity: AC 250V 1A  / AC 125V 3A  /  DC 12V 4A
• Contact form: NO Open circuit
• Number of legs: 2
• Action type: Push to ON ( OFF-ON )
• Material: Plastic /  Metal
• Contact resistance: <50mw
• Insulation protection: 1500VAC/1min
• IP65 protection
• Operating temperature:  -25C  /  +65C
• Color: White
• Life: more than 10000 presses
• Mounting hole: 12mm

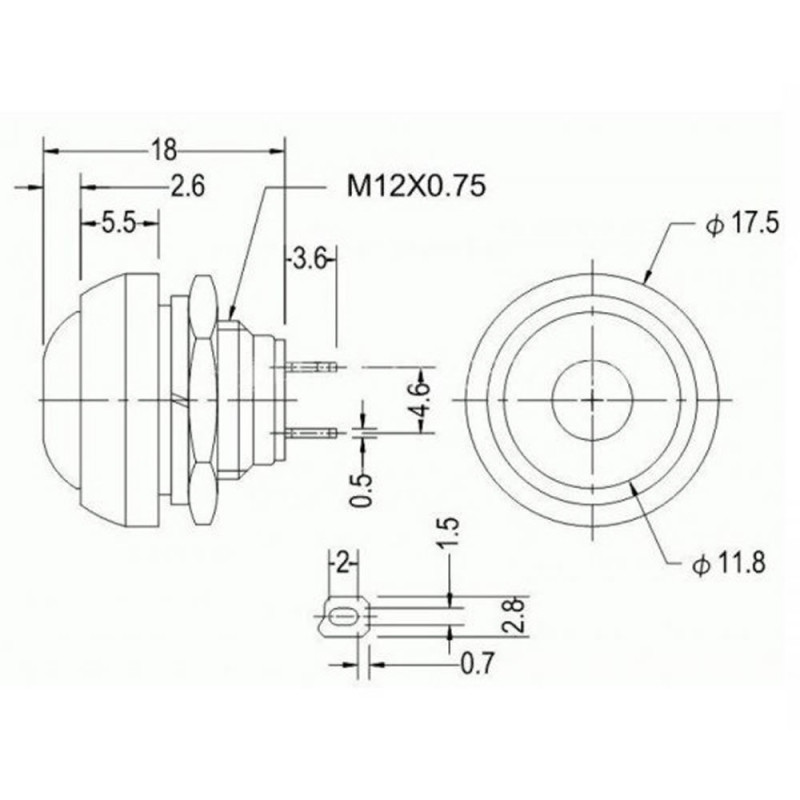

• Dimensions: 18x17,5mm
• Weight: 3,5gr

Package contents:

• 1 pcs 12mm PBS-33B Push Button White
