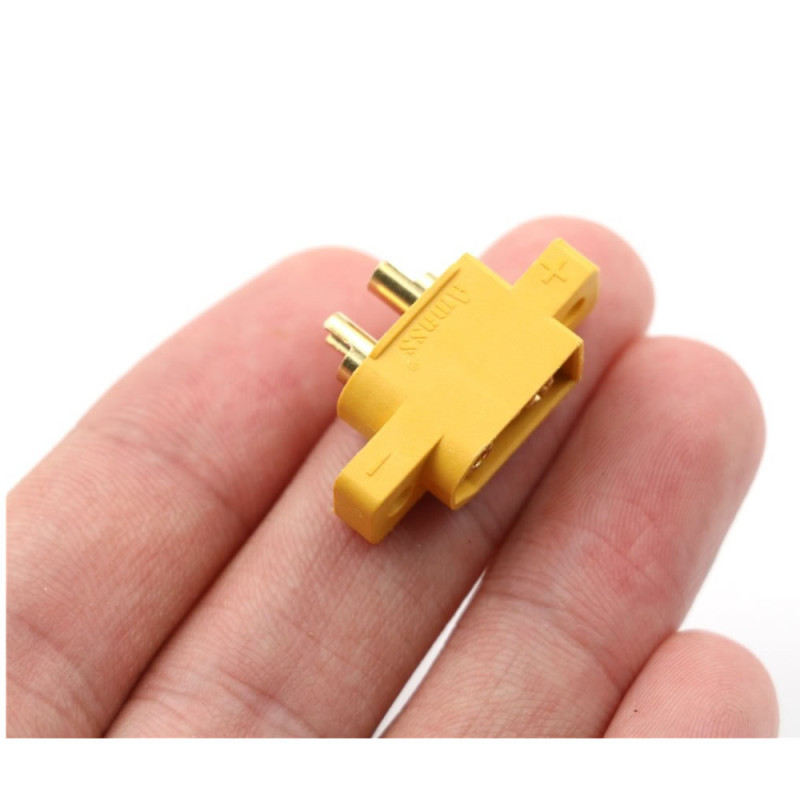

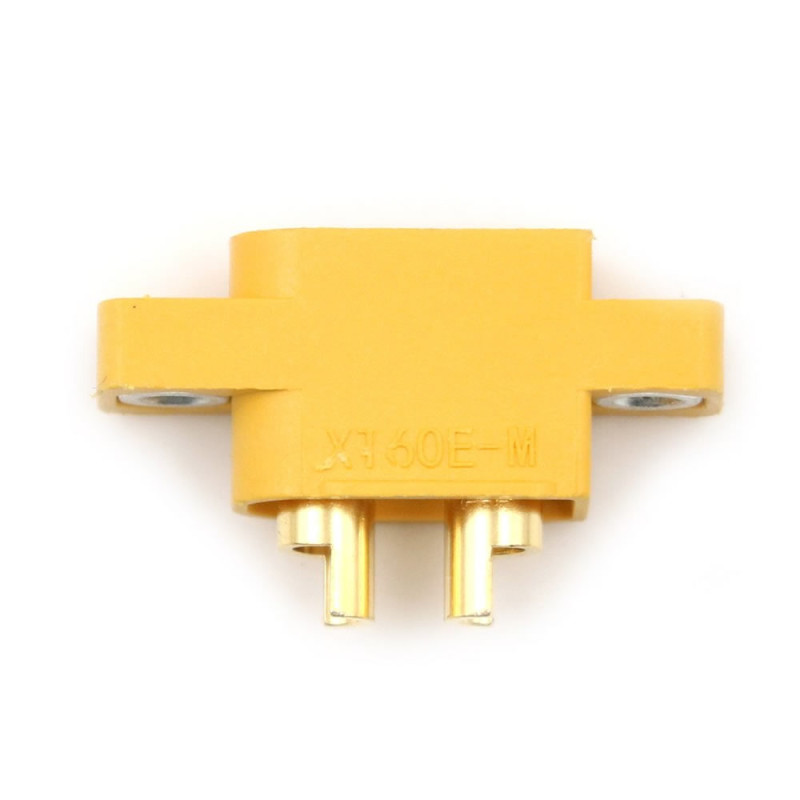

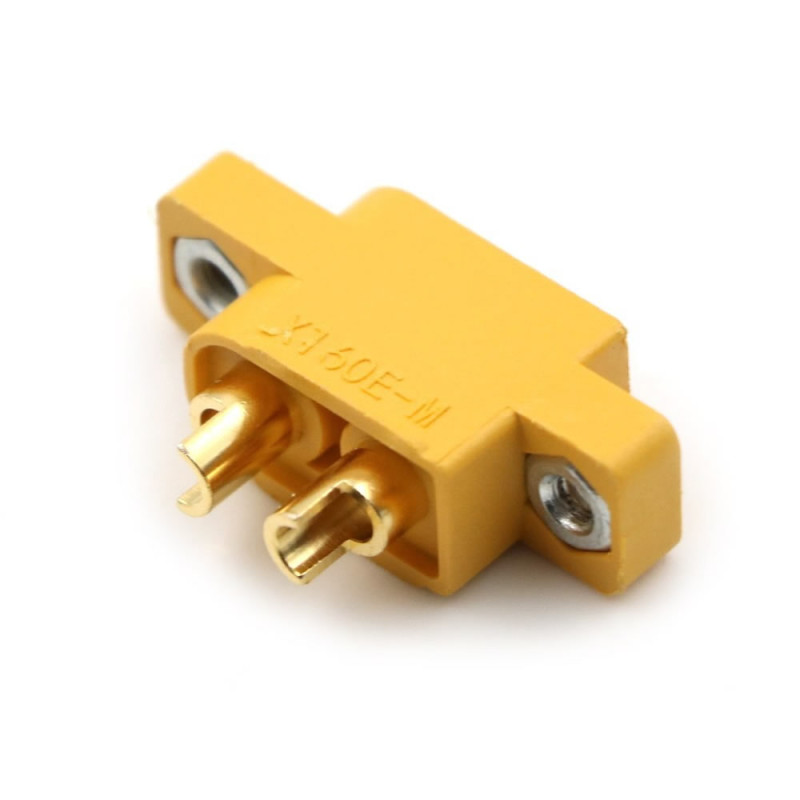

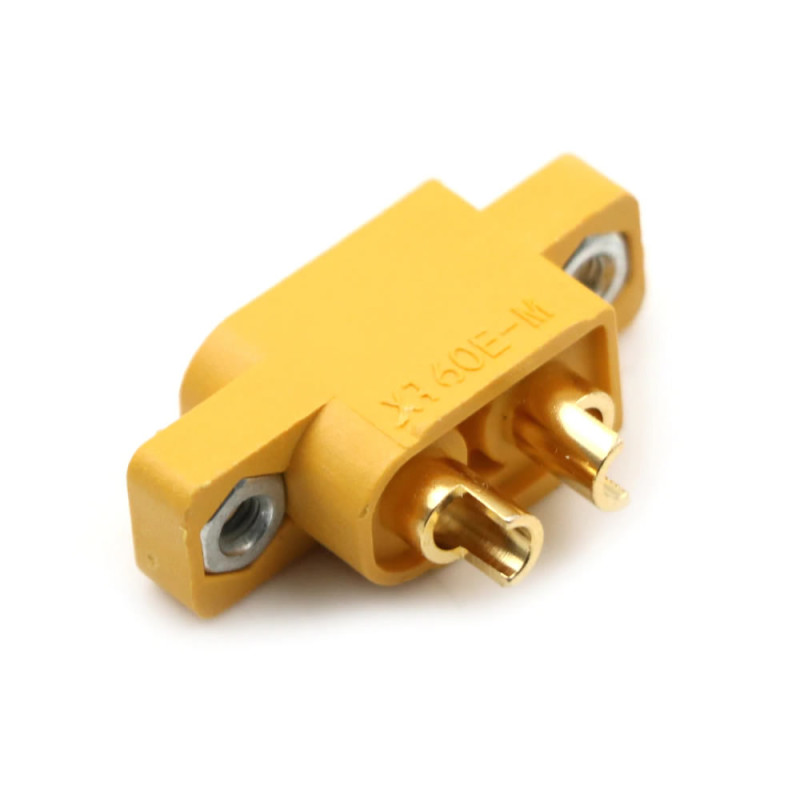

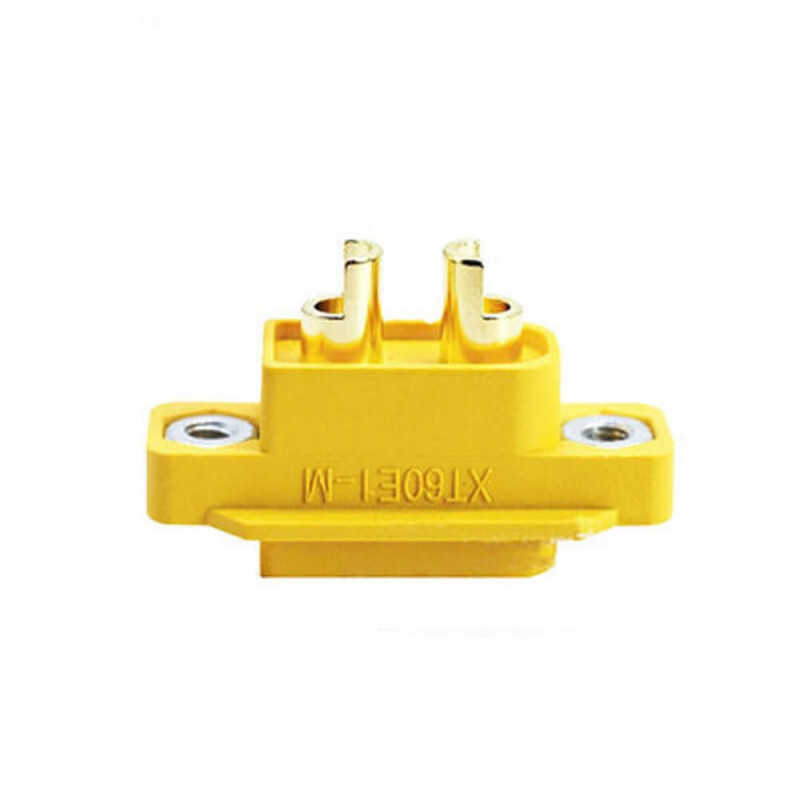

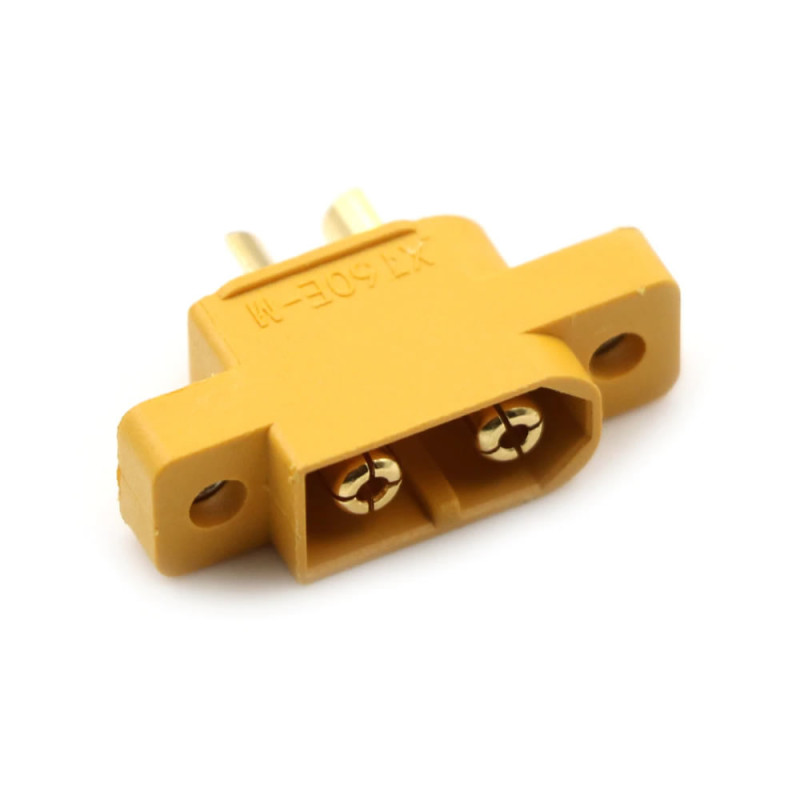

XT60 Mount Type Male Connector

XT60 Panel Mount Type Male Connector

Lithium LiPo Battery Accumulator Battery Connection Connector RC Esc Motor Drone Model Airplane Boat Quadcopter Multicopter

          They are used as high current connection sockets in closed housing devices and machines. Cables with Xt60 sockets become easily connectable to these products. They are connection connectors produced from metals that show low resistance and have a high current carrying capacity up to 60A. A male type mountable socket is sent. It forms the electrical connection in a trouble free and solid way. There is a physical plastic housing design that prevents reverse connection. It is suitable for use with your high current capacity Lipo batteries.

     The plastic materials of the socket have a structure that can withstand the temperature that will arise as a result of high current. With these connectors, operations such as various connections, extensions, adapters and battery connections can be made. It can be used in Lipo batteries, RC vehicles, robots and high ampere connections. You can use it with brushless motors that draw high current.


Features:

• Mountable male type xt60 socket
• Physical design that prevents short circuit and reverse connection.
• The semi open end provides ease for soldering.
• It is suitable for 60A current.
• Rated voltage: DC 500V
• Internal resistance: 0,55 ohm
• It is used for high current connections..
• Quality plastic and metal material
• Gold plated copper
• Temperature resistance: -20C /  120C
• Color: Yellow / Gold

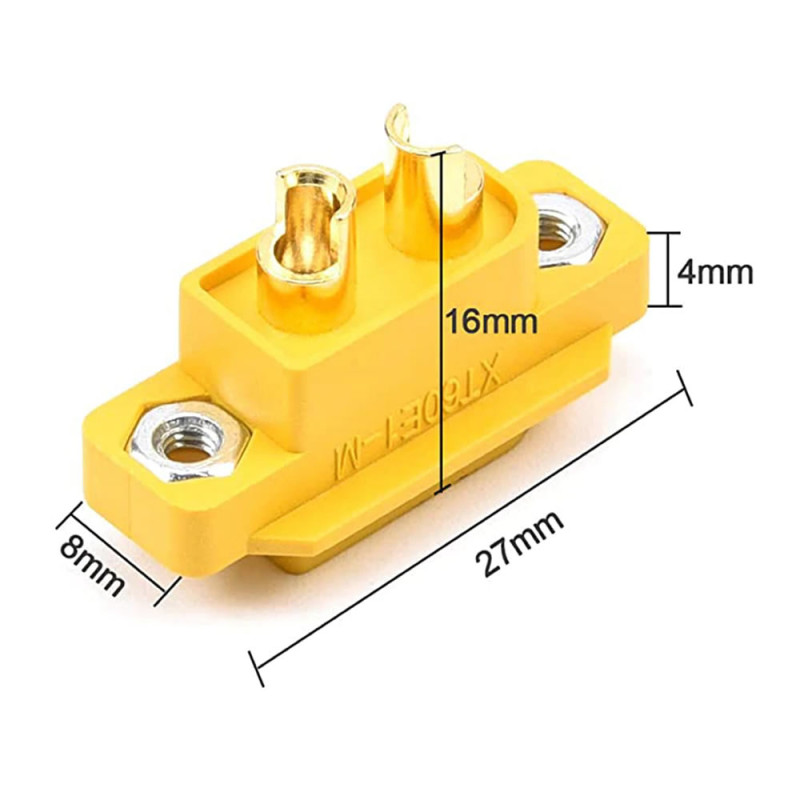

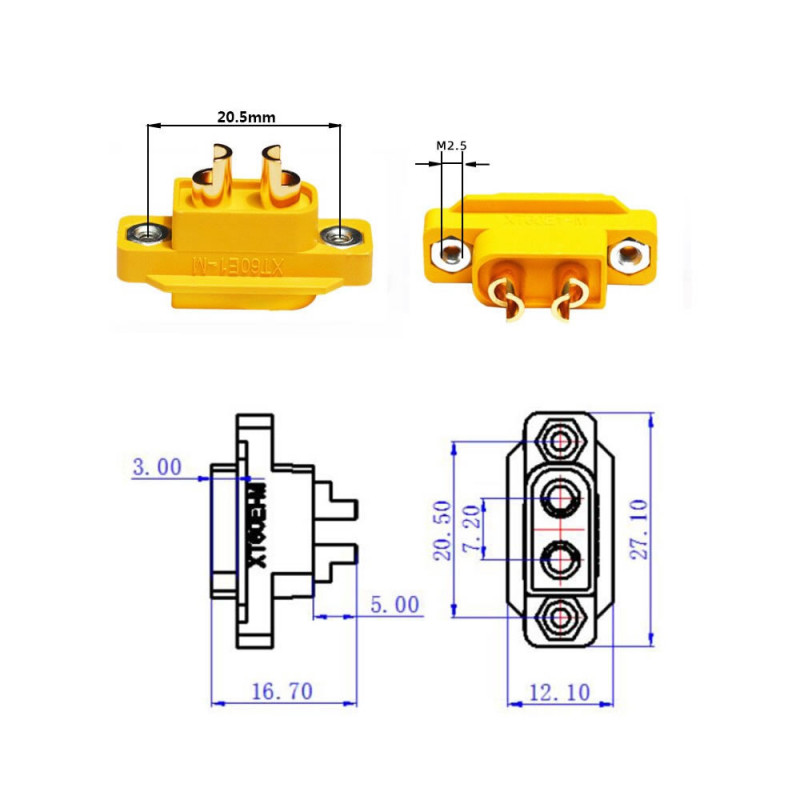

• Dimensions:  16.7mm x 27mm x 12mm
• Male plug: 4gr

Package Contents:

•        1 Piece XT60 Mount Type Male Socket

Note: A screw is not included with the product. The mounting screw is an M2.5 type screw.

.
