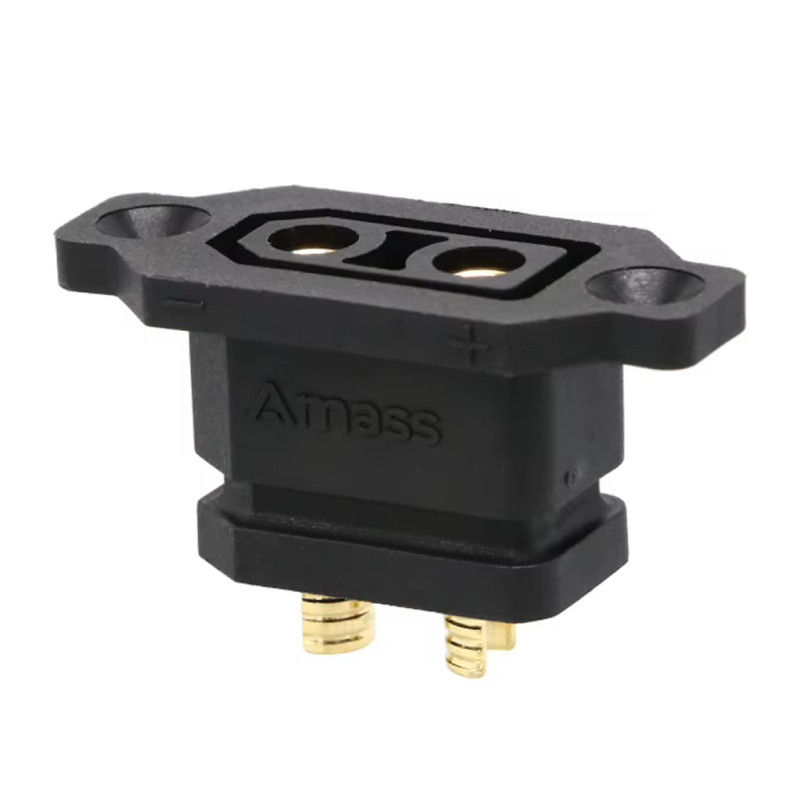

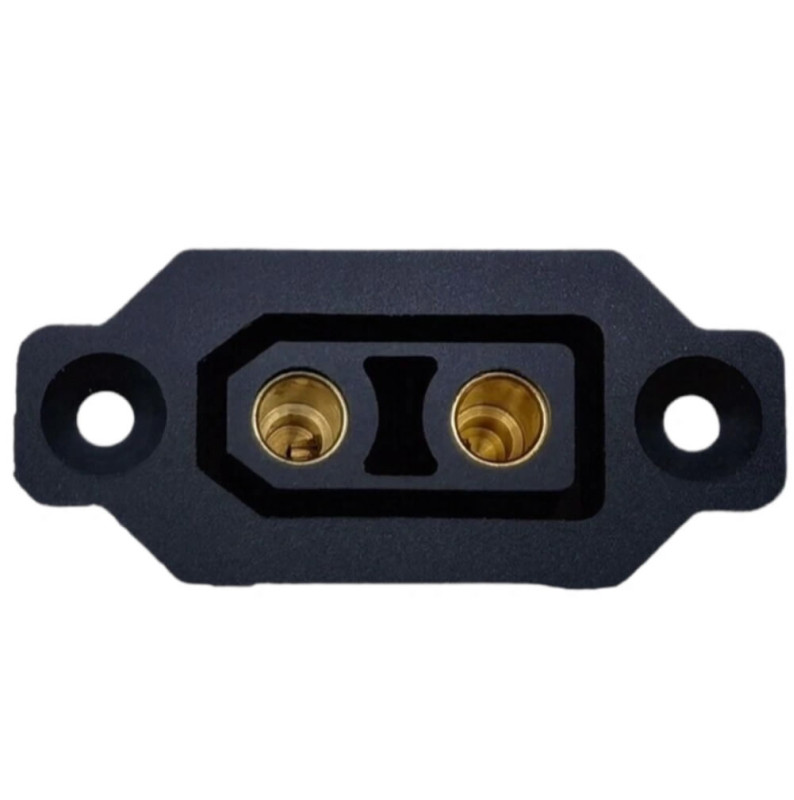

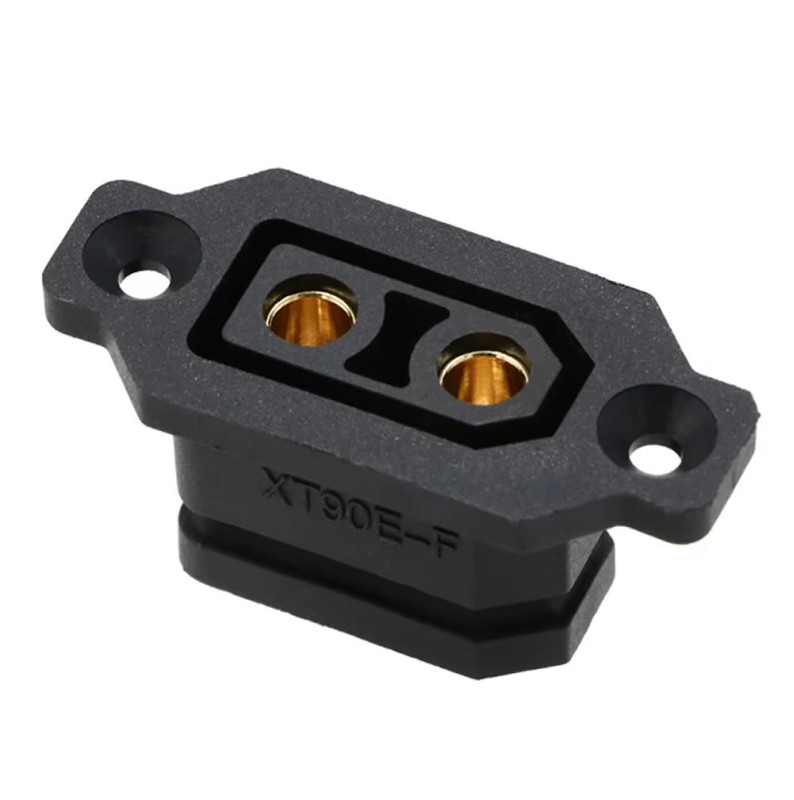

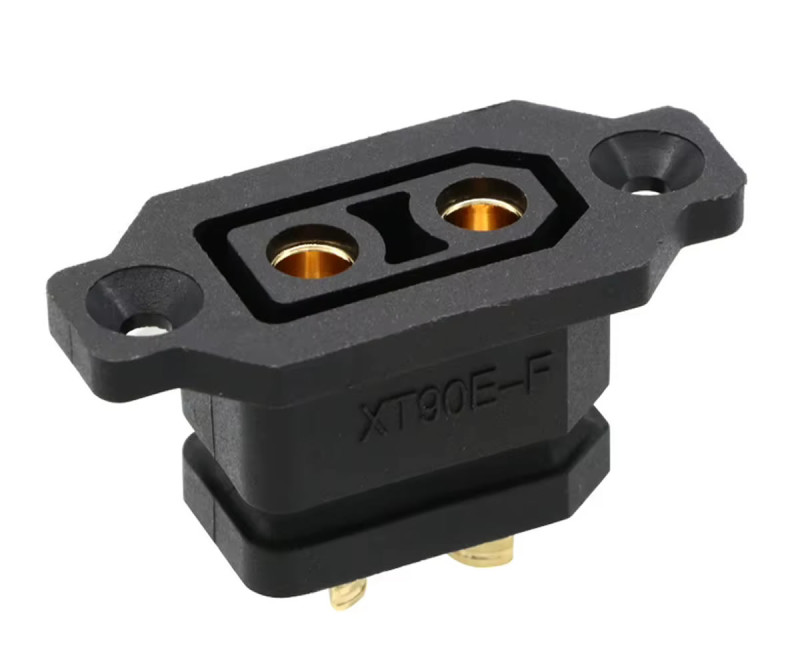

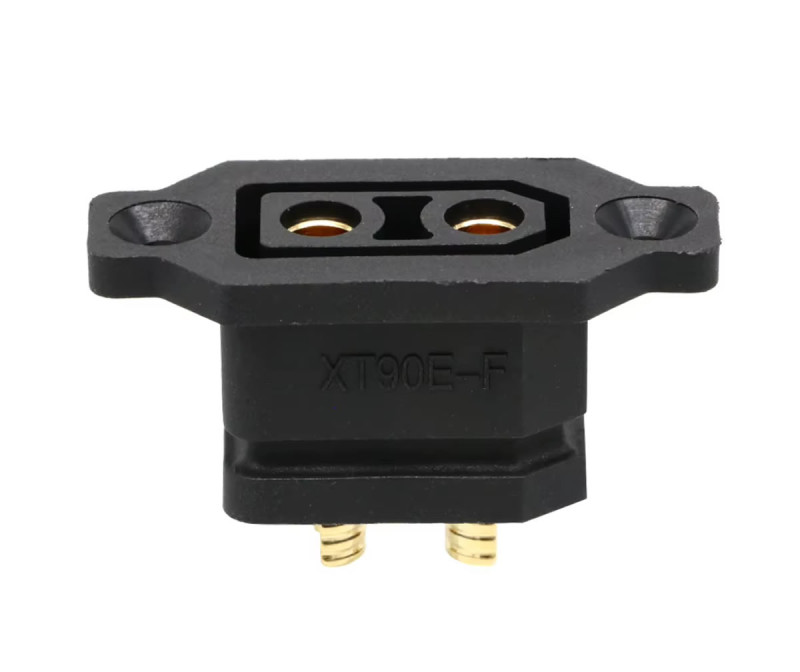

XT90 Panel Mount Type Female Socket XT90E-F

XT90 Panel Mount Type Female Connector Socket Plug XT90E-F

Lithium LiPo Battery Accumulator Battery Connection Connector RC Esc Motor Drone Model Airplane Boat Quadcopter Multicopter

     They are used as high current connection sockets in closed box devices and machines. It makes cables with xt90 sockets easily connectable to these products. They are connection connectors manufactured from metals that show low resistance and have a high current carrying capacity of up to 90A. A female type mountable socket is shipped. It creates the electrical connection in a trouble free and solid manner. It has a physical plastic housing design that prevents reverse connection. It is suitable for use with your high current capacity Lipo batteries.

     The plastic materials of the socket are structured to withstand the temperature that will arise as a result of high current. With these connectors, operations such as various connections, extensions, adapters and battery connections can be made. It can be used in Lipo batteries, RC vehicles, robots and high ampere connections. You can use it with brushless motors that draw high current.


Features:

• Mountable female type socket XT90E-F
• Physical design that prevents short circuit and reverse connection.

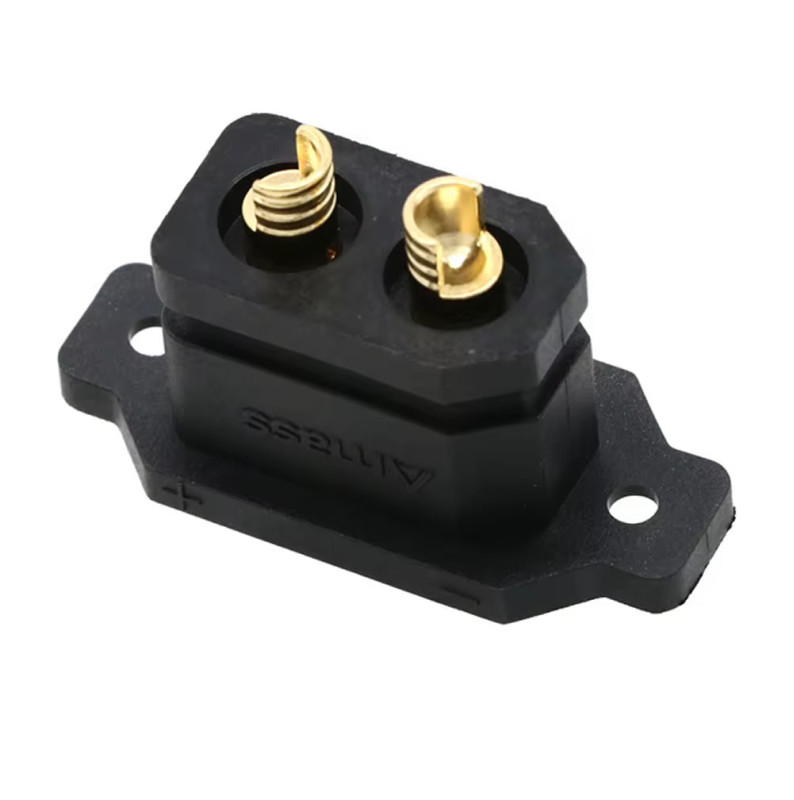

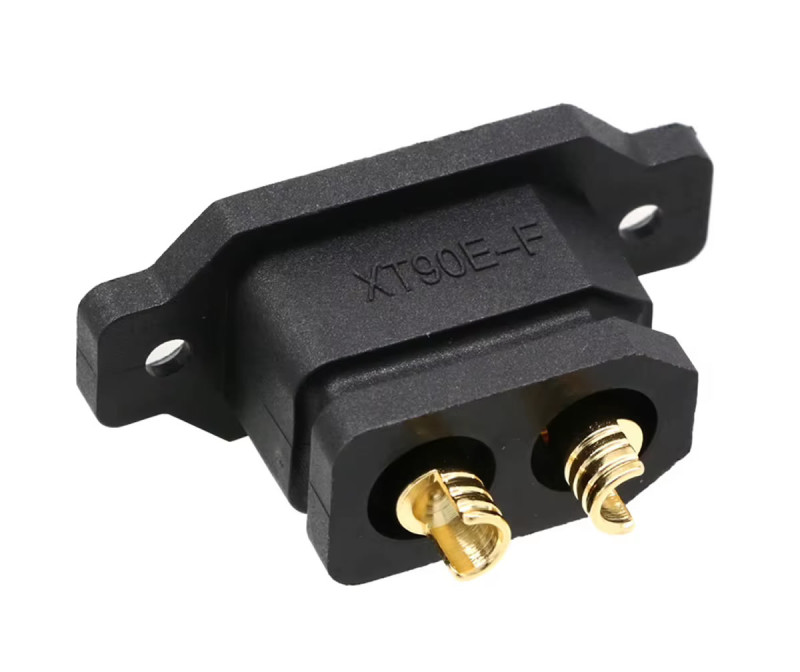

• Semi open end provides convenience for soldering.
• Suitable for 45A current. (Short term 90A)
• Rated voltage: DC 500V
• Internal resistance: 0.4mohm
• Used for high current connections.
• Quality plastic and metal material
• Gold plated copper
• Temperature resistance: -20C /  120C
• Color: Yellow / Gold

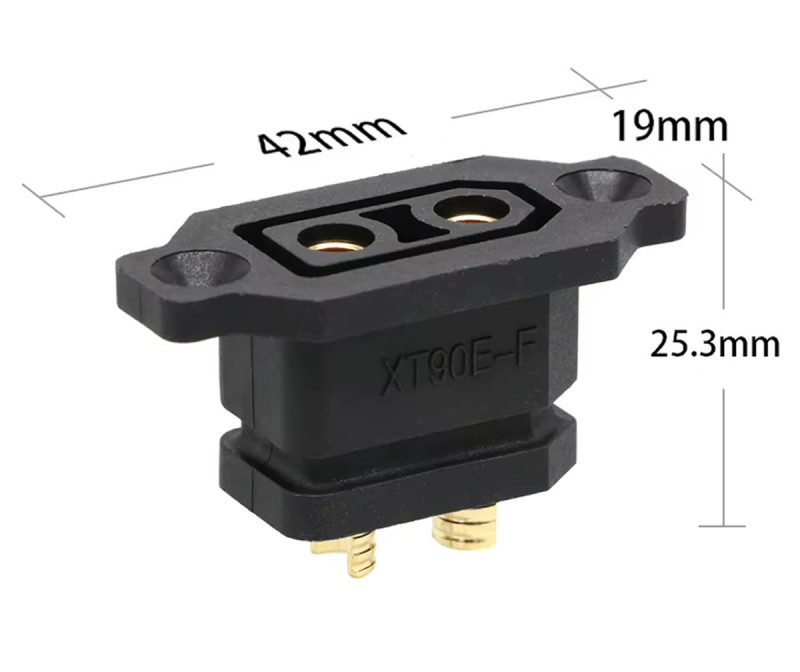

• Dimensions:  19mm x 42mm x 25.3mm
• Weight: 12gr

Package contents:

•     1 Piece XT90 Panel Mount Type Female Socket XT90E-F
