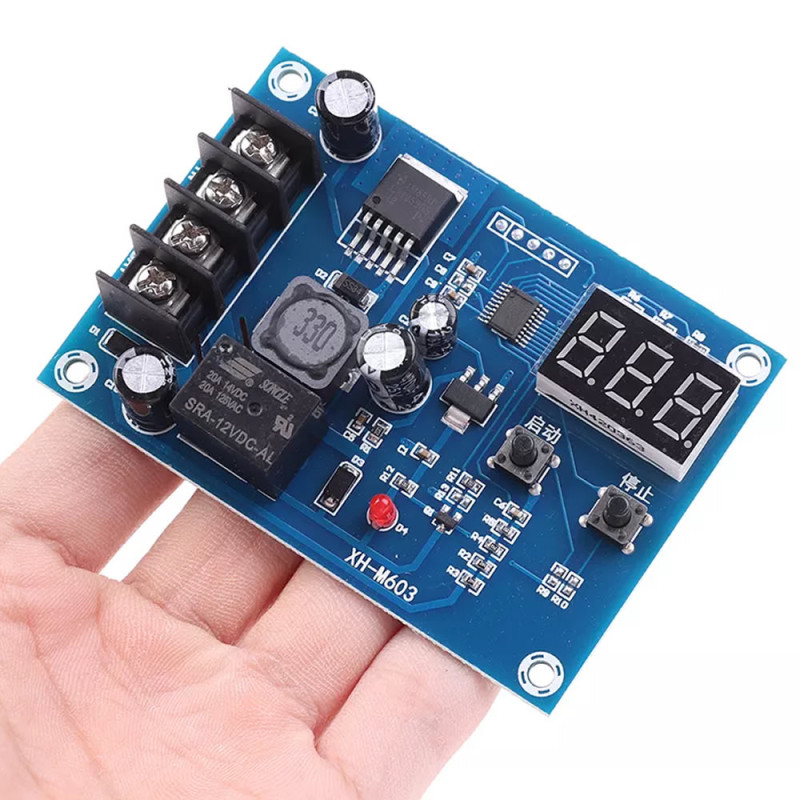

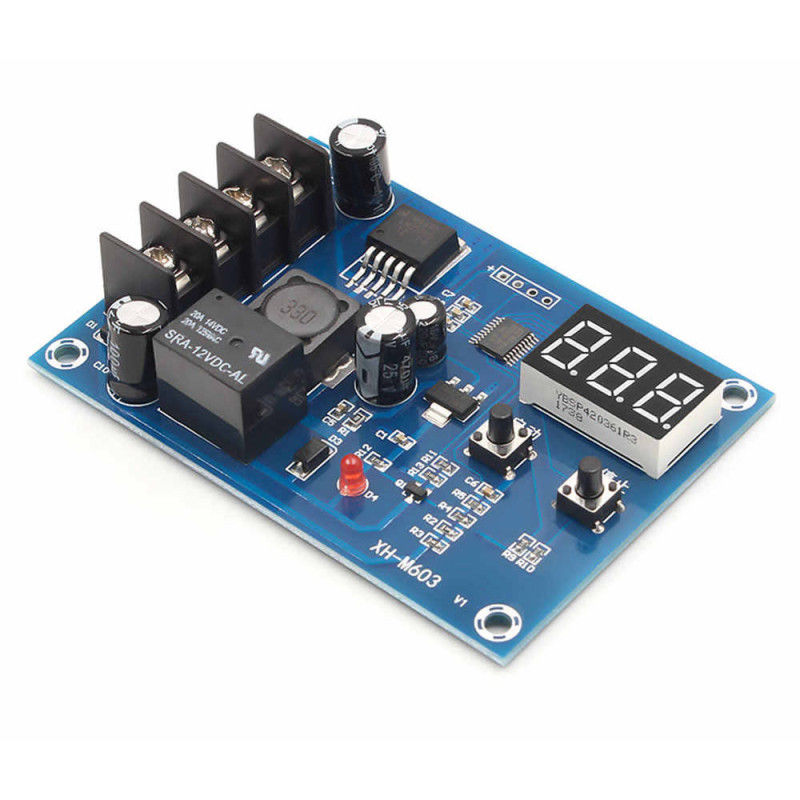

XH-M603 Battery Charge Control Circuit 12V 24V Lead Acid Gel Battery Lithium Battery

This product does not step down voltage. Connecting a charge adapter suitable for your battery is the user's responsibility.

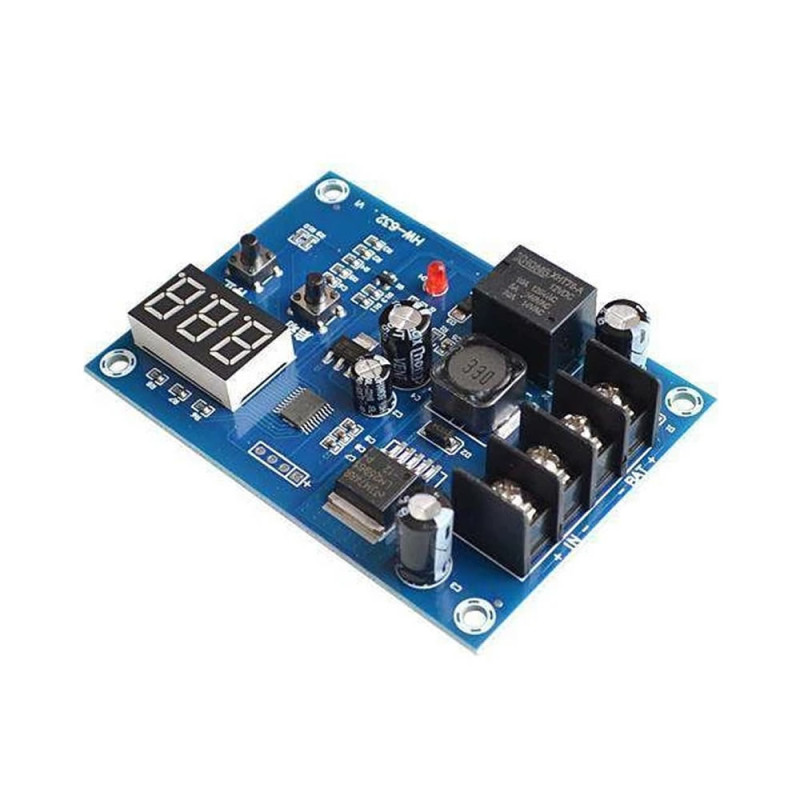

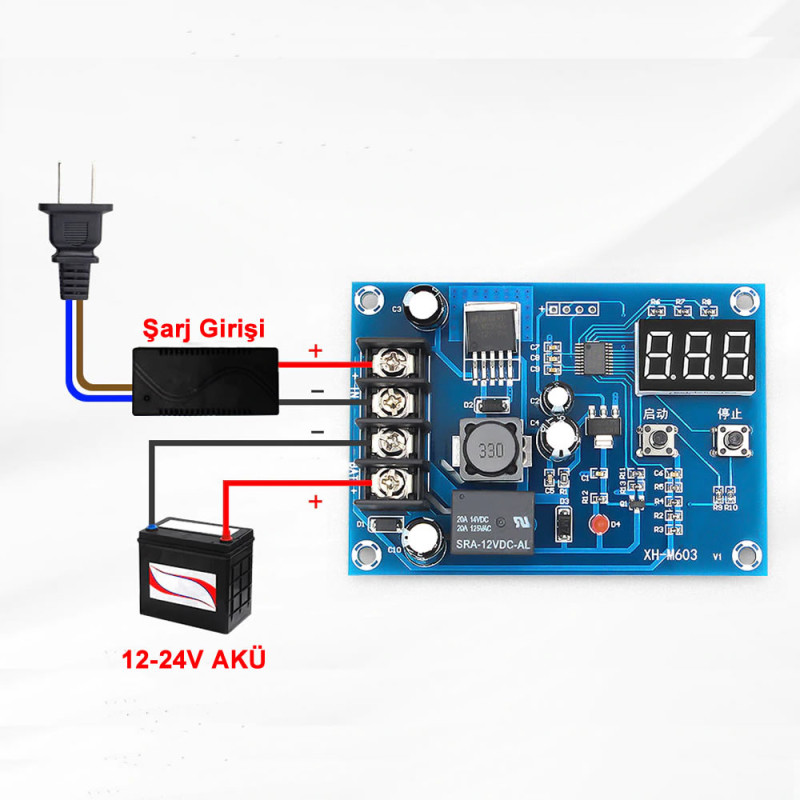

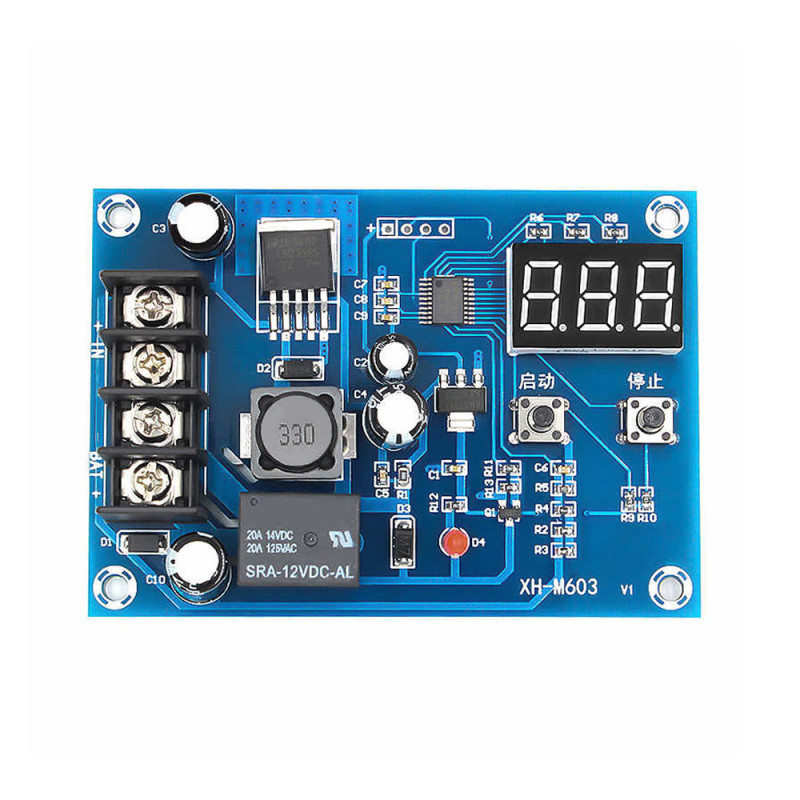

Attention, you first need to connect a battery that is not depleted to the system. From the lower left terminals. The device draws its supply from the battery. For this reason the battery to be connected must not be empty. When you connect the battery your device will start working. Afterwards you can make the necessary settings and connect the charger to the system.

     With its current cut-off feature it is a functional product with which you can safely charge your batteries. The product works with DC voltage in the DC 10-30V range. It is not used directly with 220V.

     If you long press the left button you set the start voltage. If you long press the right button you set the end voltage. There is no extra key for voltage adjustment. It automatically adjusts the output according to the voltage you supply at the input. For 12V and 24V batteries it works by automatically detecting according to the voltage you supply.

     The product has the feature of starting and ending the charging process by taking into account the voltage difference occurring in full and empty batteries.
As an example, when a 12V battery reaches full charge it can produce a voltage of up to 13.8V. When empty this voltage value can drop to 11V.

Usage:
     While charging a 12V battery, a power supply connection in the range of 12V to 14.8V is made from the input. The charge start voltage is set to 11V and the end voltage to 13.8V. In this case, while your battery voltage is in the 11V to 13.8V range the charging process will continue. For a higher charge level you can also set the end voltage to 14.4V, only in this case you need to check the temperature of the battery and the circuit. Your battery may be damaged by high temperature.

     Batteries must be charged with a current at the level of 1/10 or 2/10 of their capacity. It is appropriate to connect a current controlled power supply or charger to the product. You should not charge with a power supply that can deliver very high current. You may cause the relay on the device to break down.

 Technical Specifications:

• Model: XH-M603
• Input Voltage: DC 10-30V
• Maximum Current: 15A ( Using with 20A for a long time may damage the relay. )
• LCD Display Accuracy: 0.1V
• Voltage Accuracy: 0.1V
• Output Voltage: Direct Output
• Tolerance: +/-0.1V
• Application Areas:12-24V battery

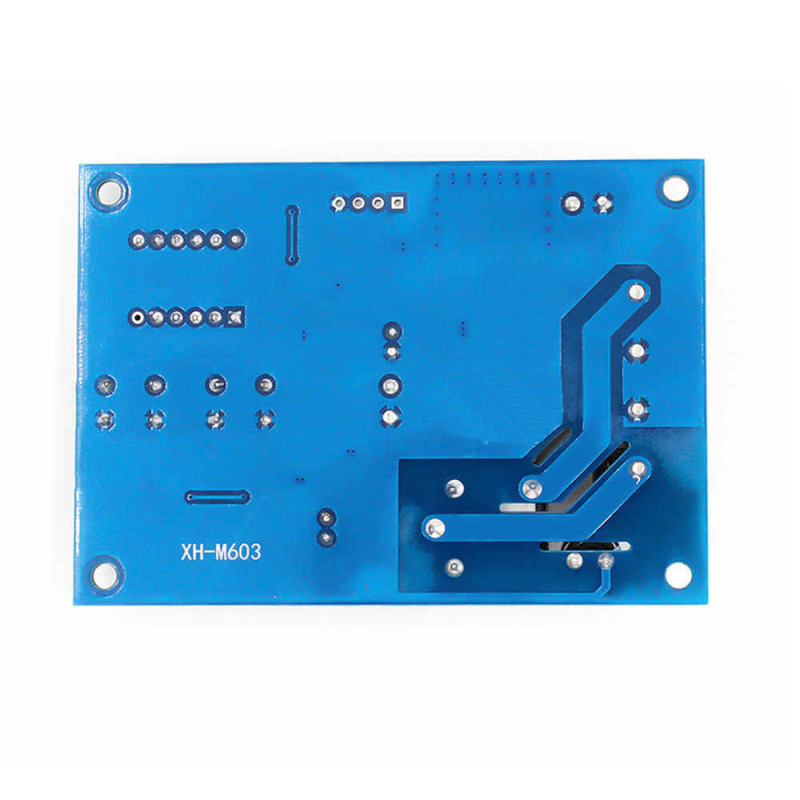

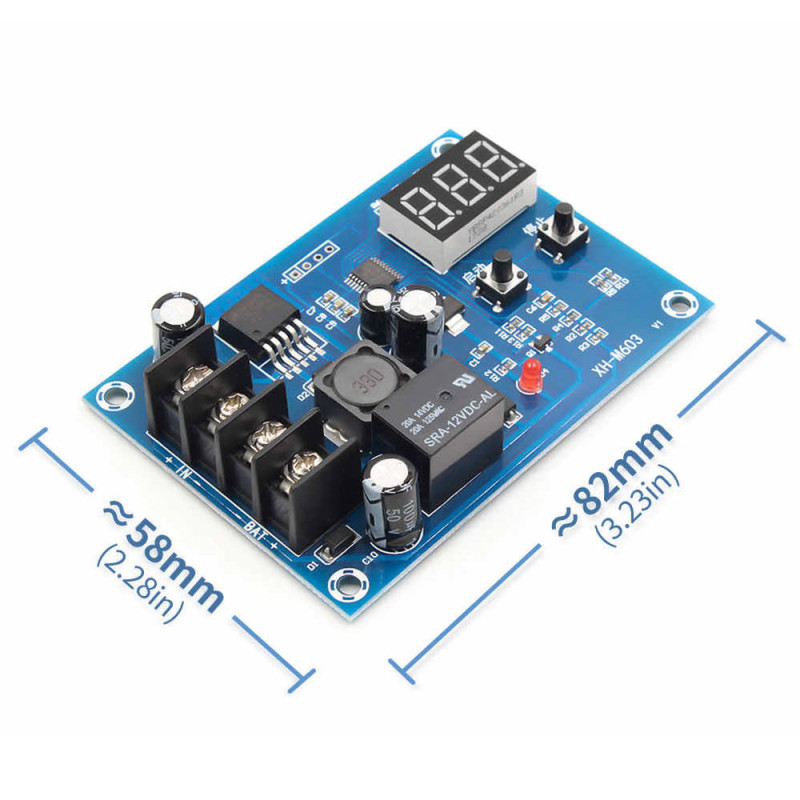

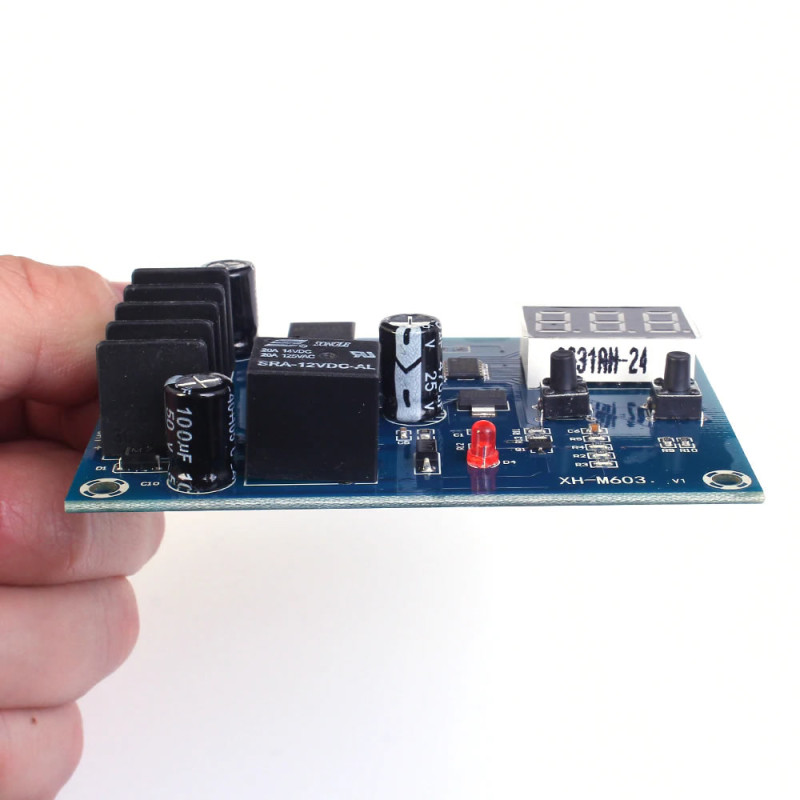

• Dimensions: 82 x 58 x 18mm
• Weight: 40gr


Package Contents:

• 1 Piece XH-M603 Battery Charge Control Circuit

.
