EMMC-ISP Tool

Emmc-Isp Fjd-Tf V2.1 ISP Emmc Programming Adapter

Mobile Device Phone Tablet TV Box Usb Flash Memory Storage Data Recovery Reading Dump Firmware

Note: This product requires professional knowledge and skills (fine soldering and knowledge of emmc structure). It is only an adapter board, it does not include a cable or software license.

     An isp adapter interface board that allows reading, writing and programming / service operations to be performed by connecting emmc flash memories over isp. It is an isp adapter that provides direct access to emmc memory chips through isp pin outputs (CMD, CLK, DAT0, VCC, VCCQ, GND). It is suitable for low level access at levels such as emmc memory dumping, writing, firmware programming and data recovery on mobile devices. Thanks to the ISP connection, it can be connected to the target board without soldering or with minimal soldering, and it works with supported programs by connecting to the pc over usb.

     It is a professional EMMC-ISP (In-System Programming) adapter board designed for electronics technicians, data recovery specialists and embedded system developers. It allows you to communicate directly with the emmc (Embedded MultiMediaCard) memory chips found in devices such as smartphones, tablets, tv boxes or automotive multimedia systems. Thanks to the isp method, you can perform data reading, writing or dumping operations by only soldering wires to the required signal ends (pinout), without risking removing the chip from the main board.

     Thanks to the standard usb type b connection on the board, it connects easily to the computer and helps show the emmc chip as a storage unit.

Areas of use:

• Emmc reading / writing on phones, tablets and embedded products
• Data backup and restore
• Emmc dumping
• Firmware repair and fixing
• Service and repair operations
• Data recovery from faulty devices (dead phone/tablet),
• Emmc chip analysis, repairing "bricked" devices, firmware backup and restore.

Connection: It connects to the pc over the usb interface, the target emmc memory is connected to the pins on the adapter.

Software used with this product:  This type of "Generic usb emmc Reader" hardware is usually detected by the computer as an SD card reader. However, due to the special structure of emmc, special software is required to access raw data.

• Umt emmc tool – emmc flash reading, writing, dumping/archiving.
• Miracle emmc plus tool – dump reading/writing operations over isp.
• Uni android tool emmc – for Android based emmc service modules.
• Hydra dongle emmc Tools – multi module repair software that can work with isp adapters.
• Gsm shield / emt Program – modules for emmc reading/writing, frp/pattern unlock purposes.
• Hydra tool dongle — active dongle software package that you can use together with isp emmc and other modules.
• Ufi box worldwide — Full service box for professional level emmc/ufs, flash repair and data operations.
• Emmc isp Adapters Usb 3.0 — Emmc pin adapter with higher data speed and easy pc connection.
• RT809H emmc isp adapter — Hardware for isp emmc connection with a universal programmer.
• Silhouette mks emmc-adapter — Usb 3.0 based adapter board, target emmc connection tool.
• ICFRIEND emmc/ufs adapter — Multi pin adapter for Ufs or emmc isp connection.
• Win32 disk imager: It is the most popular and simple raw image capture/write tool for Windows. It saves an exact copy (img file) of the entire emmc' to the computer.  It is not guaranteed to be detected as a disk by the operating system on every device.
• BalenaEtcher: Although it is generally known for writing images, it also has an image reading (cloning) feature from a disk. It is very simple to use.
• Hdd raw copy tool: It is another powerful and free tool that performs sector by sector copying.
• R-Studio data recovery: It is a very powerful software that can scan raw disk images and recognize the file systems (EXT4, FAT32 etc.) inside them and recover deleted files. It is the choice of professionals.
• Ufs explorer: It is a professional data recovery software specialized especially in Linux and Android file systems.
• Linux tools (For Experts): This type of adapter works much more capably in a Linux environment (for example Ubuntu). With the dd command or dmesg outputs over the terminal, the status of the chip can be analyzed in much more detail and its image can be taken.

Features

•  Model: EMMC-ISP FJD-TF V2.1

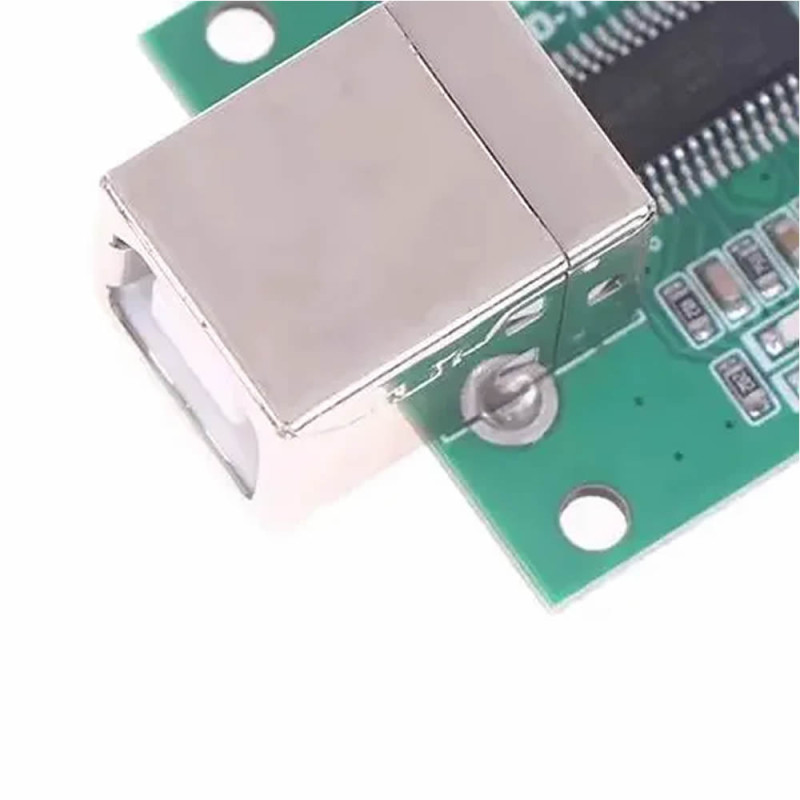

•  Interface: USB 2.0 Type B Female
•  The possibility to adapt to the different voltage levels required by the target emmc chip (usually 1.8V or 3.3V - external supply may be required) via the VCC and VCCQ pins on the board. Applying the wrong voltage may cause irreversible damage to the eMMC chip.
•  ISP (In-System Programming): The possibility to intervene without removing sensitive BGA chips from their place.
•  Power indicator led
•  Read indicator led
•  Compact design
•  Operating temperature:  -20C  /  65C
•  Color: Green
•  7 pin connection socket
•  4 mounting holes

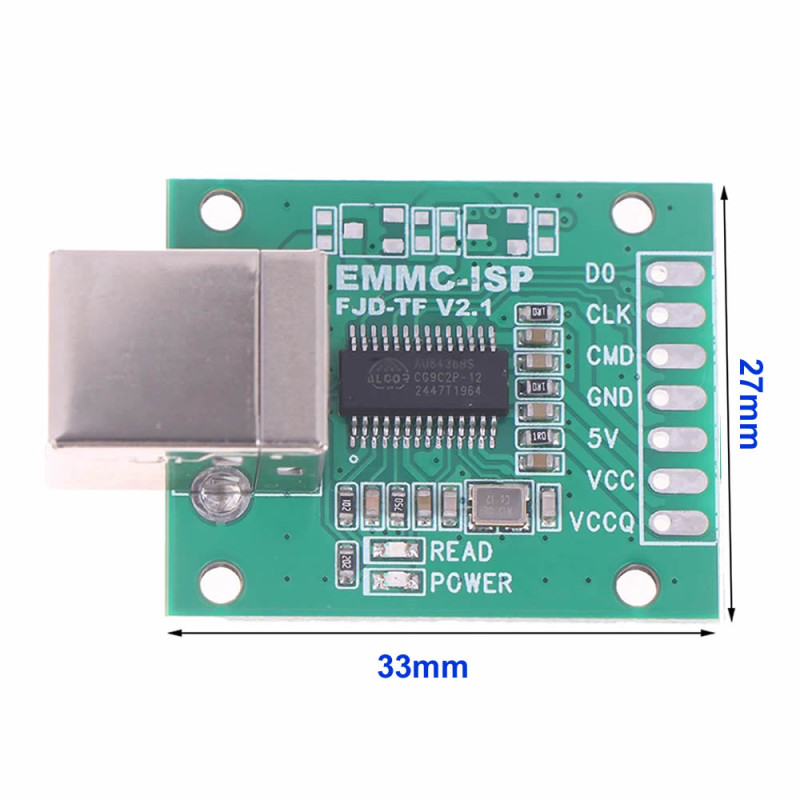

•  Dimensions:  27mm x 33mm (40mm)
•  Weight:  5gr

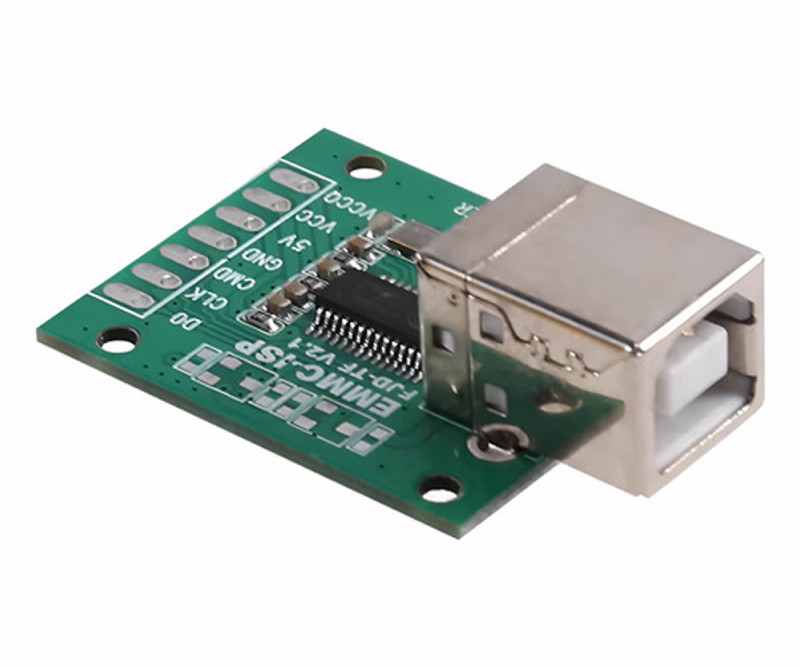

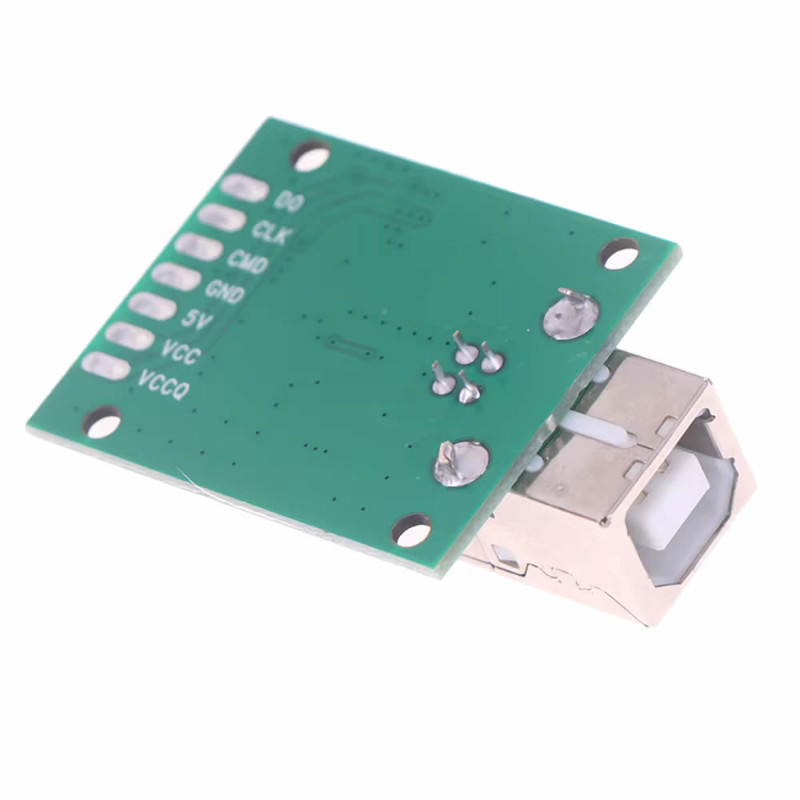

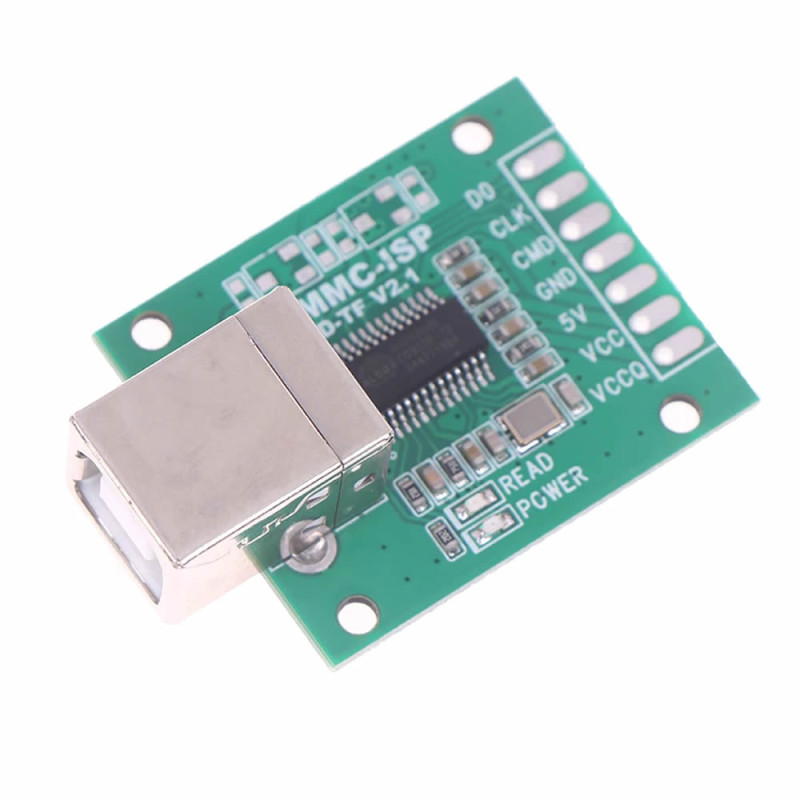

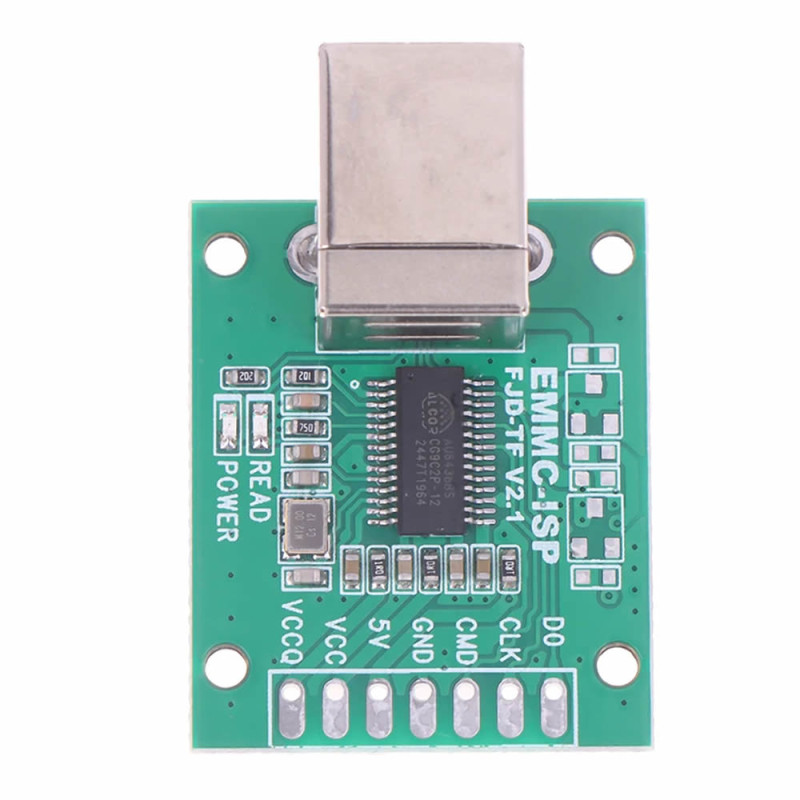

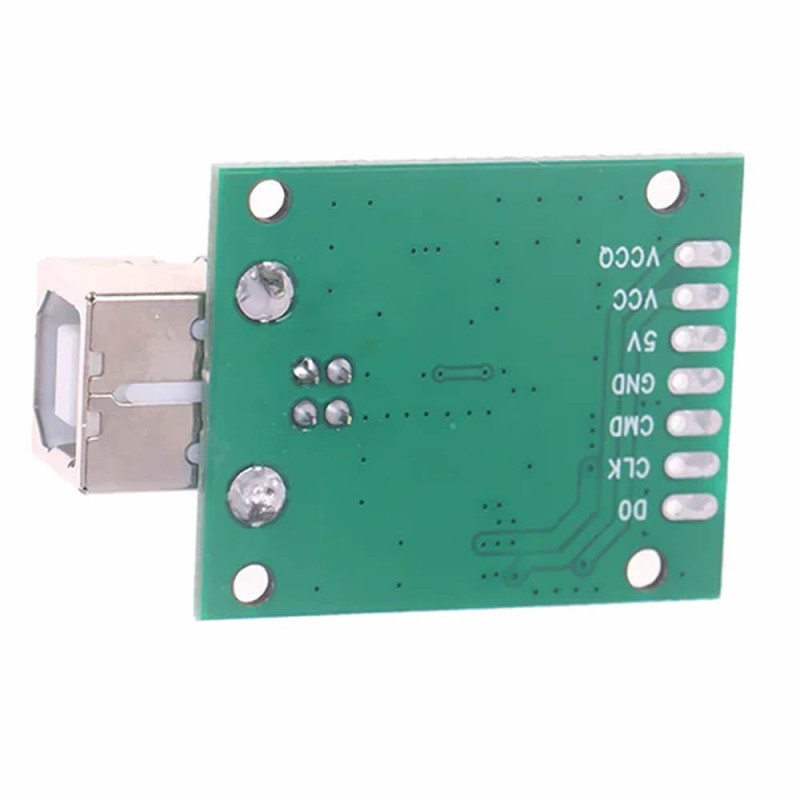

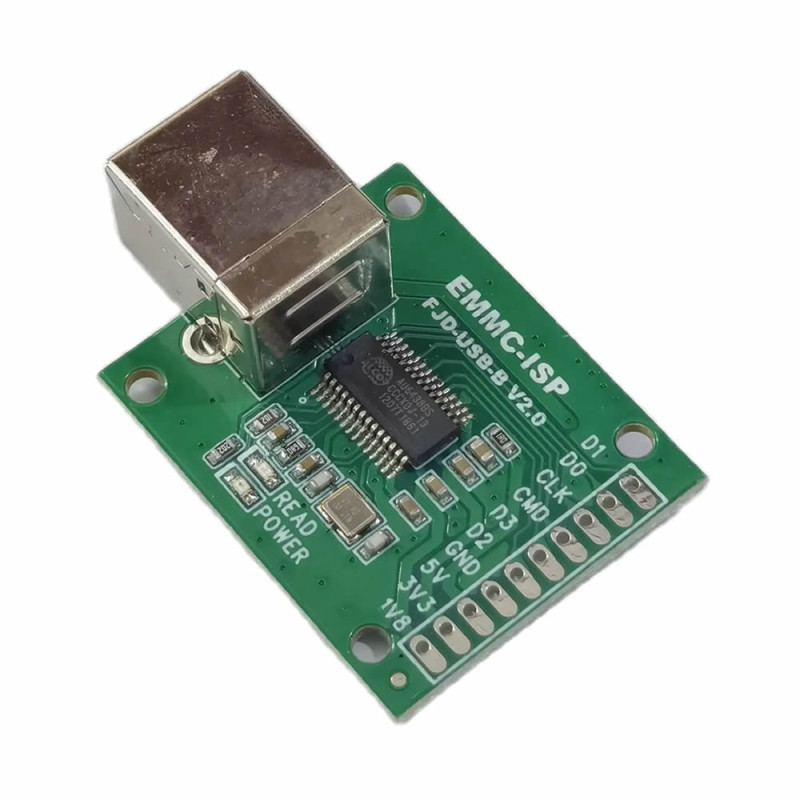

 Pinout: All signal ends required for emmc communication (CMD, CLK, D0, GND) and voltage supplies (VCC, VCCQ, 5V) are clearly labeled on the PCB.

Notes:

• With this type of isp tools, a separate adaptation/cable may be required for each emmc chip type or each phone model.
• The software usually works in a Windows environment and may require a license/activation.
• Be careful when connecting to isp points: a wrong connection may cause permanent damage to the device.

Package contents:

• 1 Piece EMMC-ISP Tool
