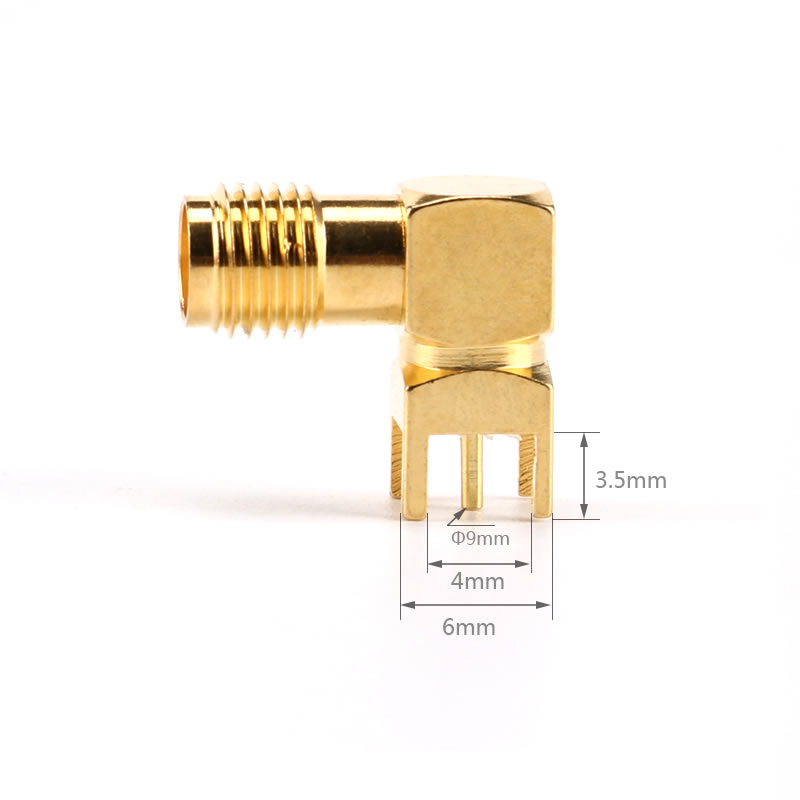

Sma Female Pcb Type Socket 90 Degree SMA-KWE

Sma Pcb Type Female Socket 90 Degree SMA-KWE

Lora Gsm Gps Wifi Rf Module Wireless Communication Circuit Antenna Connection Connector Right Angle 50Ohm

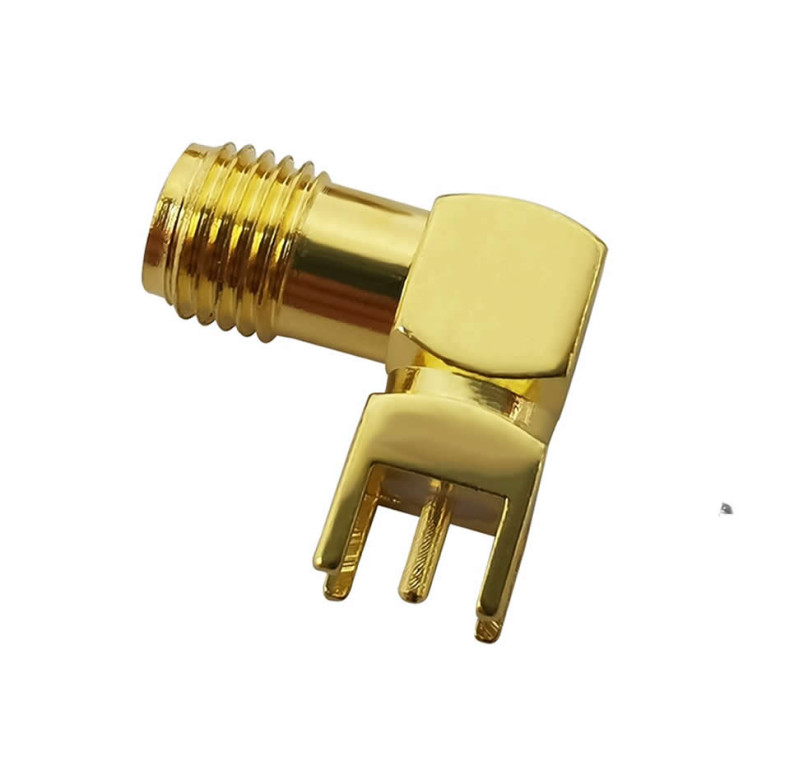

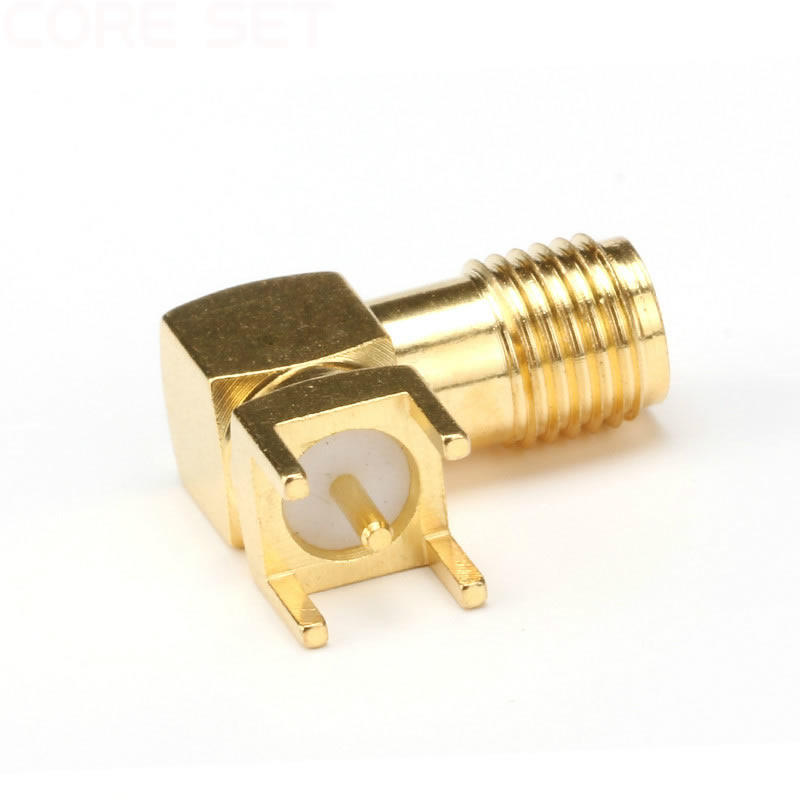

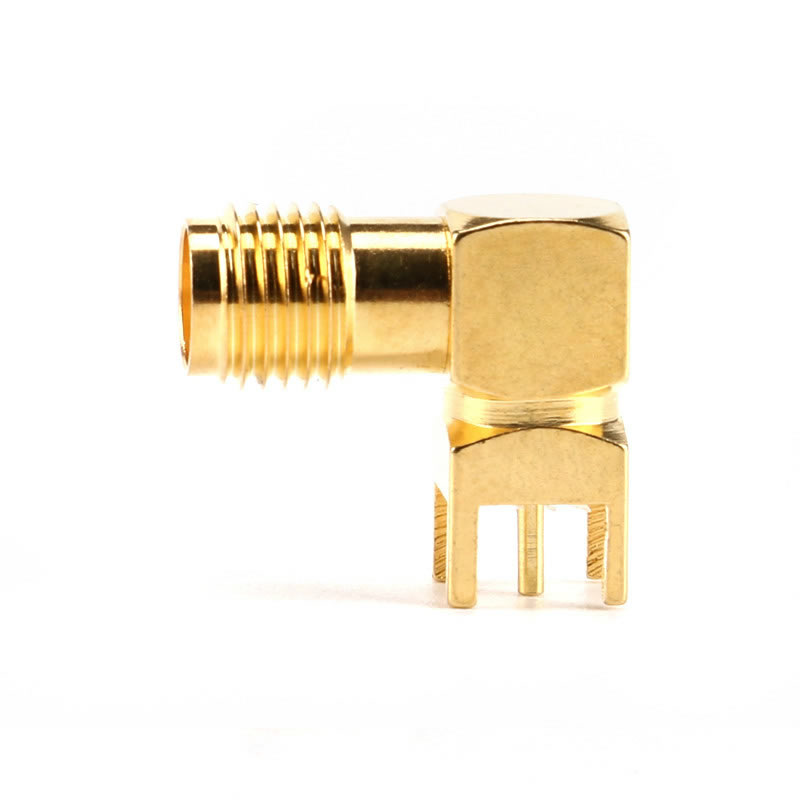

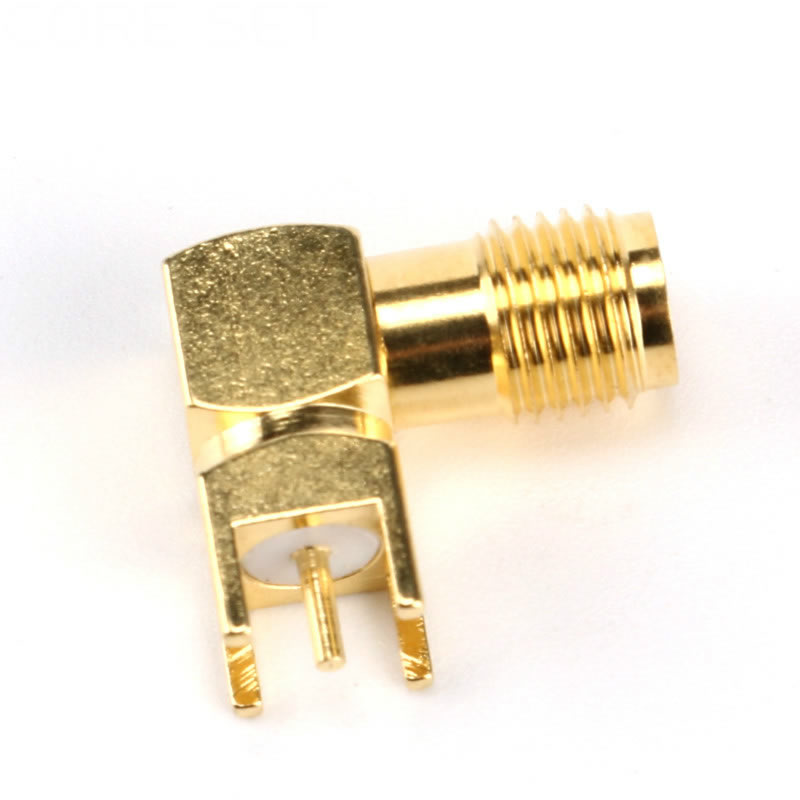

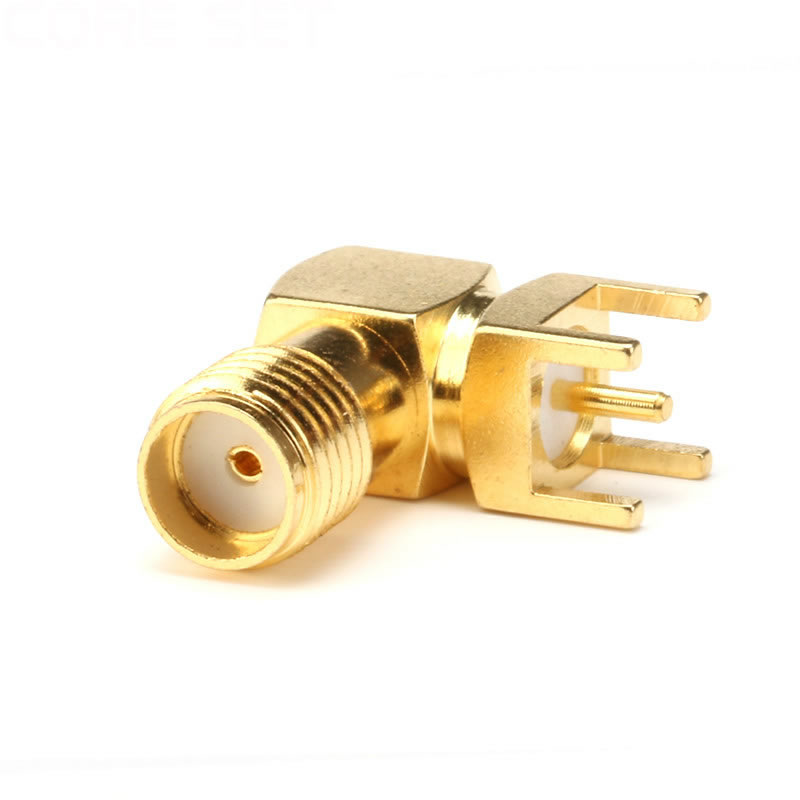

     This product is a 90 degree angled sma female rf antenna socket used by soldering onto a pcb. It is used to obtain an sma connection from the pcb in rf module, wireless communication circuit, antenna connection and test board applications.

     Thanks to its 90 degree angled structure, it allows the antenna or sma cable connection to exit parallel to the board surface. The gold plated contact surface is preferred for low contact resistance and a more stable Rf connection. It can be used in prototype circuits, Rf module boards and applications requiring an embedded antenna connection.

Features:

• Connector type: Female Sma Pcb socket
• Impedance: 50 ohm
• Connection direction: 90 degree angled
• Mounting type: Pcb soldered
• Usage type: Rf antenna connection
• Body structure: metal Rf connector
• Compatible connection: Sma male connector / Sma antenna / Sma cable
• Application area: antenna base, Rf module connection, test circuit
• Signal type: Rf / antenna signal
• Color: metal body, gold colored contact

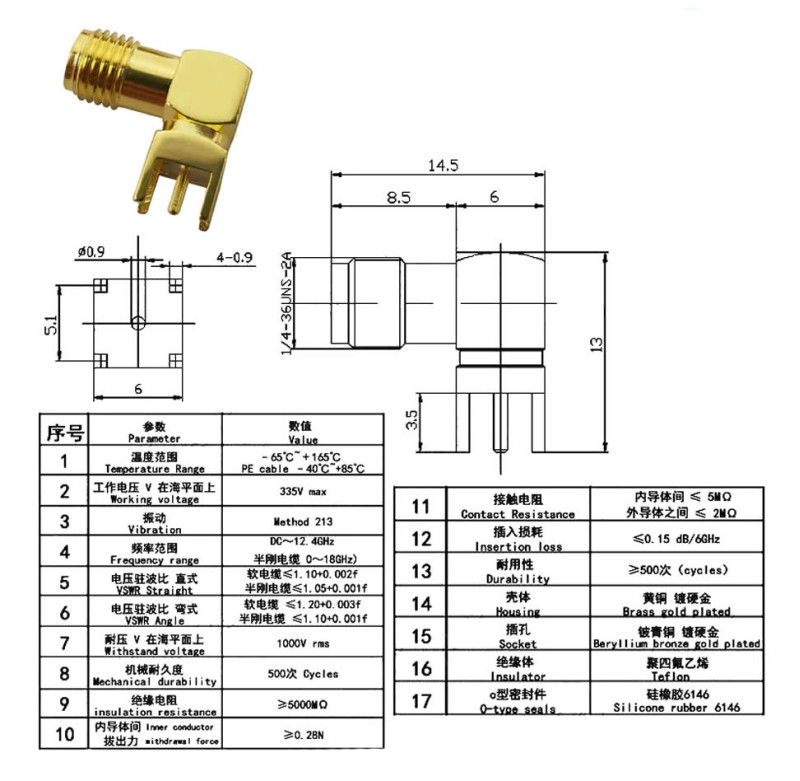

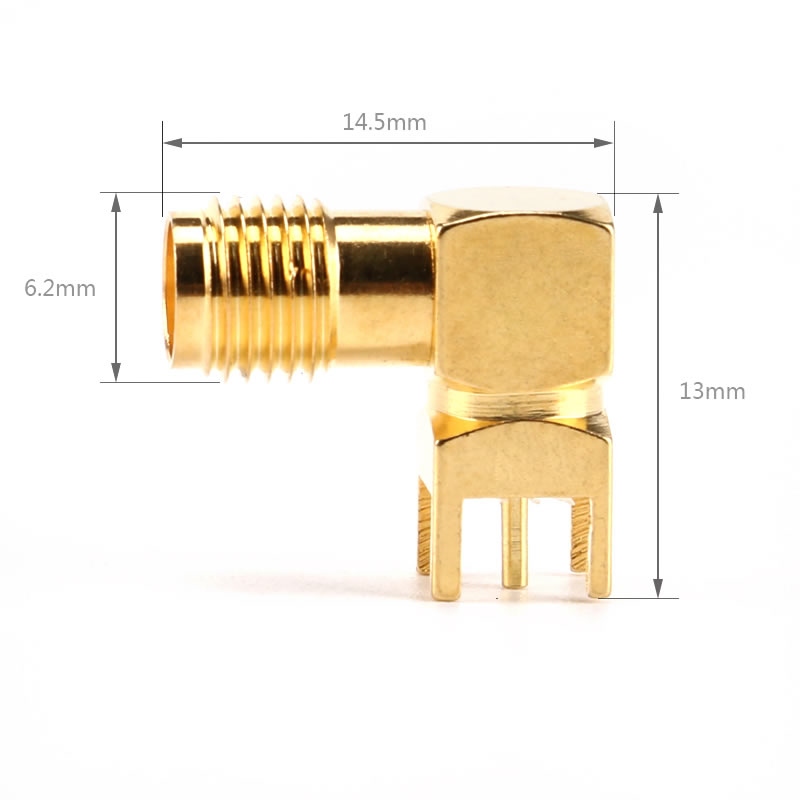

• Size:  13mm x14.5mm x 6.2mm
• Weight:  2.8gr

Areas of use:

• RF module boards
• Wireless communication circuits
• Sma antenna connection
• Obtaining an external antenna output on Pcn
• Lora, Gsm, Gps, Wifii and Rf test circuits
• Prototype and small series electronic board designs

Package contents:

•  1Piece Sma Female Pcb Type Socket 90 Degree SMA-KWE
