Wireless Charging Module Dfr2v8

Wireless Charging Module Type C 15W

5V 1A 9V 1.5A Mobile Smart Phone Toy Battery Charging QI WPC V1.2.3 Samsung Apple DFR2V8

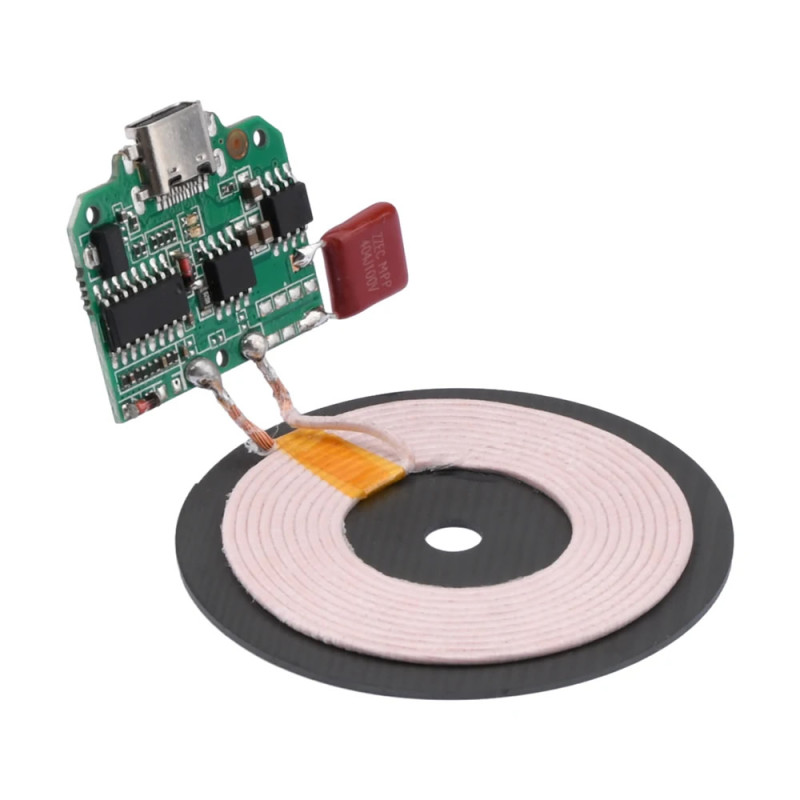

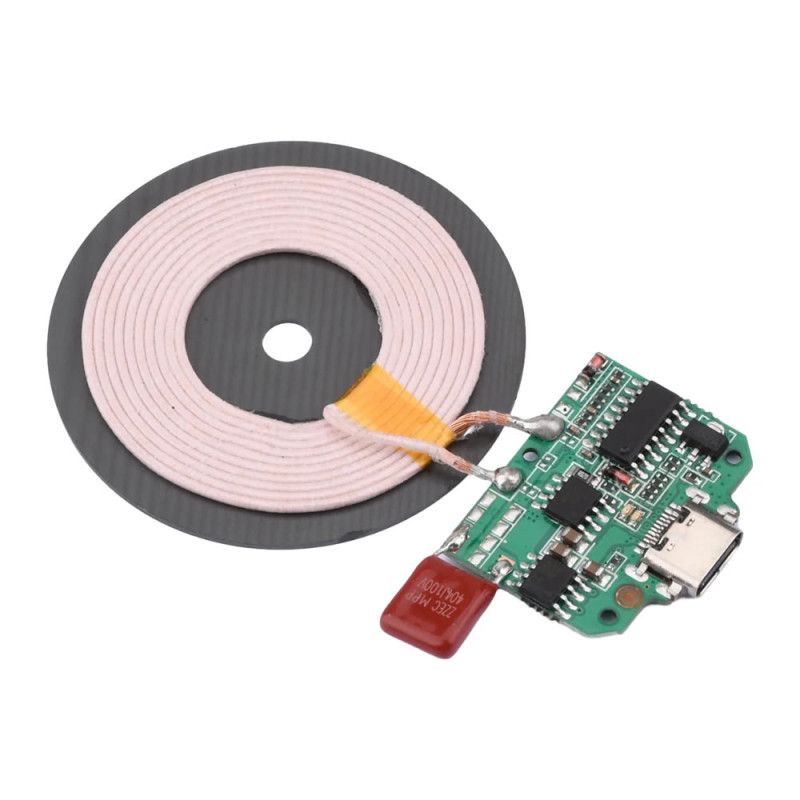

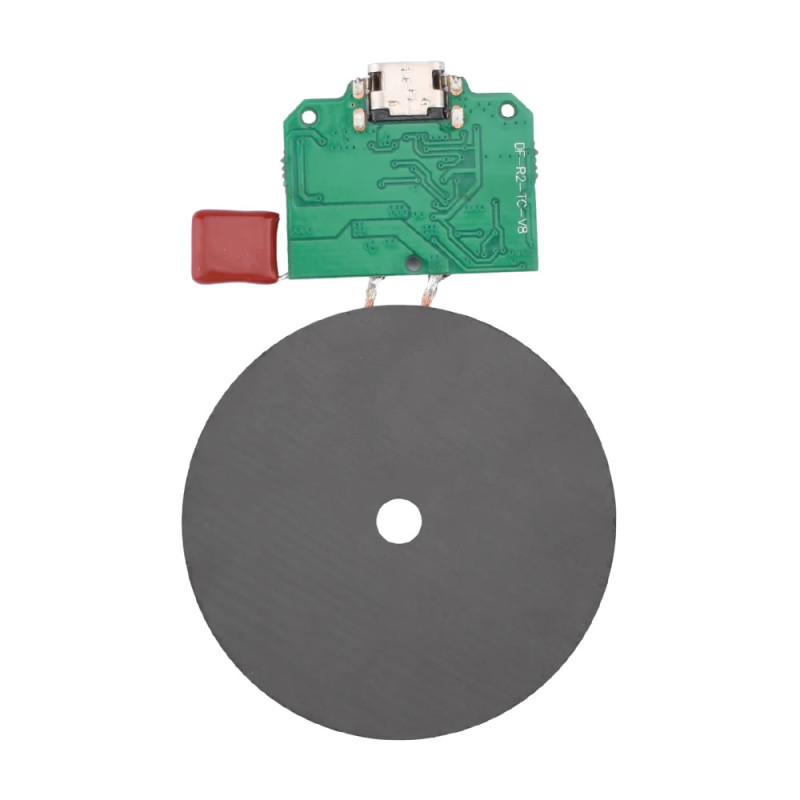

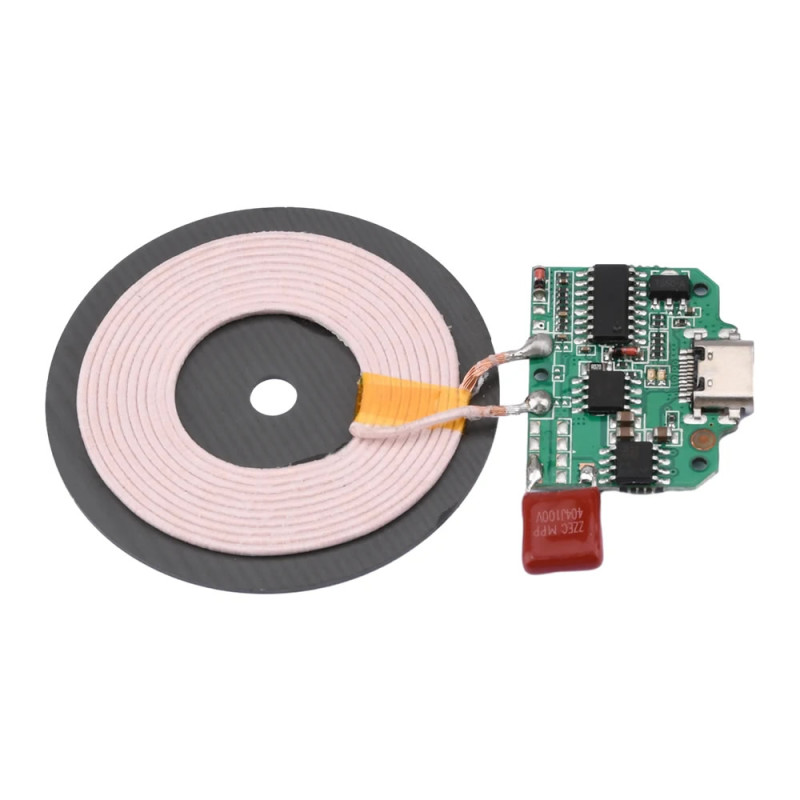

     The DFR2V8 Wireless Charging Module is a Qi (WPC V1.2.3) compatible wireless charging transmitter board with Type-C USB input, delivering up to 15W. The board and the thin flat transmitter coil come soldered together; it is powered with 5V, 9V or 12V through the Type-C socket. The board has a red power and a blue charging indicator LED. Qi receiver devices such as wireless charging phones and earbuds cases charge when placed on the coil.

     Fast charging depends on the support of the adapter used with the module: with a 5V adapter about 5W is delivered; with a fast charging adapter supplying 9V or 12V it goes up to 15W. If the adapter cannot deliver the required power, the speeds and powers stated in the listing cannot be reached. Efficiency is between 75% - 85%.

     Because the coil is very thin, it can be built in under desks, nightstands, shelves or car consoles. It charges through non-metal materials such as wood, glass and acrylic from up to 8mm. There are mounting holes on the board and in the centre of the coil.

Key features:

     Type-C input: Power comes from a common Type-C USB cable and adapter; no soldering or separate power cable is needed.

     Fast charging up to 15W: With a fast charging adapter supporting 9V or 12V it delivers up to 15W, with a 5V adapter 5W charging power.

     Thin coil for built-in use: The flat transmitter coil is placed under furniture and console surfaces; it works from up to 8mm under a non-metal surface.

     Qi (WPC V1.2.3) compatible: Works with Samsung, iPhone and other Qi compatible phones with wireless charging, and with earbuds cases.

     Status LEDs: The red LED shows power, the blue LED shows charging; the status can be followed by light even when built into an enclosure.

Features:

• Product type: Wireless charging transmitter module (board + coil)
• Model: DFR2V8
• Input socket: Type-C USB
• Supply voltage and current: 5V 2A / 9V 1.67A / 12V 1.5A (adapter must support it)
• Charging power: 5W (with 5V adapter) - up to 15W (with 9V / 12V fast charging adapter)
• Output to receiver: 5V 1A / 9V 1.5A - 1.66A (adapter must support it)
• Standard: Qi, WPC V1.2.3
• Charging distance: up to 8mm; 5mm or less for best results
• Efficiency: 75% - 85%
• Compatible devices: Samsung, iPhone and other Qi compatible phones with wireless charging, earbuds cases
• Power indicator LED: Red
• Charging indicator LED: Blue
• Use: Plug and play, no setting or software needed
• Coil type: Thin flat transmitter coil on ferrite base, soldered to the board
• Mounting: Mounting holes on the board and in the centre of the coil
• Operating temperature: -20°C - 65°C
• Coil size: winding about 38mm, ferrite base about 45mm diameter
• Coil lead length: about 1cm

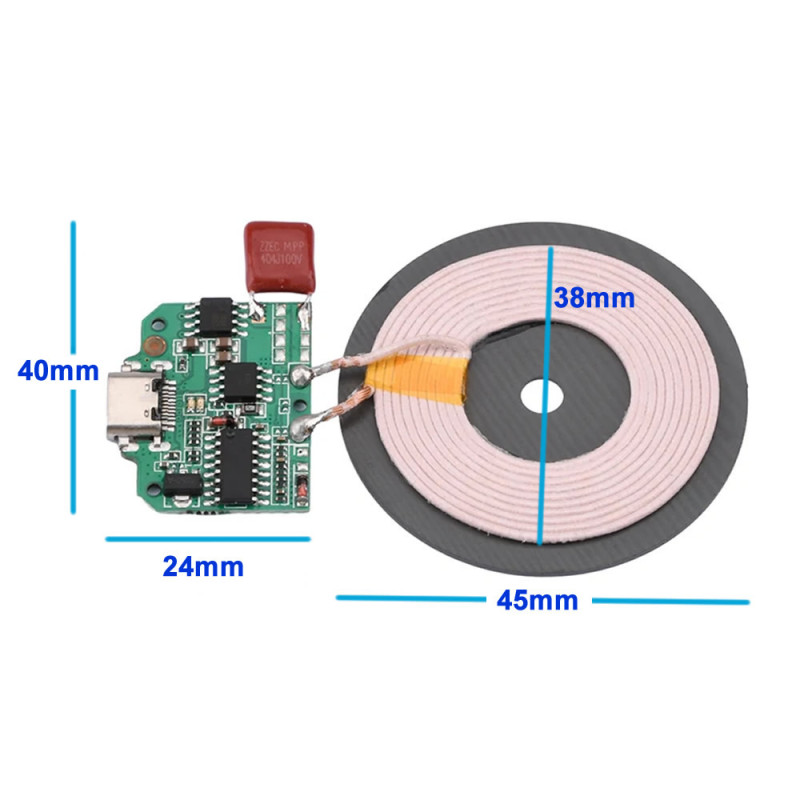

• Dimensions: about 24mm x 40mm (board)
• Weight: 10gr

Usage information:

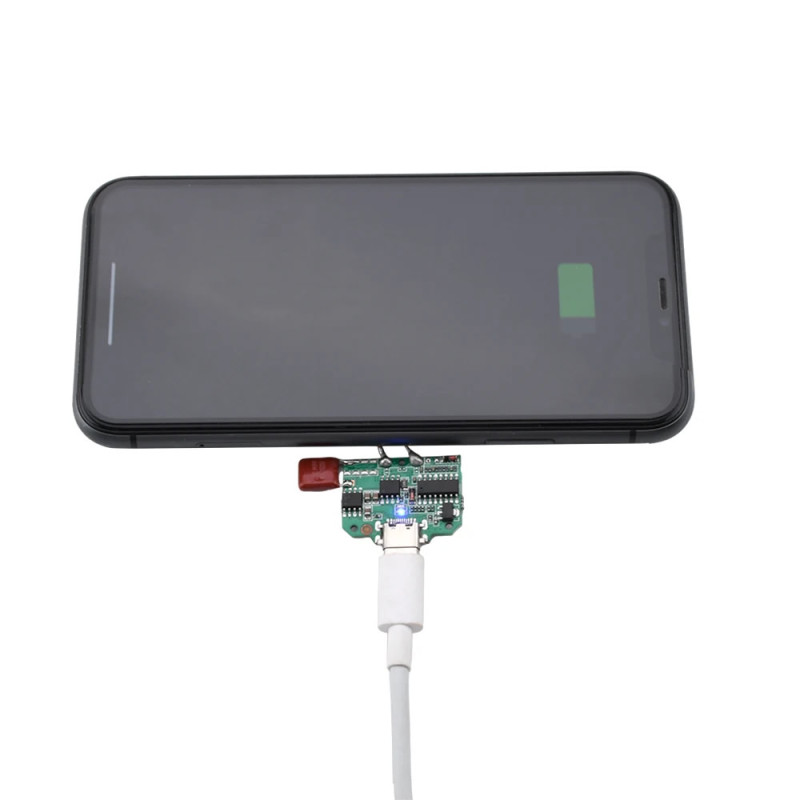

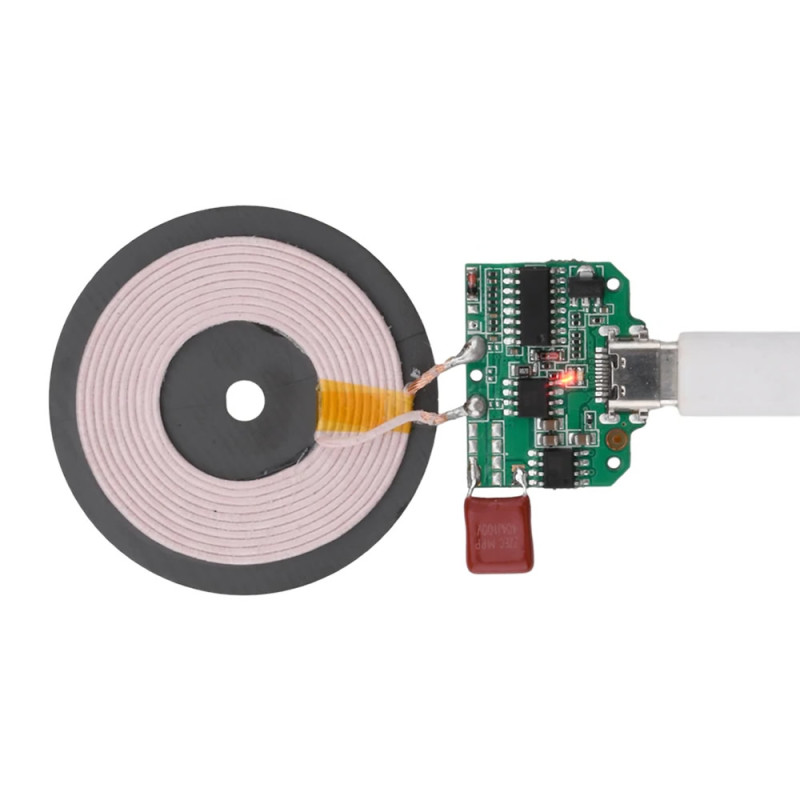

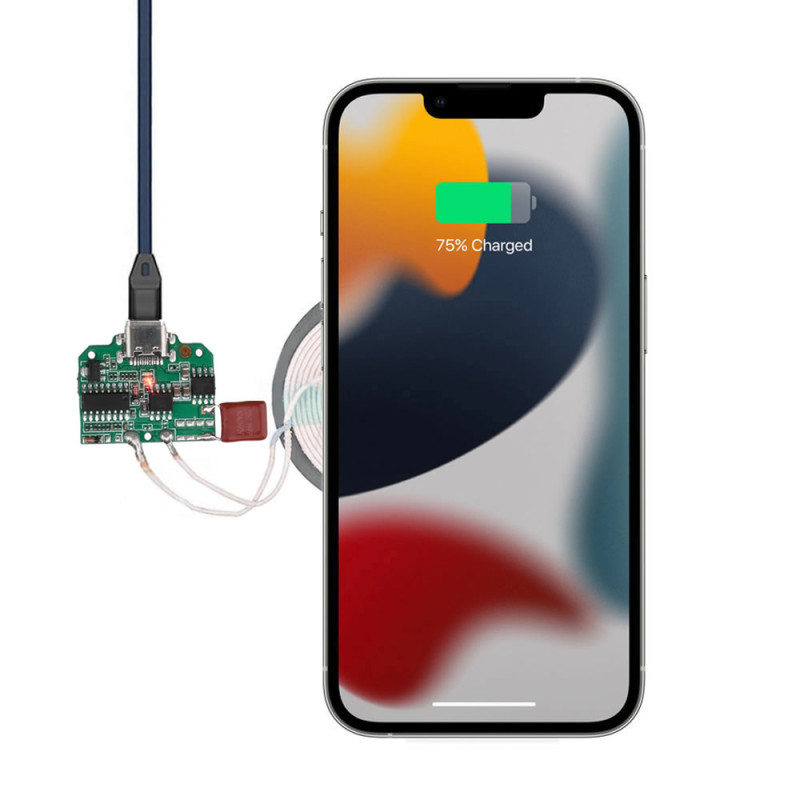

• Connect an adapter to the Type-C socket; when the red LED lights the module is ready. Place the phone on the coil so that it is centred; when charging starts the blue LED lights.
• For 15W fast charging use a fast charging adapter of at least 18W supplying 9V or 12V and a good quality, data capable Type-C cable; with a normal 5V adapter charging stays limited to 5W.
• When building into furniture, place the coil under the surface so that at most 8mm of non-metal material remains between the surface and the coil; fix the board in a ventilated place so it does not overheat.

Areas of use:

•  Under desk built-in phone charging
•  Wireless charging spot in furniture, shelves and cabinets
•  Nightstand and bedside charging
•  Car console wireless charging
•  Adding charging to lamps and night lights
•  Building phone stands and wireless charging pads
•  Earbuds case wireless charging
•  Charging spot on shop counters, cafe and office desks
•  Toy and battery charging with a wireless charging receiver module


Precautions:

•  The fast charging function depends on the support of the adapter used with the product. If the adapter cannot deliver the required power, the speeds and powers stated in the listing cannot be reached.
•  Do not place metal objects (keys, coins, metal covers, cases with metal plates) between the coil and the phone; metal heats up and charging stops.
•  Do not build the module under a metal surface; it does not charge through metal. Use materials such as wood, glass or acrylic.
•  Centre the phone on the coil; when offset, charging slows down or stops. A thick case increases the distance.
•  This module is only a transmitter; the phone must support wireless charging. Devices without support need a separate wireless charging receiver module.
•  The power the phone takes also depends on the phone: 15W is only reached by phones that support fast wireless charging. iPhone models take at most 7.5W on standard Qi charging; 15W on an iPhone needs a MagSafe or Qi2 charger, while this module is a Qi (WPC V1.2.3) transmitter.

Package contents:

•  1 Pcs DFR2V8 Wireless Charging Module Type-C
•  1 Pcs transmitter coil ( Assembled )
•  Note: Adapter and Type-C cable are not included.
