2 Pin Type C Usb Extension Cable

Type C Panel Mount Female Socket 2 Pin 15cm With Cable

Extension USB 3.1 Connector Car Camera Toy Phone Charge Mp3 Tablet

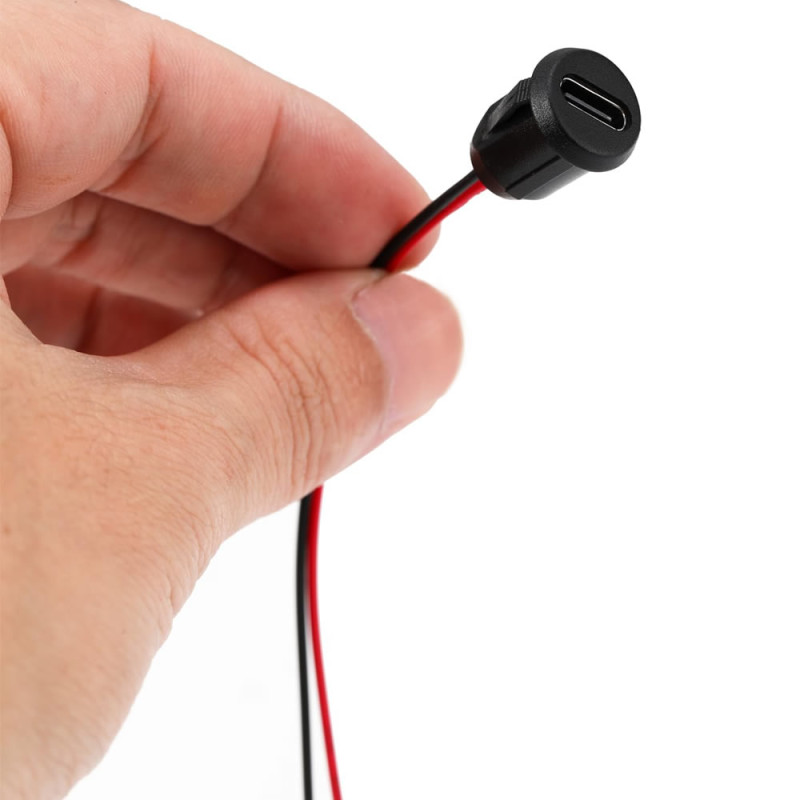

     The 2 Pin Type C Usb Extension Cable is a black, round body Type-C female charging socket that mounts in the wall of a box or enclosure. Only 2 wires come out of the back of the socket: red Vusb (+) and black GND (-). The cable is 15cm long and its ends are stripped and tinned, ready for soldering. This product is for power (charging) only; it has no data lines (D+ / D-), so no data can be transferred between the connected device and a computer.

     Thanks to the flexible latches on the sides of the body, the socket is pushed into a 12.5mm panel hole from the front and locks itself in place; no screw or nut is needed. The front face is 14.5mm, the length is 16.7mm and it weighs 4gr. The two wires are soldered to the 5V supply input of the circuit inside the box, and the device is then powered or charged from outside with a USB-A to Type-C cable.

     It is suitable for adding an external Type-C charging input to boxed devices that need no data, such as powerbanks, speakers, lamps, flashlights, toys and robots. For applications that also need the data lines, the 4 Pin Type C Usb Extension Cable with the same body (Vusb / GND / D+ / D-) should be chosen.

Key features:

     Power only, 2 wires: The Vusb and GND pins of the socket are brought out to a red and a black wire. With no data lines the connection is simple; the two wires are soldered to the + and - input of the circuit.

     Snap-in mounting: It is pushed into a 12.5mm panel hole from the front; the flexible latches on the body seat behind the hole and hold the socket in place. No screw, nut or glue is needed.

     15cm cable ready for soldering: The cable ends are stripped and tinned. The 15cm length is enough to place the socket on the front of the box and the circuit board anywhere inside it.

     Small and light body: With a 14.5mm front face, 16.7mm length and 4gr weight it fits small boxes and thin walled plastic enclosures.

     Reversible Type-C input: The Type-C plug fits in both orientations; the user never inserts the cable the wrong way round.

Features:

• Product type: Panel mount Type-C female socket, 2 wire extension (power only)
• Model: 2 Pin Type C Usb Extension Cable
• Pin count: 2 pin
• Pins: Vusb (+) and GND (-)
• Data lines: None (D+ / D- not connected, charging and power only)
• Electrical rating: DC 20V 3A maximum (not suitable for 5A / 100W)
• Wire gauge: about 24AWG
• Wire ends: Stripped, tinned ends (for soldering)
• Socket structure: Reversible Type-C female input
• Life: Long service life
• Operating temperature: -20°C / 65°C
• Mounting: Snap-in body with flexible latches, screwless
• Panel hole: 12.5mm
• Material: Plastic body
• Color: Black body; red and black wires
• Cable length: 15cm
• Dimensions: 14.5mm x 16.7mm
• Weight: 4gr

Usage information:

• Drill a 12.5mm hole in the wall of the box or enclosure. Push the socket into the hole from the front; the socket is fixed when the latches seat behind the wall.
• Solder the red wire to the 5V (+) input of the circuit and the black wire to the GND (-) input. Reverse connection can damage the circuit; check the polarity before soldering.
• After soldering the wire ends, slide heat shrink tubing over them to insulate the bare metal parts.

Applications:

•  Type-C charging input for powerbanks and battery boxes
•  Portable speaker charging input
•  Desk lamp and LED lamp power input
•  Rechargeable flashlights
•  Charging input for battery toys and toy vehicles
•  Power input for cameras and small recorders
•  5V power input for robots and boxed circuits
•  USB fans and small coolers
•  Converting older micro USB input devices to a Type-C input


Precautions:

•  This product has no data lines. If data transfer with a computer, programming or a USB device connection is needed, the 4 Pin Type C Usb Extension Cable should be used.
•  The electrical rating is 20V 3A maximum; it is not suitable for 5A or 100W. With no data and CC lines no fast charge negotiation can take place; a USB charger supplies only 5V. If a supply other than 5V is connected, the circuit input must suit that voltage.
•  The socket is only a mechanical extension; it contains no protection (fuse, reverse polarity diode). Provide short circuit and reverse connection protection in your circuit.
•  It has not been verified that the socket contains CC (5.1k) resistors. Without CC resistors, Type-C to Type-C cables and Type-C (PD) chargers do not detect the connection and supply no 5V; in that case use a USB-A to Type-C cable.
•  Do not drill the panel hole larger than 12.5mm; the latches will not hold and the socket will slip inside.

Package contents:

•  1 Piece 2 Pin Type C Usb Extension Cable
•  1 Piece 15cm red-black cable ( Assembled )
