A4988 Stepper Motor Driver

A4988 Bipolar Stepper Motor Driver Module

DC 35V 2A Microstep 32 Steps 3D Printer Robot Cnc Reprap Mks Gen Ramps Prusa Mendel Ultimaker

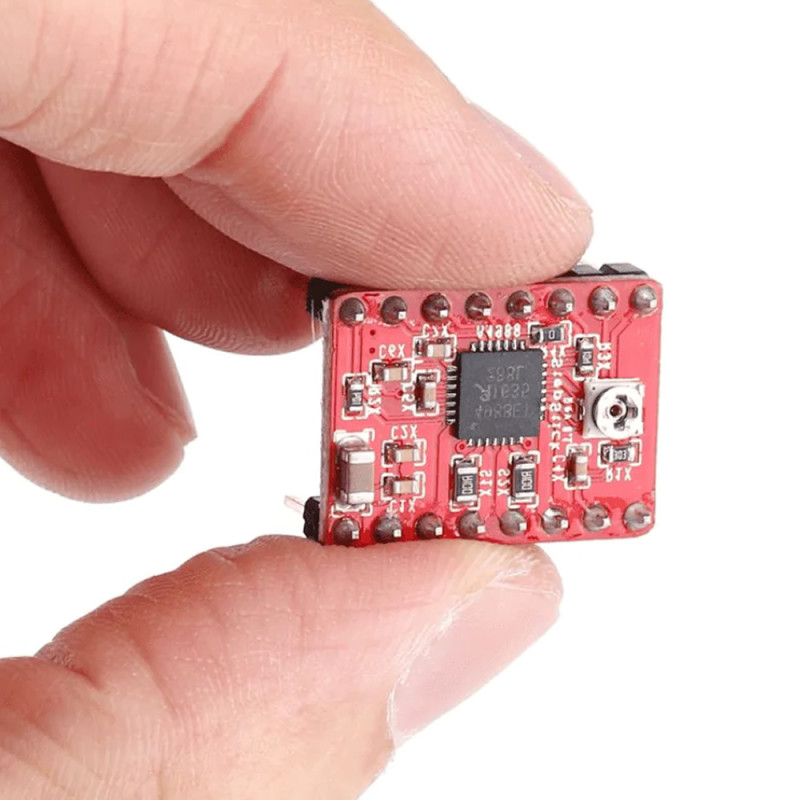

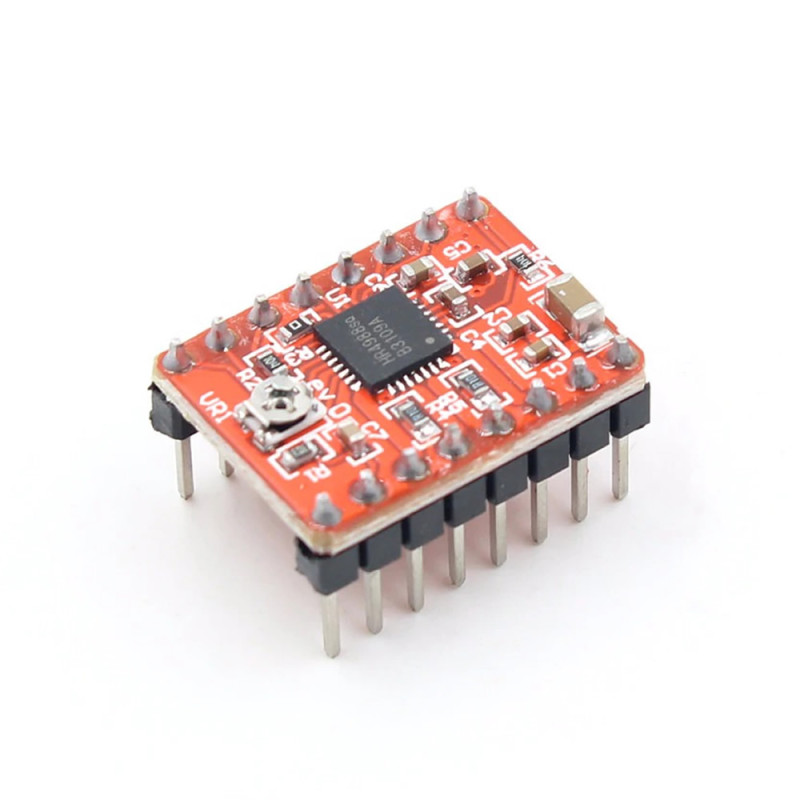

     Bipolar stepper motor driver module using the A4988 IC. It has adjustable current limiting, current and over-temperature protection. It works with DC 8V/35V motor supply voltage. It can deliver 1A x 2 load current. An aluminum heatsink comes with the product. An additional external heatsink is required at currents above 1A. With good cooling it can deliver 2A 2A, a total of 4A load current.

     It has 5 different step options. Full step, 1/2, 1/4, 1/8 and 1/16. With smart motor driving pwm functions, it reduces motor power consumption by adjusting the step count. It produces low motor noise.

Features:

• IC: A4988
• Operating voltage: DC 8V  /  35V
• Operating current: 1A x 2   ( Peak 2A x 2 ) ( An external heatsink is required above 1A in total )

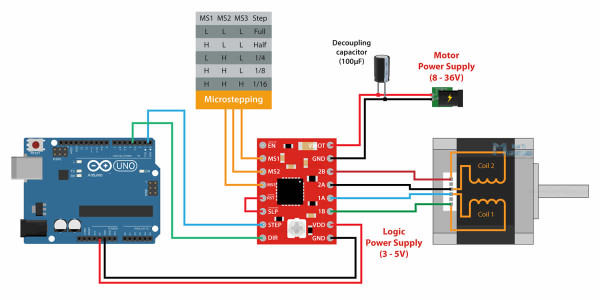

• Step modes: Full, 1/2, 1/4, 1/8 and 1/16
• Control signal voltage level: DC 3V / 5V
• Short circuit protection
• High temperature protection
• Over current protection
• Low voltage protection
• Reverse voltage connection protection
• Color: Red
• Operating temperature:  -10C  /  80C
• 2 pcs 8 pin empty sockets 2.54mm on the board edges

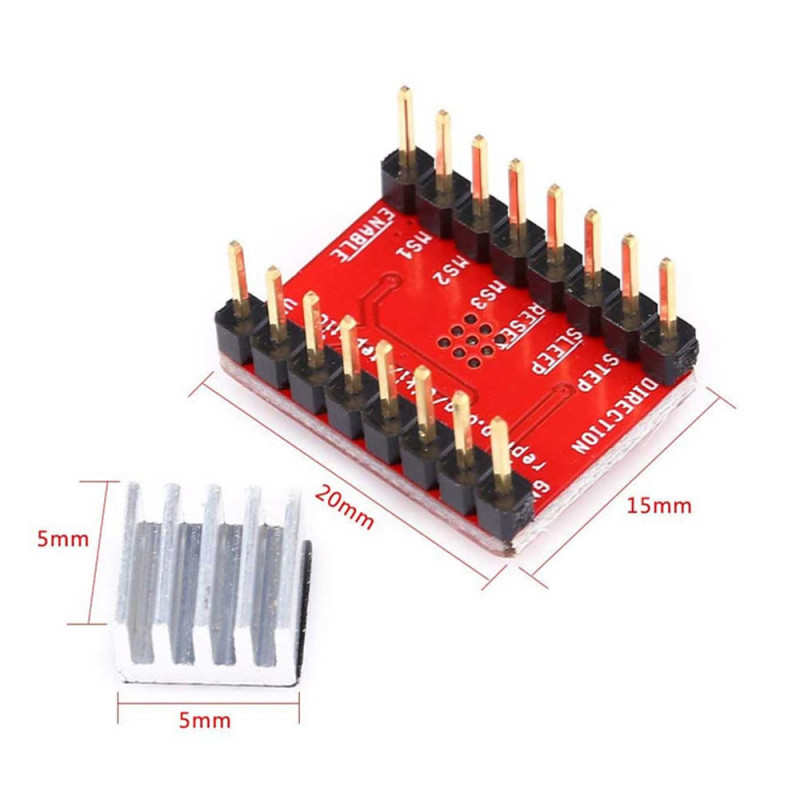

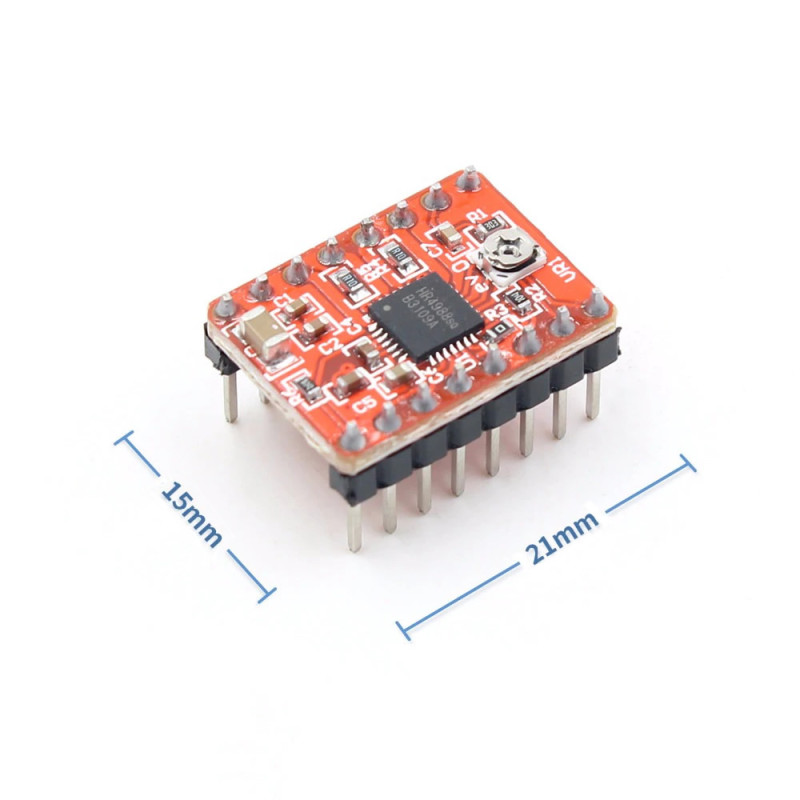

• Dimensions:  15mm x 21mm
• Weight:  4gr

Package Contents :

•    1 pcs A4988 Stepper Motor Driver Board

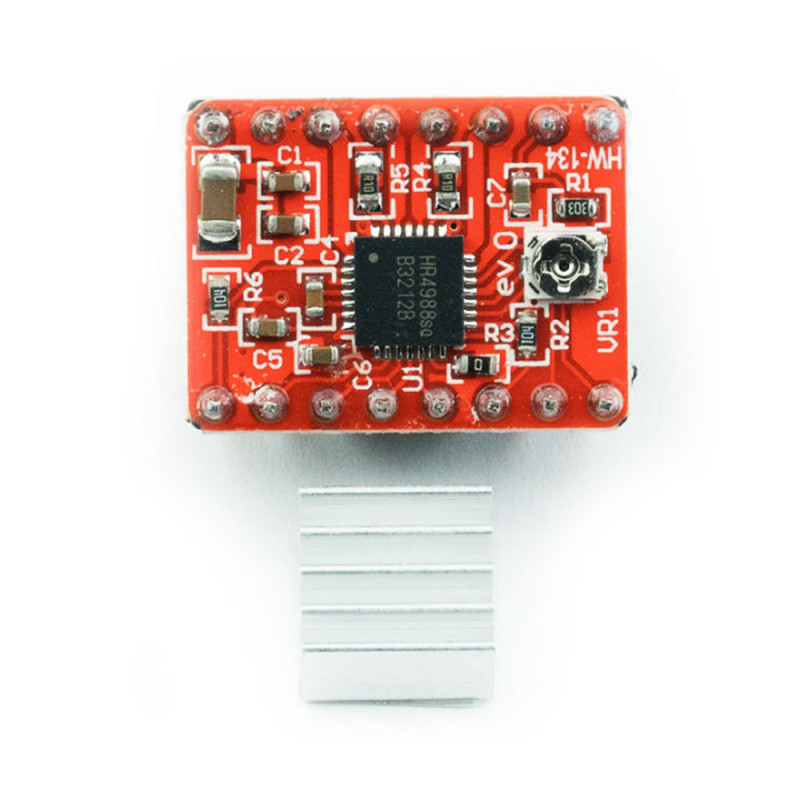

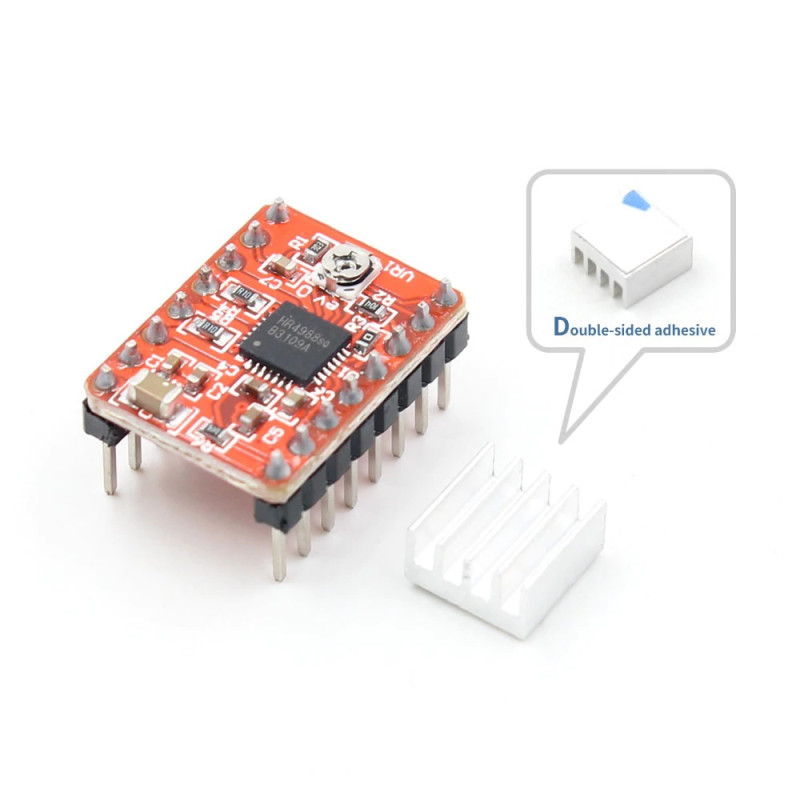

•    1 pcs Aluminum Heatsink

.
