TB6600 Stepper Motor Driver

TB6600  2 Phase 40V 4A Stepper Motor Driver

6400 Microstep Nema 17 / 23  17HS4401 17HS8401 CNC 3D Printer Robot Laser Engraving Plasma Automation Textile

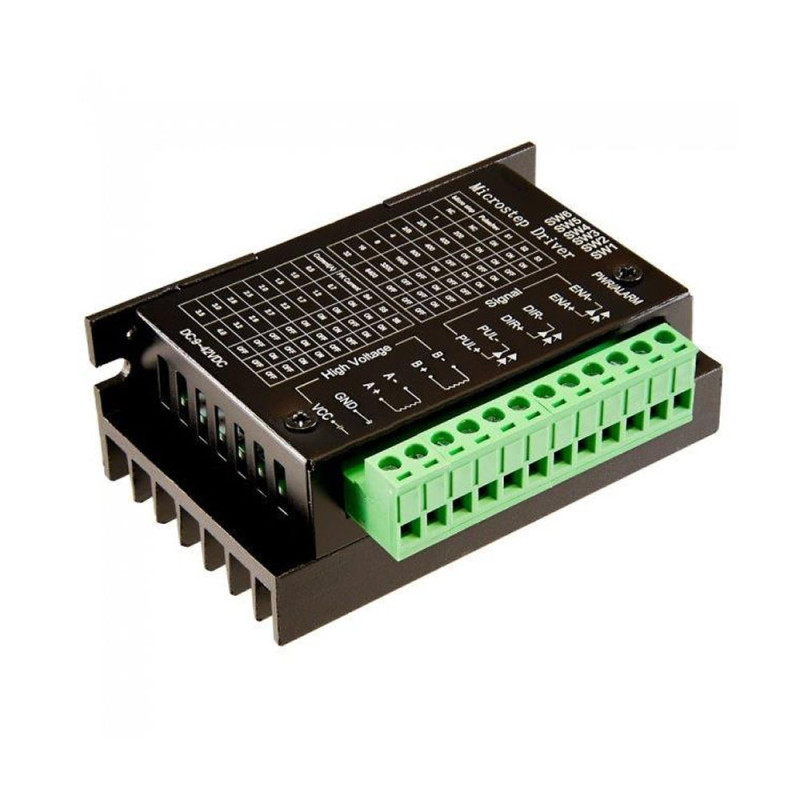

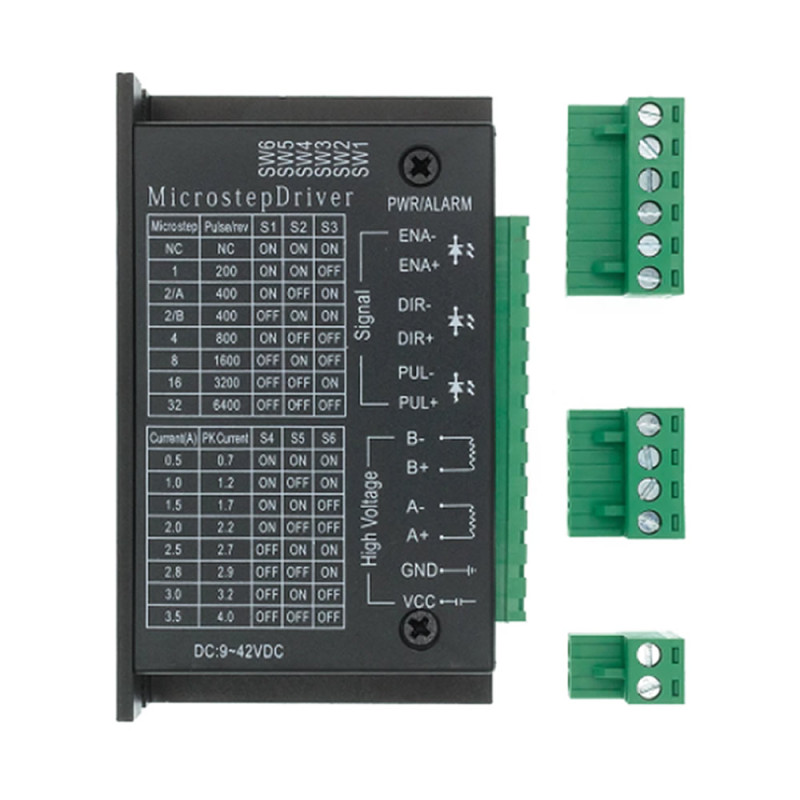

     It is a stepper motor driver circuit. It has a current driving capacity of up to 3.5A ( 4A peak ). Its metal heatsink body allows it to deliver high performance. It has 6 pin dipswitches for step and current setting. It is used by making the appropriate settings from the table on the board. You must make the settings in accordance with the signals coming from the control board. Connections are made easily by means of terminal blocks.

Features:

•     H-bridge 2 phase constant current stepper motor driver
•     Step, direction, current control
•     Input voltage: DC 12 / 40V
•     Current: 4A  ( it is not suitable for use in applications continuously above 3A )
•     Power: 160w  Maximum
•     Maximum frequency: 20KHz
•     Control signal voltage level:  DC 3.3  /  24V
•     The inputs are isolated with high speed optocouplers.
•     7 different step selections
•     Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
•     Semi-automatic current locking support
•     High temperature protection
•     Overcurrent protection
•     High performance with large metal heatsink ( Active cooling should be applied if necessary )
•     6 pin dipswitch for step and current setting
•     Terminal block sockets for easy connection
•     Metal + Plastic case
•     Color: Black
•     Operating temperature: -10C  /  65C

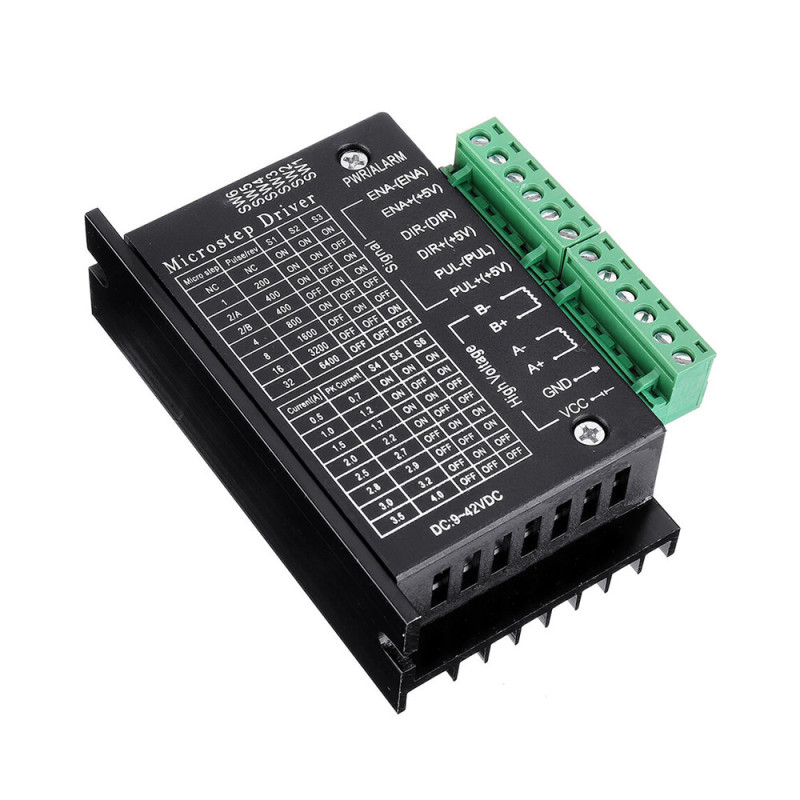

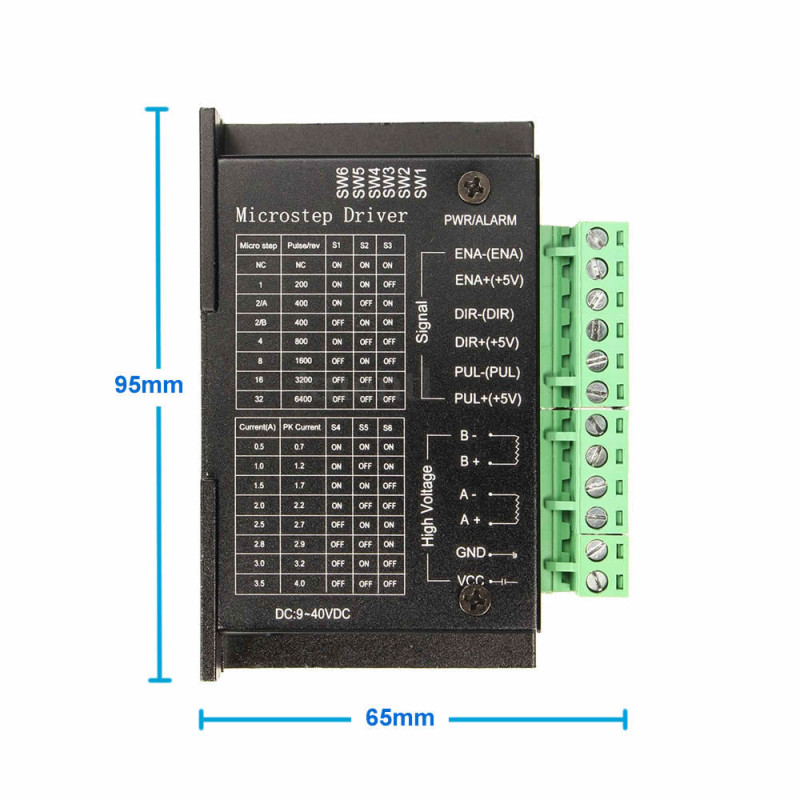

•     Dimensions:  37mm x 71mm x 96mm
•     Weight:  175gr

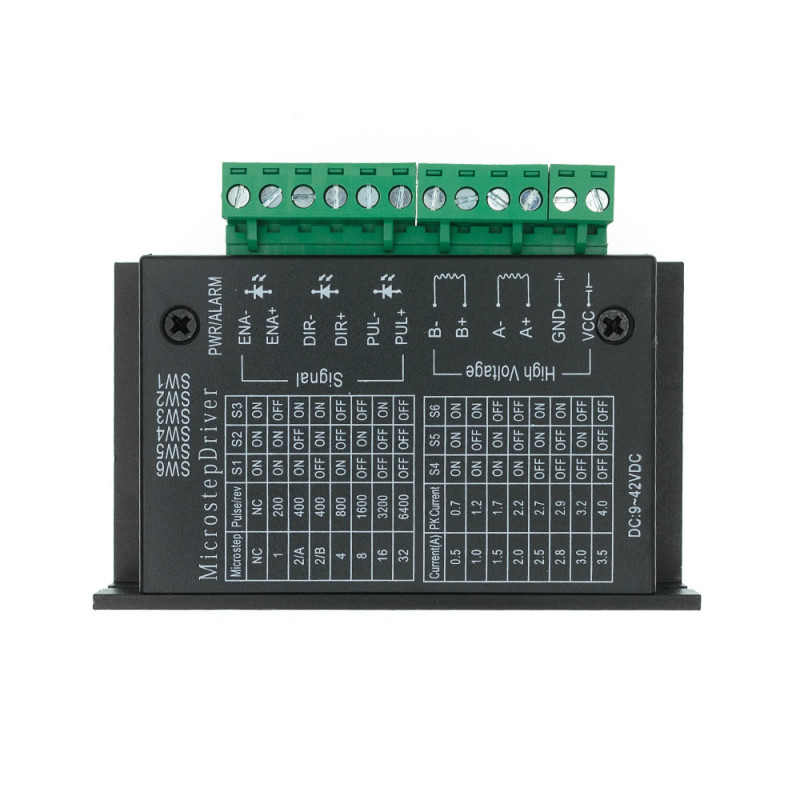

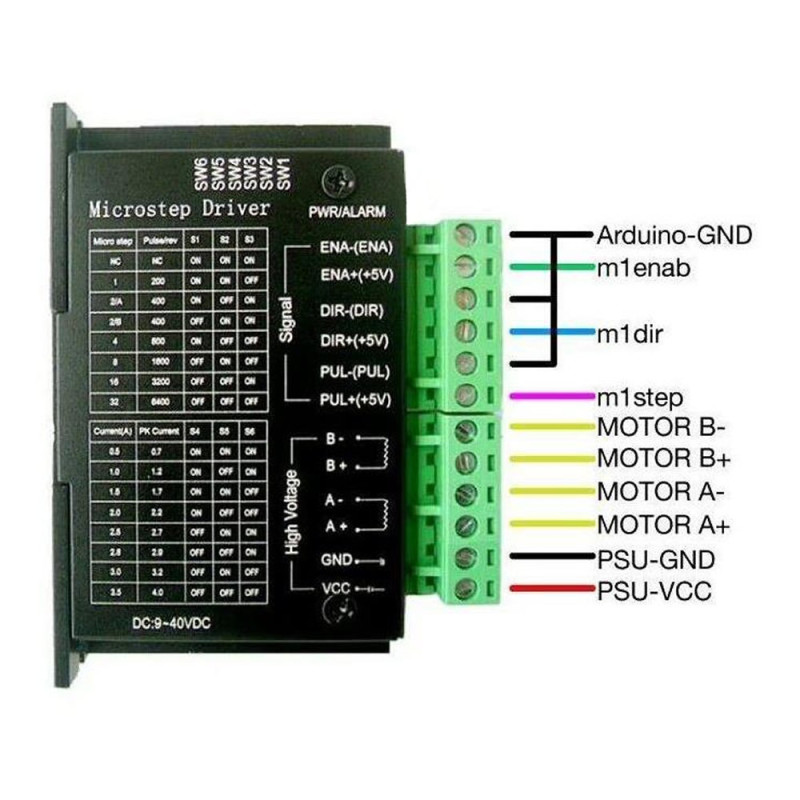

Connections：

•     VCC：Motor supply input ( the product is damaged above 40V )
•     GND：Ground
•     A+, A-：Stepper motor A connection
•     B+, B-：Stepper motor B connection
•     PUL+, PUL -：Pulse signal pins
•     DIR +, DIR- ：Direction signal pins
•     ENA+、ENA-:  Motor control signals

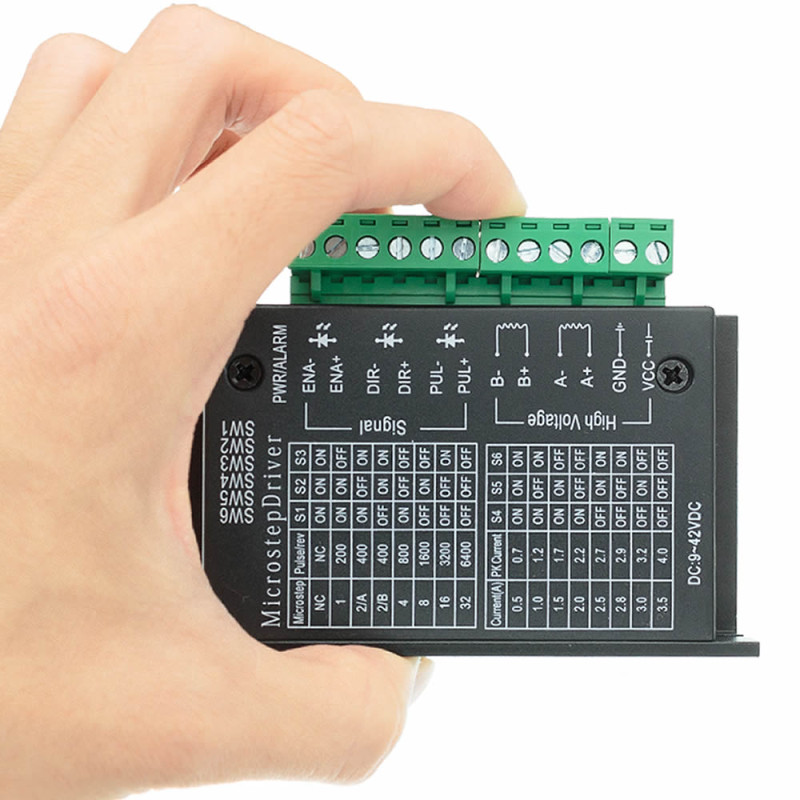

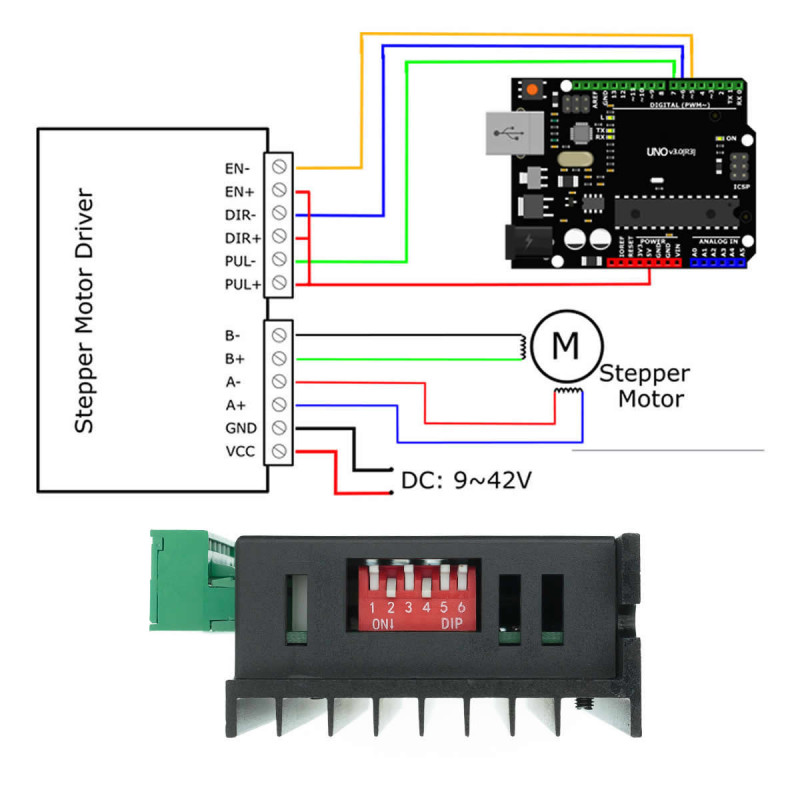

Sample arduino code:

wiki.dfrobot.com/TB6600_Stepper_Motor_Driver_SKU__DRI0043

Package Contents:

•     1 Piece TB6600 Stepper Motor Driver

.
