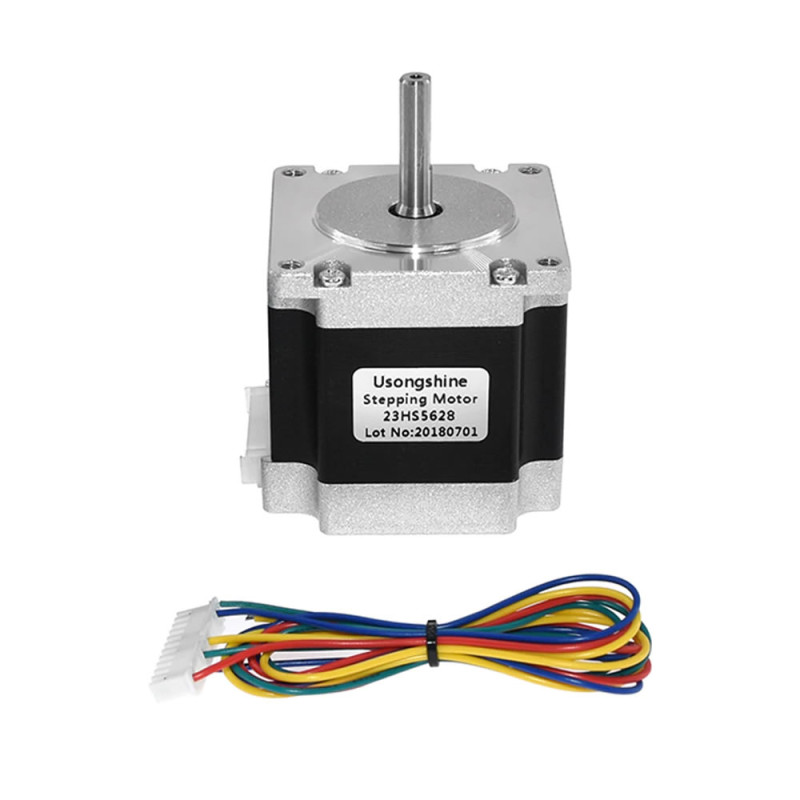

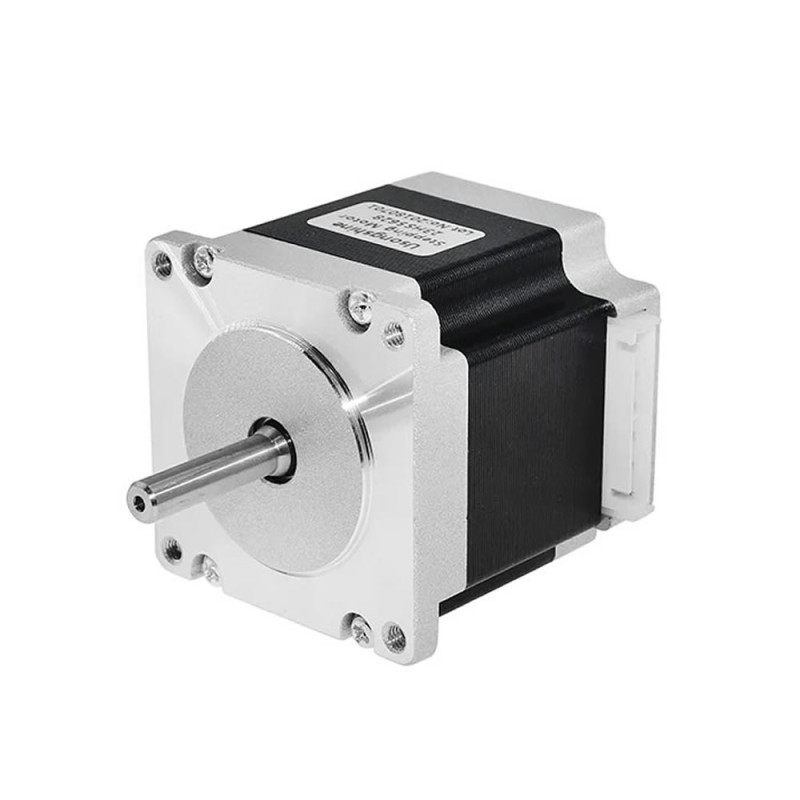

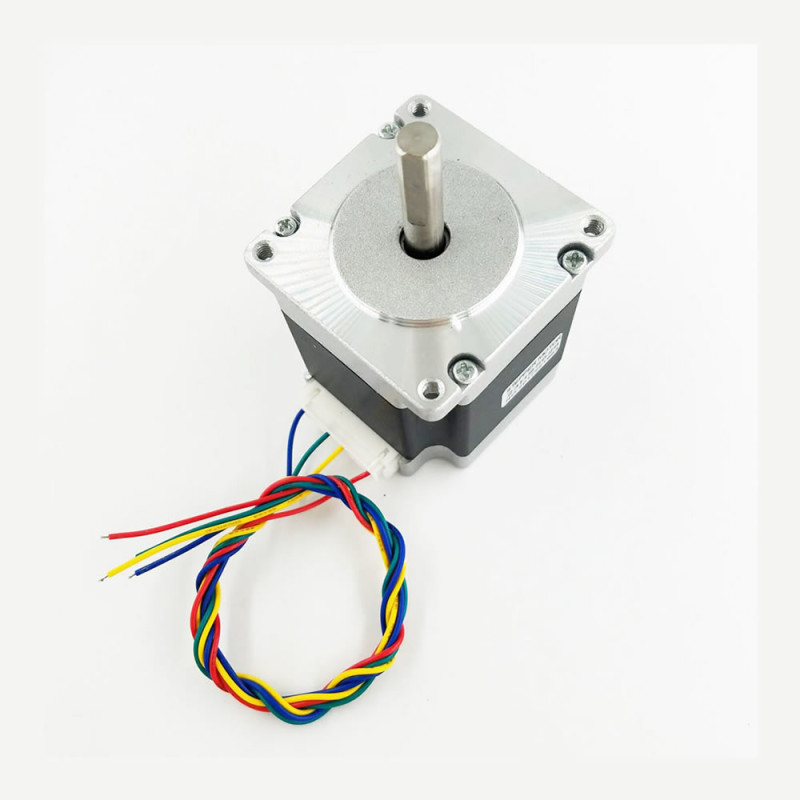

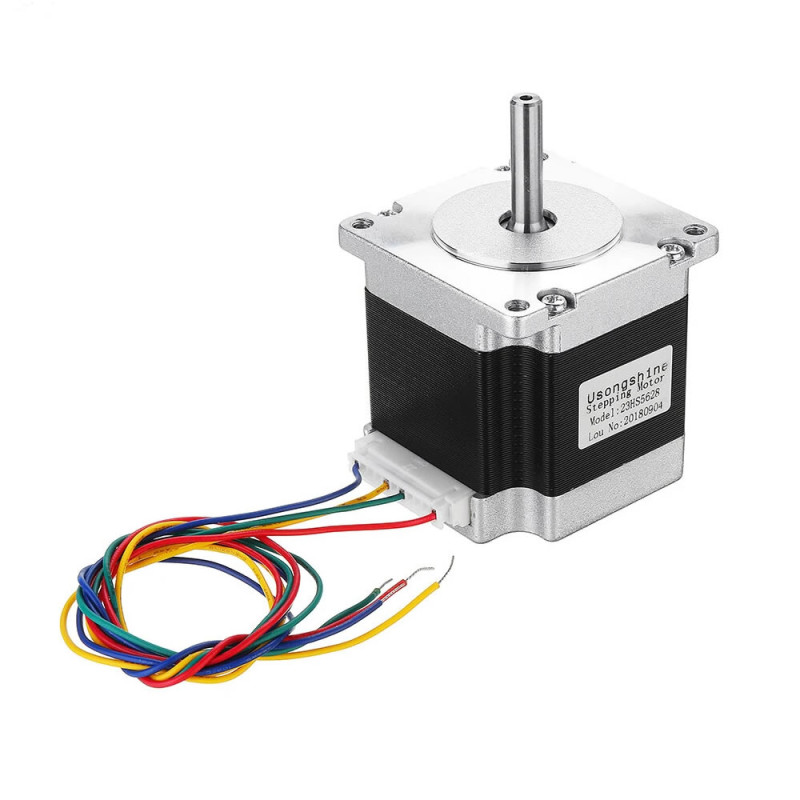

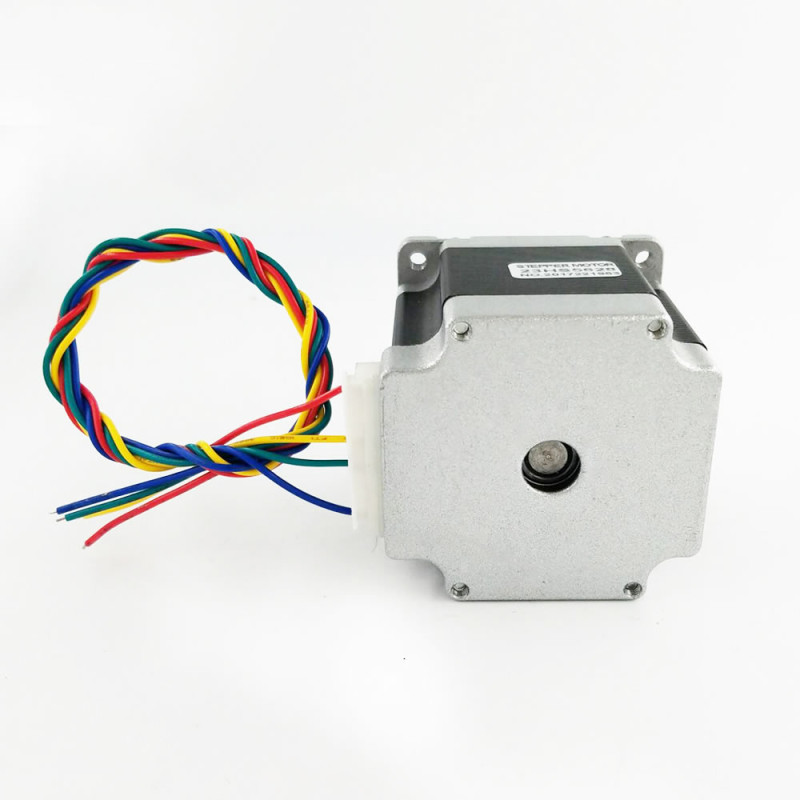

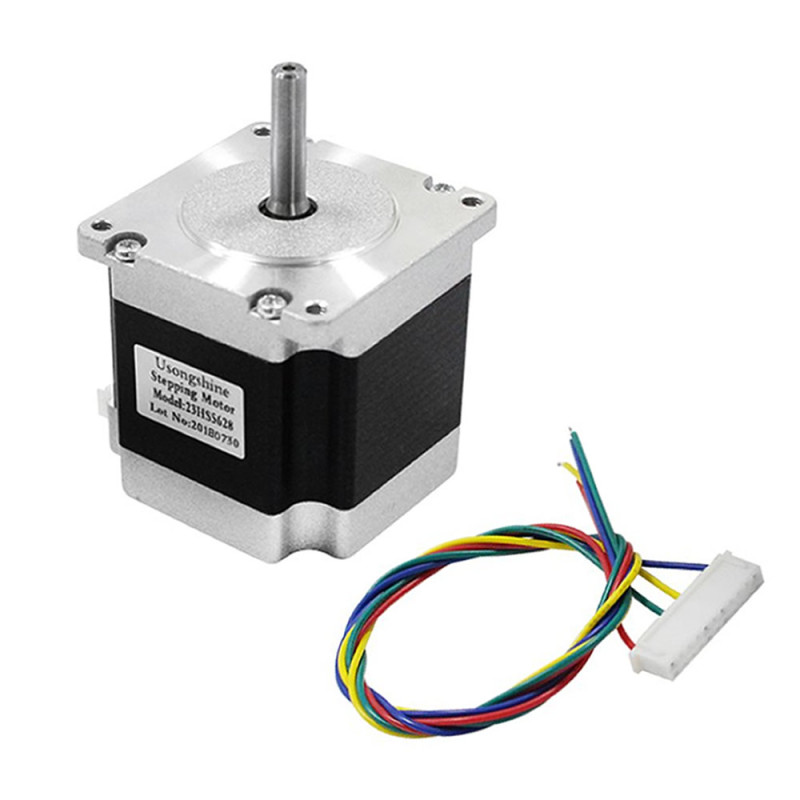

23HS5628 Nema 23 Step Motor
1,633.50TL
1,361.25TL + KDV
10 or more 1,388.48TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.593
23HS5628 Nema 23 Step Motor 1.26Nm
2.8V 2.8A 6,35mm D Shaft 2 Phase 1.8 Degree 200 Step 3D Printer CNC Robotics Laser Engraving Plasma Automation Textile
1.26Nm 2.8A nema23 step motor. It has 1.8 degree 200 step precision. Suitable for precise path advancement applications. Widely used in applications such as 3D printers, cnc, automation, etc.
Features:
- 2 Phase
- Voltage: 2.5V
- Current: 2.8A
- Torque: 1.26Nm
- D type shaft
- Step angle: 1.8 Degree
- Number of steps: 200
- Phase resistance: 0.9ohm
- 4 Pin connection cable
- Cable length: 30cm
- Shaft: D Type
- Shaft diameter: 6,35mm
- Shaft length: 25mm

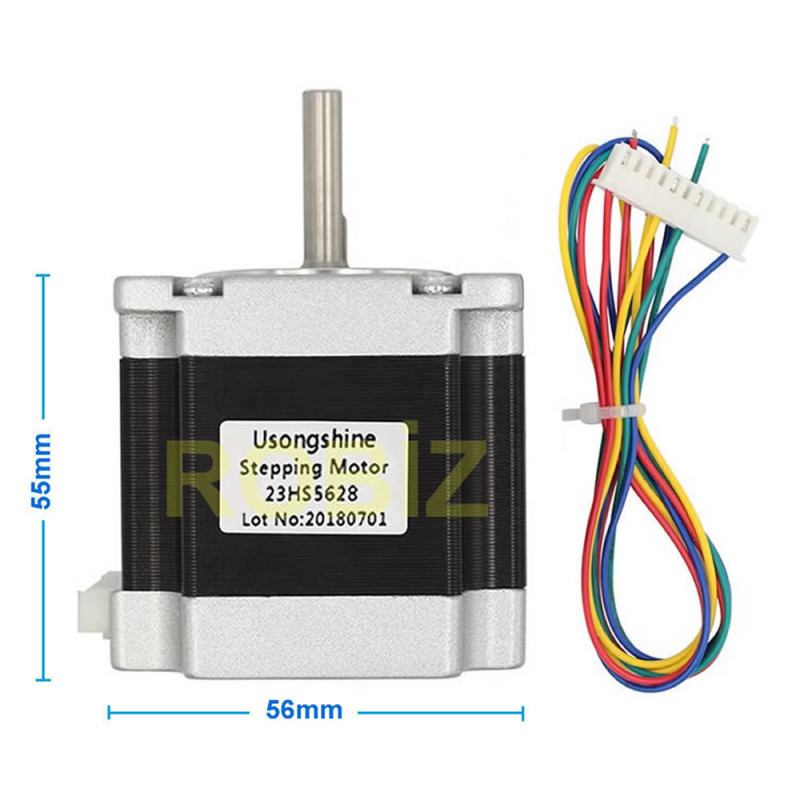

- Dimensions: 55mm x 56,5mm x 56,5mm
- Weight: 690gr
Pin Connection:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-

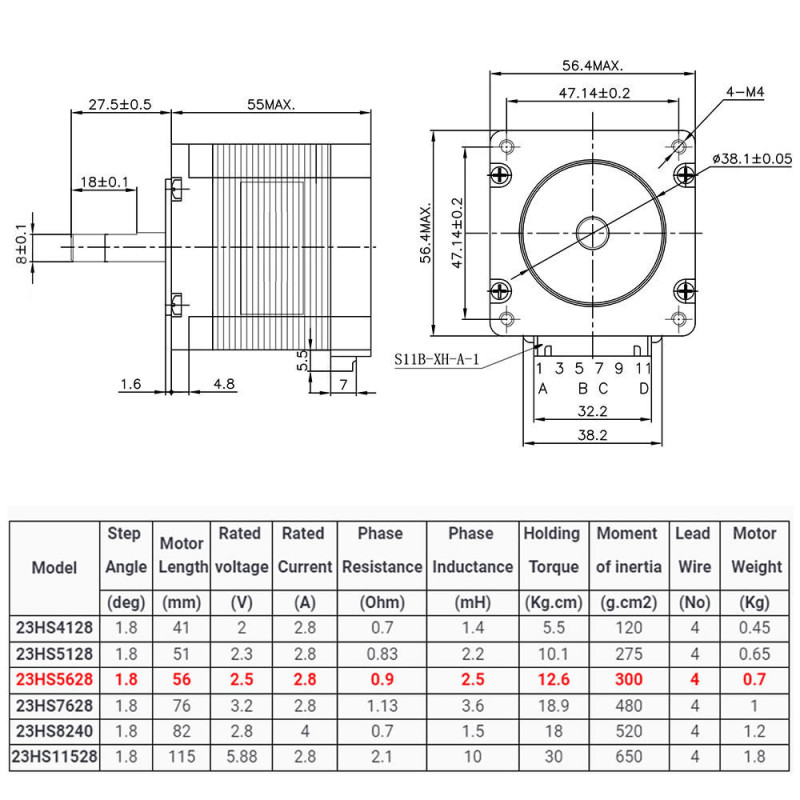

| Model |
Step Angle |
Motor Length |
Rated voltage |
Rated Current |
Phase Resistance |
Phase Inductance |
Holding Torque |
Moment of inertia |
Lead Wire |
Motor Weight |
| (deg) | (mm) | (V) | (A) | (Ohm) | (mH) | (Kg.cm) | (g.cm2) | (No) | (Kg) | |
| 23HS4128 | 1.8 | 41 | 2 | 2.8 | 0.7 | 1.4 | 5.5 | 120 | 4 | 0.45 |
| 23HS5128 | 1.8 | 51 | 2.3 | 2.8 | 0.83 | 2.2 | 10.1 | 275 | 4 | 0.65 |
| 23HS5628 | 1.8 | 56 | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 300 | 4 | 0.7 |
| 23HS7628 | 1.8 | 76 | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 480 | 4 | 1 |
| 23HS8240 | 1.8 | 82 | 2.8 | 4 | 0.7 | 1.5 | 18 | 520 | 4 | 1.2 |
| 23HS11528 | 1.8 | 115 | 5.88 | 2.8 | 2.1 | 10 | 30 | 650 | 4 | 1.8 |
Package Contents :
- 1 pcs 23HS5628 Nema 23 Step Motor
- 1 pcs connection cable
.
Marka: OEM
