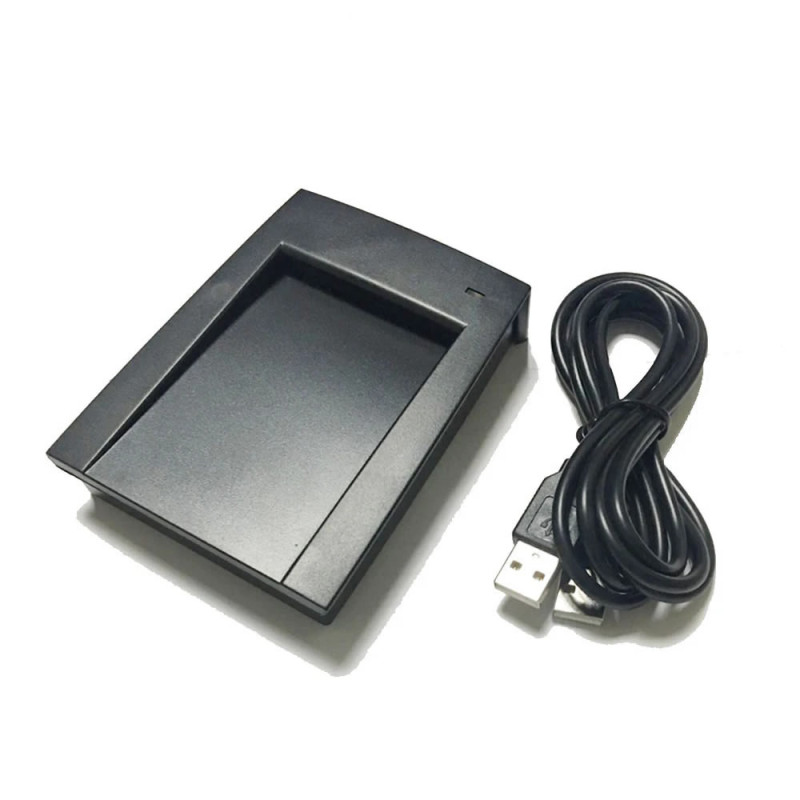

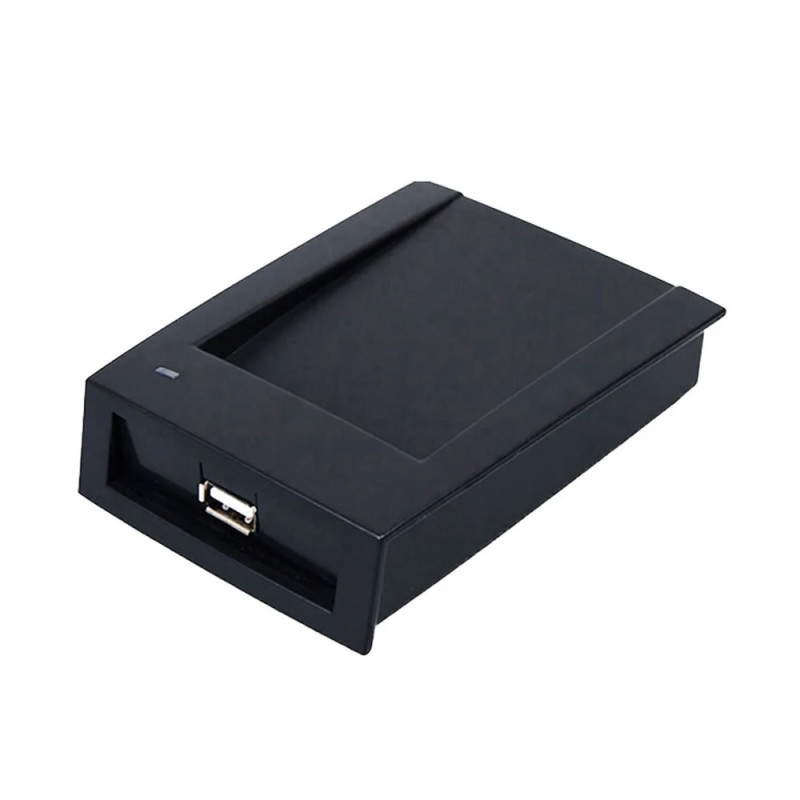

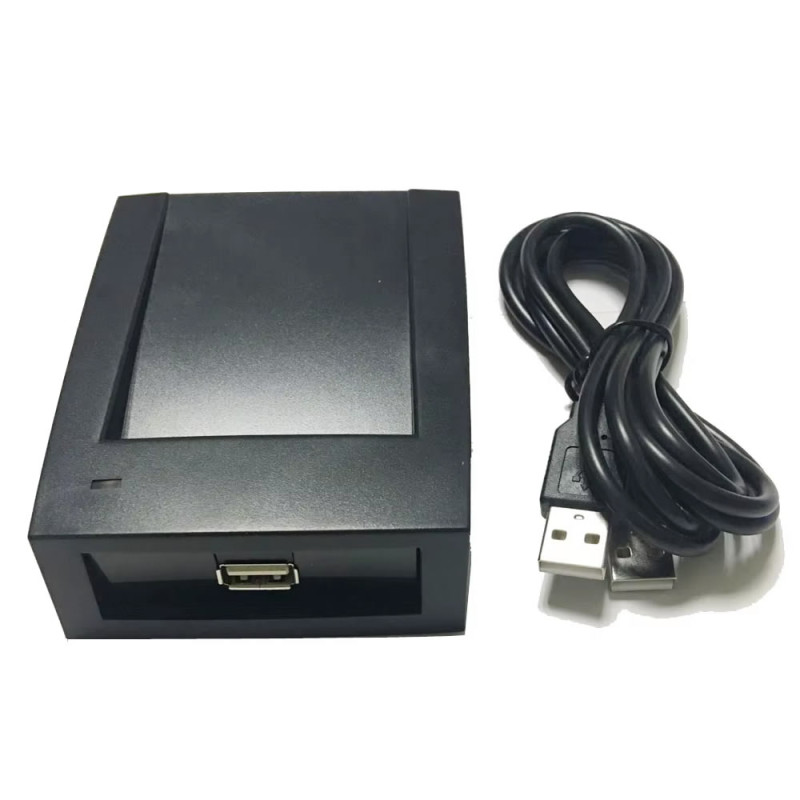

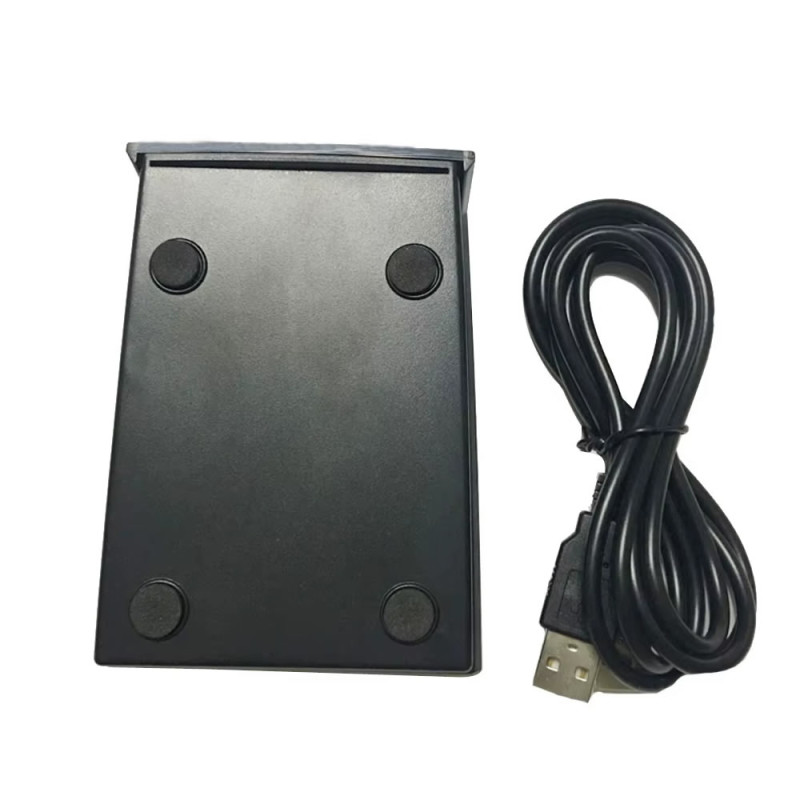

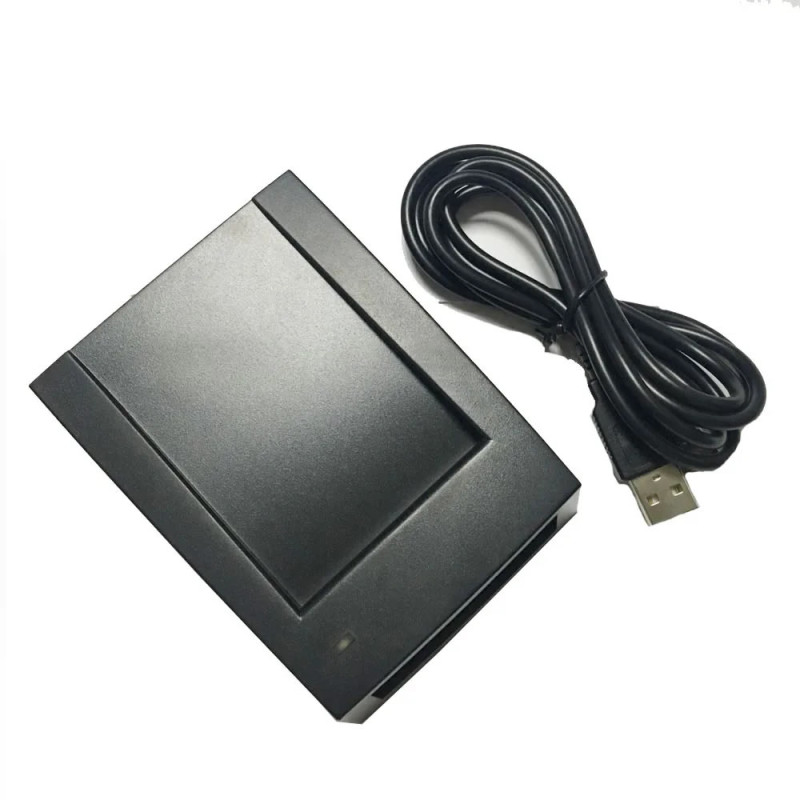

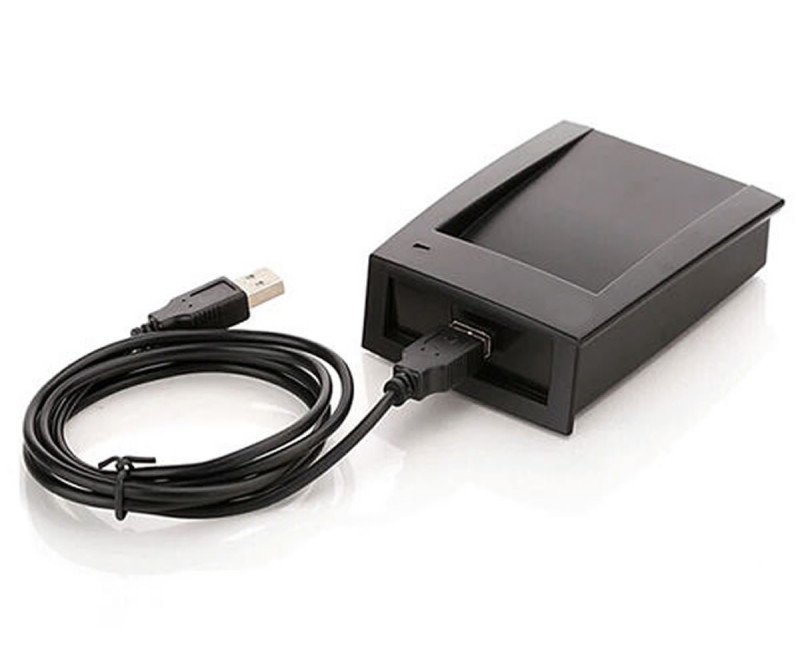

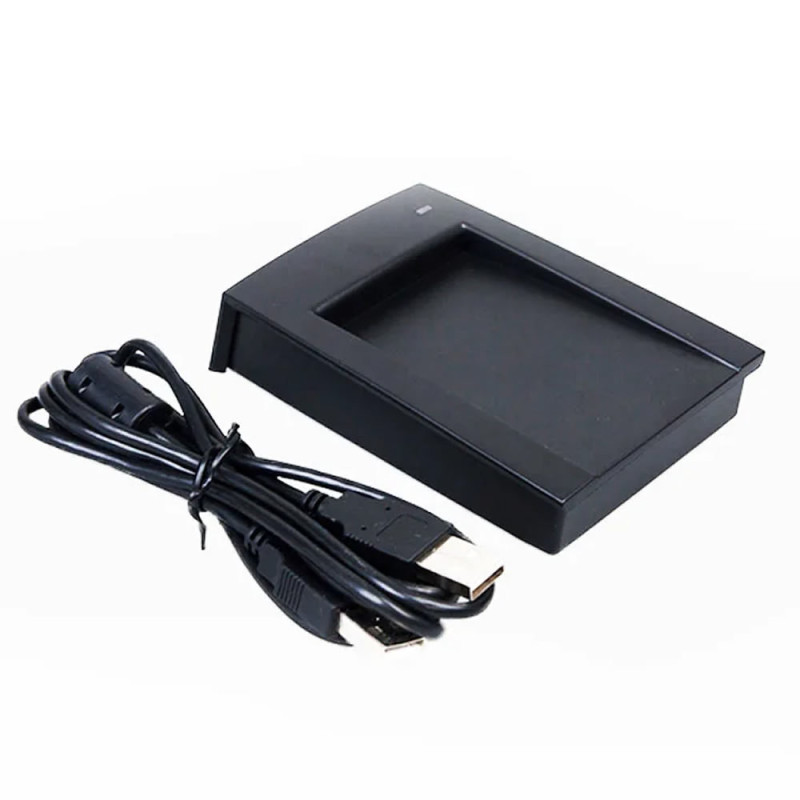

R10DC Dual Frequency Usb Rfid Reader

R10DC Dual Frequency 13.56Mhz and 125Khz Usb Rfid Reader
Dual RFID Magnetic Card Keychain Tag Reader Personnel Tracking Door Entry Control Counter Proximity

     A circuit that can read rfid cards, keychains, tags, etc. products at 13.56Mhz and 125Khz frequencies. It connects to the computer over Usb. No driver is required. It writes the card numbers it reads to the program that is open at that moment. The product only reads IDs. It cannot change IDs.

RFID product selection information:

     There are two types of rfid products, 13.56Mhz and 125Khz. If there are numbers on your cards or keychains, your system is 125Khz. If there is no writing, it is 13.56Mhz. You need to make your product selection accordingly. This product can read both types of rfid products.

Usage:

• It connects to the computer over the Usb port. It does not require a driver, the computer recognizes it automatically.
• Open a program in which text operations can be performed such as Word, Excel or Notepad. The device automatically writes the card numbers it reads to these programs.
• It moves to the next line and waits for a new card to be read.
• It reports the card numbers as 10 digits.

Features:

•   R10DC dual 13.56Mhz 125khz frequency rfid reader.
•   Communication: Usb port
•   125Khz supported protocols: 125khz Em4100, TK4100, SMC4001 compatible
•   13.56MHz supported protocols:  S50 / S70 / Ntag203 etc. 14443A, ISO14443A compatible cards
•   Rfid frequency: 125Khz + 13.56Mhz
•   Operating voltage: Usb  (DC 5V)
•   Reading distance: 1-8 cm  (Varies according to the reader device and operating mode)
•   Card number: First 10 digits
•   Two color led indicator. Red standby, green read
•   Buzzer audible alert support
•   Operating system: Windows XP/Win 7/10/11, Linux, Android
•   No driver is required.
•   Operating temperature:  -10C  /  70C
•   Color: Black
•   Usb cable length: 1 Meter

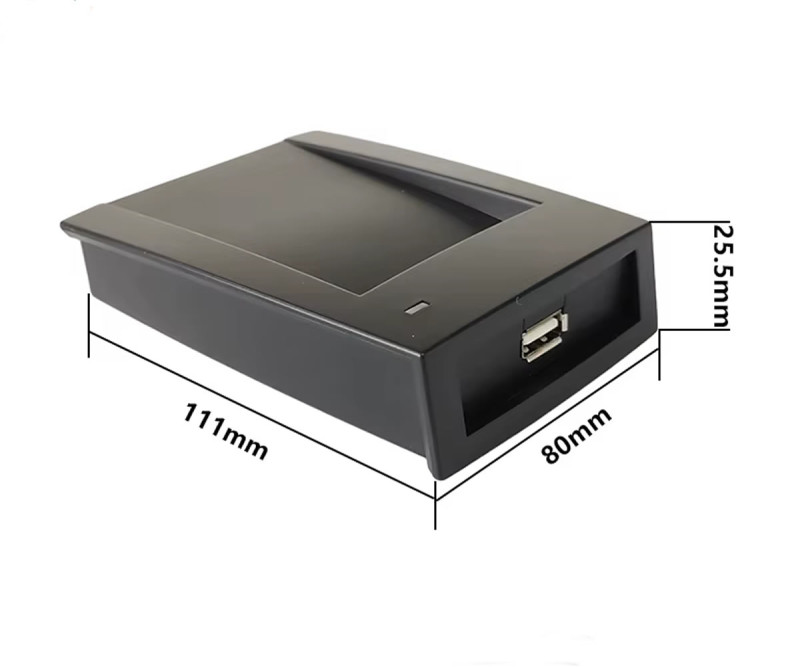

•   Dimensions:  80mm x 110mm x 25mm
•   Weight: 67gr (125gr)

Package contents:

•    1 Piece R10DC Dual Frequency Usb Rfid Reader

.
