PD/QC/AFC Fast Charge Adapter Voltage Booster

PD/QC/AFC Fast Charge Adapter Voltage Trigger Decoy Module

5V 9V 12V 15V 20V Fixed Voltage Trigger Type-C Modem Router Fan Laptop PD2.0 PD3.0 QC2.0 QC3.0 AFC

     It allows you to obtain high fixed voltage from PD/QC/AFC fast charge adapters. The module tricks the adapter and enables high voltage outputs to be used in external devices. The output voltage is set with the help of the dipswitch on the board. You can obtain high voltage up to 20V from your adapter ( if it supports it ). For example, it allows you to use devices such as a laptop, modem or camera with commonly used adapters.

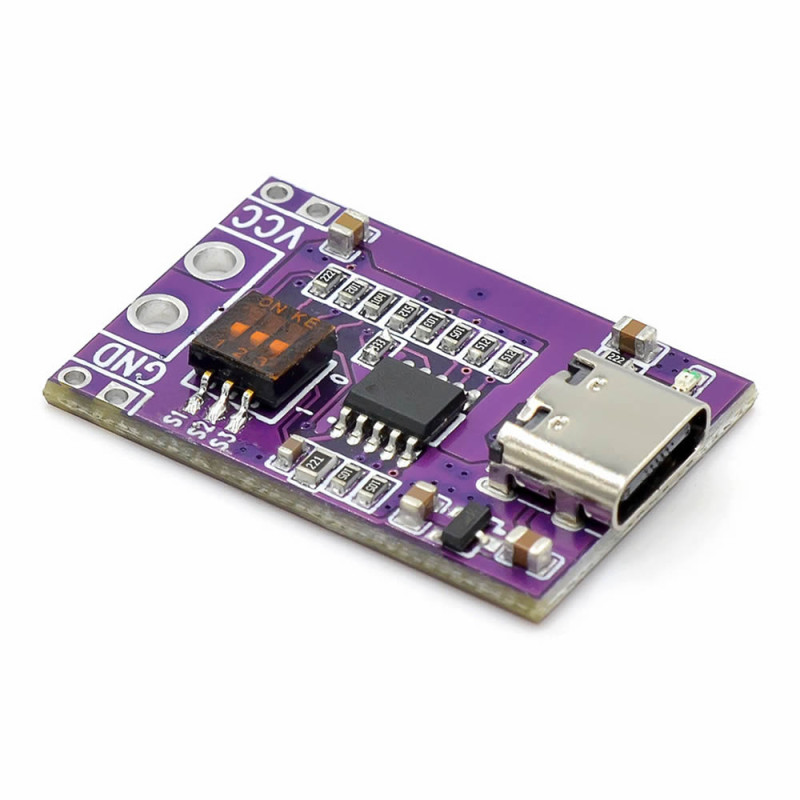

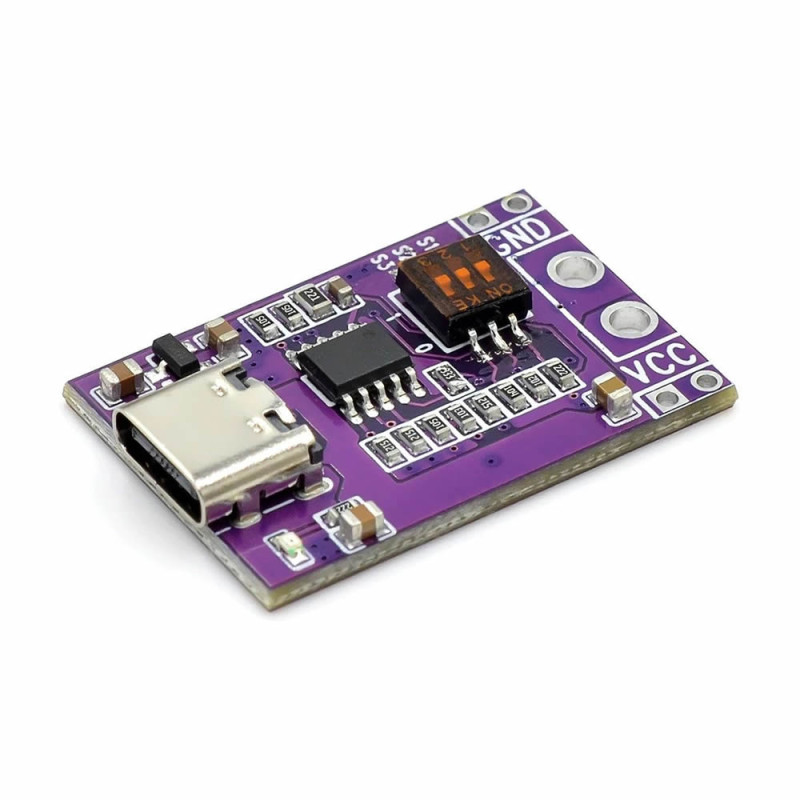

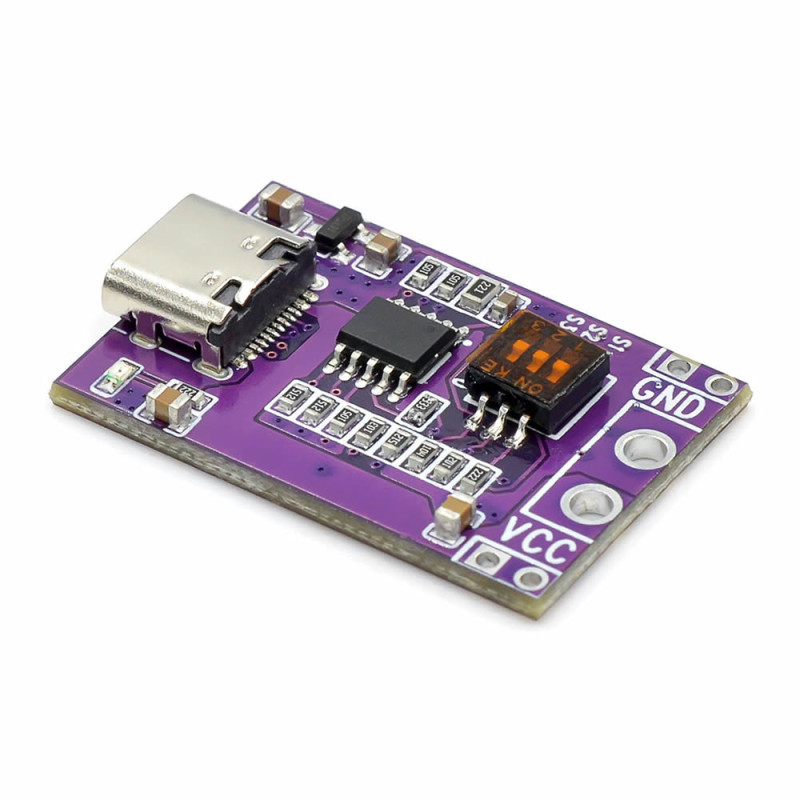

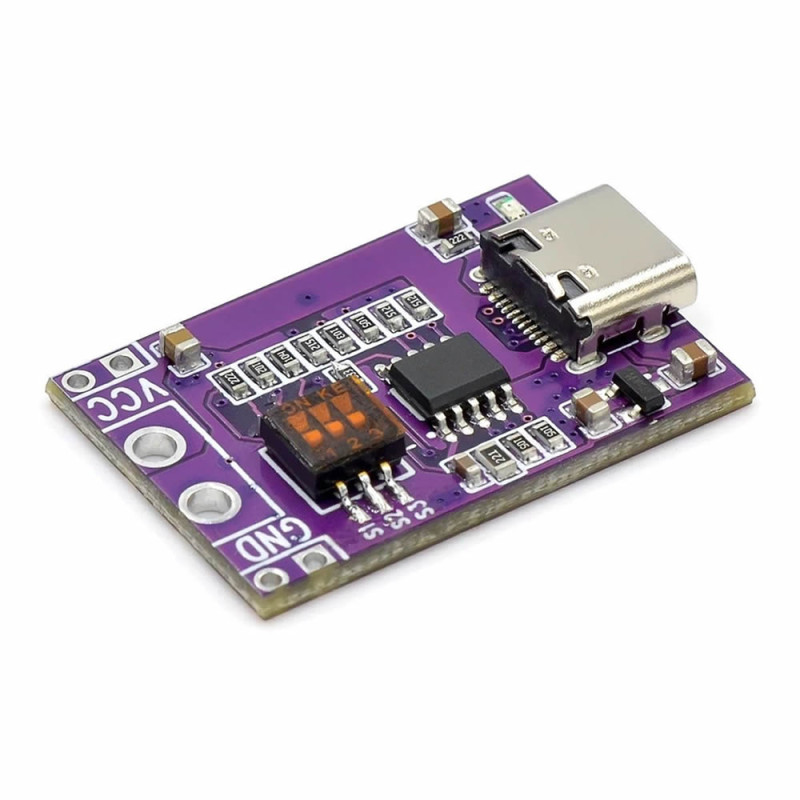

     It has a Usb type C socket input. You can connect it to a fast charge adapter with a quality usb cable. The voltage output is made through the empty pins on the pcb. There are 2 large pads for Vcc and GND outputs and 2 small pad connection points on each side. There is 1 indicator led on the board. The led brightness changes according to the set voltage.

Usage:

     The product is connected to a charge adapter with PD/QC/AFC support via a type-c cable. A type-c cable is not shipped with the product. The voltage is set with the dipswitches according to the table on the back. According to the setting made, the voltage shown in the table is transferred out through the VCC GND pads at the product output. Measure with a voltmeter before connecting the product to the target circuit. The soldering process causes a physical change on the product. Before this stage, be sure that the product works as you want. You can also make the first test with test cables such as crocodile cables. Afterwards, you can continue using the product by soldering a cable.

Warnings:

• When the product reaches you, it must be connected to the target device after the voltage it gives is determined with a voltmeter over the VCC GND terminals. If you connect it to the target device with a wrong setting without checking, your product may be damaged.
• You must definitely know the type of your charger before purchasing. If you use an adapter that does not support the specified protocols, you will only see 5V at the module output.
• The module is shipped with the dipswich settings set to give 9V output.

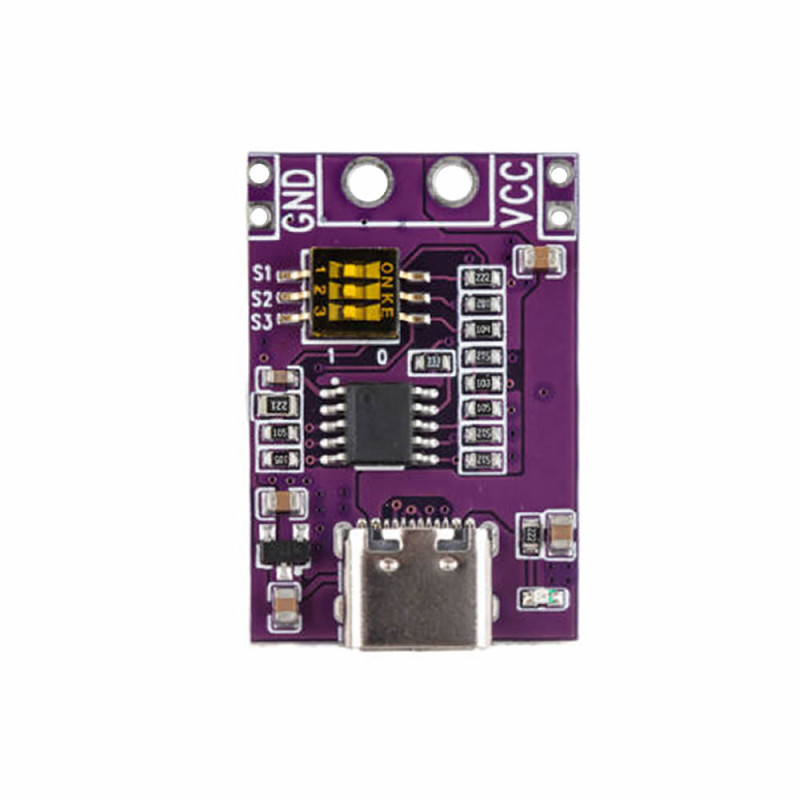

• The dipswitch 1/0 state is shown on the pcb on the back side. The ONKE marking shows the 0 side, it does not mean the on side.
• There is not enough information about the current. Since the energy is transferred from the adapter, the output power varies depending on the adapter used. The product traces have a structure that can handle 100W power. At higher powers, the module may need to be cooled with insulation. You can obtain the power values written on your adapters.
• It is important that you use a quality usb cable. Low quality cables will heat up and may prevent you from transferring the required power values. Some cables may not have the data lines required for type-c. This may also prevent the use of the product.
• Some adapters give output at certain voltage levels. For this reason, you may not be able to obtain some voltages. Since there is no 12V output on Iphone and xiaomi adapters, you will not be able to obtain 12V even if you set 12V output.

Features:

•  Usb Type-C socket input
•  PD/QC/AFC fast charge decoy module
•  Works with QC2.0 and QC3.0 chargers. ( You must definitely know the type of your charger. )
•  Can work with adapters that have PD 2.0 3.0  support.
•  Can work with adapters that have AFC support.
•  Output voltage: DC 5V / 9V / 12V / 15V / 20V
•  Current:  Maximum 5A ( The current varies according to the adapter capacity and the load. )
•  Power: Depends on the adapter you use. ( It should not be used for a long time above 80 / 100w. )
•  3 way mini dipswitch on the board for voltage setting

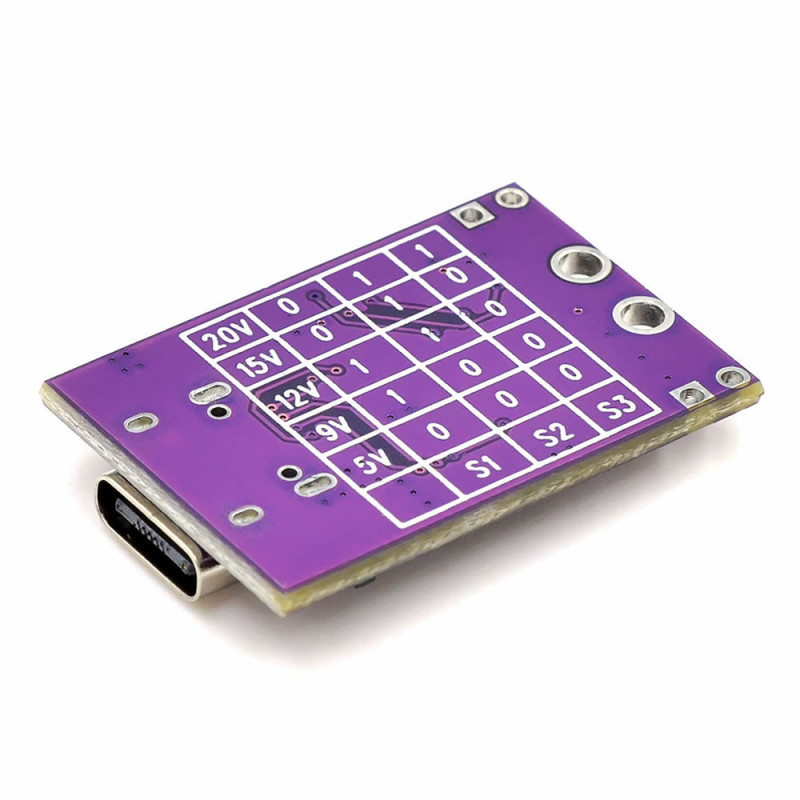

•  Voltage setting table on the back of the board
•  Output indicator led. The led brightness changes according to the voltage.
•  Simple setup, stable performance, wide application area
•  Color:  Purple
•  Operating temperature:  -10C / 80C
•  2 Pieces large supply output pad. Also 2 small output pads on each side.

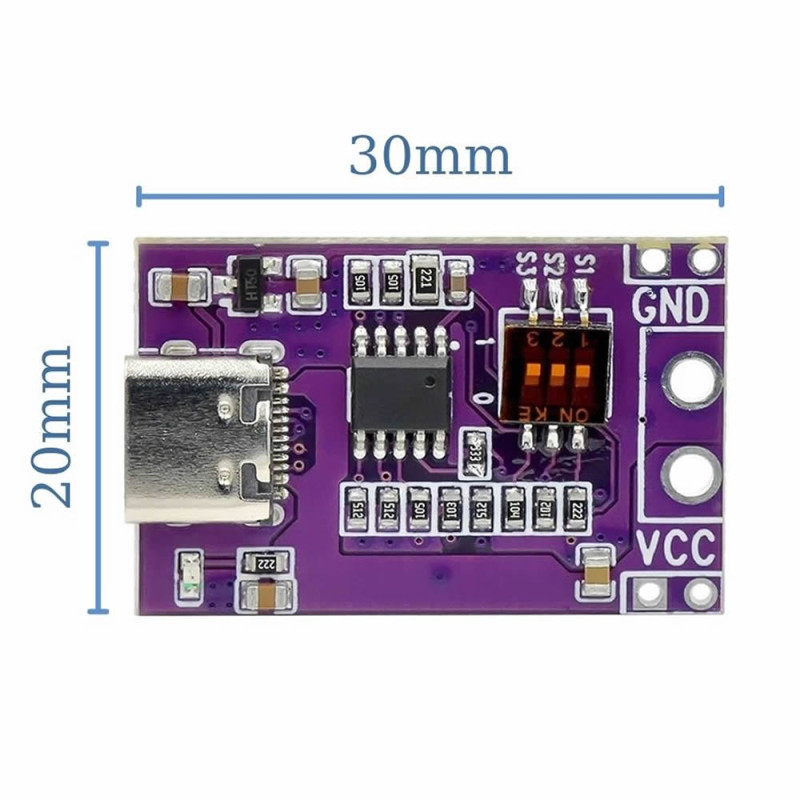

•  Dimensions: 20mm x 30mm
•  Weight: 3.5gr

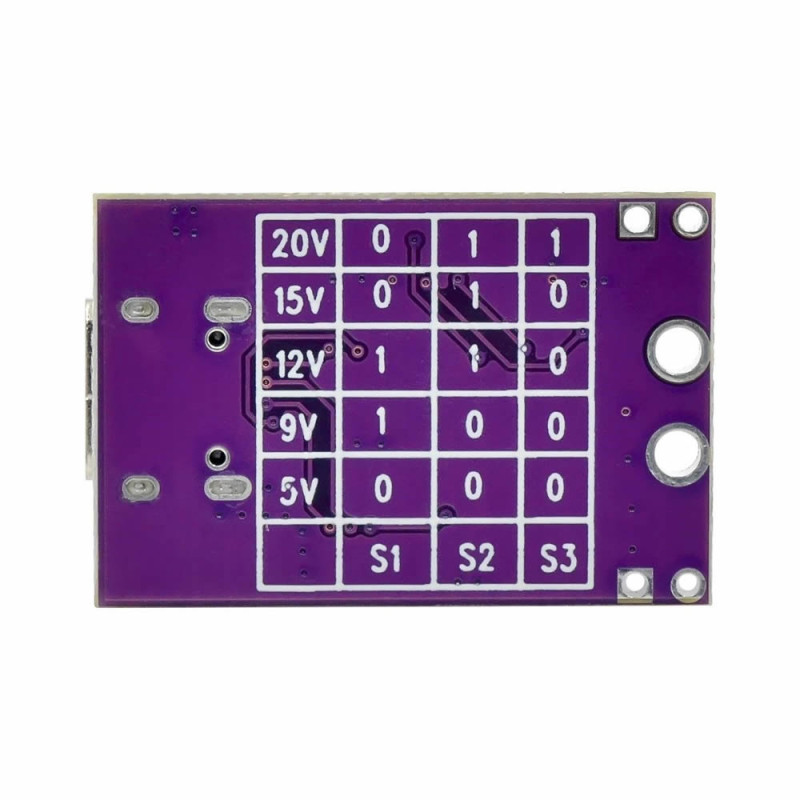

Dip switch settings:

Package contents

•    1 Piece PD/QC/AFC Fast Charge Adapter Voltage Booster
