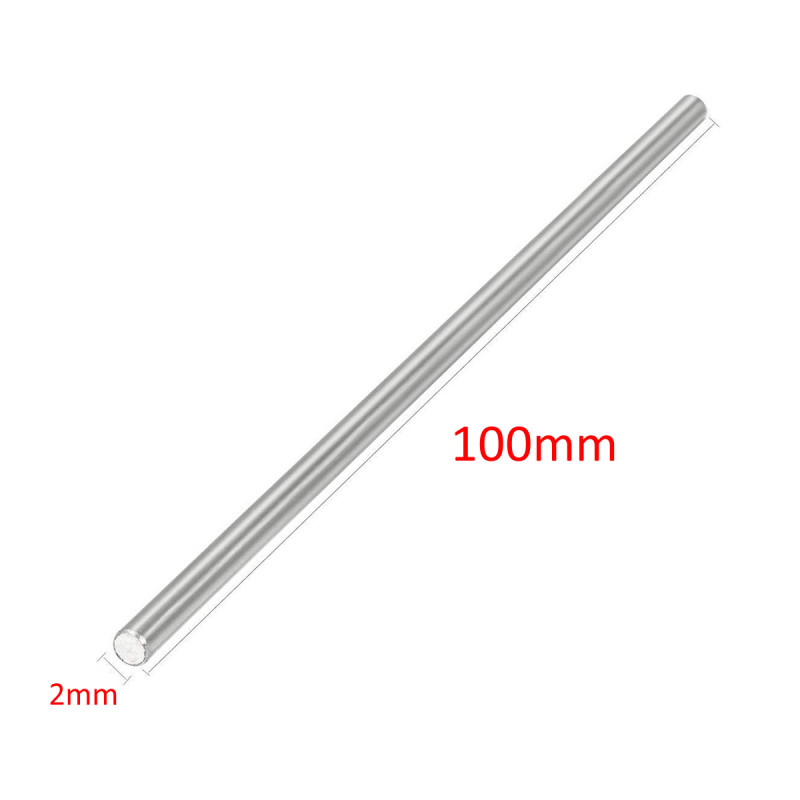

2mm x 100mm Shaft

2mm x 100mm Metal Shaft

Steel Rod Axle Toy RC Car Robot Model Airplane Wheel

     The 2x100mm Shaft Rod is a solid, straight round steel shaft with a diameter of 2mm and a length of 100mm. Its surface is straight and smooth; it has no thread, groove or flat, and both ends are cut square. It is used as a wheel axle in toy and model vehicles, as a shaft for small gears and pulleys, or as a support pin between two parts. It weighs about 2.5gr.

     Wheels, gears, pulleys and bearings with a 2mm bore slide directly onto the shaft. The 100mm length is longer than most model vehicles need; the shaft is cut to the required length with a hacksaw or cutting disc, so several short axles can be made from one rod. It is grey metallic in colour.

     It is suitable for toy RC cars, model airplanes, model ships and boats, small robots and scale models as a wheel and propeller axle, gearbox shaft and guide rod. The product is intended for toy and model scale; it does not replace a high-load or precision machine shaft.

Key features:

     2mm straight shaft: Wheels, gears, pulleys and bearings with a 2mm bore fit directly on the shaft; no extra bushing or adapter is needed.

     Cut to the length you need: The 100mm rod is shortened with a hacksaw or cutting disc; several short axles can be made from one rod.

     Solid steel body: The shaft is made of solid steel; it is harder and stiffer than plastic and aluminium rods of the same diameter and bends less under load as a wheel axle.

     Straight, smooth surface: There is no thread or groove on the surface; the shaft turns freely in bushings and bearings, and wheels and gears are easy to fit.

     Light: At about 2.5gr it adds little weight to small model airplanes, boats and vehicles.

Features:

• Product type: Straight round steel shaft (axle rod)
• Model: 2x100mm Shaft Rod
• Cross section: Round, solid
• Surface: Straight, smooth; no thread, groove or flat
• Ends: Cut square
• Compatible parts: Wheels, gears, pulleys, propeller hubs and bearings with a 2mm bore
• Use: Wheel axle, gear and pulley shaft, motor shaft extension, pin and guide rod
• Cutting: Can be cut to the required length with a hacksaw or cutting disc
• Load class: Toy, model and scale-model use; light load
• Sales unit: 1 piece
• Material: Steel
• Colour: Grey (metallic)
• Diameter: 2mm
• Length: 100mm
• Dimensions: 2mm x 100mm
• Weight: about 2.5gr

Usage information:

• Measure the axle length you need, hold the shaft in a vise or pliers and cut it with a hacksaw or cutting disc. Remove the burr at the cut end with a file or sandpaper; a burred end will not enter a wheel or bearing bore.
• Slide the wheel and gear onto the shaft; fix loose parts with glue, a set screw or a shaft collar (retaining ring) fitted on the shaft.
• If the shaft is mounted in a body or chassis, make the hole slightly larger than 2mm or use a bushing/bearing; the shaft must turn without binding.

Applications:

•  Toy and RC car wheel axles
•  Model airplane wheel and landing gear axles
•  Model ship and boat propeller shafts
•  Small robot wheel axles and gear shafts
•  Moving parts of scale models and dioramas
•  Mini gearbox and pulley assemblies
•  Small motor shaft extension and coupling
•  Hinge pins and guide rods
•  School and workshop mechanics experiments


Precautions:

•  The shaft is 2mm in diameter; being thin, it can bend under high load or impact. Use it only at toy, model and scale-model level.
•  It is not specified as stainless steel. In humid environments and in boat applications with water contact, protect the shaft with a thin film of oil.
•  Wear safety glasses when cutting; the cut end can be sharp, remove the burr.
•  Make sure the bore of the wheel, gear and bearing is 2mm; parts with a 3mm or larger hole will not fit this shaft without an extra bushing.

Package contents:

•  1 Piece 2x100mm Shaft Rod
•  Note: Wheels, gears, bearings and shaft collars are not included in the package.
