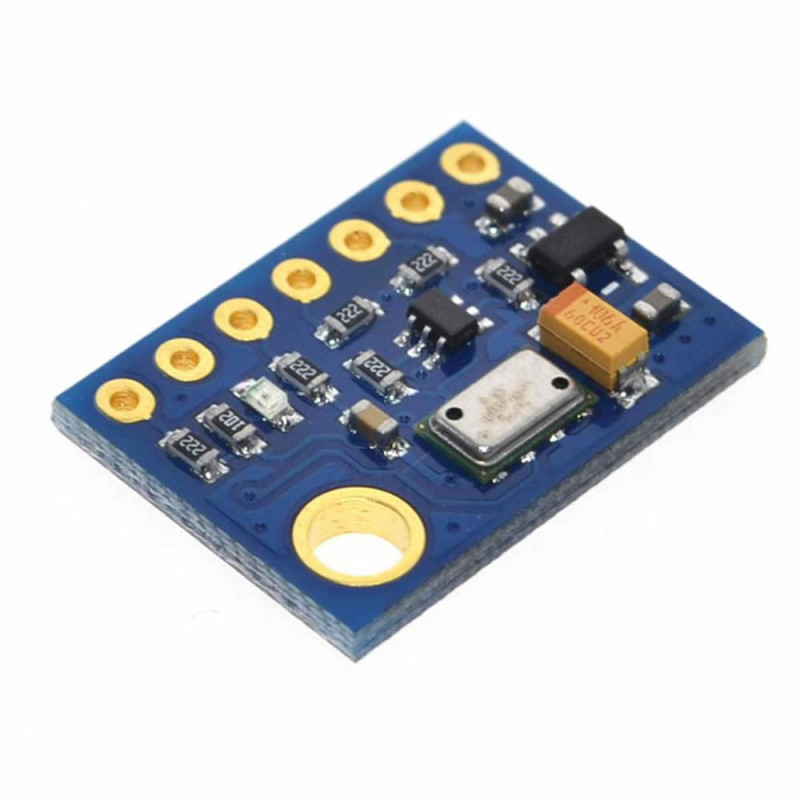

MS5607 Pressure Sensor Module

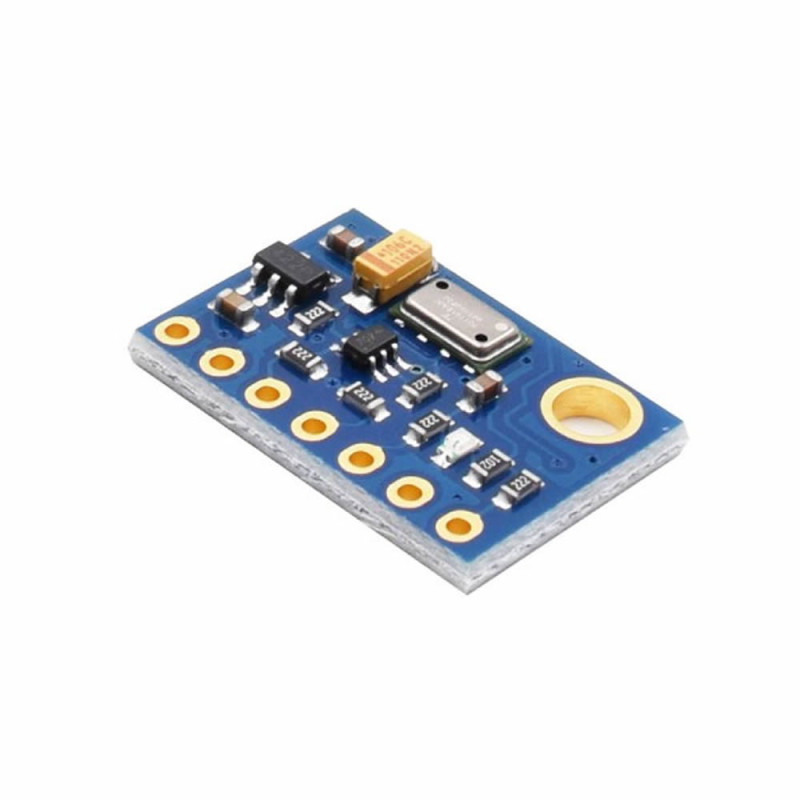

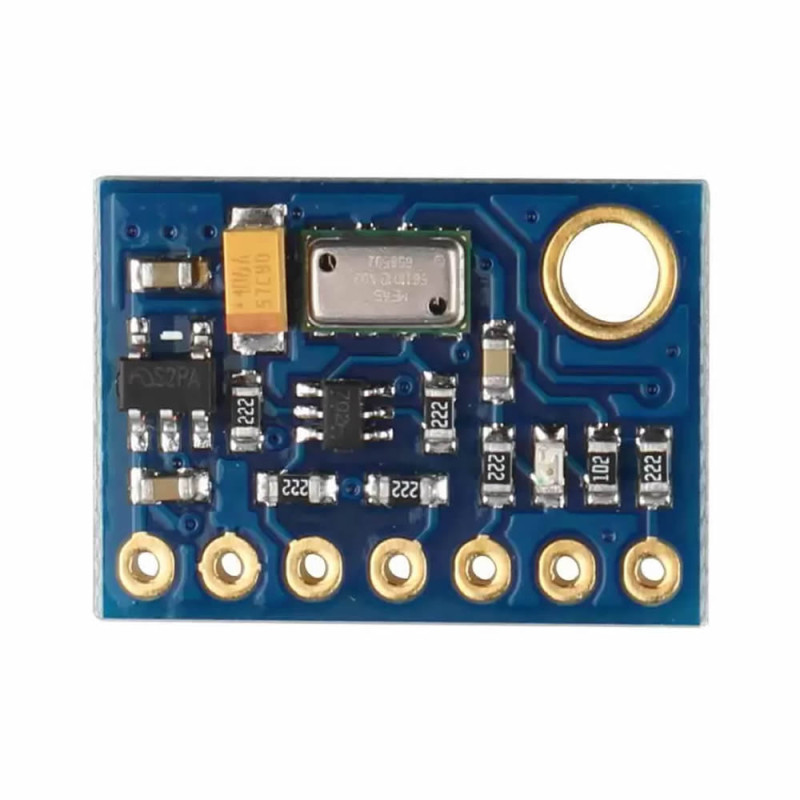

MS5607 Atmospheric Pressure Sensor Module

10-1200mbar Temperature Altimeter Variometer I2c Spi 24bit Adc Autonomous Vehicle Robot Navigation Drone Multicopter Gps Weather Iot

     The GY-63 MS5607 module is a compact electronic board designed for high precision barometric pressure and temperature measurement. It features a low power consumption 24bit adc converter, an onboard regulator and filtering components. The output data is digital and can be read directly over i2c or spi communication lines.

     The MS5607 sensor has factory calibration coefficients; this ensures measurement accuracy without requiring external calibration. Thanks to its high resolution output, altitude changes at the 10cm level can be monitored in altimeter projects.

Features:

•     Chip: MS5607
•     Operating voltage:  DC 3V / 5V (Onboard regulator)
•     Communication interface:  I2C / SPI
•     Adc resolution:  24bit delta-sigma
•     High accuracy thanks to digital calibration coefficients
•     Pressure measurement with low noise level
•     Temperature compensation capability by also measuring ambient temperature
•     Operating modes selectable between speed and power consumption ( OSR options )
•     Easy protocol requiring no register programming with microcontrollers
•     Compatible platforms: Arduino, STM32, ESP8266, ESP32, PIC, AVR, Raspberry Pi, Nucleo / Blue Pill
•     Measurement medium:  Air
•     Measurement range:  10-1200mbar
•     Operating temperature:  -40C / +65C
•     Color:  Blue
•     Mounting hole

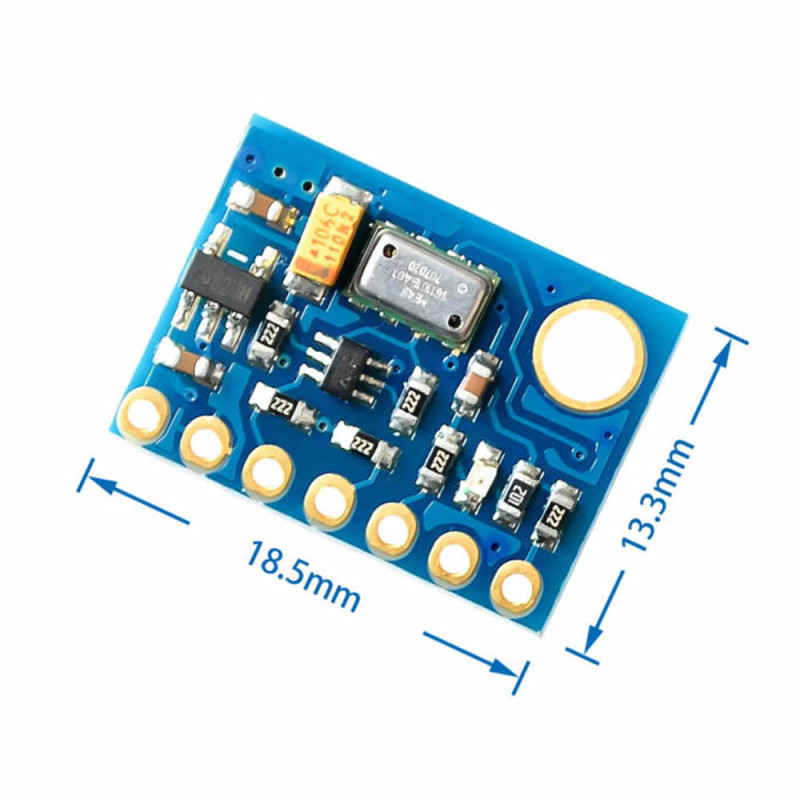

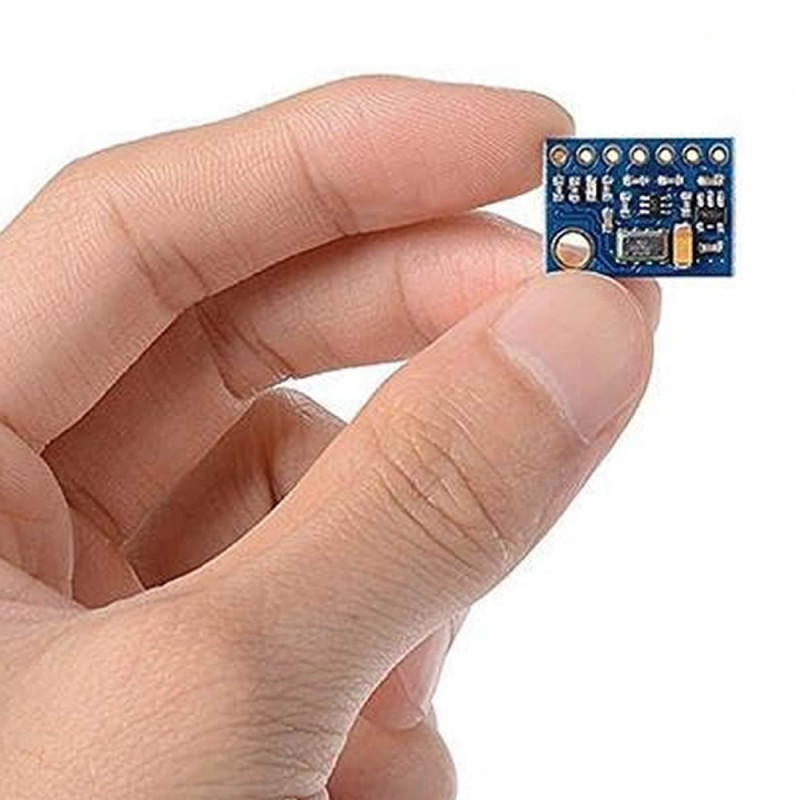

•     Dimensions:  13.5mm x 18.5mm
•     Weight: 1gr

Areas of Use

• Drone and multicopter flight control systems
• Altimeter and variometer devices
• Autonomous vehicle and robot navigation systems
• GPS assisted positioning
• Weather stations
• Pressure and temperature monitoring stations
• Sports devices, mountaineering equipment
• IoT data collection systems
• Indoor navigation applications

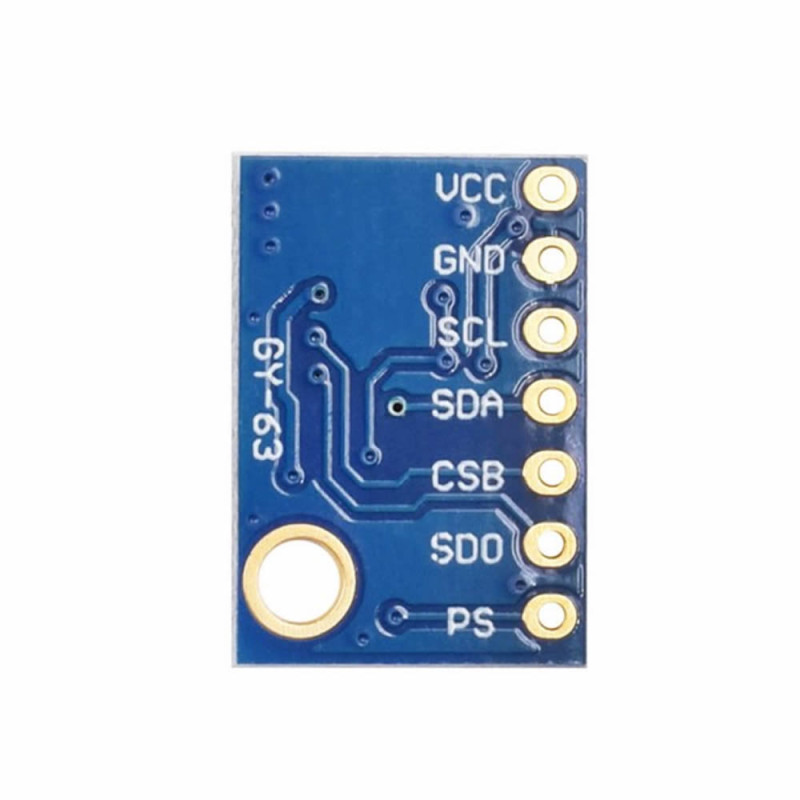

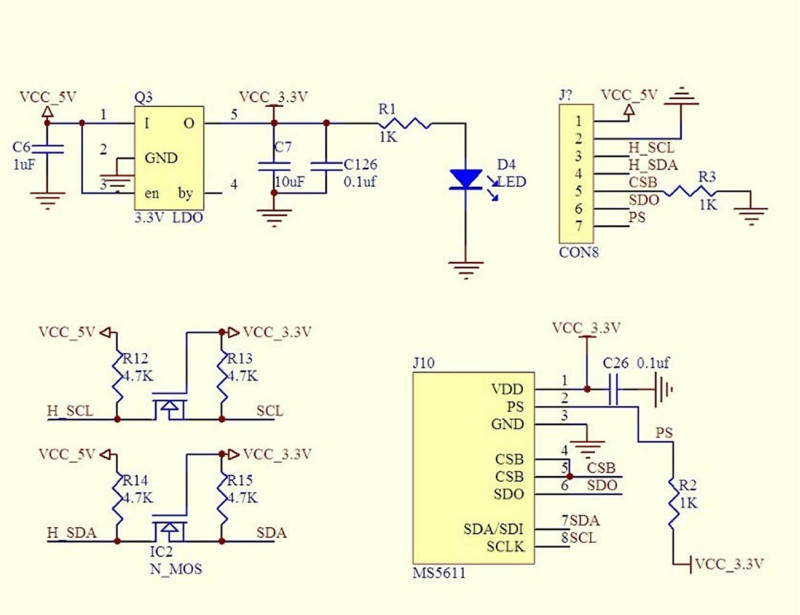

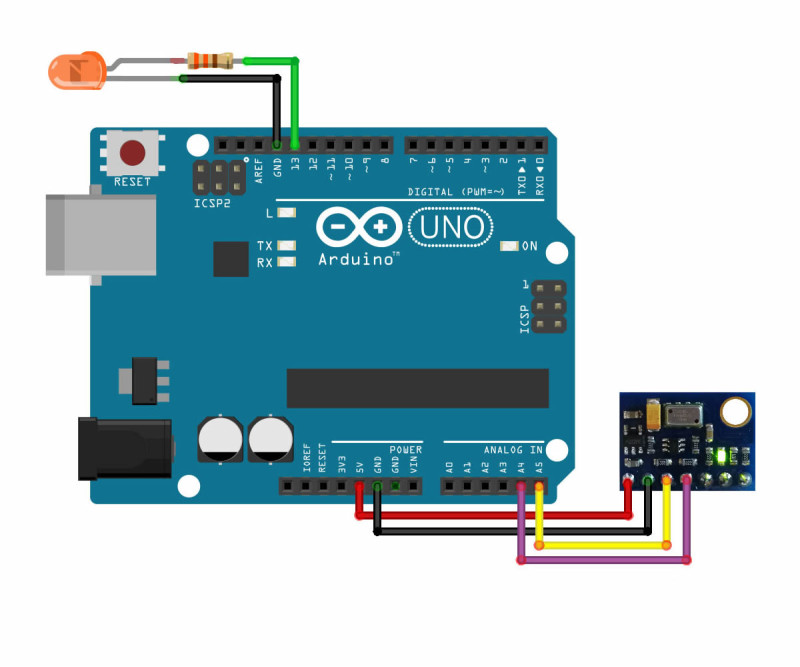

Pin descriptions

• VCC:   Supply input.
• GND:   Ground
• SCL:    communication clock signal input
• SDA:    communication data signal pin
• CSB:    Interface selection pin:  1 (High) → I2C mode  0 (Low / GND) → SPI mode
• SDO:    Spi data output signal pin
• SDO:    Used for address selection in I2C mode:  GND = 0x76  VCC = 0x77

Notes:

• The module has a regulator suitable for 5V input, but the sensor core operates at 3.3V.
• The I2C address may vary depending on the board model; the necessary information should be checked on the datasheet.
• Short cable should be preferred on the wired lines to reduce noise.
• The board orientation (the mounting hole on the body) is important in altimeter calculations.

Package contents:

•     1 Piece MS5607 Pressure Sensor Module

.
