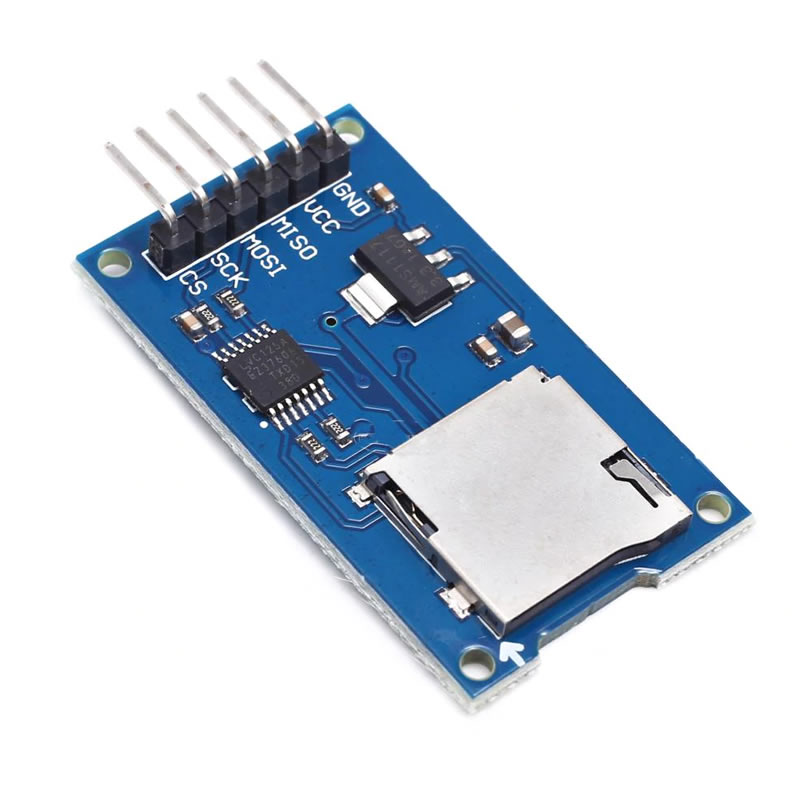

Micro Sd Card Module

Micro Sd Card Module

Memory Card TF Card Microsd Memory Memory SPI Reader Micro Sd 3.3V 5V Arduino Data Logging Logger Audio Mp3

     It allows you to perform Micro Sd Card read and write operations. Communication can be done over the SPI port. The voltage level converter circuit is on the board. Thanks to its 3.3v regulator, it can be easily used in systems with higher voltage.

      It is used in products that need various memory. It is widely used when working with files that take up a lot of space such as audio mp3 video files. It is also used as external memory in various logging applications. For example, recording the measurements of sensors such as temperature humidity etc.

Features:

• Micro Sd card module
• Operating voltage: Dc 3.3V ( DC 12V thanks to the regulator )
• Communication: SPI
• It is suitable for use in applications requiring large memory.
• Built-in 3.3V regulator
• Built-in voltage level converter IC
• Color: Blue
• Operating temperature:   -10C  /  70C
• 4 pieces of m2 mounting hole
• 6 Pin connection socket

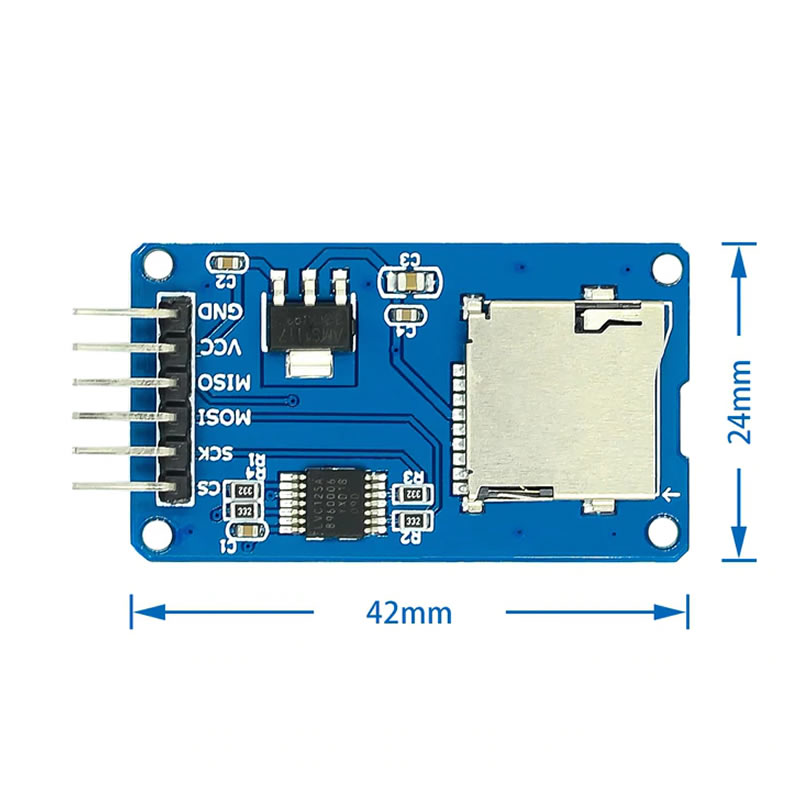

• Dimensions:  24mm x 42mm
• Weight: 5gr

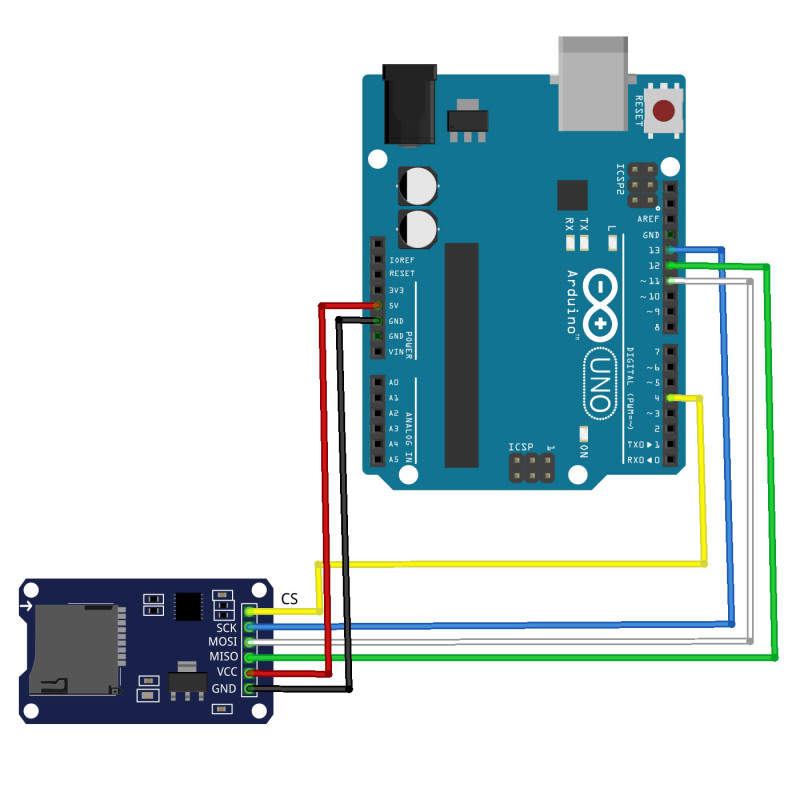

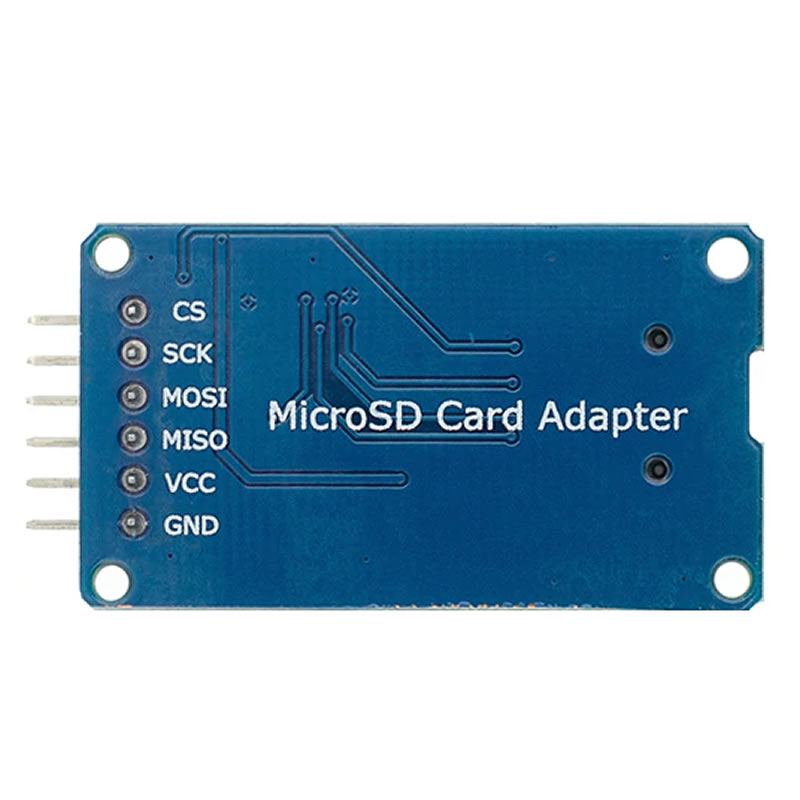

Pin Connection:

• CS: Spi select pin
• SCK: Spi clock pin
• MOSI: Data input pin
• MISO: Data output pin
• VCC: Supply pin
• GND: Ground pin

Package contents :

•   1 Piece Micro SD Card Module
