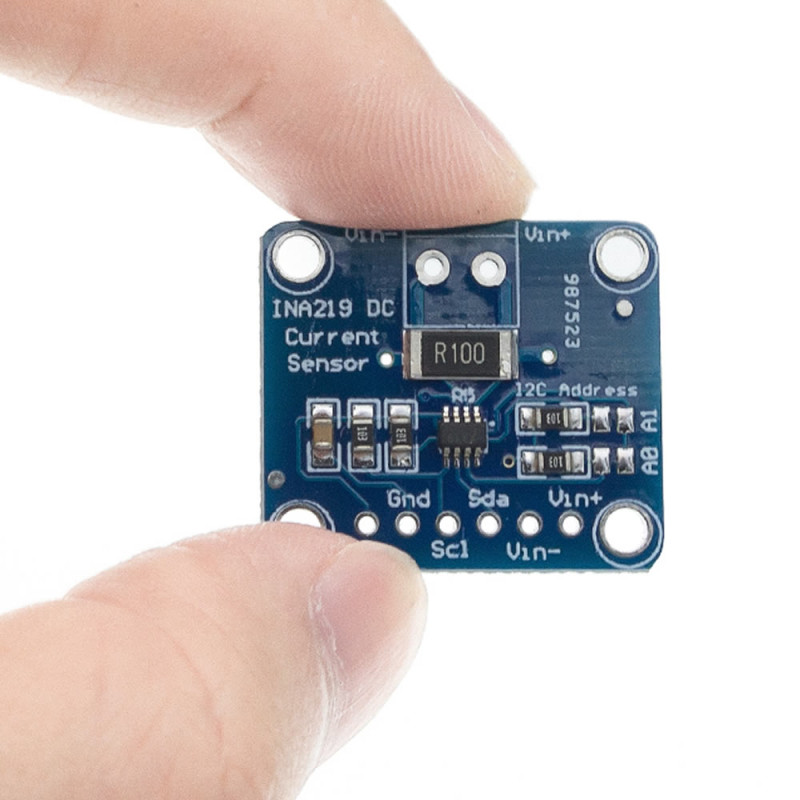

INA219 Voltage Current Power Monitoring Module

INA219 Dc Voltage Current Power Monitoring Sensor Module

Bidirectional 26V 3A IIC Communication High Precision 12 Bit Adc Monitor Power Supply

     INA219 is a current, voltage and power monitoring sensor module with I2C communication. It measures with the shunt resistor on the board. You can examine the electrical signals in the circuits you want to measure. It provides programmable calibration value, conversion times, monitoring of current and power in watts. You can set various warning alarms and critical levels for each channel. In case of a problem with these values, you can generate an output signal.

     It can measure voltage values that can vary between 0 / 26V independently of the supply voltage. The module works with a DC 3V / 5V supply. It can be used by making top and bottom side connections.

Features:

•     Operating voltage: DC 3V / 5V
•     Measuring voltage:  DC 0V / 26V
•     Measuring current:  -+3.2A Max.
•     Current (ampere), voltage measurement power ( watt) calculation
•     Shunt resistor:  0.1ohm
•     Resolution:  12 bit   0.8 mA
•     Margin of error: %1
•     Offset:  100 uV Max
•     It can perform bidirectional current measurement
•     Communication interface: IIC ( Max 3.4Mhz )
•     Noise filtering functions
•     Can be calibrated.
•     Settings can be saved.
•     High precision
•     Operating temperature: -40C /  +85C
•     Color: Blue

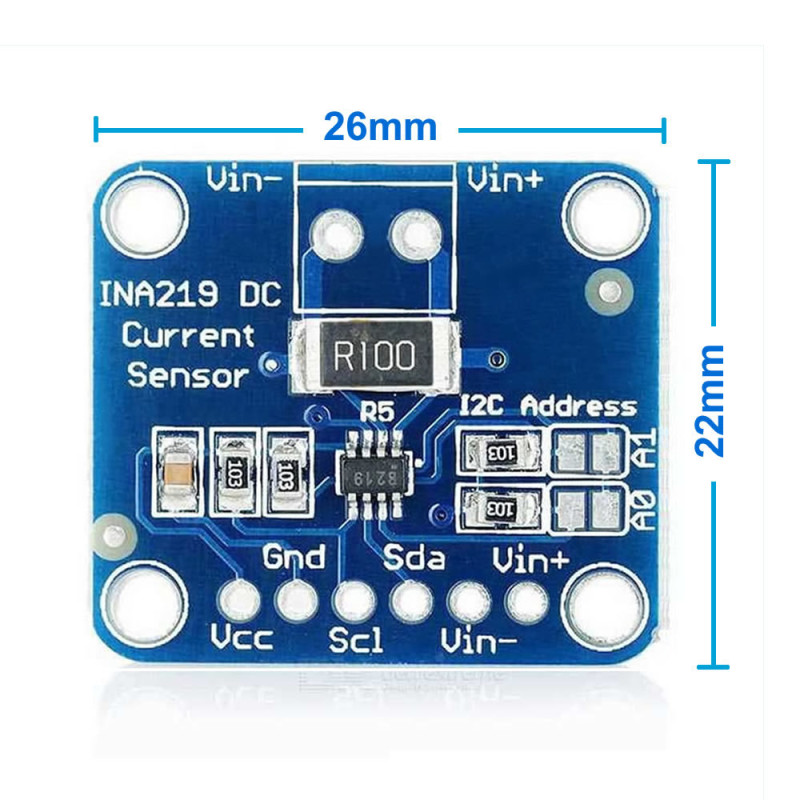

•     Dimensions:  23mm x 26mm
•     Weight:   4gr

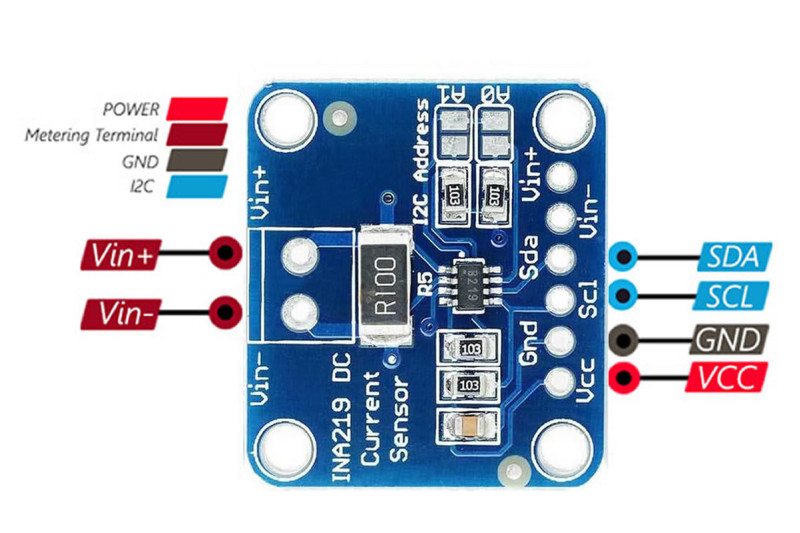

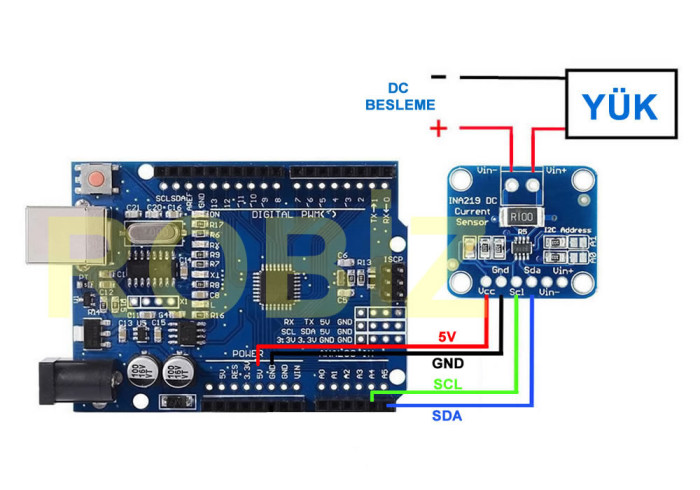

Pin Connections:

•     VCC: Module supply positive pin DC 3V / 5V
•     GND: Module supply ground pin
•     SDA: I2C data pin
•     SCL: I2C clock pin
•     Vin+: Current input pin
•     Vin+: Current output pin

Package Contents:

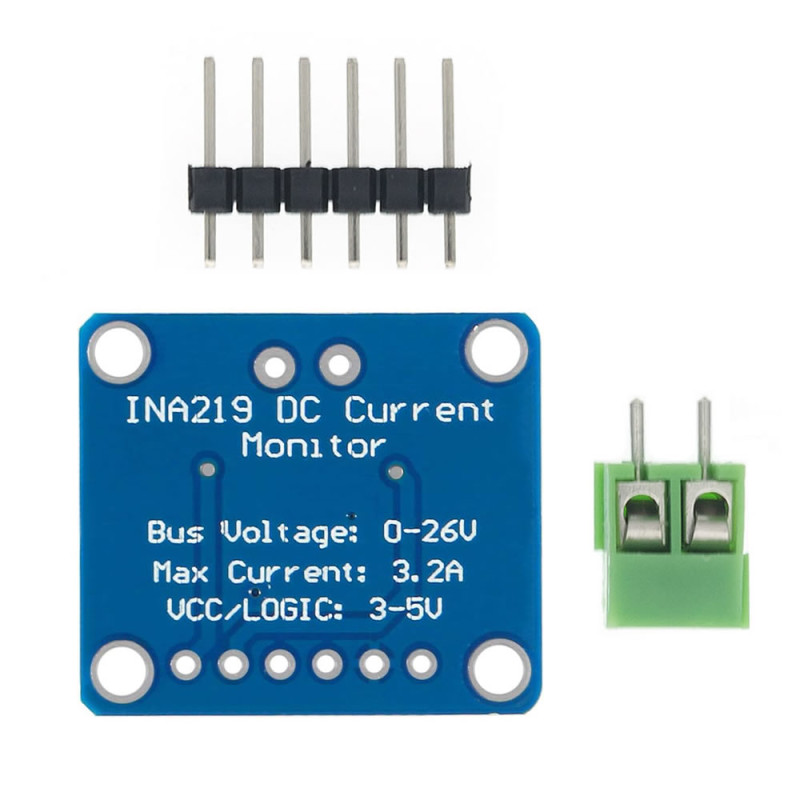

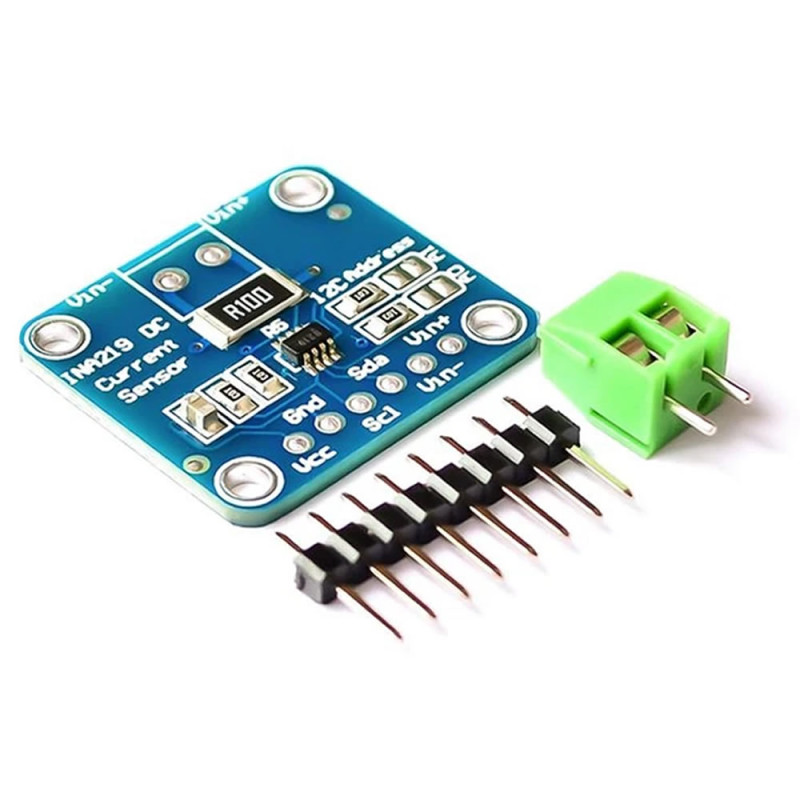

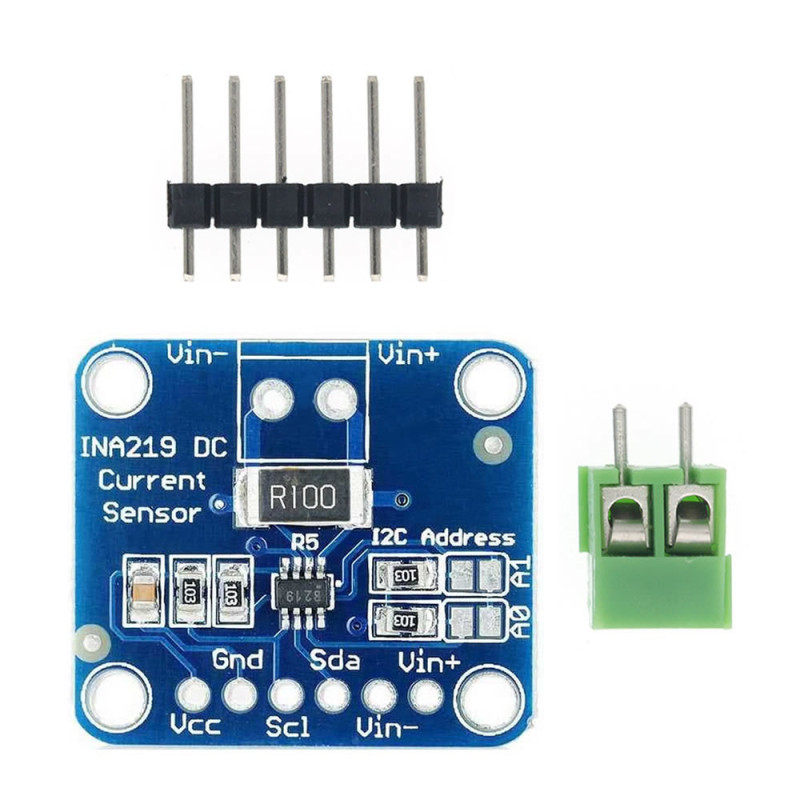

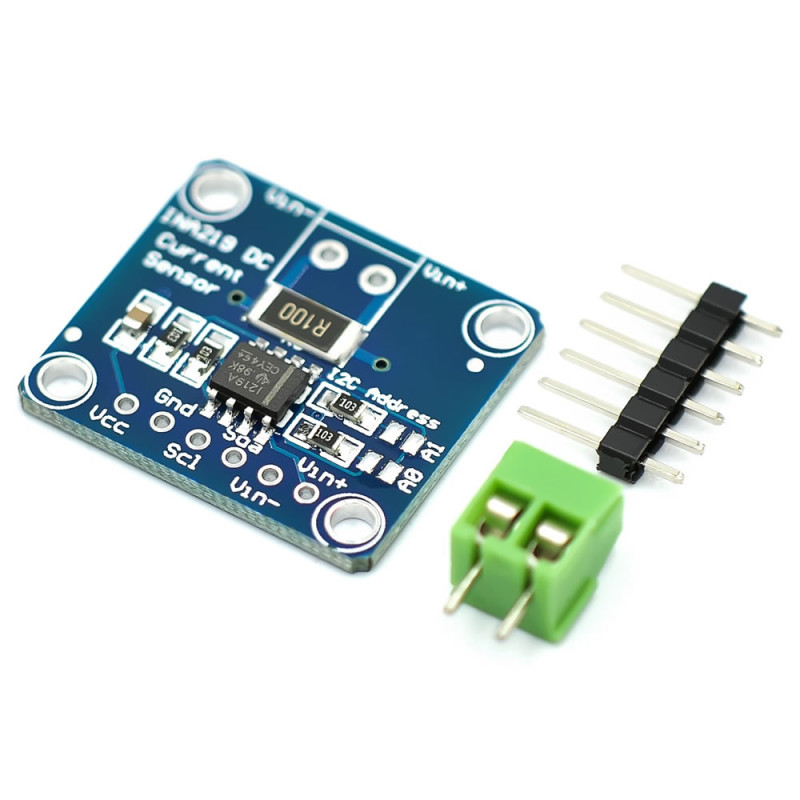

•    1 Piece INA219 Current Sensor Module
•    1 Piece 2 pin terminal block
•    1 Piece 6 pin male header

.
