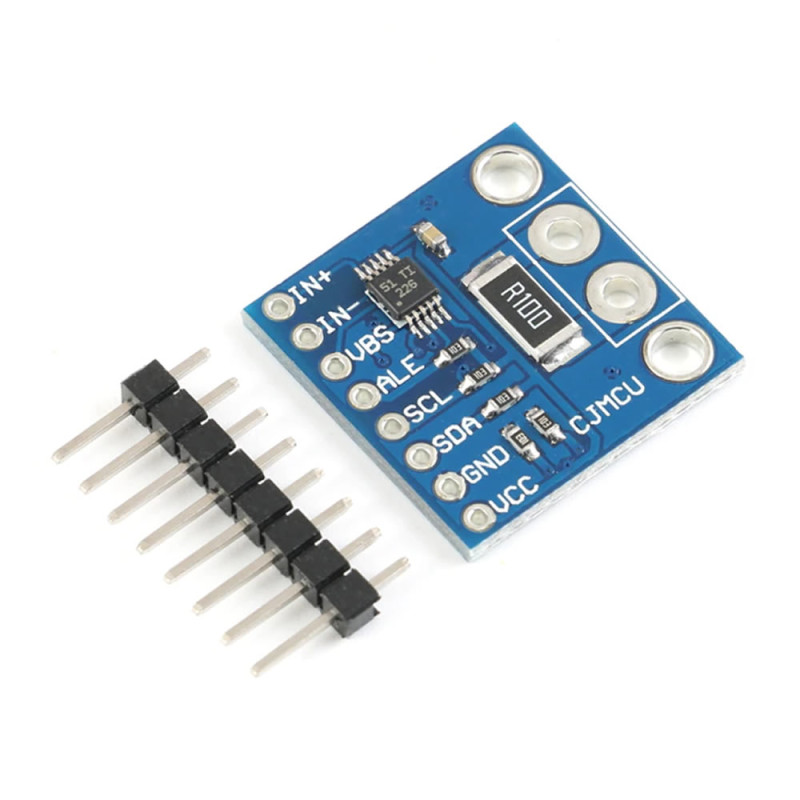

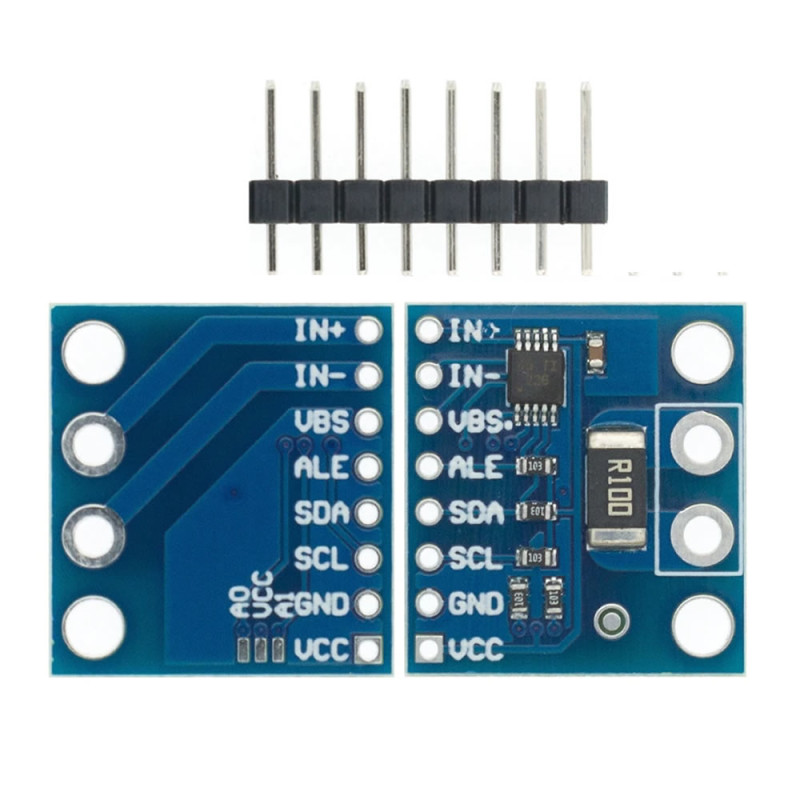

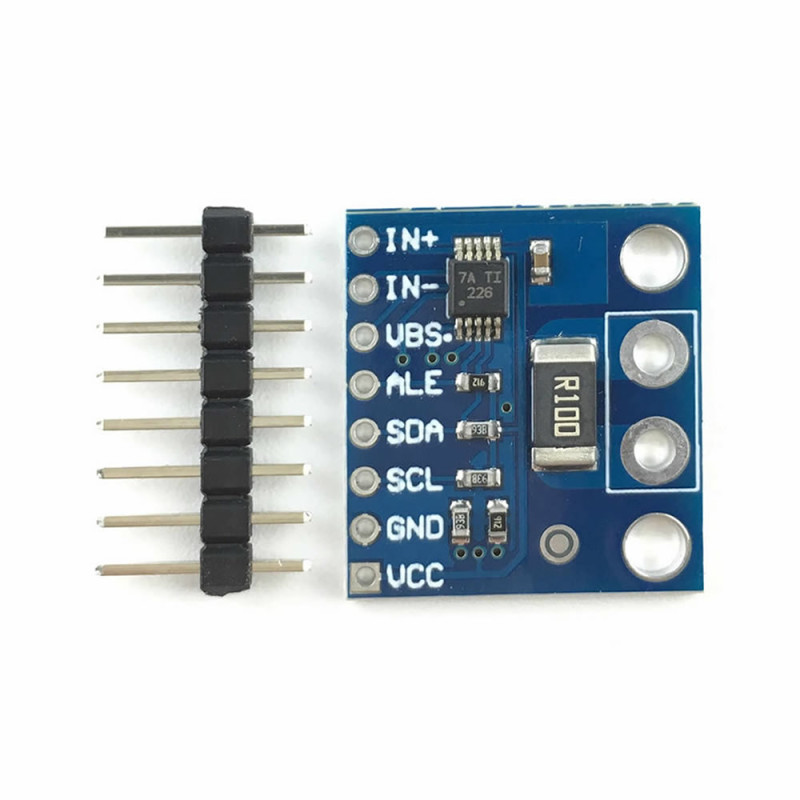

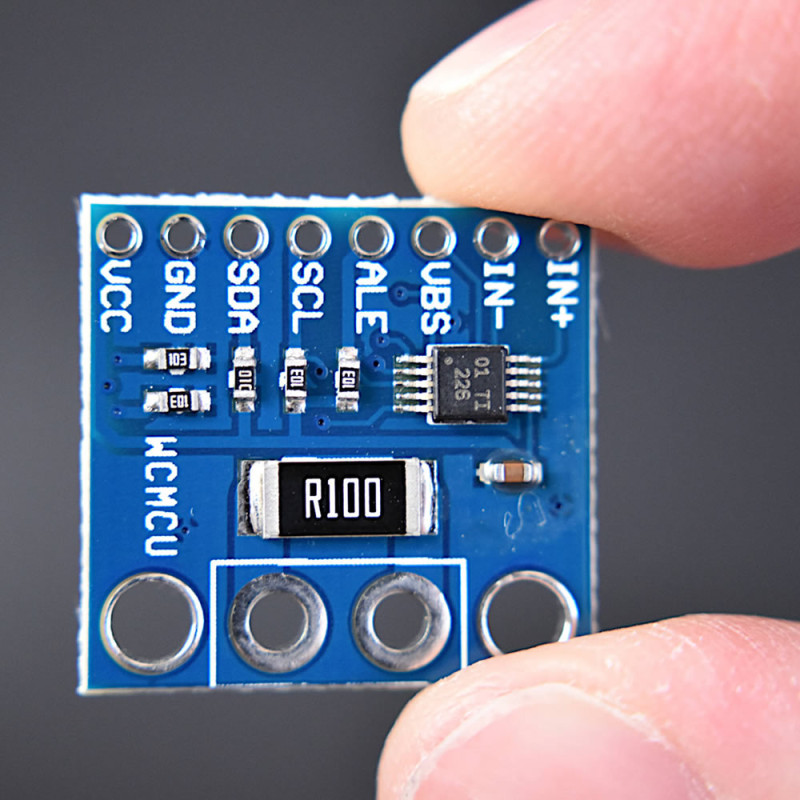

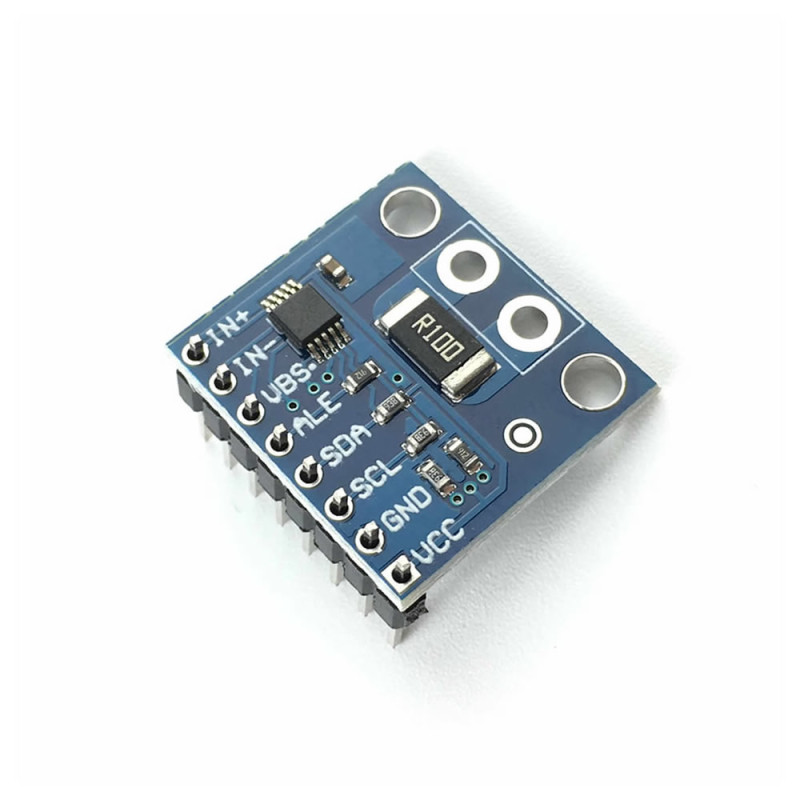

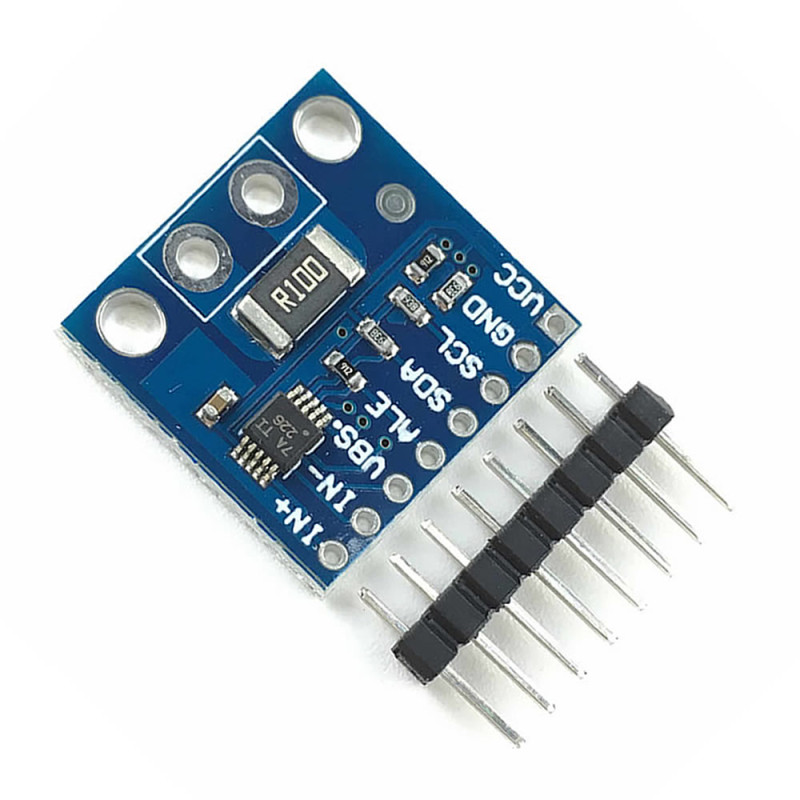

INA226 Voltage Current Power Monitoring Module

INA226 Voltage Current Power Monitoring Sensor Module

36V 100A IIC Communication High Precision 16 Bit Adc Monitor Power Supply

     INA226 is a current, voltage and power monitoring sensor module with IIC communication. It measures with the shunt resistor on the board. You can examine the electrical signals in the circuits you want to measure. It provides a programmable calibration value, conversion times, and monitoring of current and power in watts. If there is a problem with these values, you can also generate a signal with the alarm output. The programmable calibration value provides monitoring of conversion times, current and power in watts.

     It can measure voltage values varying between 0-36V independently of the supply voltage. The module can operate with a supply between DC 2.7V  /  5.5V. It can measure on both sides.

Features:

•     Current voltage power measurement sensor
•     Operating voltage: DC 2.7V  /  5.5V
•     Measurement voltage range: 0V /  36V
•     0.1 ohm 1% 2W current shunt resistor
•     16 Bit Adc
•     Measurement current:  100A ( Maximum )
•     Measurement error: 10uV

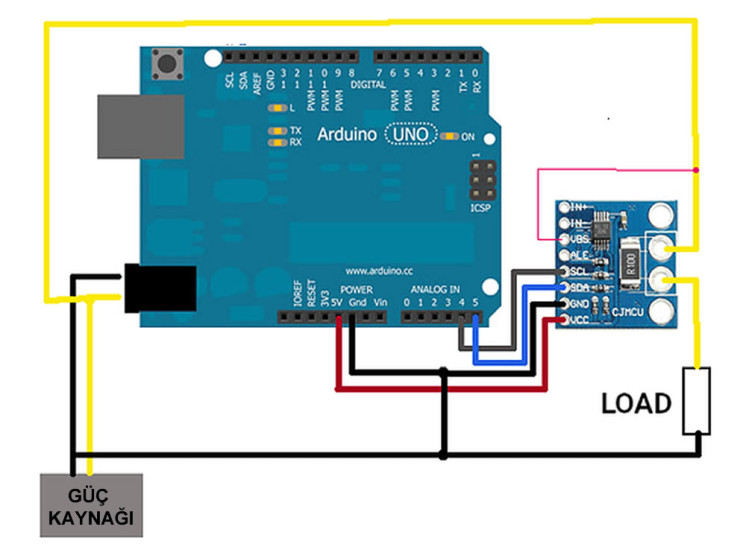

•     Can be used with upper and lower connection. High-Side or Low-Side
•     High precision
•     Gain error: 0.1% ( Maximum )
•     Adjustable averaging options
•     16 Programmable addresses
•     Operating temperature: -40C /  +125C
•     Color: Blue

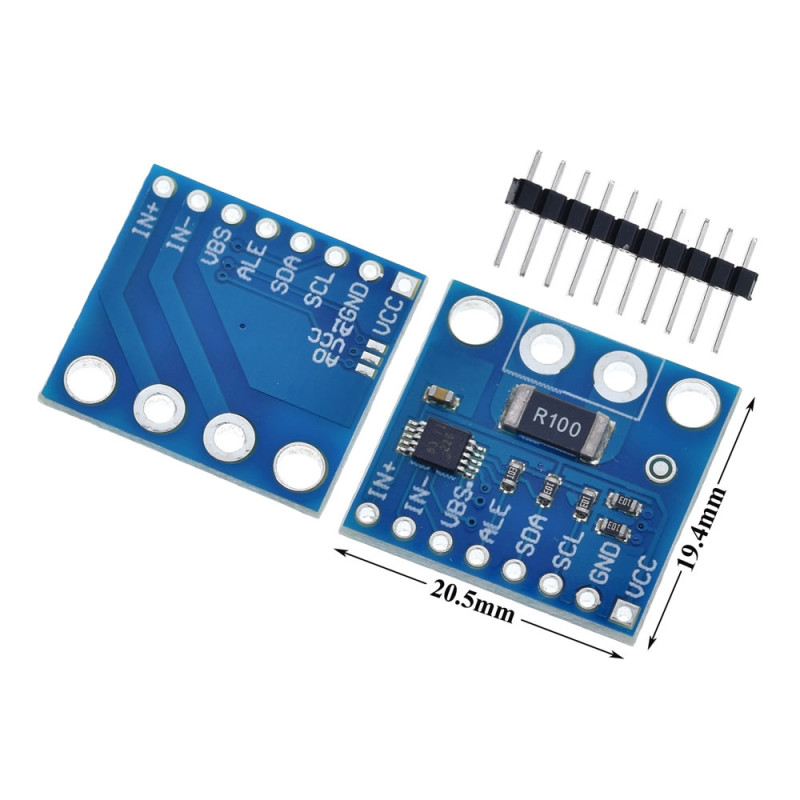

•     Dimensions:  20mm x 21mm
•     Weight:  2,5gr

Package Contents:

• 1 Piece INA226 Voltage Current Power Monitoring Module
