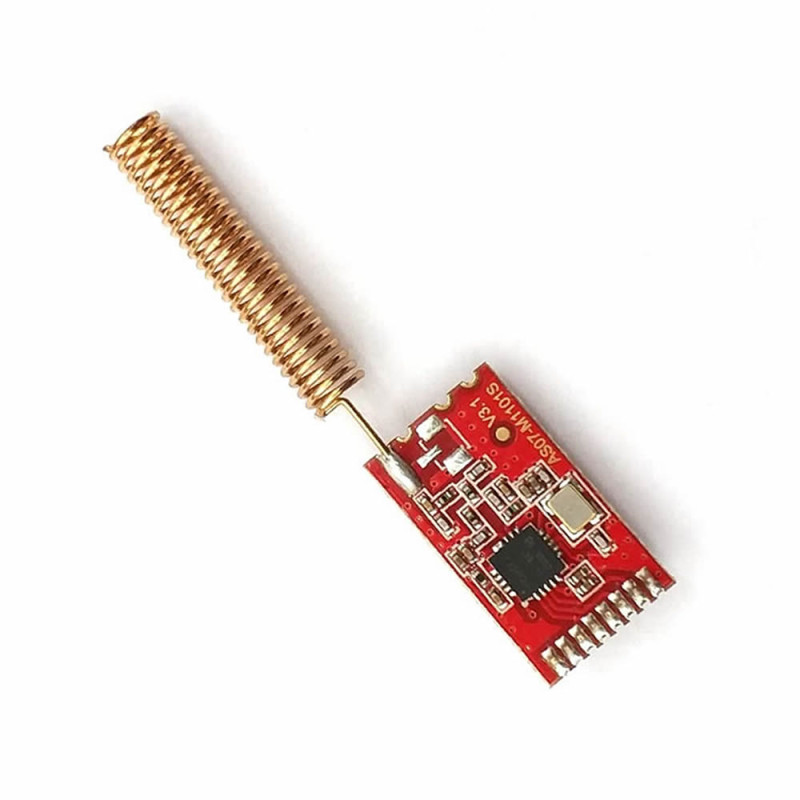

CC1101 Module

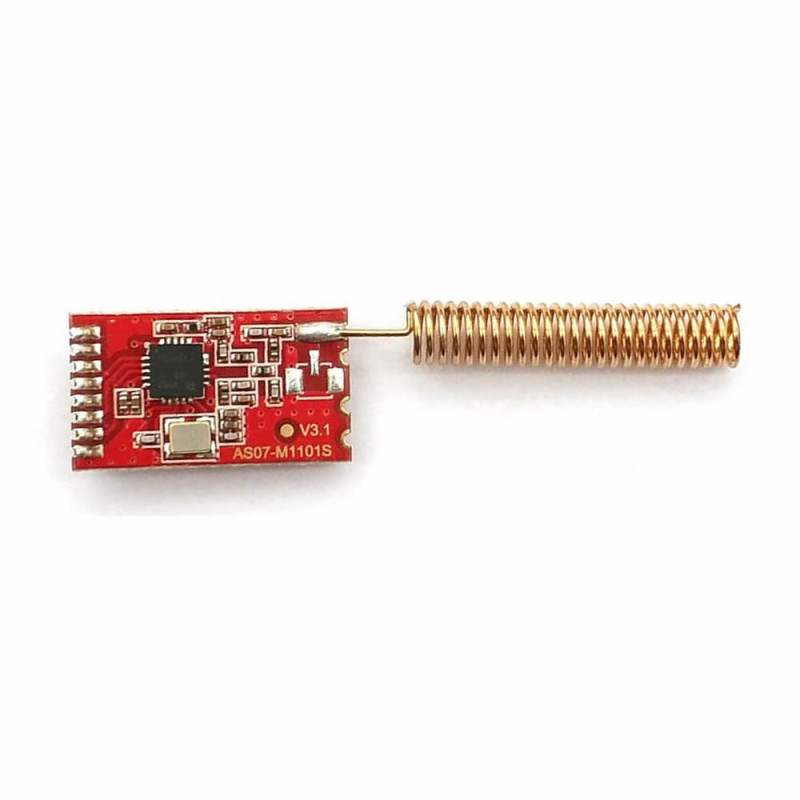

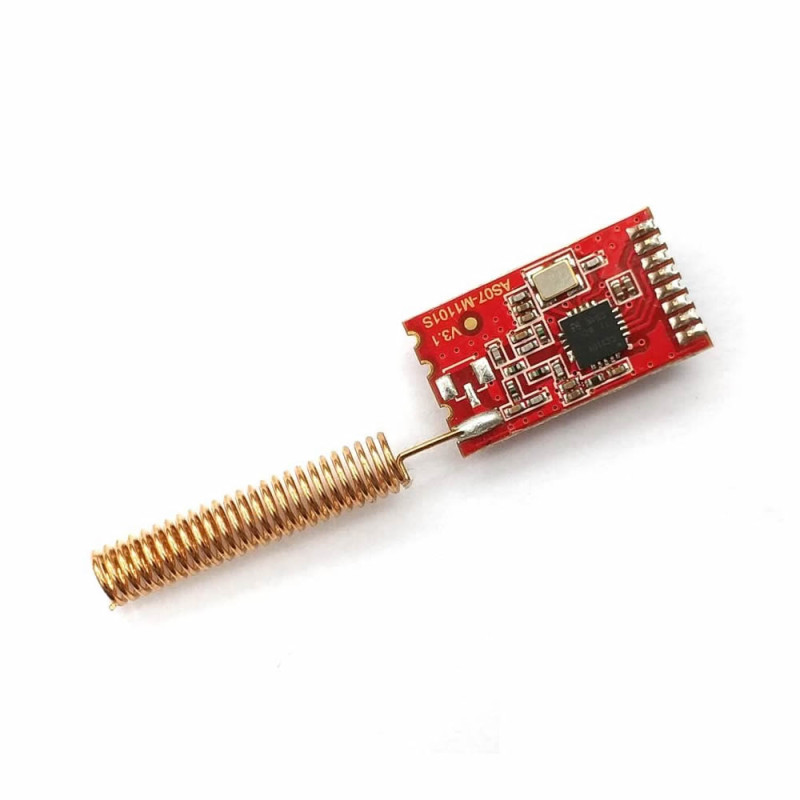

CC1101 433Mhz Wireless Communication Module

SPI 1000 Meter Rf Receiver Transmitter Transceiver Iot Industrial Control Security Alarm Smart Home Data Monitoring

     It is a wireless communication module using the CC1101 integrated circuit. It can communicate between 300/1000 meters. The module is controlled with spi communication.

Features:

• Integrated circuit: CC1101
• Supply voltage: DC 1.8 / 3.6V
• SPI communication
• Operating frequency: 433Mhz ( supports 868Mhz / 915Mhz  )
• Power: 10mw
• Communication distance:  300 / 1000 meters
• Data rate: 0.6 / 500KBaud
• Low power consumption: 1.2KBaud, 433MHz RX 15mA
• Receiver sensitivity: -116dBm / 0.6kbps
• Supported protocols: ASK/OOK/MSK/2-FSK/4-FSK
• Memory: 64-byte RX and TX data FIFO
• Carrier detection system
• 1.27mm 8 pin male header connection socket
• Operating temperature: -20C  /  85C
• Color: Red

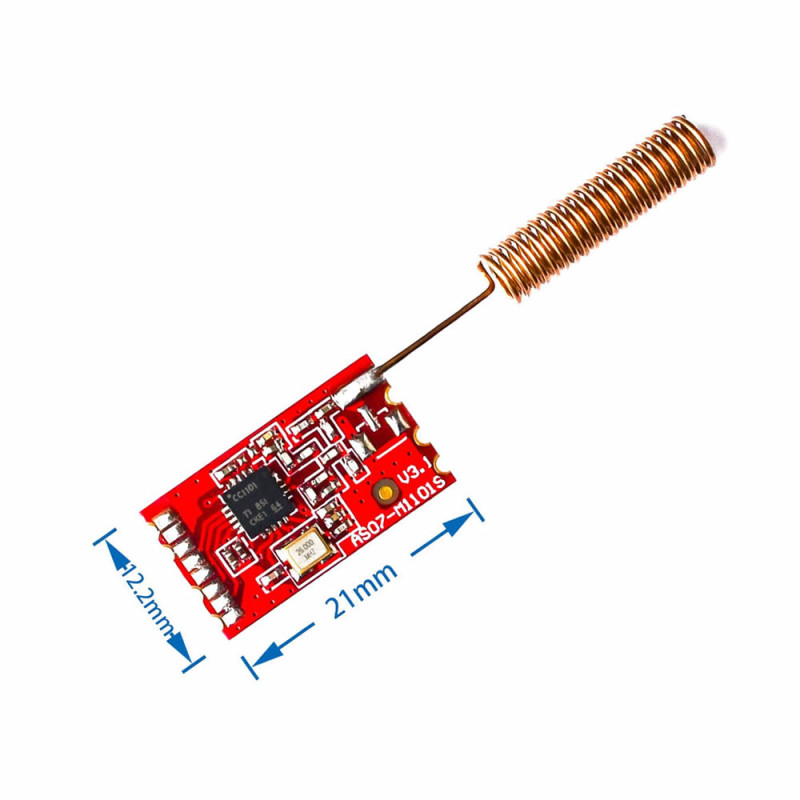

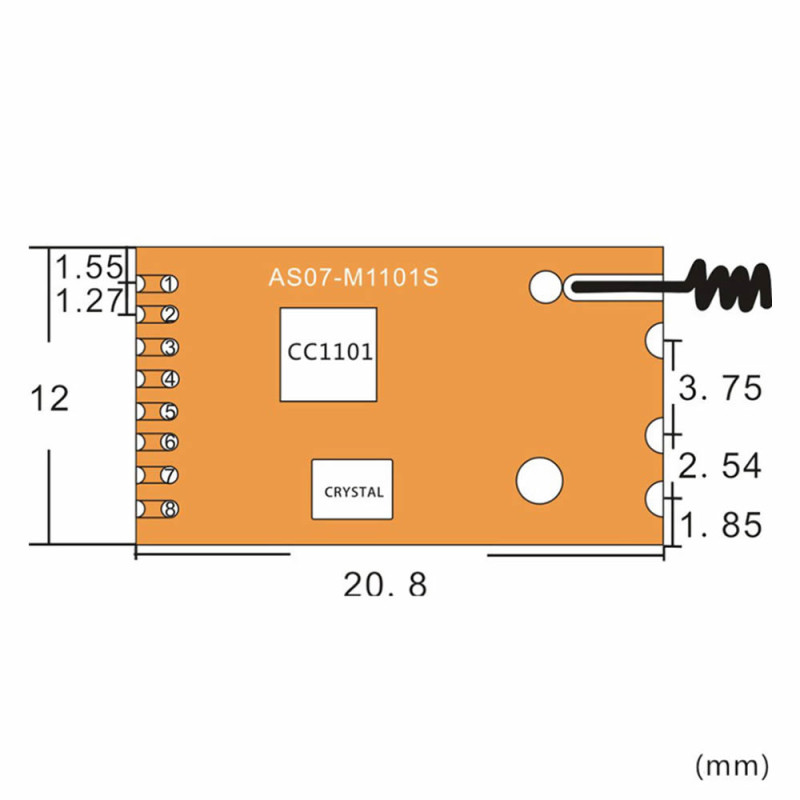

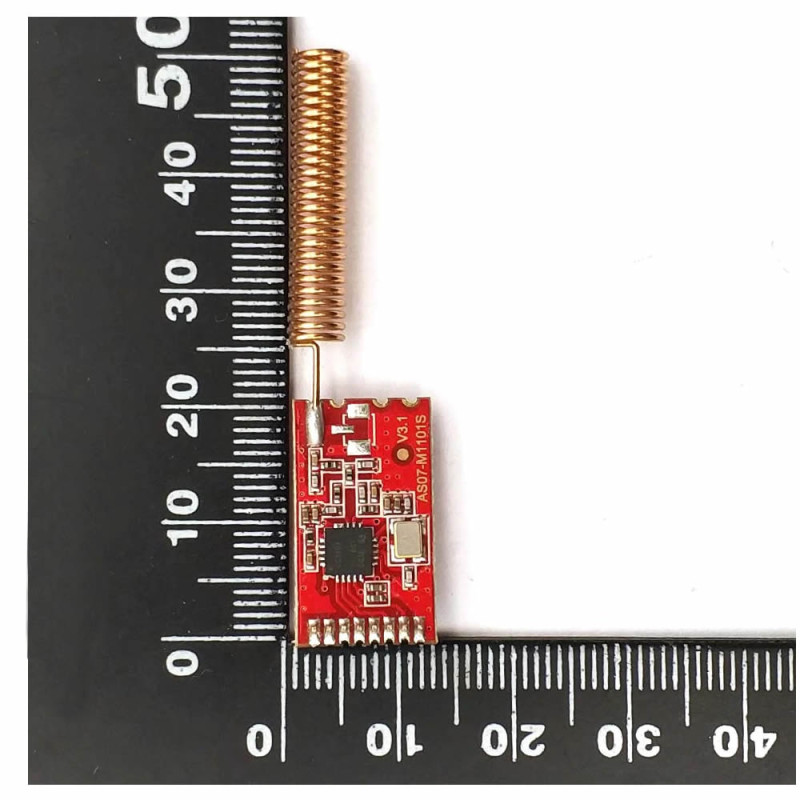

• Dimensions: 12mm x 21mm ( 50mm )
• Weight: 1gr

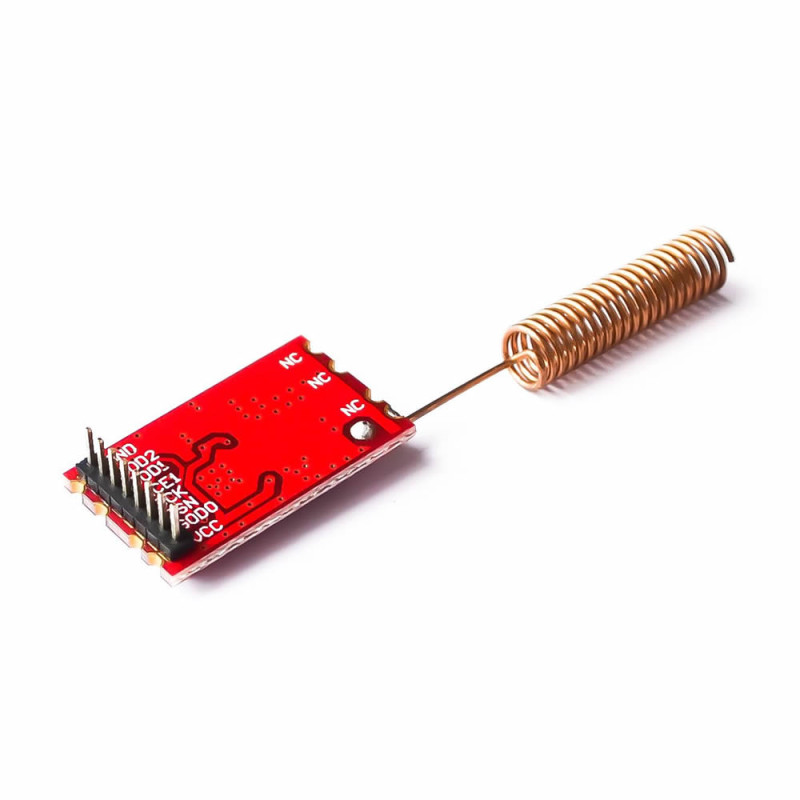

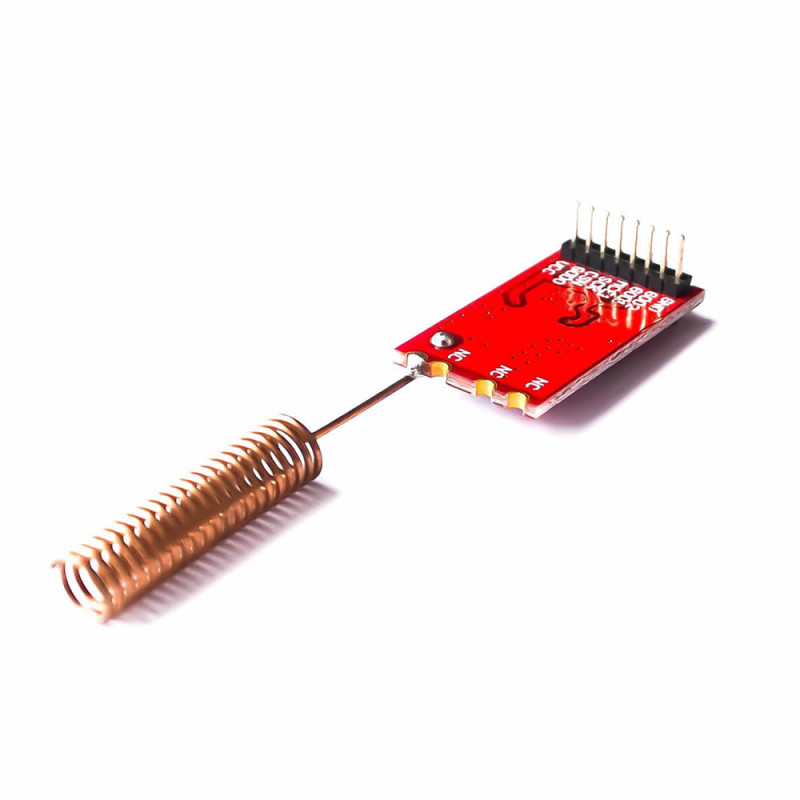

Pin description:

• 1: VDD: Supply 3.3V
• 2: GDO0
• 3: CSN: Chip select
• 4: SCK: Spi clock
• 5: MOSI: Spi data input
• 6: MISO / GDO1
• 7: GDO2
• 8: GND: Ground 0V

Package contents:

• 1 Piece CC1101 Module
