Disassembled Peltier Water Cooler Set Small

Thermoelectric Peltier Water Liquid Cooler System

DC 12V 6A 60W Computer Cpu Air Conditioner Refrigerator Freezer Car Cold Water Generator Temperature Reducer

There is no peltier in the set. You need to purchase a peltier separately.

The product is in disassembled condition. Do not operate the product without the fan and water system. If you operate it, the product will break down in a short time. Determine the hot and cold surfaces by supplying the peltier with DC 5V for a short time (2-3sec) and continue the installation accordingly. The cold surface must be on the side where the water cooling block is. The hot surface must be cooled with the aluminum block and the fan on it.

     Peltiers are ceramic products that can create a temperature difference between their 2 surfaces when electricity is applied. While the temperature rises on one surface, the temperature decreases on the other surface. The hot surface must additionally be cooled with an external cooler. Otherwise, very high heat occurs on the hot surface side in a short time and the ceramic structure is damaged irreversibly.

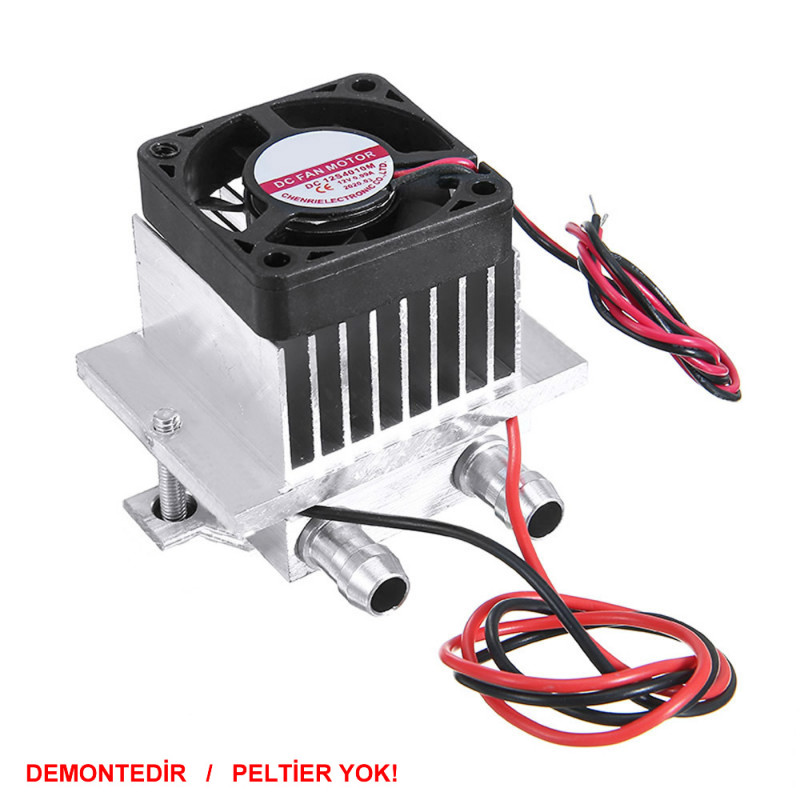

     This peltier cooler system comes unassembled. A 4x4cm aluminum cooler is mounted on the heating surface of the peltier and a 4xm x 4cm fan is mounted on top of it. The heat on the hot surface is dissipated by these 2 parts.

     On the cooling surface side, a water cooling aluminum block is mounted. Hot water passes through this system and its temperature is lowered. It returns to circulation again to cool the target system.

     The peltier and fan supply voltage is DC 12V. Both parts can be driven from the same source. If a Tec1-12706 peltier is used, a power supply of at least 60W must be used. The insulating foam part is used between the surface to be mounted at the very bottom of the system. It has an adhesive property.

Features:

•     Shipped unassembled.
•     Suitable for water cooled applications.
•     Max. temperature difference: 67C
•     Operating current:  4A (  Dc 12V)
•     Cooling power: Max. 50W - 60W
•     Power supply: Dc 12V 6A   ( for Tec1-12706 peltier )
•     Operating temperature range: -55C /  83C
•     Fan: DC 12V
•     Material: Metal / Plastic
•     Color:  Silver
•     Dimensions: 5.5cm x 6cm x 6cm
•     Weight: 125gr

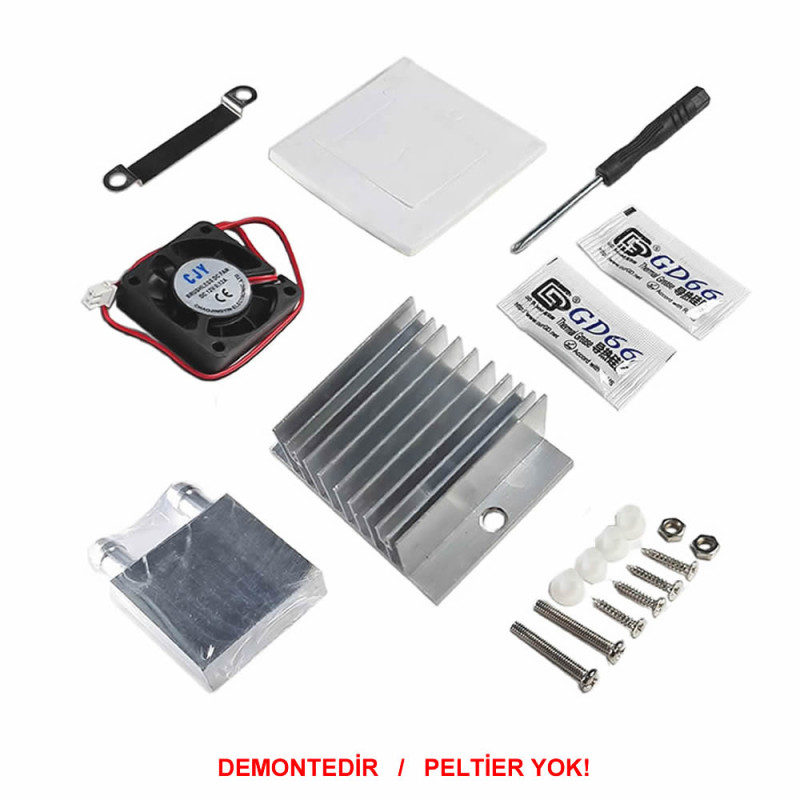

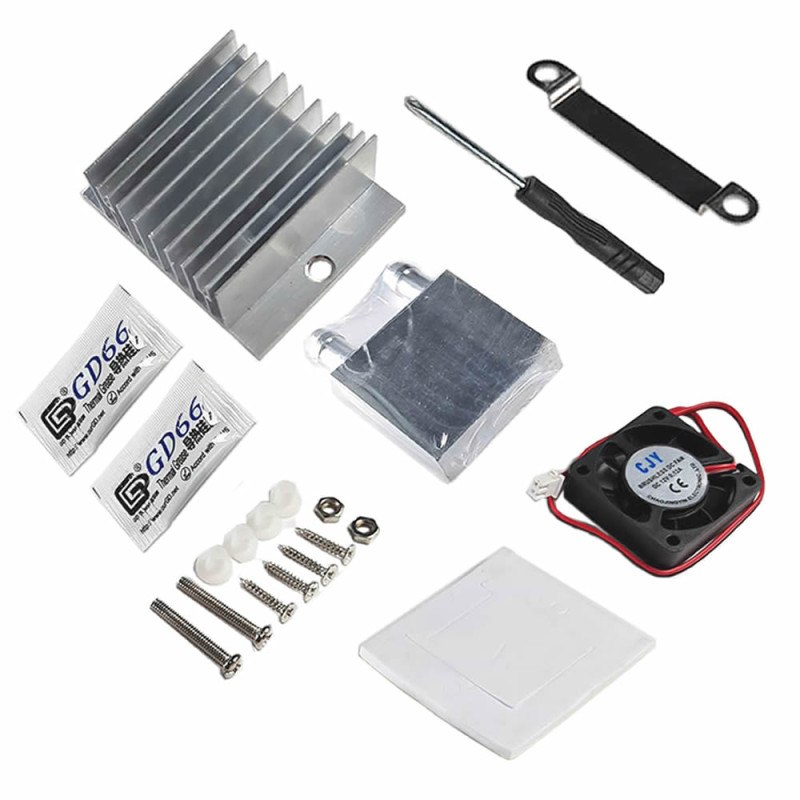

Package contents:

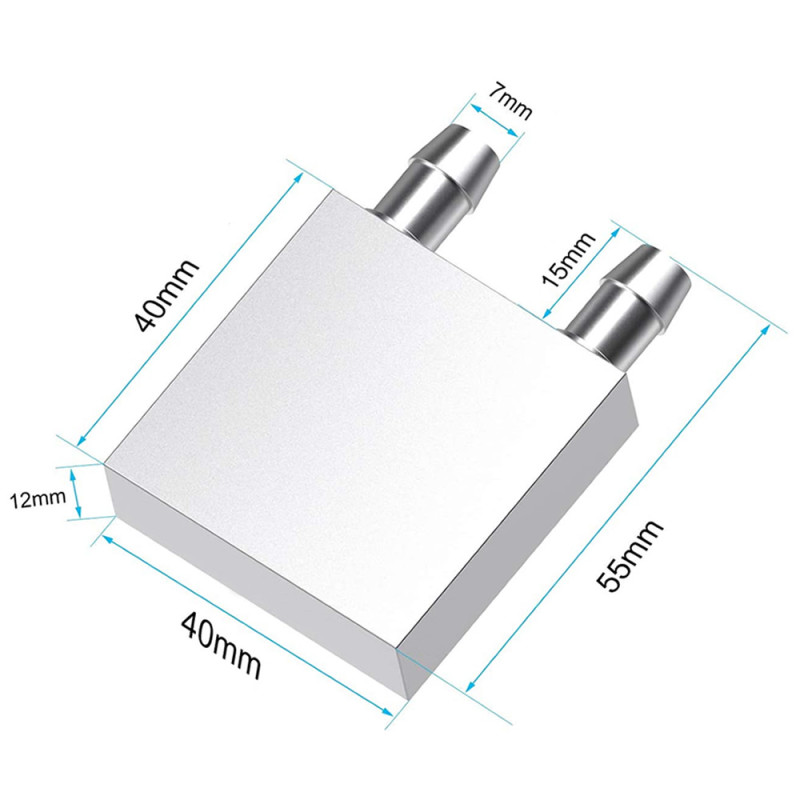

•     1 Piece 4x4cm liquid aluminum cooling block

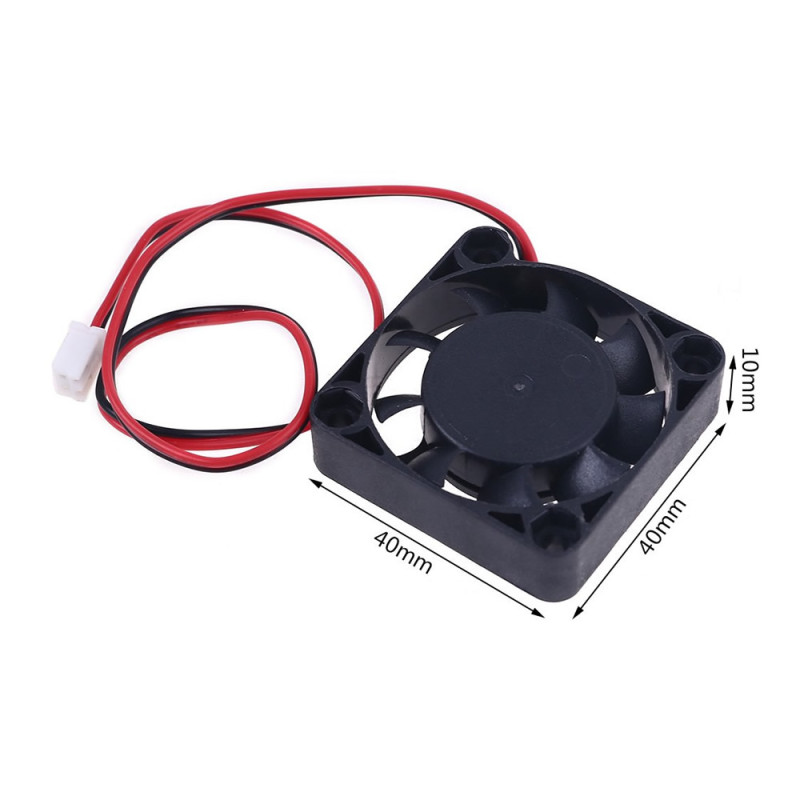

•     1 Piece 4cm x 4cm Fan

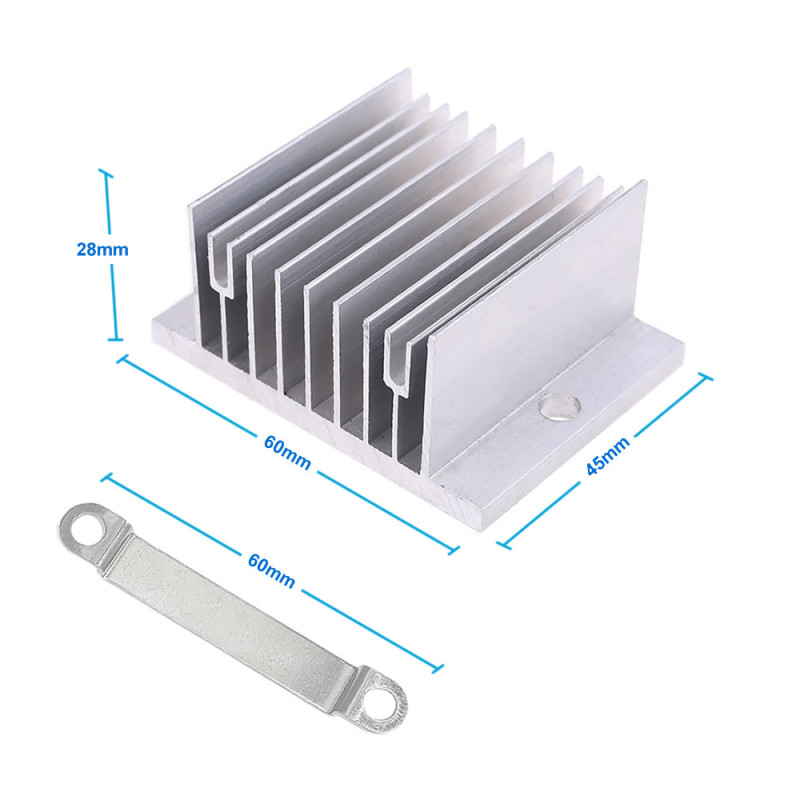

•     1 Piece 4.5cm x 6cm x 2.8cm Aluminum Cooling Block
•     2 Pieces thermal paste

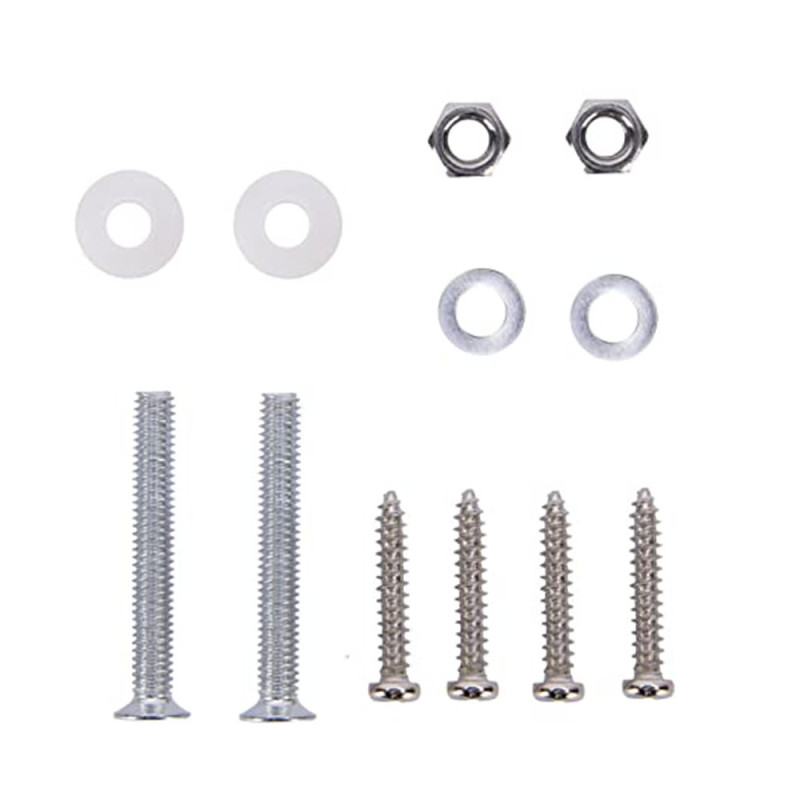

•     6 Pieces mounting screws and plastic insulating parts
•     1 Piece metal mounting part 1cm x 6cm

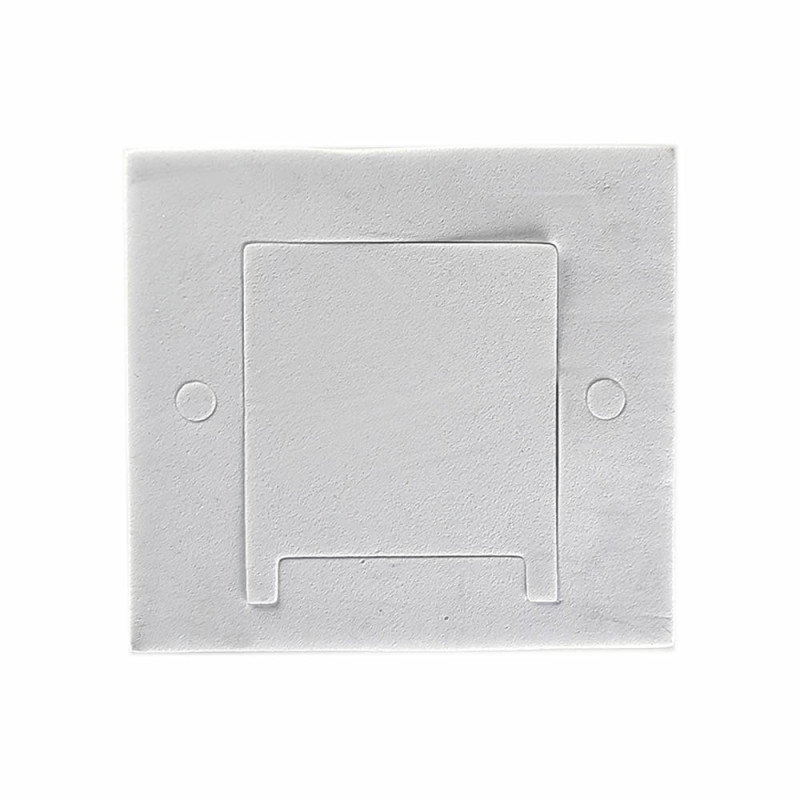

•     1 Piece insulating foam
•     1 Piece Screwdriver

Note:

• The peltier is not included in the system.
• Water connection pipes are not shipped with the product.
• You also need to supply the 12V power supply separately.

.
