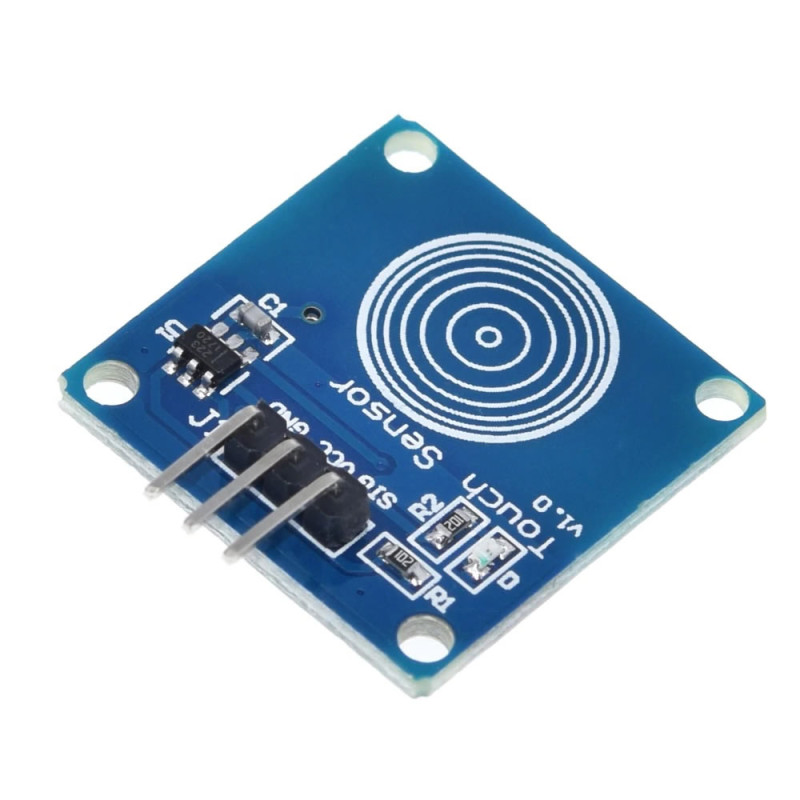

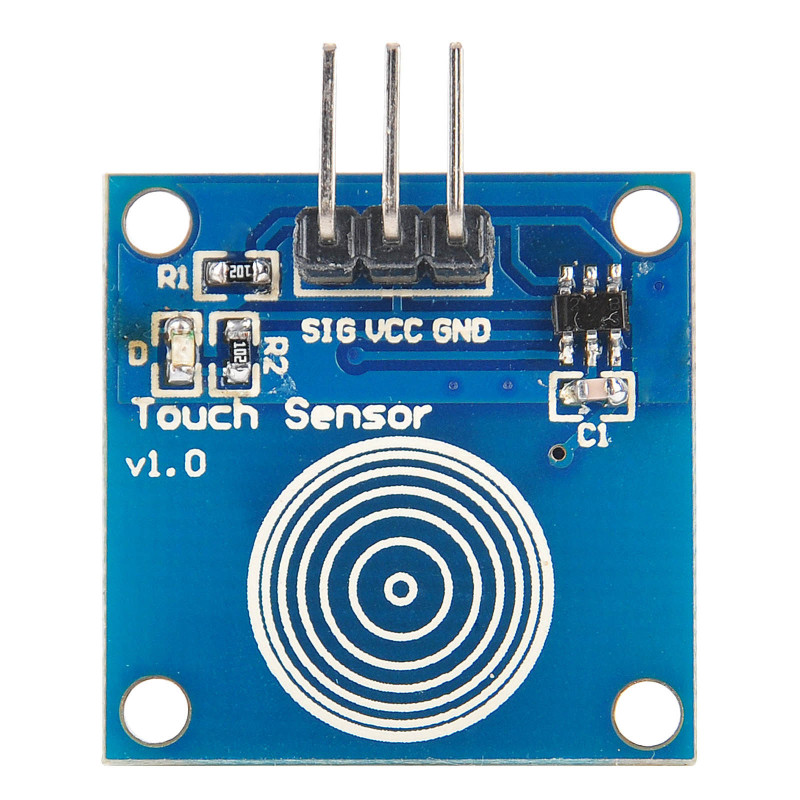

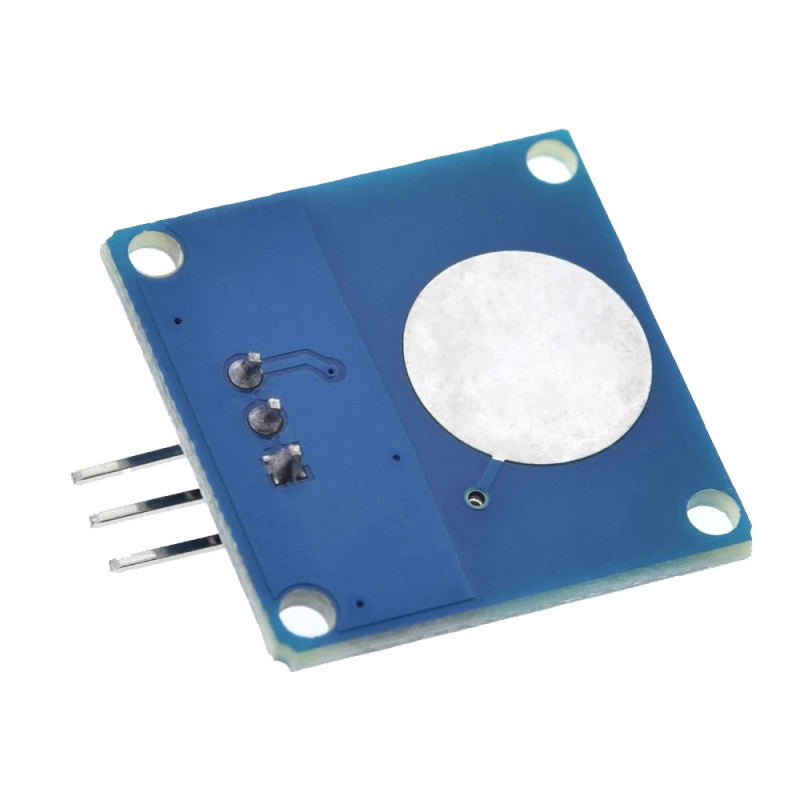

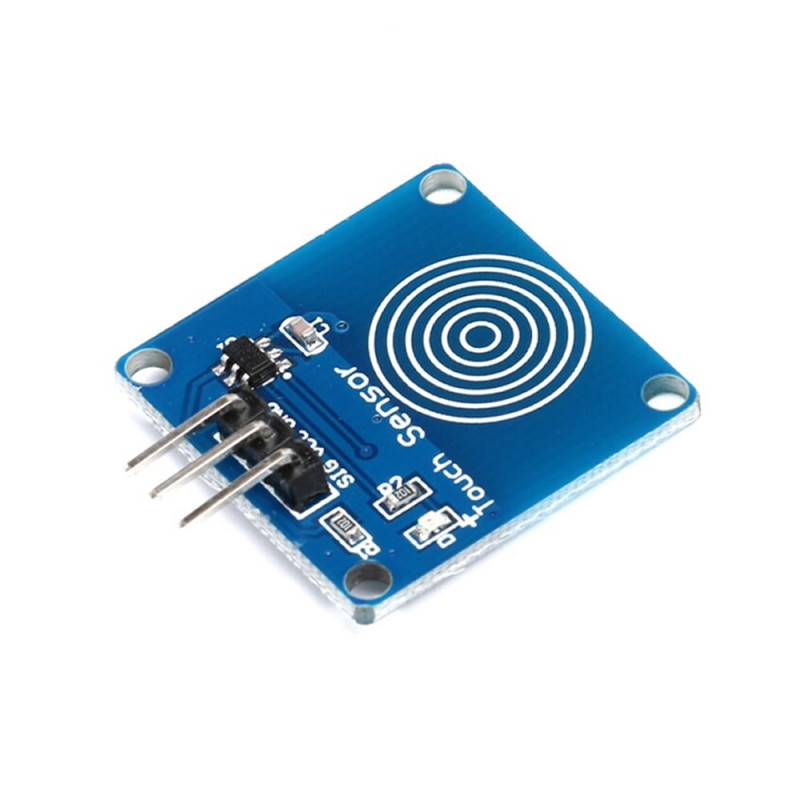

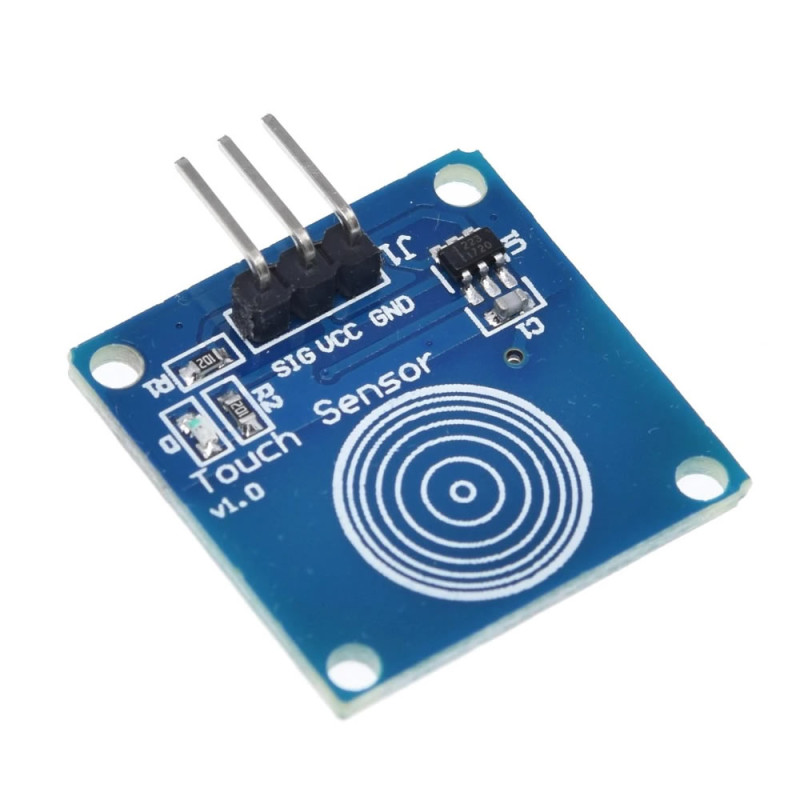

TTP223B Touch Sensor Module

TTP223B Touch Sensor Module 1 Button

Capacitive 1 Button Sensor

          This module is built with the TTP223B capacitive touch IC. Under normal conditions the module output is 0V.  When a finger touch occurs, the module output rises to VCC level. If no touch occurs for 12 seconds, the IC enters low power mode and remains in standby.

Features:

•     Low power consumption
•     Supply voltage 2 to 5.5V
•     Can be mounted on non-metallic surfaces such as plastic and glass.
•     Green power led.
•     4 pieces of M2  (2.2mm)  mounting holes
•     Module dimensions :2.4 x 2.4 x 0.7cm(LxWxH)

Package Contents:

•      1 Piece  TTP223 Capacitive Touch Sensor Module
