TTP229 Touch Sensor Module

TTP229 16 Button Touch Sensor Module

Capacitive Digital Key Detector Switch Keypad Keyboard HMI Menu Automation Smart Home Machine Control

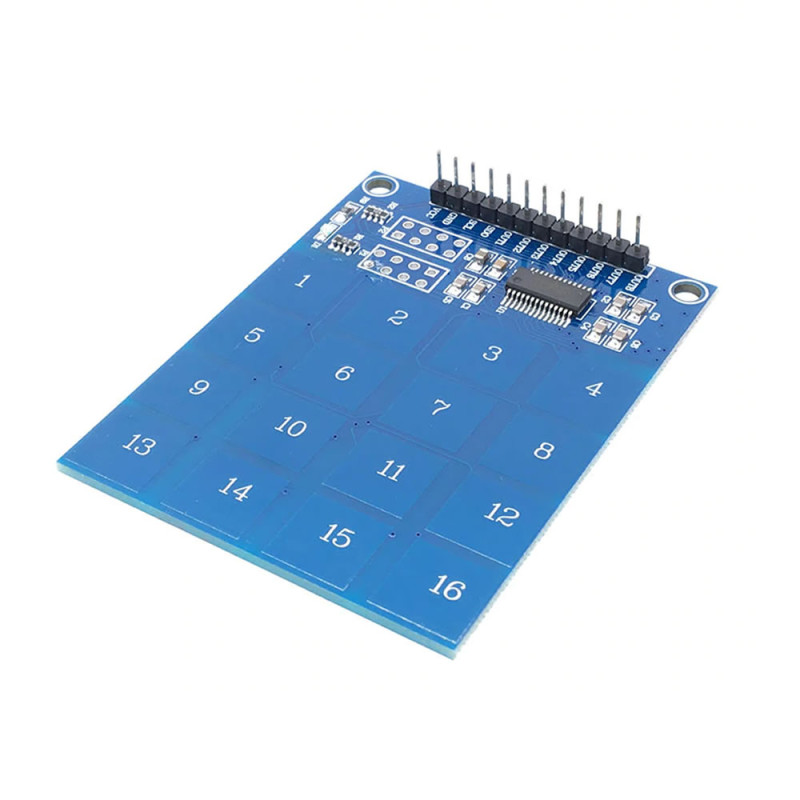

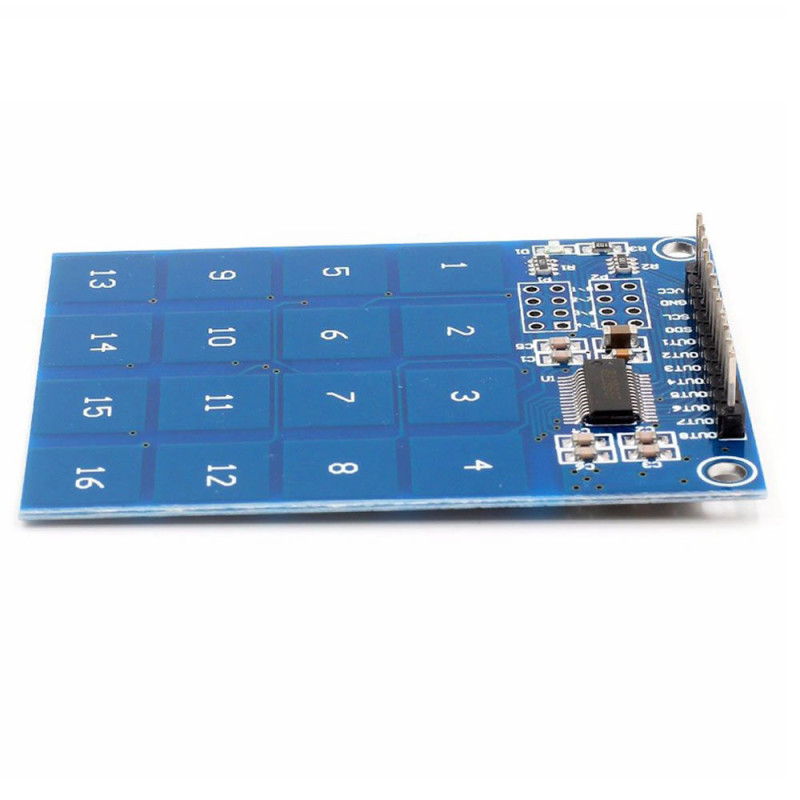

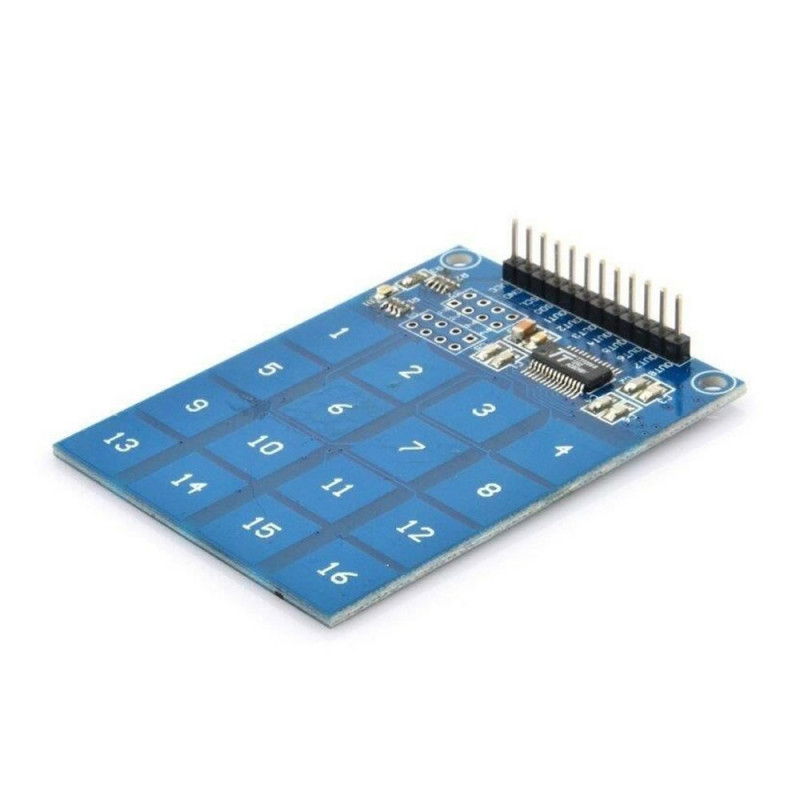

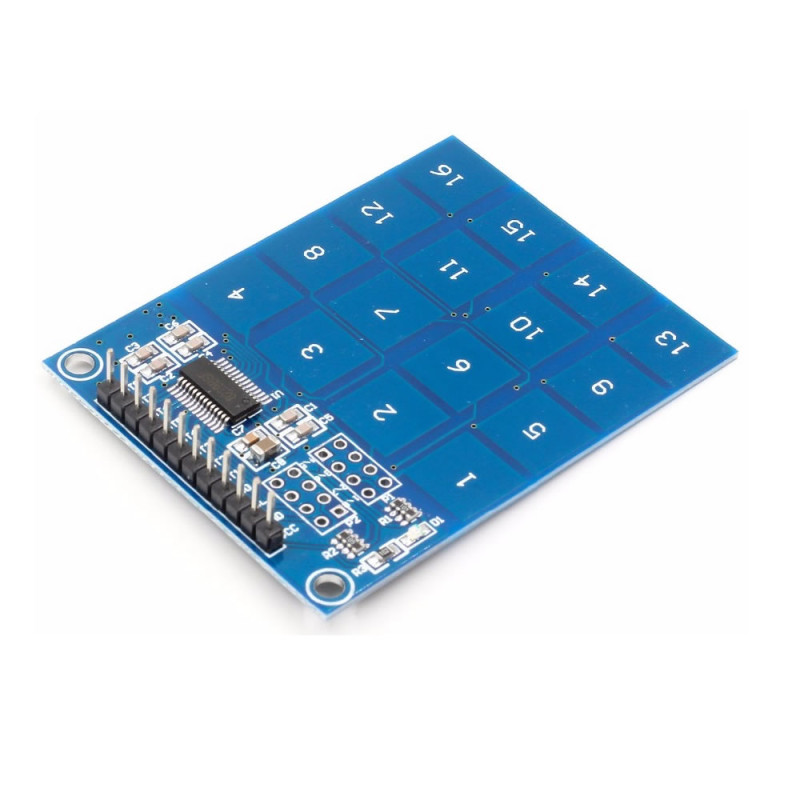

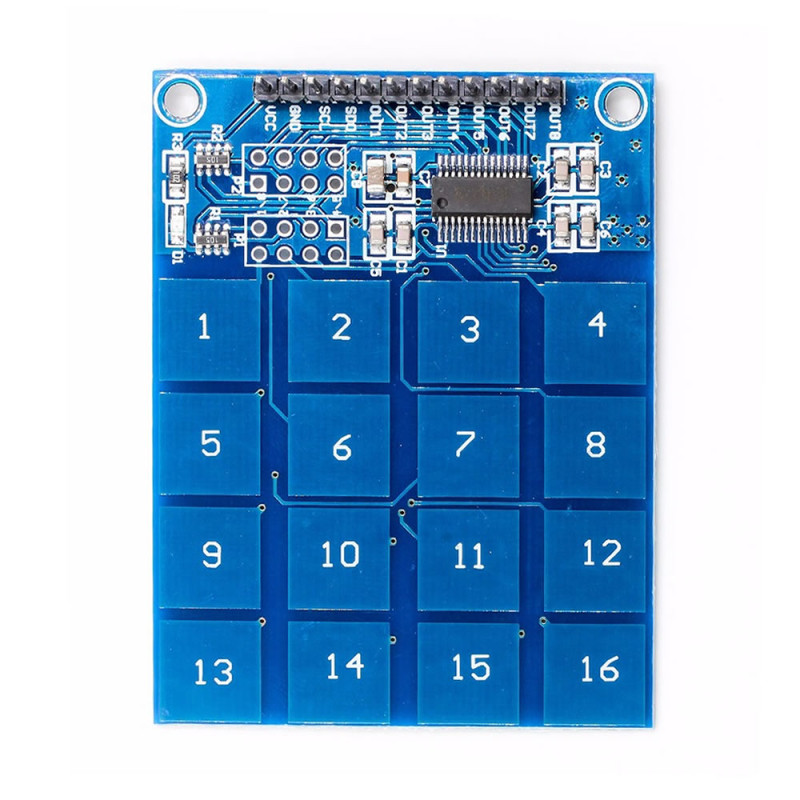

     This module is built with the TTP229 capacitive touch IC. There are 16 touch buttons in a 4x4 layout on the board. Numbers from 1 to 16 are printed on each button. It communicates digitally over IIC. It allows you to add touch buttons to your electronic projects. By assigning numbers or various functions to the buttons, you can obtain a data input sensor function.

     It can be used as an alternative to mechanical type keypads. It stands out for being more durable in dusty environments. When a capacitive load approaches the touch pad, the sensor detects the capacitance change and activates the switch. It can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric or even wood. This way you can hide this sensor in the wall, on the desktop and in other places and get rid of the problems caused by traditional button use.

     It can be used with Arduino or a microcontroller and allows you to easily add capacitive touch input to your project. It can also be used independently without a kit. It is an ideal option for providing touch control in your projects and it is easy to use. It can be used in HMI (Human Machine Interface) applications, mechanical button key replacement projects and other automation projects.

Features:

•     TTP229 16 button capacitive touch sensor IC
•     Detection type: Capacitive
•     Operating voltage: 2.4V - 5.5V
•     16 button pads
•     Communication: I2C / 8 button direct output
•     Response time: 60ms fast mode or 160ms low power mode
•     Power indicator led
•     Low power operation capability
•     Sensitive touch detection support

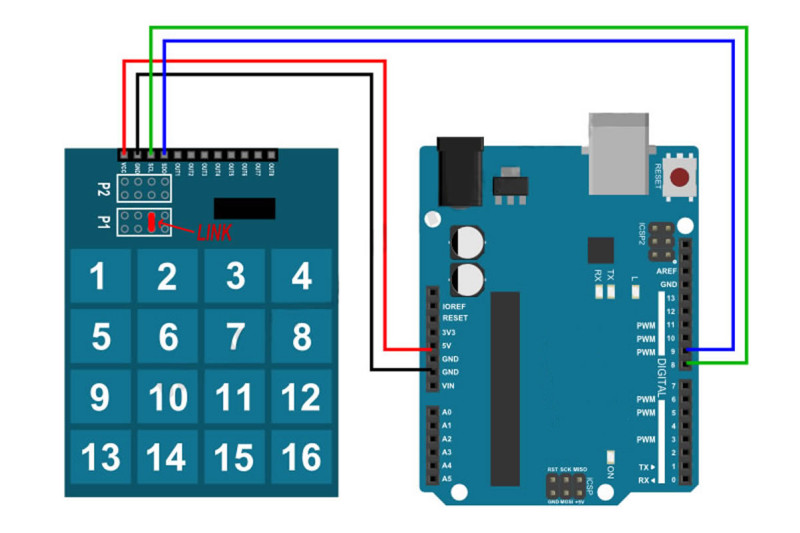

•     Can be used with a microcontroller or arduino
•     Can detect through non-conductive materials.( Thin glass, plastic, fabric, wood etc. )
•     8 direct button outputs
•     Color: Blue
•     Operating temperature:  -20C  /  +85C
•     2 mounting holes
•     12 pin male header connection socket

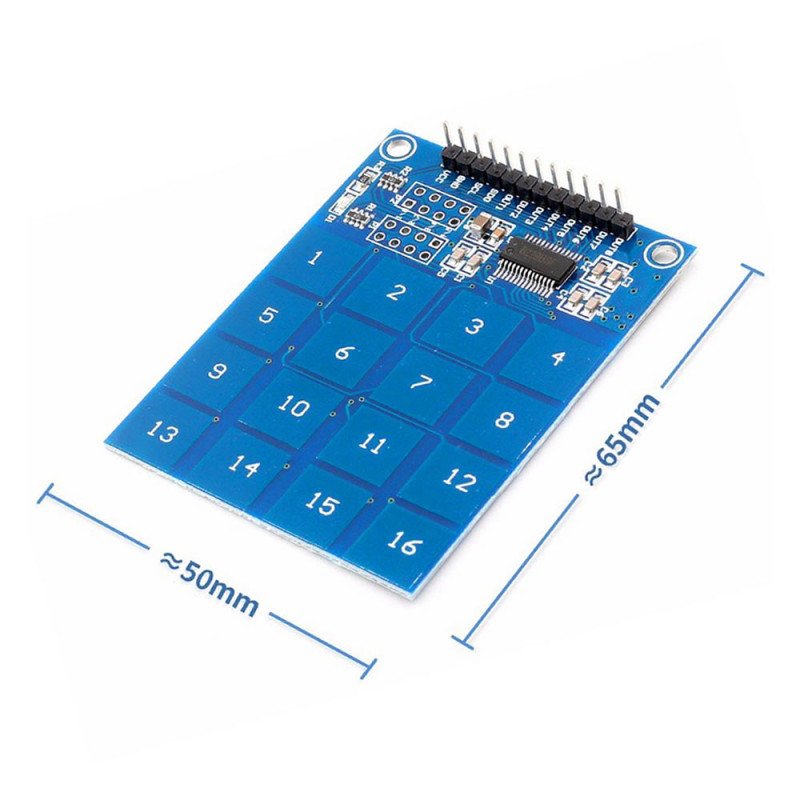

•     Dimensions: 50mm x 65mm
•     Weight:   13gr

Package Contents:

•      1 pcs TTP229 16 Button Touch Sensor Module

.
