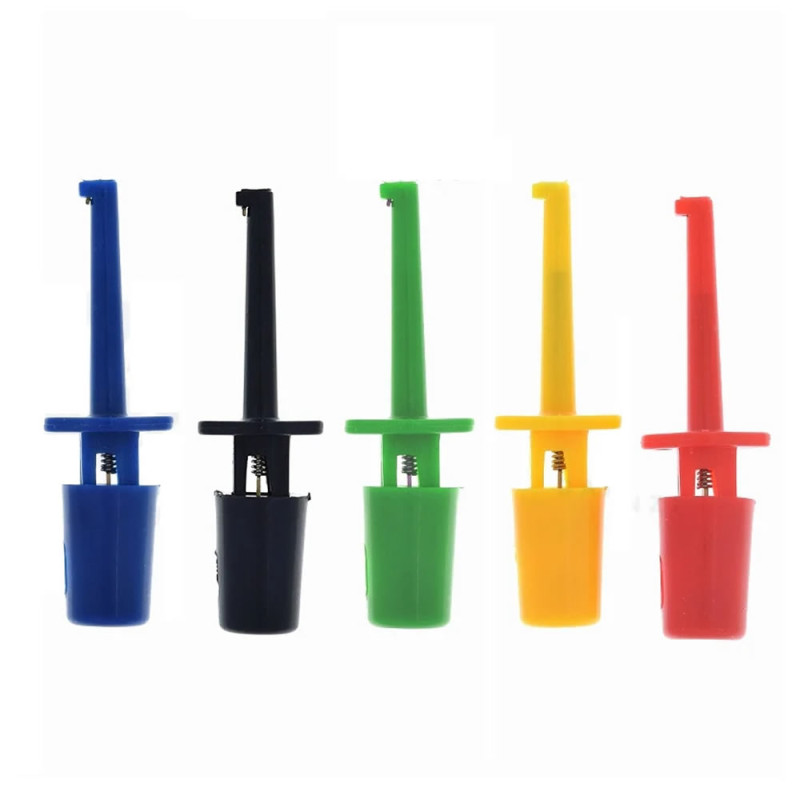

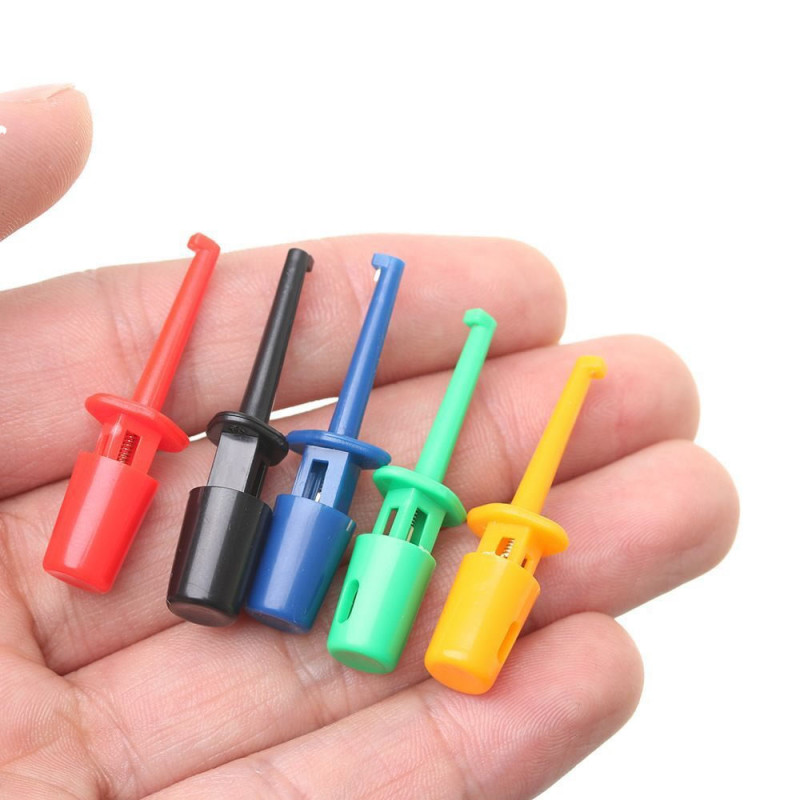

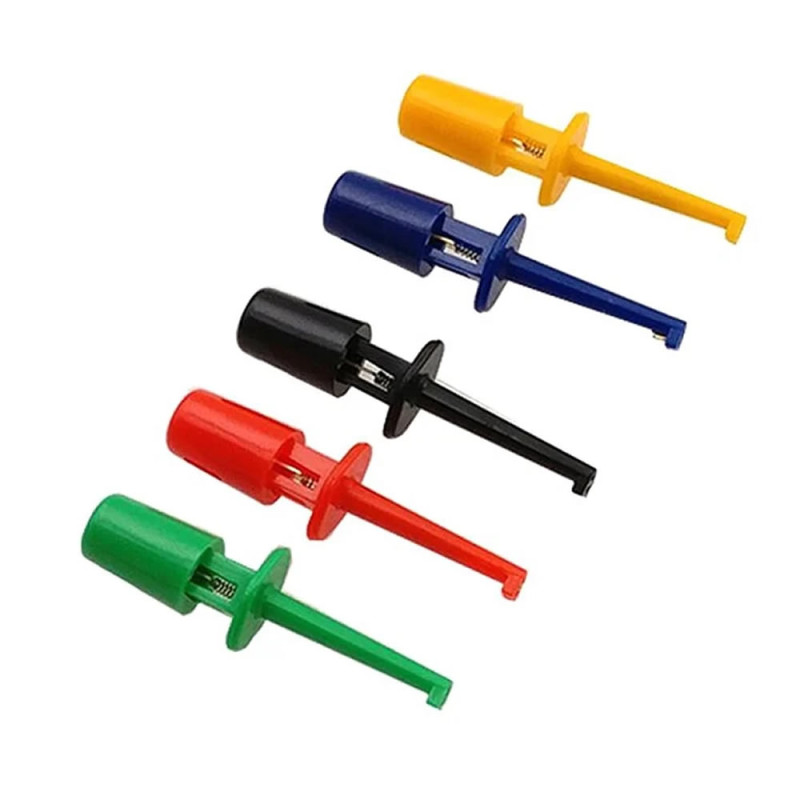

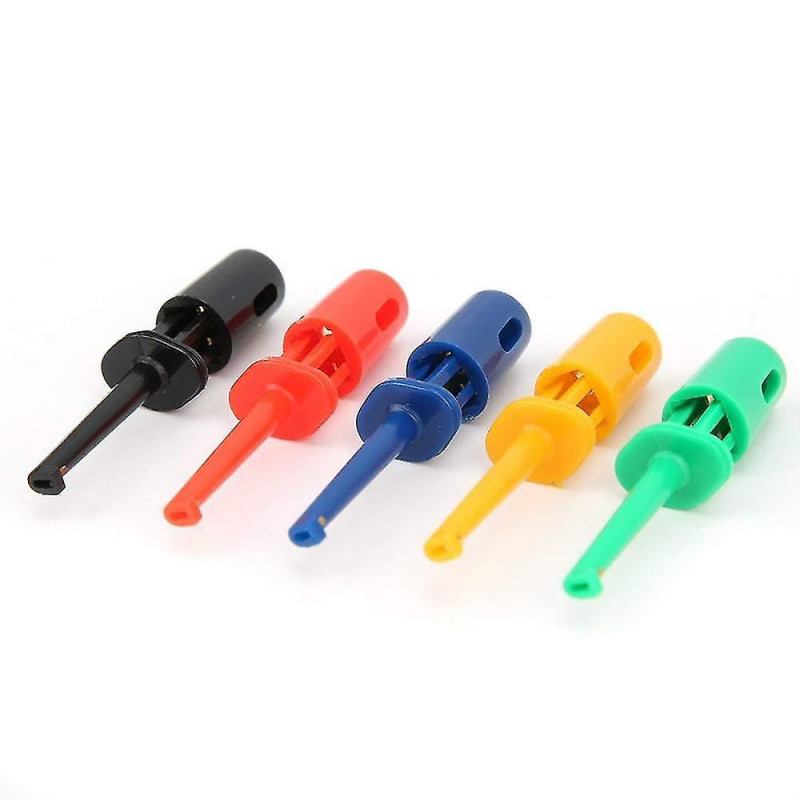

5 Pieces Hook Type Test Measurement Socket
Mini Solderless Holder Grabber Clip Spring Connector Logic Analyzer Oscilloscope Multimeter Signal Generator Power Supply

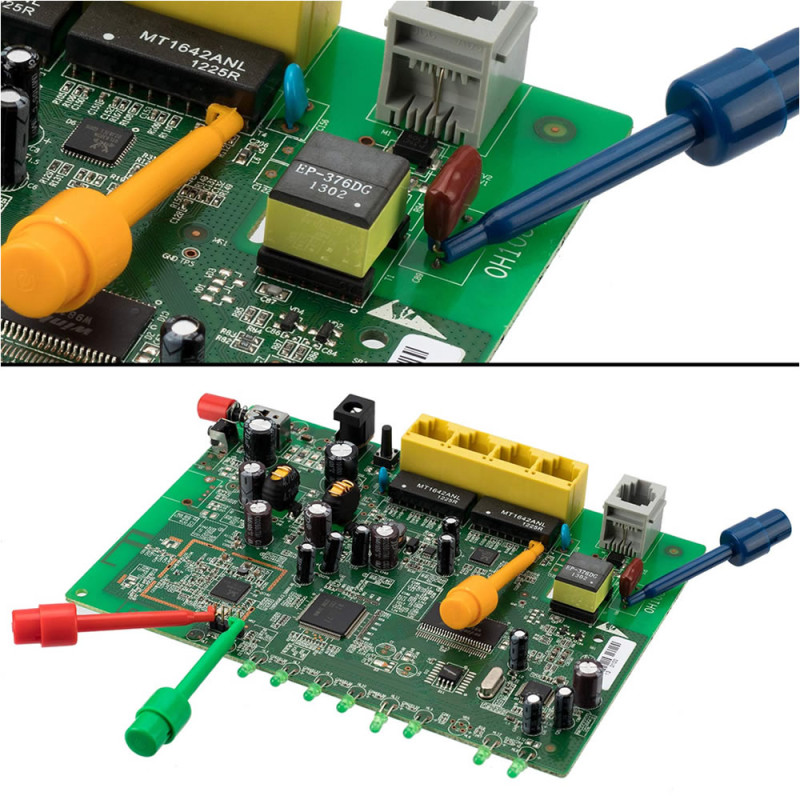

These are hook type socket probes used with devices such as logic analyzers, signal generators and oscilloscopes. They are easily attached to empty pads, pins, headers and similar points on electronic circuits. Signals can be monitored easily without effort during the measurement process. Thanks to the protected socket structure, the possibility of a short circuit is also greatly reduced.

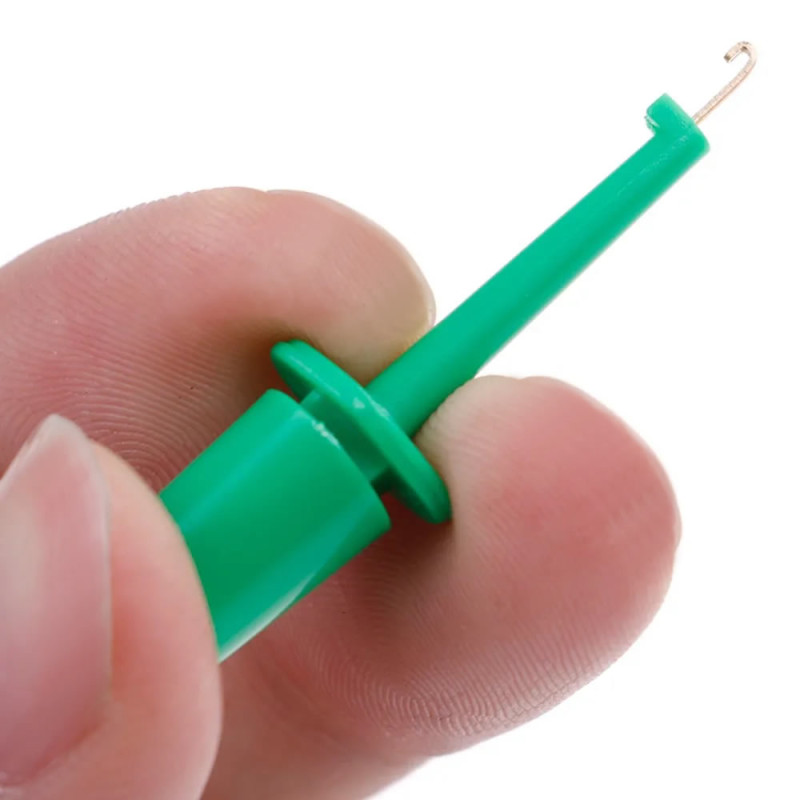

The hook is pushed out by moving the spring mechanism. After it is attached to a suitable point, the target is held tightly when the plastic part is released. It provides a solid connection without soldering. With their secure holding structure, they are perfect tools for testing all kinds of electronic devices. While being used with power supplies and signal generators, they also allow you to perform operations such as transferring signals and supply voltage.

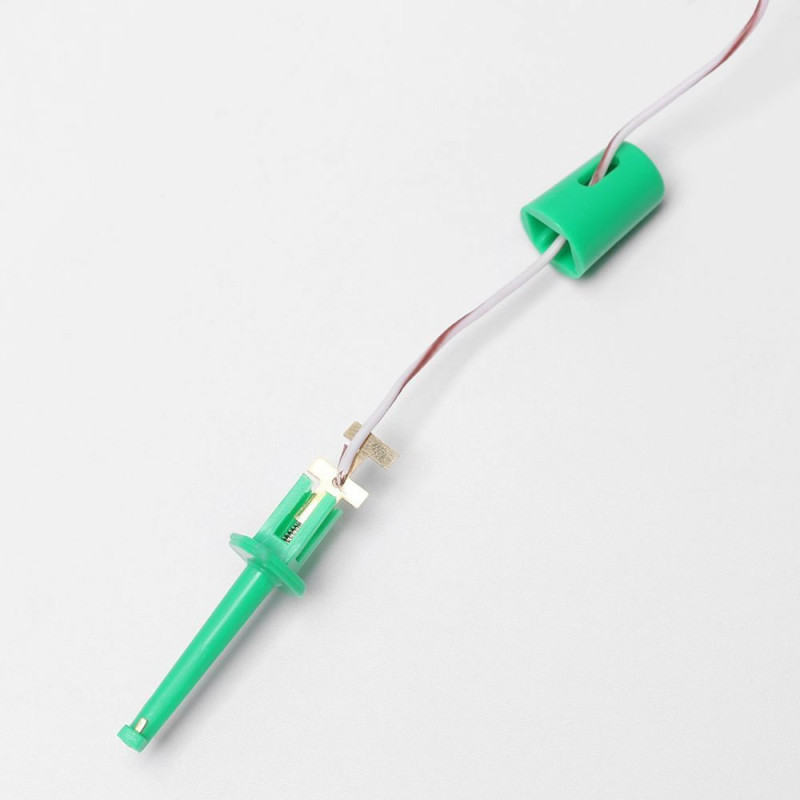

A suitable cable is passed through the plastic body and soldered to the metal part inside the socket. After the metal part is placed crosswise into the socket, the other plastic part is turned and joined so that it fits the rectangular structure.
Features:
- Hook type test probe
- Voltage: DC 30V
- Current: 1A
- Impedance: 50 Ohm
- Insulation: Plastic coating
- Strong spring mechanism
- Mixed color option
- Material: Plastic / Metal
- Dupont cable structure. ( cable is replaceable )
- Operating temperature: -10C / 70C

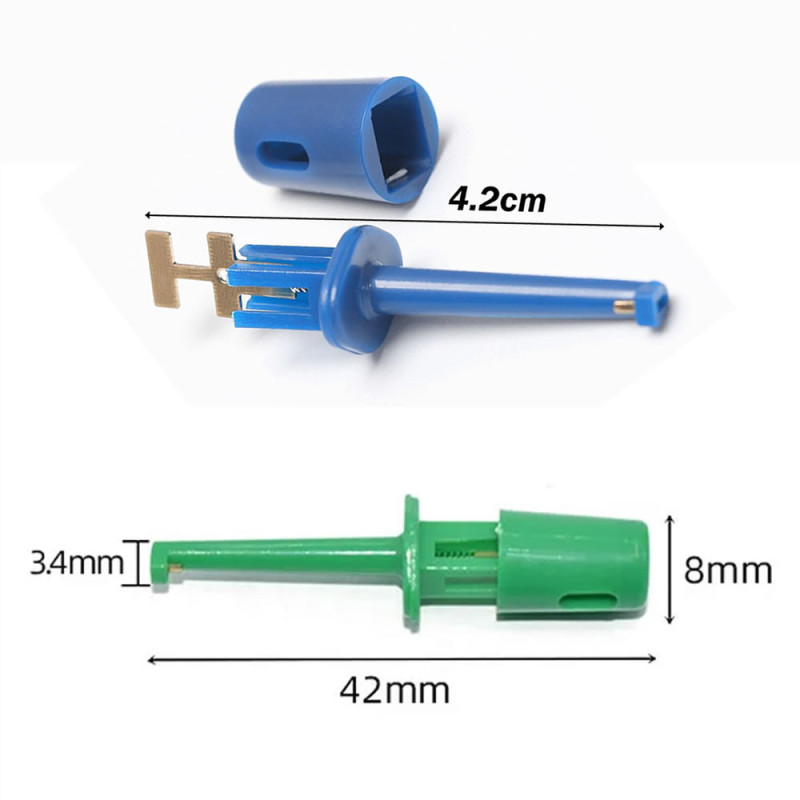

- Body dimensions: 8mm x 42mm
- Weight: 5gr
Package Contents:
- 5 Pieces Hook Type Test Socket
.
