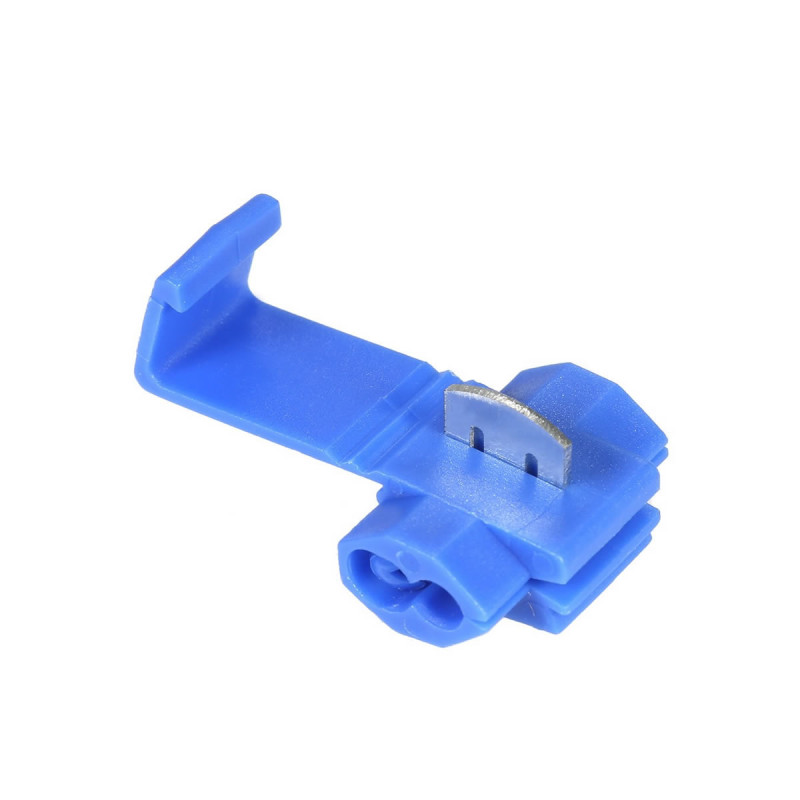

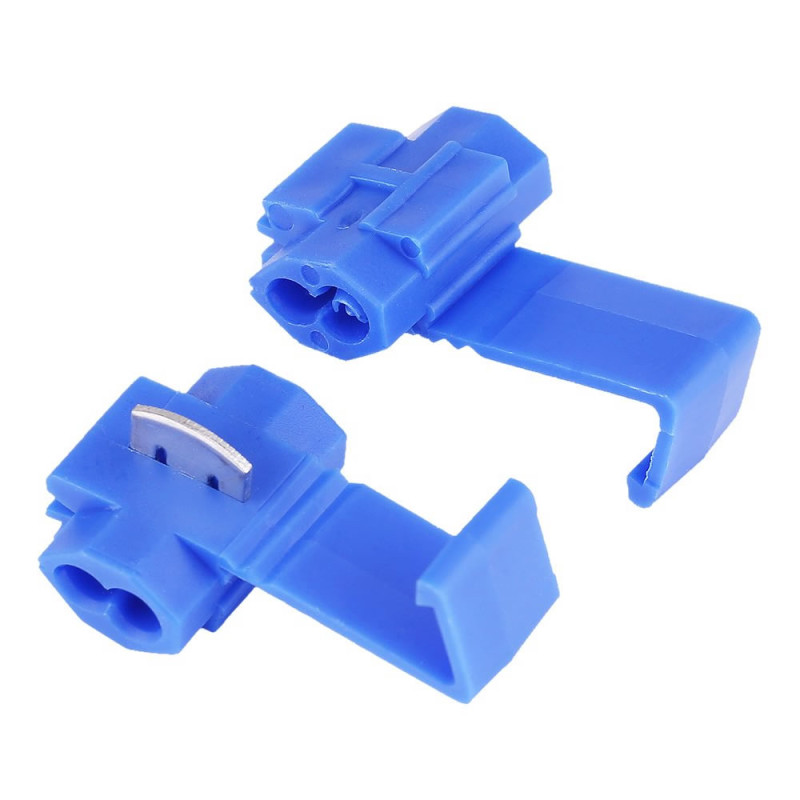

Locking Scotch Wire Connector Blue

Locking Scotch Wire Connector Blue Connector Screwless Terminal Block

Quick Wire Splicing Connection Apparatus

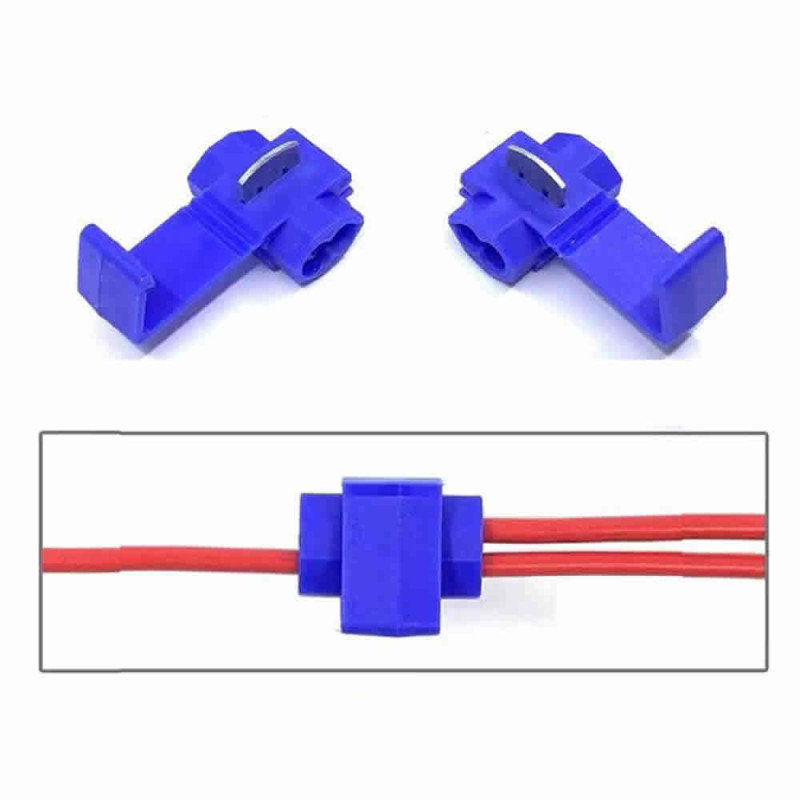

     It allows 2 metal wires to be joined without any operation such as soldering or screwing. 2 separate wires can be joined easily. You can join flexible wires with thicknesses between 0,1mm and 2.5mm.  It lets you carry out the arrangement of wires and the elimination of clutter in a very short time.

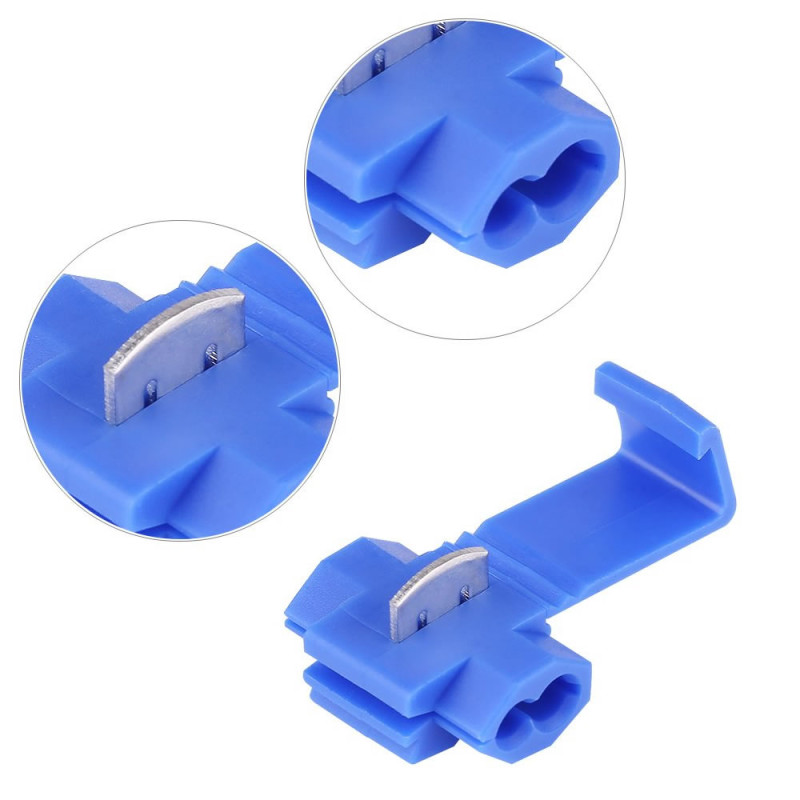

     It is suitable for use with flexible wires. It cannot be used with rigid wires. It can be used with simple tools such as pliers and long nose pliers. It does not require operations such as wire stripping. It is made of sturdy unbreakable plastic.  It can withstand 105 C temperature. The brass metal part has high current carrying capacity and easily joins 2 wires. There is a locking plastic protective part that covers the top of the socket. After the wires are joined, it is closed from the top and protects against dangers such as short circuit.

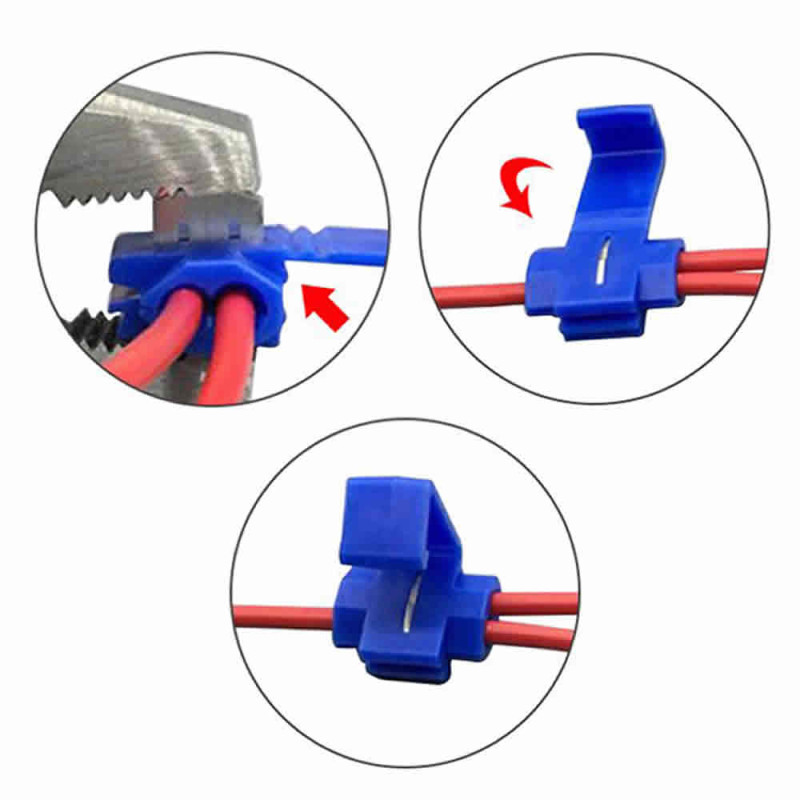

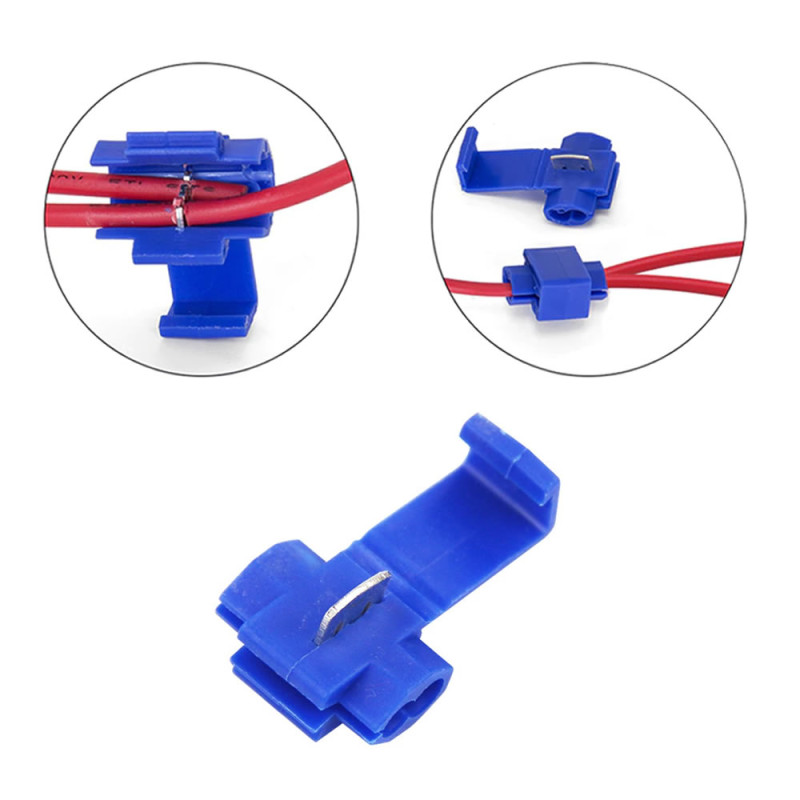

     While holding the socket steady, the wire is passed through the groove in the inner part. After the wire to be spliced is passed through the outer groove, the metal part is pressed with the help of pliers. The tightness of the wires is checked. The protective plastic is used by locking it. You can watch how easy it is in the youtube video below.

Features:

• Wire thickness: 0.5-1.0mm2 / 22-18 awg
• Current capacity: 10A
• Material: Plastic Metal
• Plastic locking protective part for safety
• Maximum operating temperature: 105 C
• Color: Red, Blue

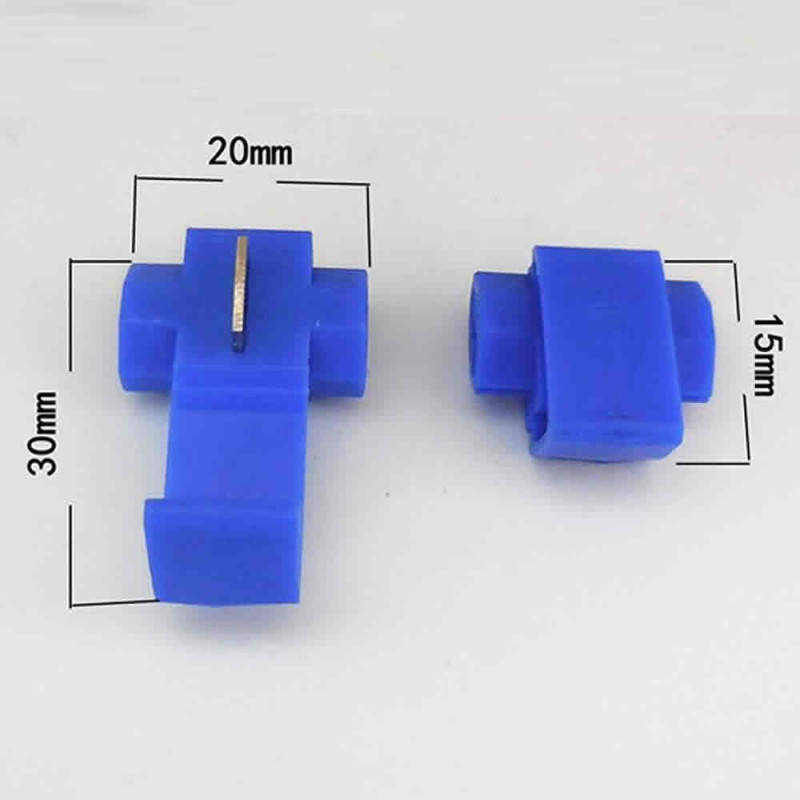

• Dimensions: 27mm x 20mm

Package contents:

• 1 pcs Locking Scotch Wire Connector
