- Stok Durumu: Stok Var
- Marka: OEM
- Model: LM2587 Modül
- SKU: RBZ.100.136
LM2587 Adjustable Voltage Booster Module 40V 5A
Step Up Boost Module
The terminal on the right is the voltage input terminal. Do not reverse the IN+ and GND connection.

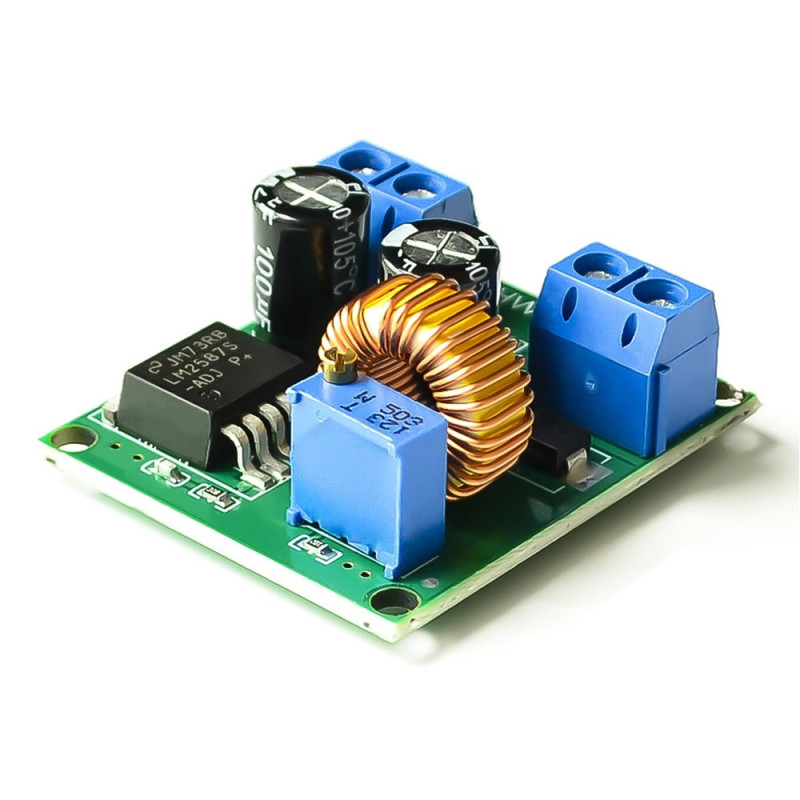

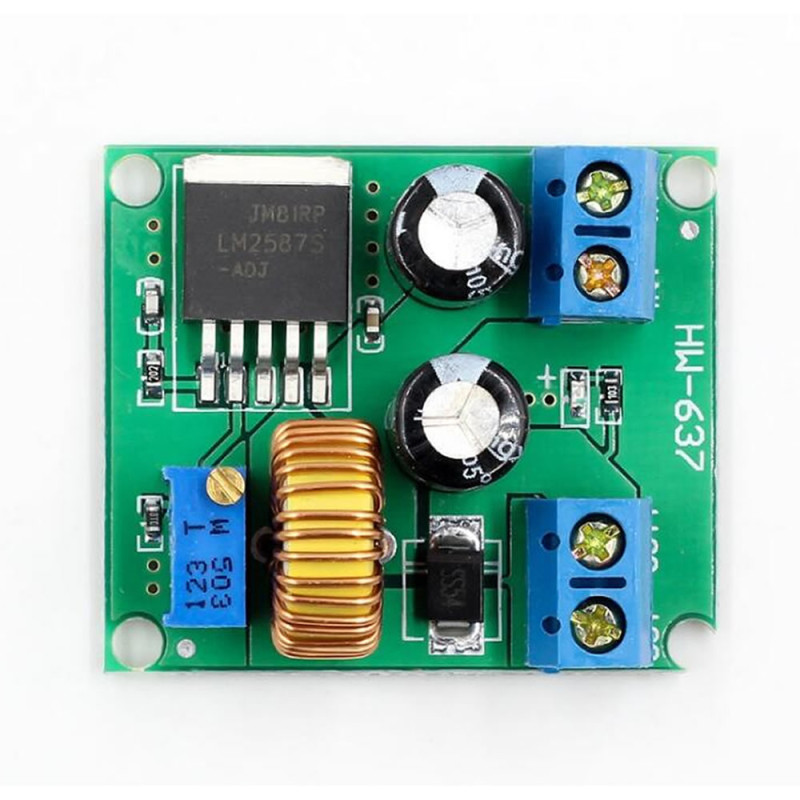

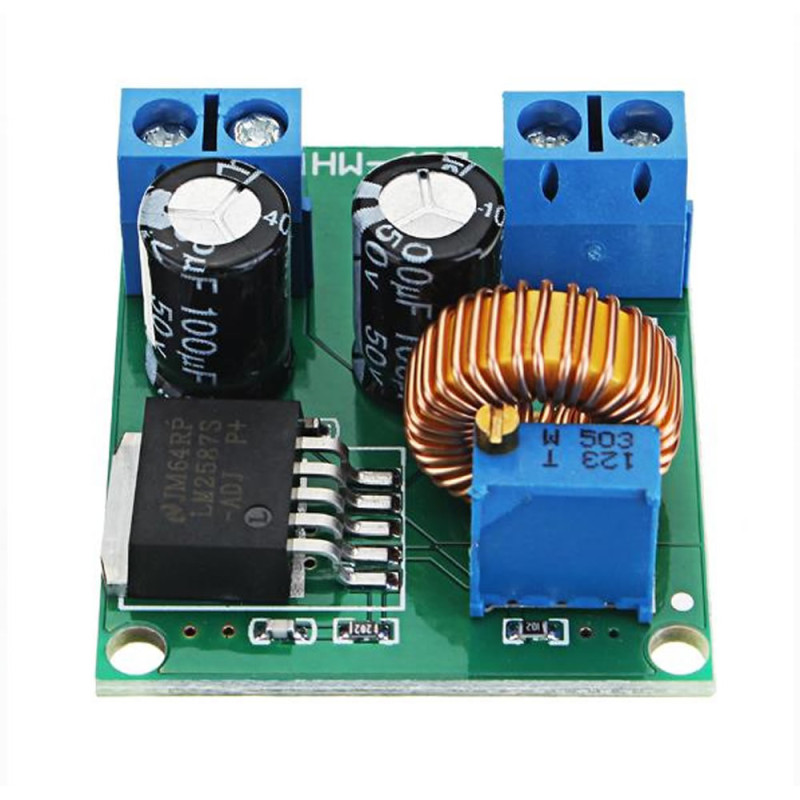

On the DC-DC step-up voltage regulator board there is the LM2587 integrated circuit, which is a switching voltage regulator. Current up to 5A can be drawn through the regulator.
The input voltage is between 3-35V. According to the value of the voltage applied in this range, an output voltage between 4-40V can be obtained by making use of the trimpot on the board. This voltage regulator board, which has very easy use and high performance, gives you the possibility to adjust your input voltages in many of your hobby and robotic projects.

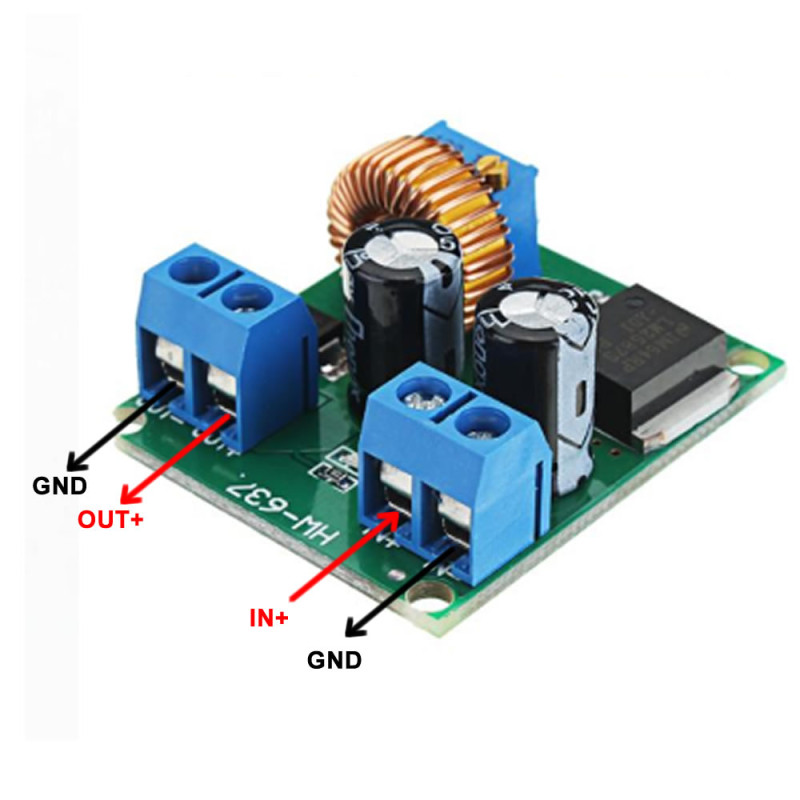

On the regulator board there are terminal inputs for the connection of input and output voltages. You can use it by connecting the cables without soldering. The connections are shown in picture number 2.

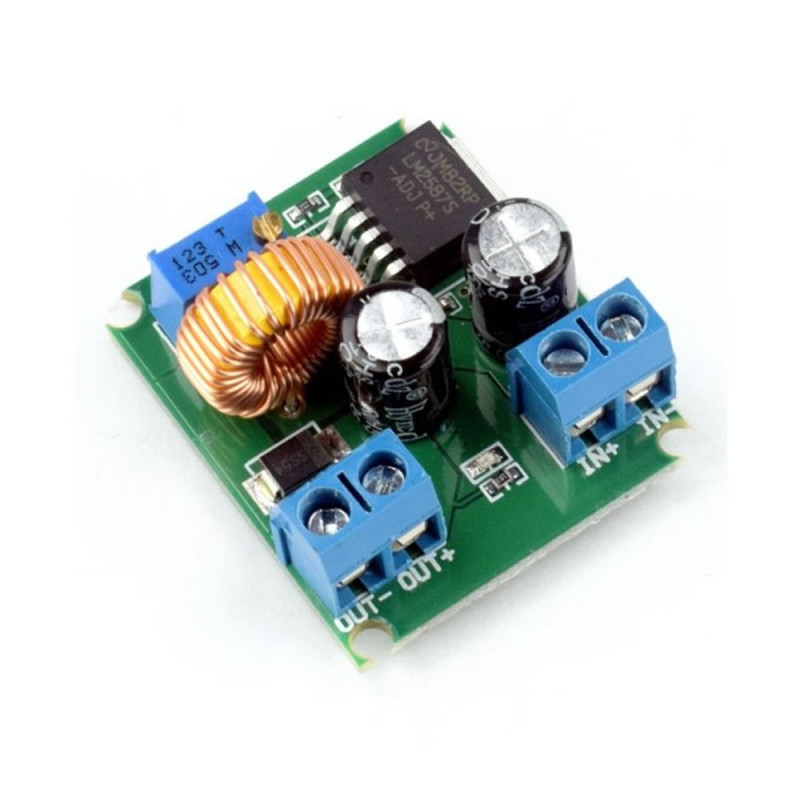

In applications made with the board, the output voltage always has to be higher than the input voltage. IN+ located on the board is the positive supply input, IN- is ground, OUT+ is the positive output voltage, and OUT- is the ground output.
Features:
- LM2587 boost module
- Input voltage: DC 3V-35V
- Output voltage: DC 4V-40V adjustable. ( Do not increase higher than 40V. The product will be damaged. )
- Output current: 3A
- Power: 80w maximum
- Efficiency 94%
- Operating temperature : -20C / 80C
- 2 pieces 2 pin terminal input output socket
- Color: green

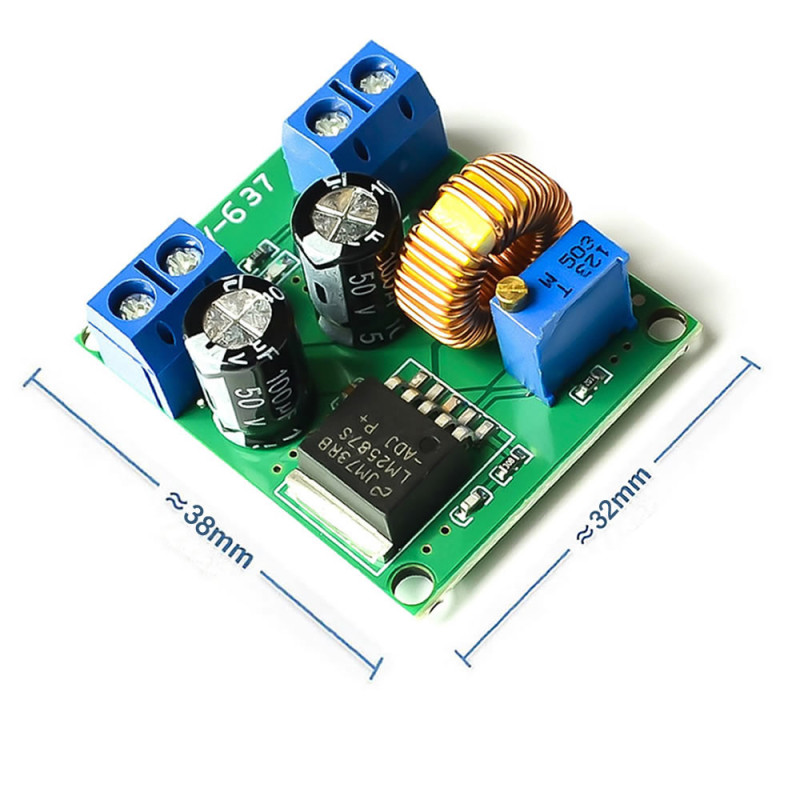

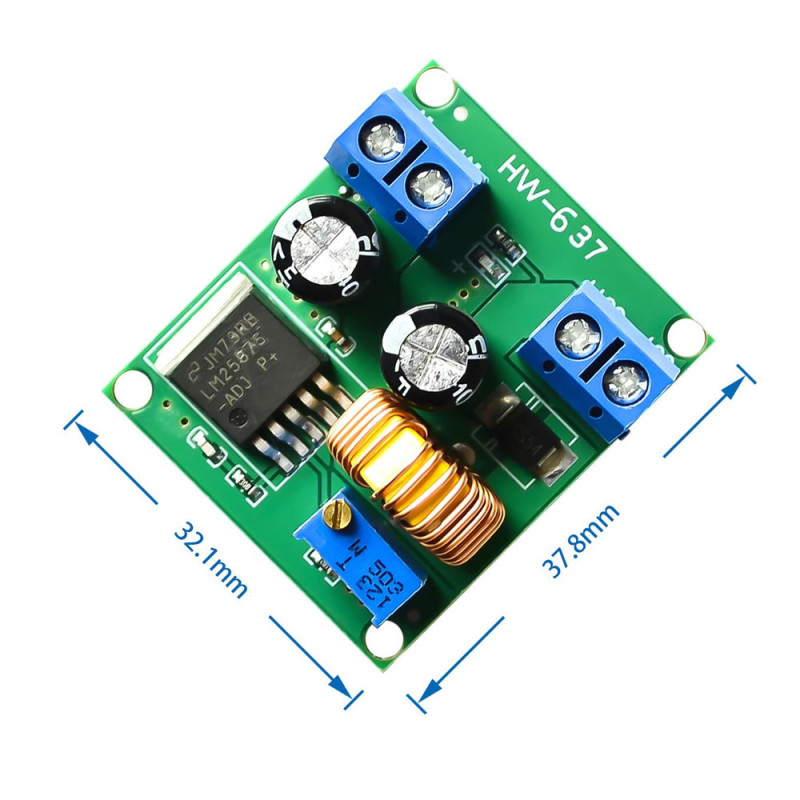

- Dimensions: 38mm x 32mm x 16mm
- Weight: 32gr
Pot Usage:
- Pots are multi turn. They can turn 20-30 turns in both directions. Generally, by turning it very little, the mistake that the products do not work can be made. It is necessary to turn a lot to see the effect.
- Turning clockwise; increases the value for the relevant parameter. For example the voltage increases.
- Turning counterclockwise; decreases the value for the relevant parameter. For example the voltage drops.
Package Contents:
- 1 piece LM2587 Voltage Booster Module
