Multifunction Arduino Shield

Multi Multifunction Arduino Shield

7 Segment Buzer Button Pot Servo Analog Ds18b20 Lm35 Servo Led Uno Mega Leonardo

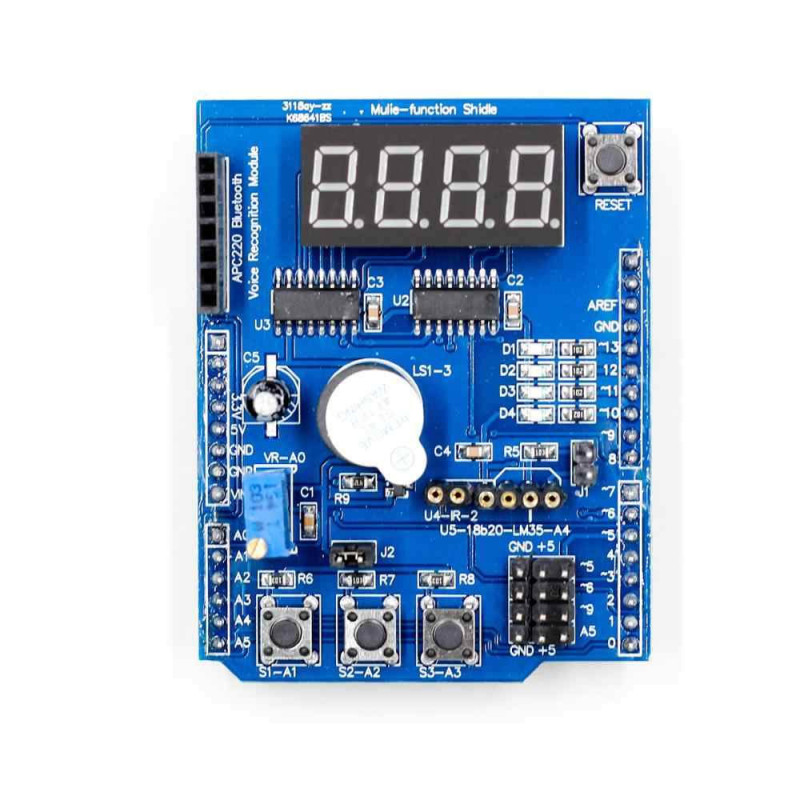

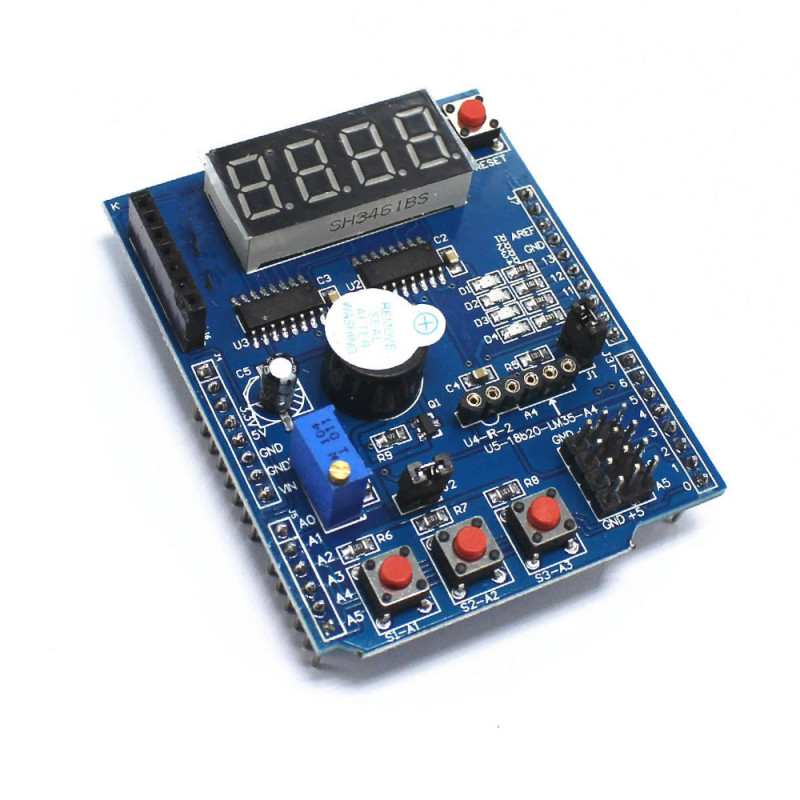

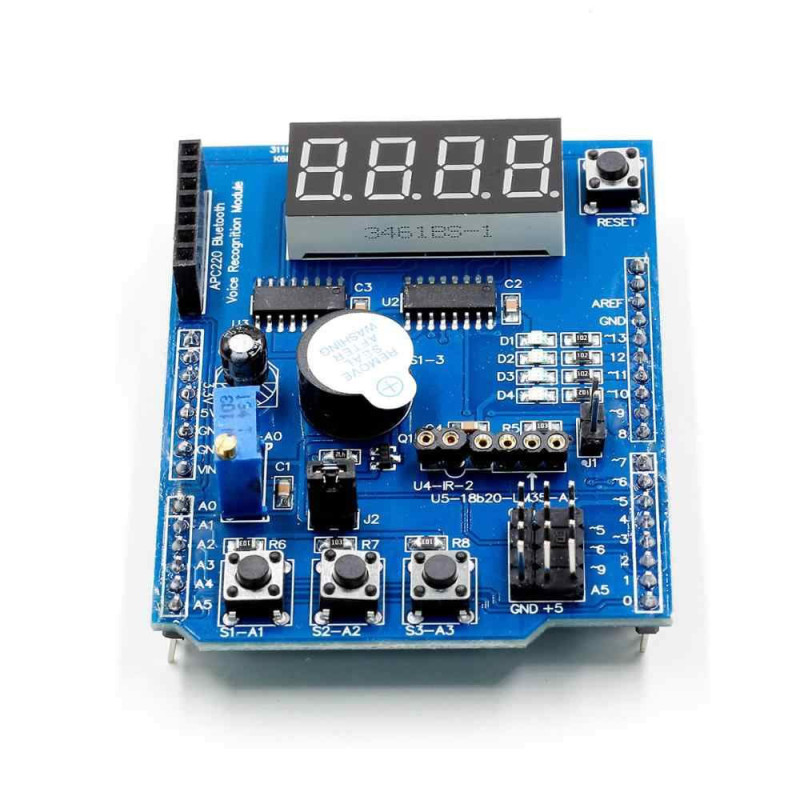

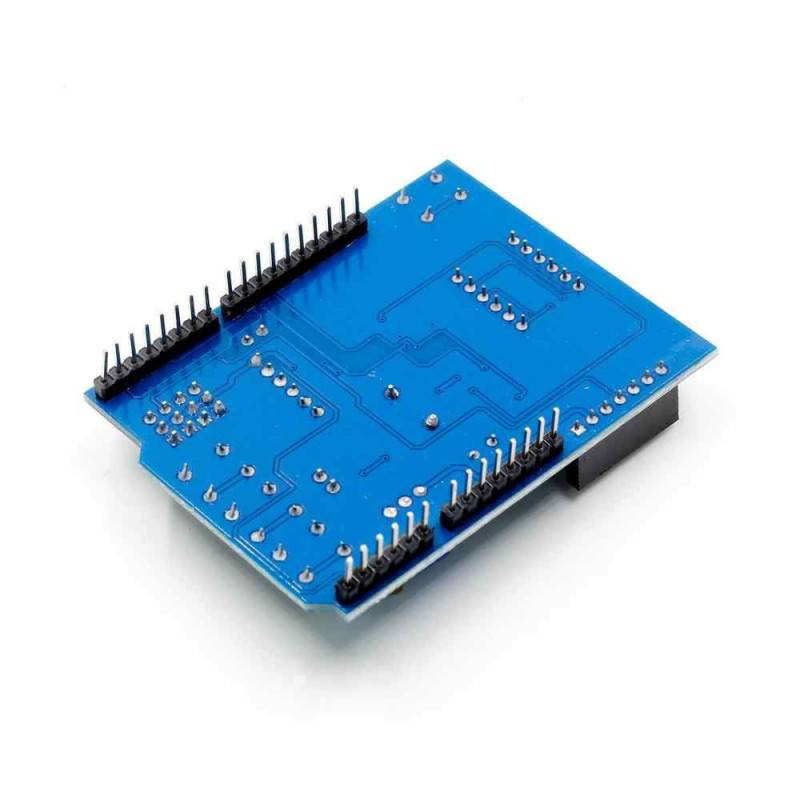

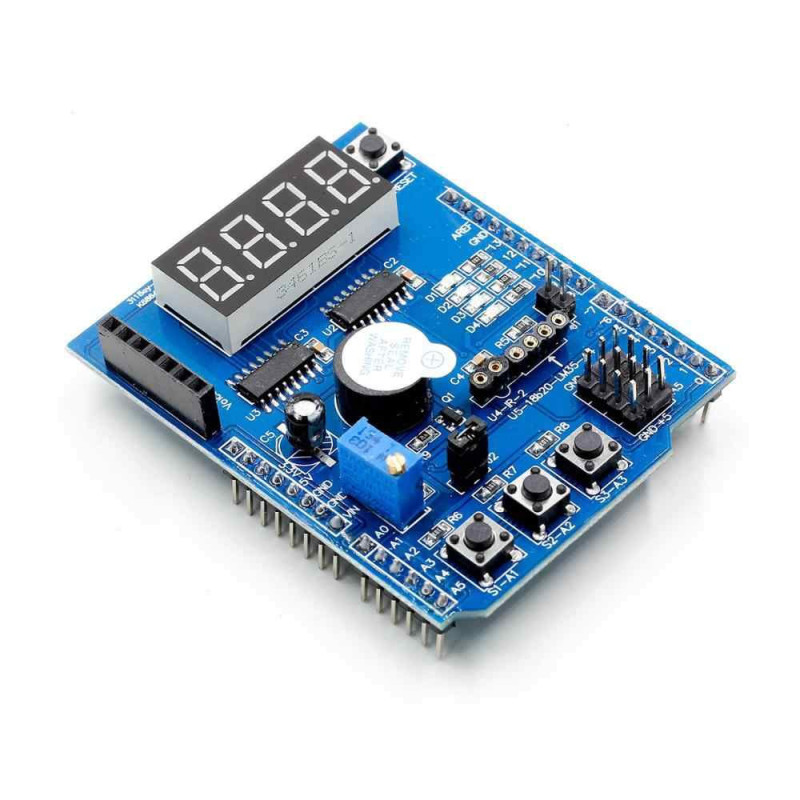

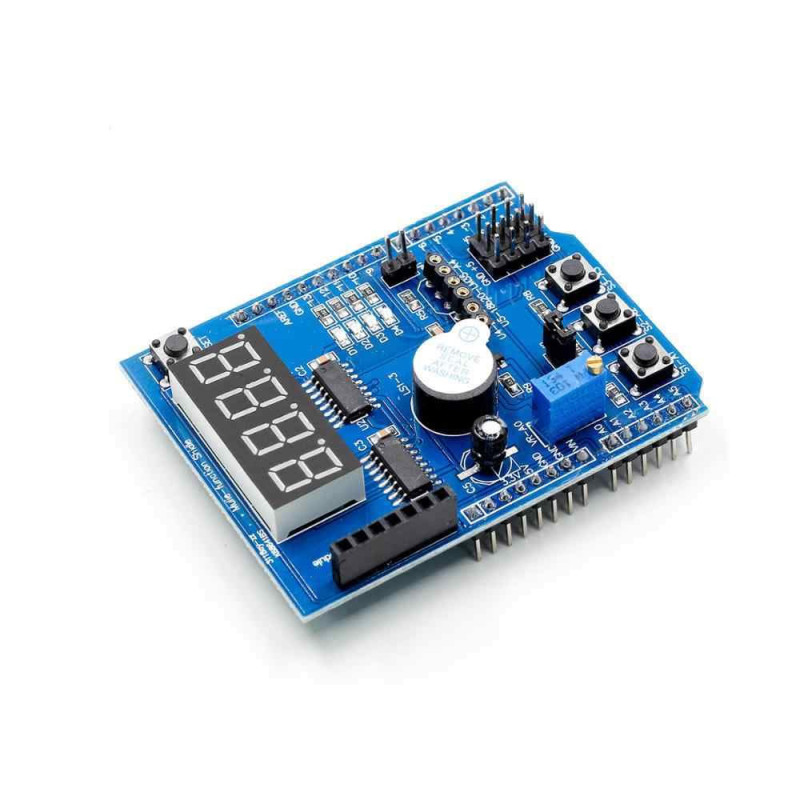

       It is compatible with Arduino Uno, Mega, Leonardo models. It gathers many functions on a single board. There are ds1820 and lm35 pin headers for temperature measurement. With 4 led indicators you can produce various indicator signs. You can use the 3 buttons as an input source for applications. There are in headers to which various sensors can be connected. There is 1 buzzer circuit to provide sound output. It includes a 4 digit 7 segment circuit for the display that will be needed while doing these applications. Thanks to all these hardware and expansion headers, you will have the opportunity to realize many applications very quickly without using additional circuits.


Features:

•      Arduino UNO, Leonardo, Mega compatible
•      4 digit 7 segment (driven with 74HC595 over SPI )
•      1 pcs buzzer circuit ( For various sound, alarm, melody playing etc. applications)
•      4 pcs smd led
•      3 pcs button
•      1 pcs reset button
•      Precision multi turn 10k pot. For analog voltage measurement applications.
•      Connection header for Apc220 Bluetooth voice recognition module.
•      Connection header for DS18B20 temperature sensor.
•      Connection header for LM35 temperature sensor.
•      Infrared receiver connection (for remote control applications)
•      Connection header for servo applications
•      4 pcs header connections connected to digital 5, 6, 9 and analog 5 pins for easy connection to various sensors

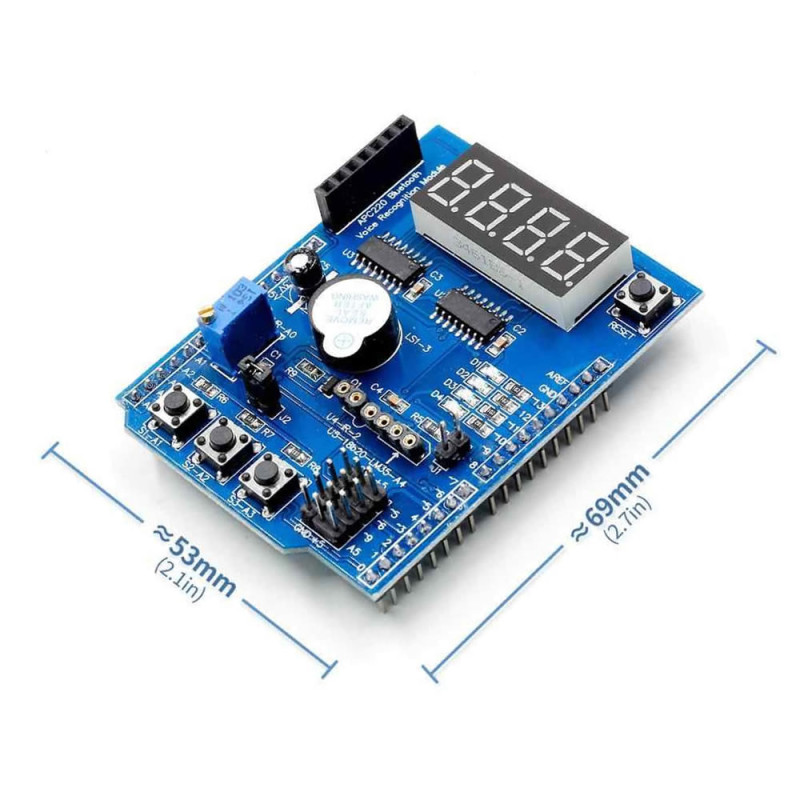

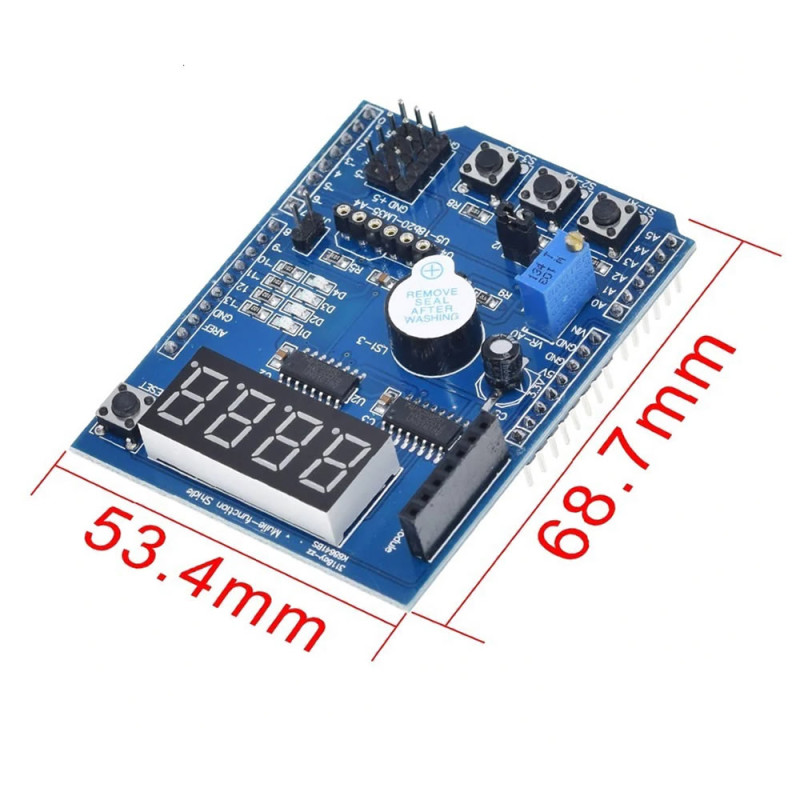

•      Dimensions: 69 x 54 x 11 (mm)
•      Weight: 27gr

Package Contents :

•     1 pcs Multifunction Arduino Shield
