Lsm6ds3 Accelerometer Sensor Module

Lsm6ds3 Accelerometer Gyroscope Sensor Module

6 Axis 16 Bit Adc I2c Spi ±16g ±2000dps Direction Position Rotation Tilt Motion Detector Robot Drone Phone Step Counting Vibration

     The LSM6DS3 is an advanced IMU (Inertial Measurement Unit) module that combines a high performance 3-axis digital accelerometer and a 3-axis digital gyroscope on a single chip and can process data coming from other sensors in the system.

     This sensor, produced with Stm company's mems technology, is an excellent solution especially for motion detection, vibration measurement, balancing robots and drone projects. Thanks to the 8 kbyte internal FIFO buffer memory on the board, it can store data instead of sending it to the microcontroller (Arduino, ESP32 etc.) instantly; this allows your processor to stay in sleep mode, offering serious energy savings.

     Thanks to the SCX and SDX pins on the board, you can use this sensor as a "Sensor Hub", and by connecting an external magnetometer (compass) directly to this board you can transfer the data to the main processor over a single line.

Advantages:

•     High Precision: Low noise level and high stability.
•     Dual Interface: It supports both i2c and spi communication protocols.
•     Smart Features: Built-in step counter (pedometer), fall detection and wake-up functions are embedded in hardware.
•     FIFO Memory: Dynamic data storage that prevents data loss and increases system efficiency.

Features:

•     Chip LSM6DS3
•     Operating voltage:  DC  3.3V / 5V
•     Gyroscope measurement range: ±125,±250,±500,±1000,±2000 dps (degrees/second)
•     Measurement range: ±2g / ±4g / ±8g / ±16g (Selectable)
•     FIFO memory:  8kB
•     Adc:  16 Bit
•     Communication:  I2c / Spi
•     Internal FIFO buffer (for data storage)
•     Integrated temperature sensor
•     Low power consumption
•     Color:  Purple
•     Operating temperature:  -20C  /  65C
•     2  mounting holes

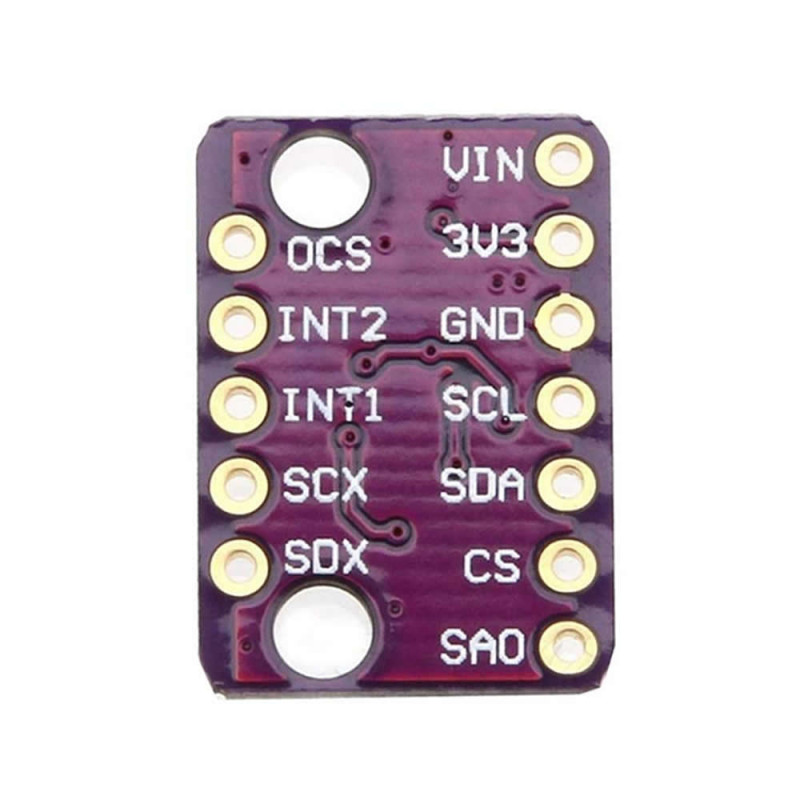

•     12 Pin connection male header socket

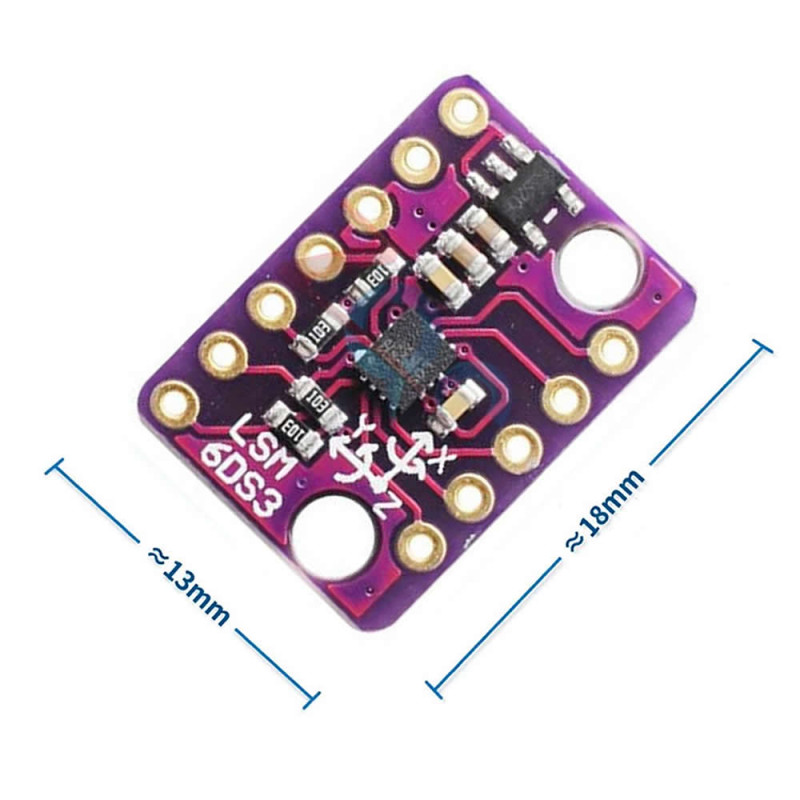

•     Dimensions:  13mm x 18mm
•     Weight: 1gr

•     VCC: Power input (3.3V - 5V)
•     GND: Ground pin
•     SDA/SDI: I2C data line / SPI data input
•     SCL/SCLK: I2C clock pin / SPI clock input
•     SDO/SA0: SPI data output / I2C address selection (LSB)
•     CS: Chip select (For SPI mode)
•     INT1 & INT2: Interrupt outputs (To wake the processor when motion is detected)

• Advanced robotic balance systems
• IMU applications
• Drone and stabilization systems
• Vibration measurement
• 3D motion detection
• Industrial control systems
• Arduino, STM32, ESP32 sensor projects
• Screen rotation detection in smart phones and tablets
• VR/AR (Virtual Reality) controllers
• Pedometer and activity tracking
• Vibration analysis and condition monitoring

Package contents:

•   1 Piece Lsm6ds3 Accelerometer Sensor Module

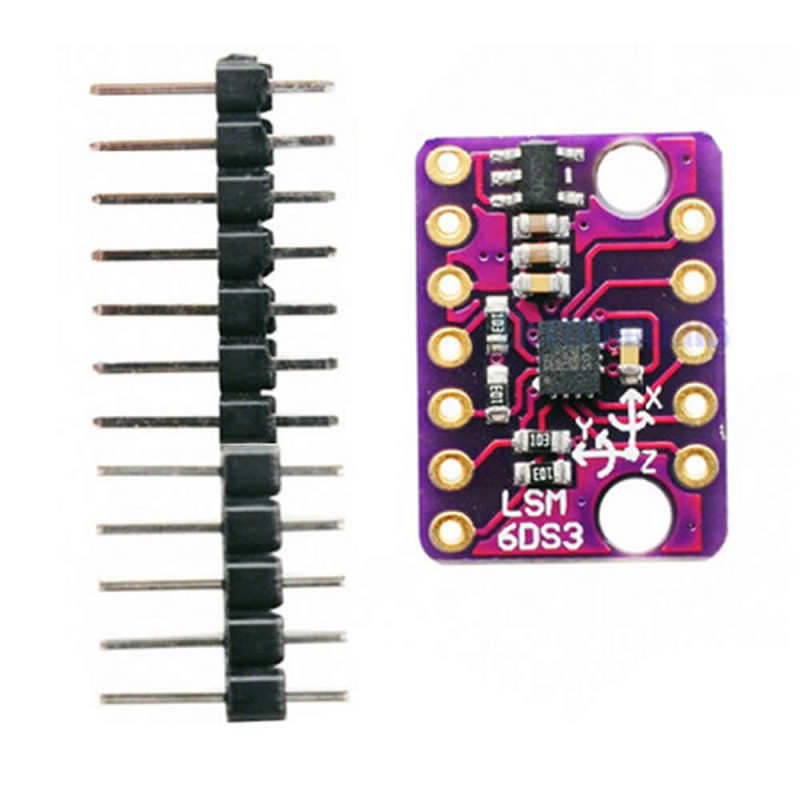

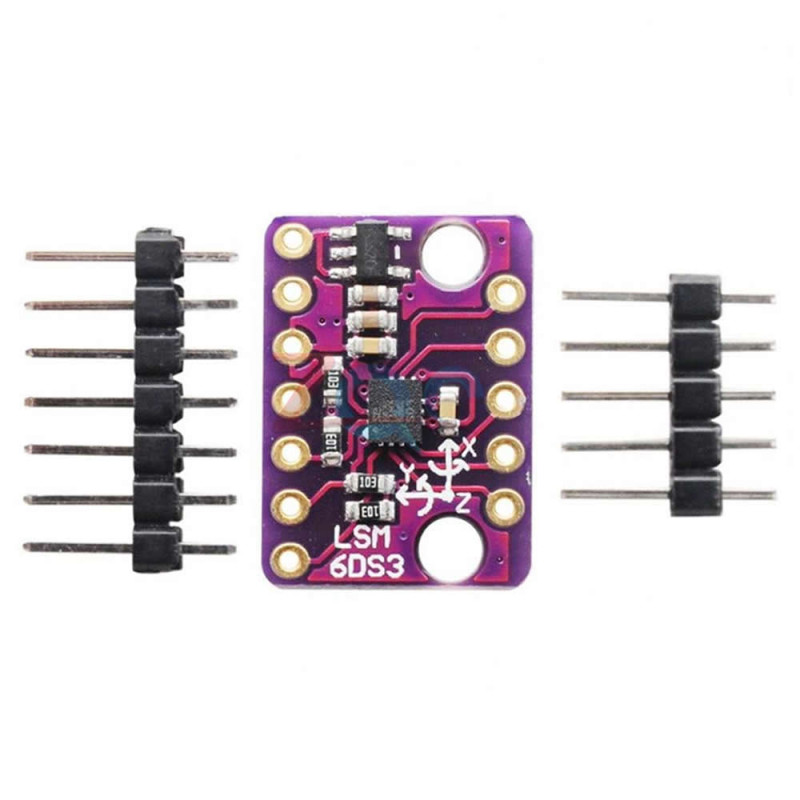

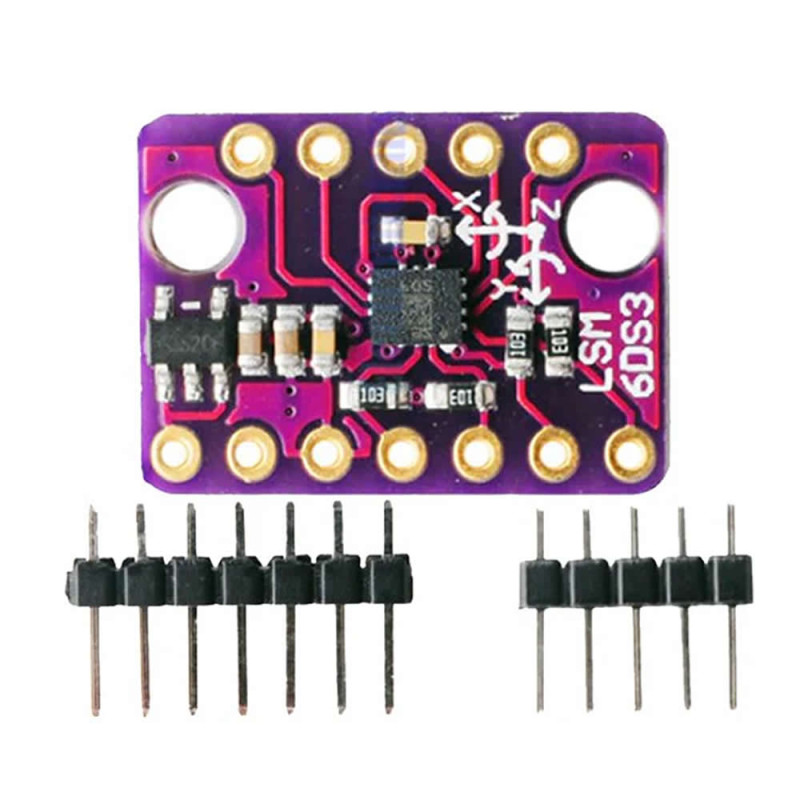

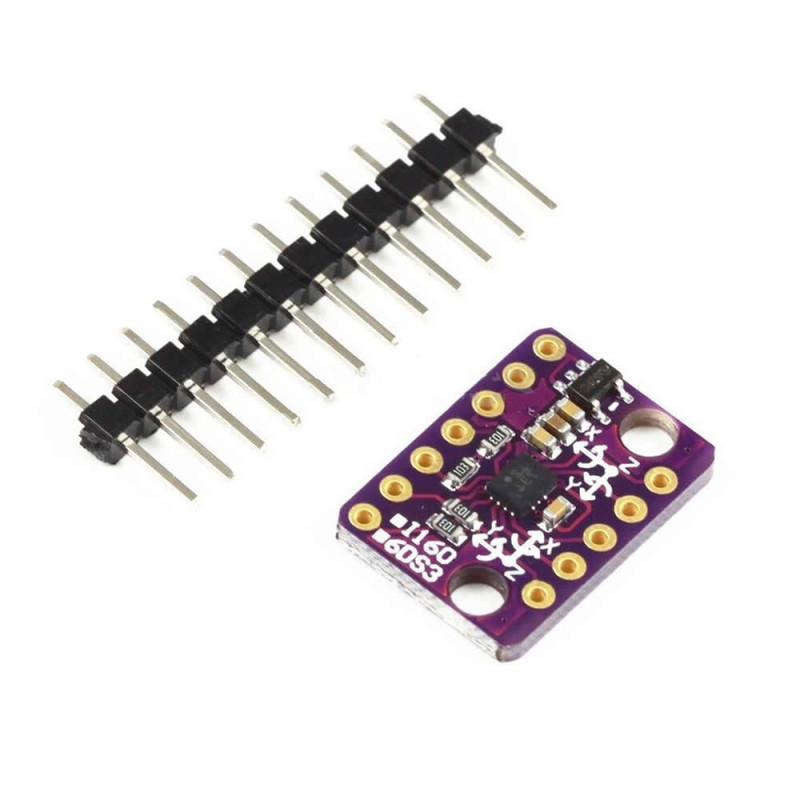

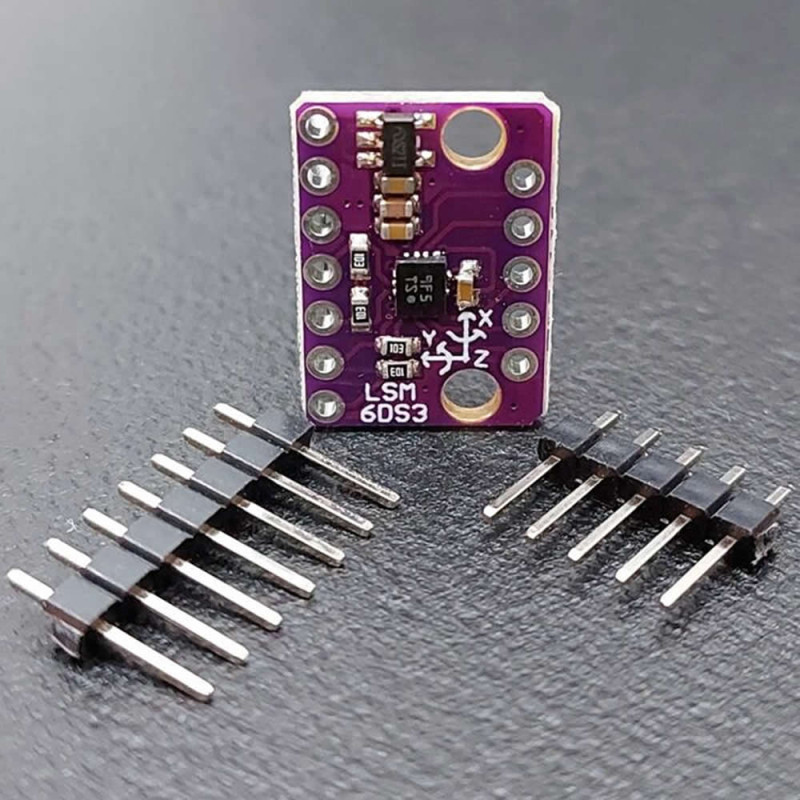

•   12 Pin Male header unsoldered
