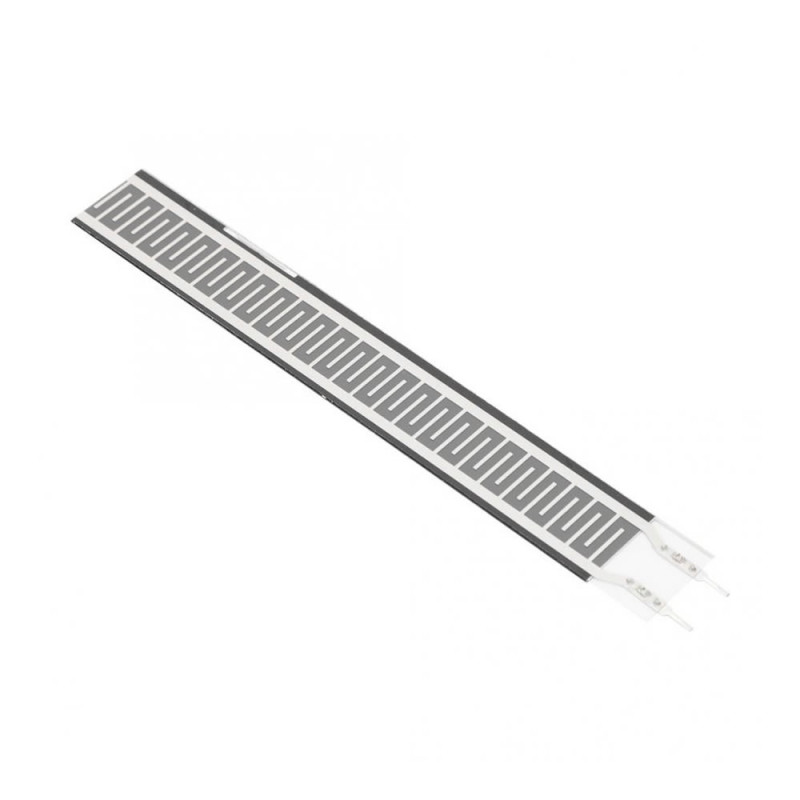

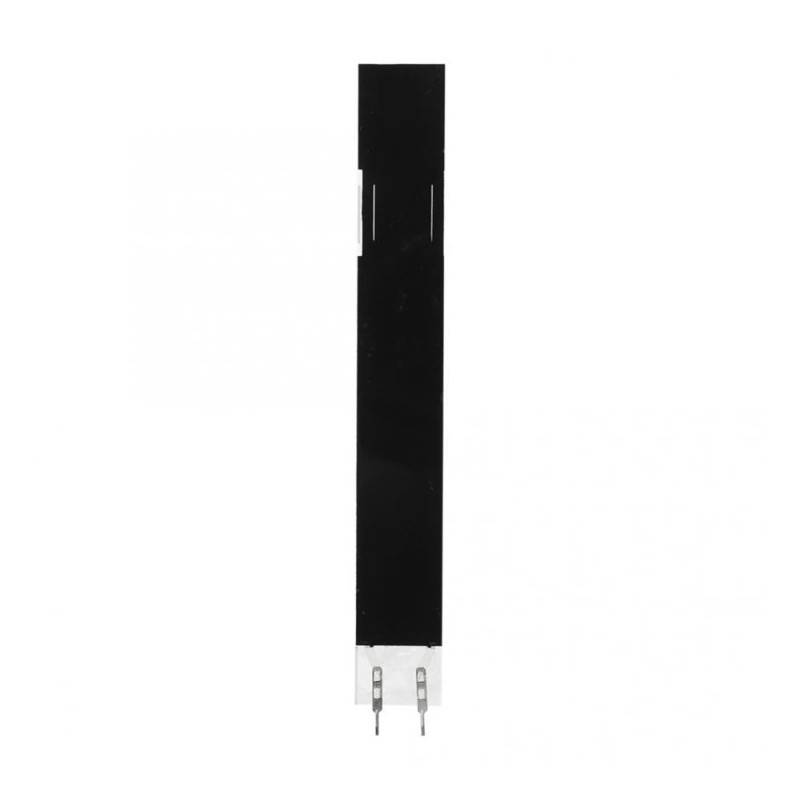

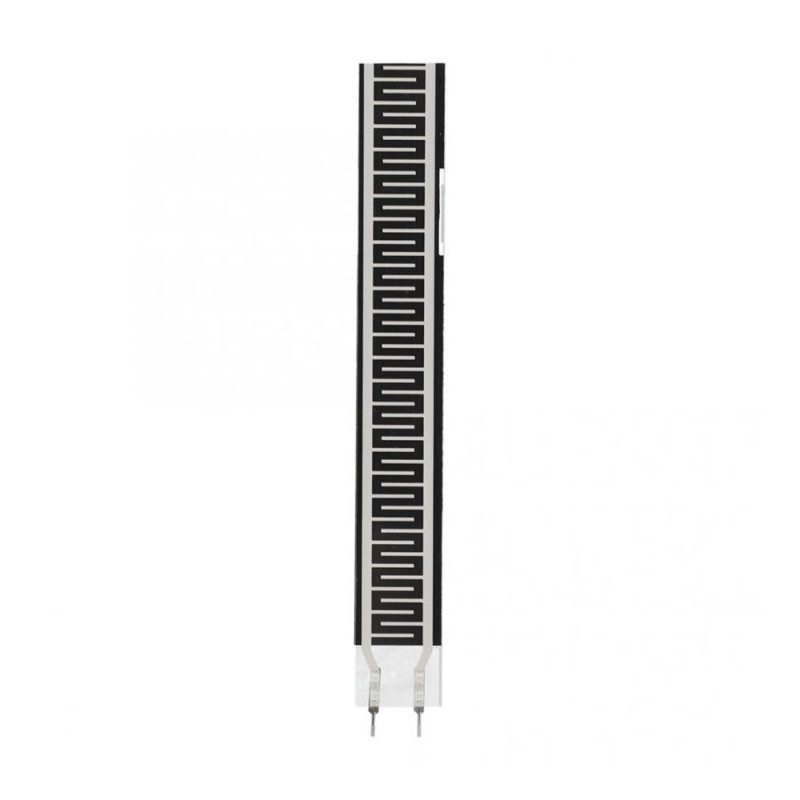

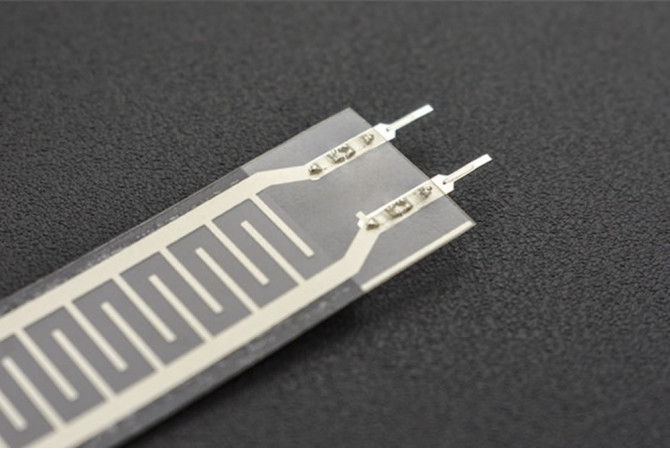

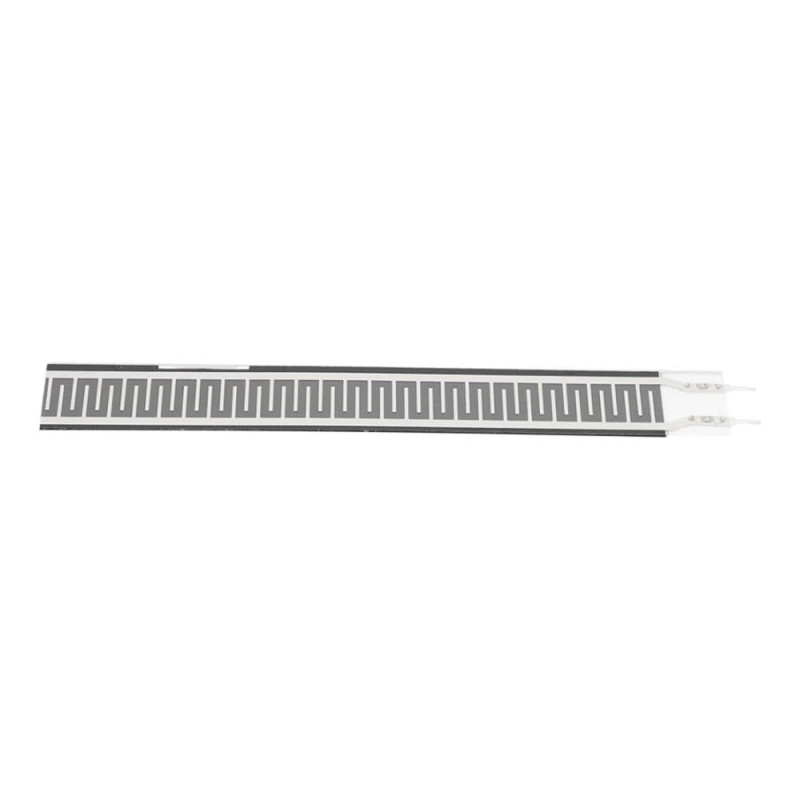

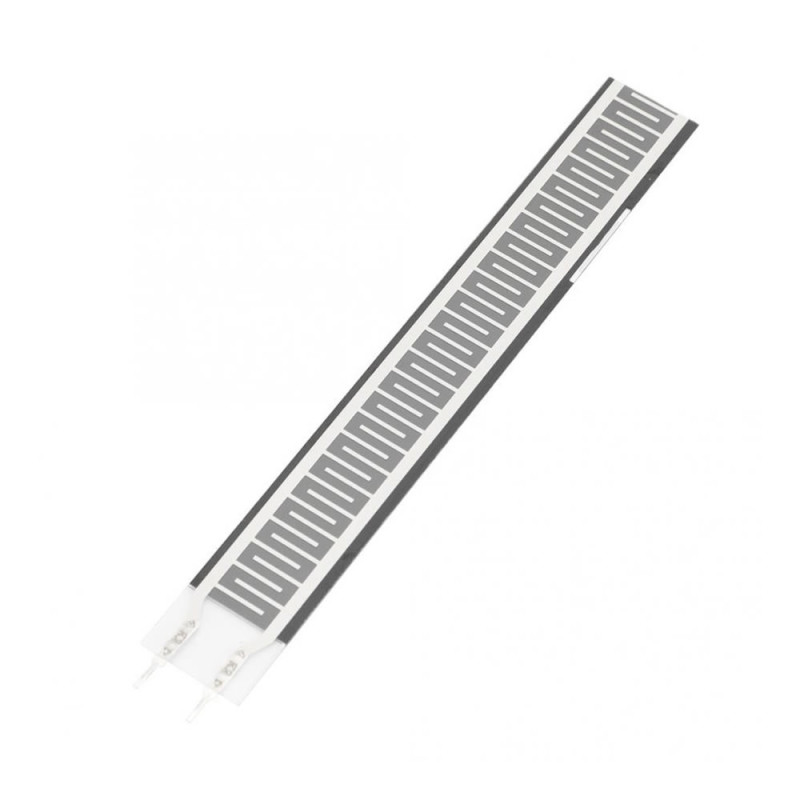

Force Sensor RP-L-110

Force Sensor RP-L-110

20gr/10kg 110mm Resistive Thin Flexible Film Pressure Sensor Analog Output Pressure Force

     The Force Pressure Sensor RP-L-110 provides the possibility to measure forces between 20g and 10kg with high sensitivity. It is produced from thin flexible film. It has very low power consumption and has an extremely fast response time. It has a thin long structure.

     The nanometric pressure sensor is produced in a thin structure from conductive material. On the top part, the pressure sensing layer is covered with film. On the bottom part there are thin film and conductive materials. When pressure occurs from the top part, the connections on the conductive parts at the bottom part break. In this way a resistance change occurs. As the force increases, the output resistance decreases.

Advantages:

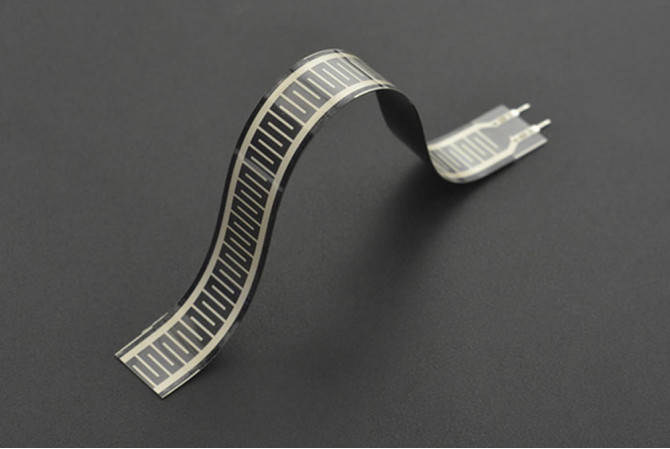

• Flexible bendable thin film sensor.
• Low power consumption
• High stability and steadiness
• High sensitivity detection of weak and static forces and pressures.

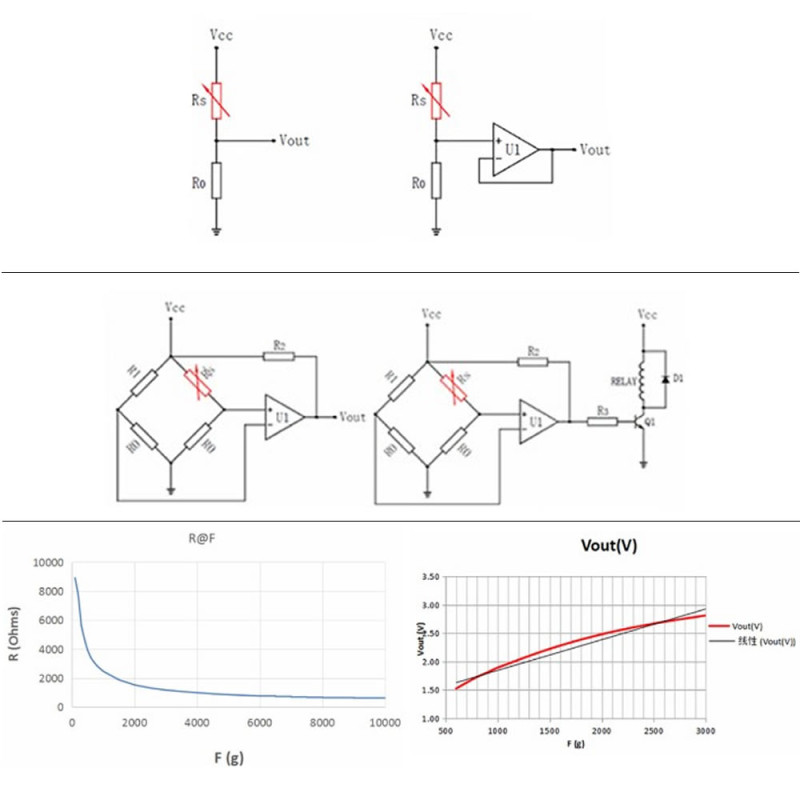

• The force change can be read analog through an adc.
• Easy use.
• Long service life.
• Wide application area

Features:

•     Model: RP-L-110
•     Thin film structure
•     Output Signal: Analog
•     Trigger Force: 20gr
•     Trigger Resistance: < 200kohm
•     Force pressure measurement range: 20gr - 10kg
•     Working Life: 1 Million
•     Response Time: <10ms
•     ActivationTime: <10ms
•     Does not generate EMI
•     Does not generate EDS
•     Operating temperature: -40C to  +85C
•     Thickness: 0,35mm

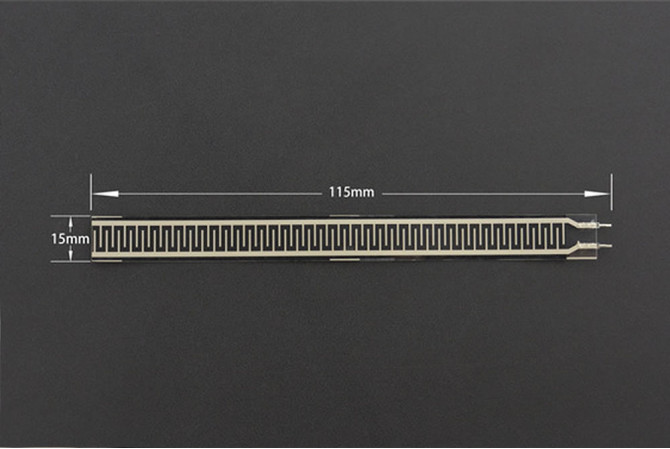

•     Dimensions: 11.5cm x 1.5cm

Package contents:

•     1 Piece Force Sensor RP-L-110
