TP5000 Type C Module

TP5000 1A 3.6V Lipo Lifepo4 Battery Charging Module

1S 4.2V Lithium Li-Ion Battery Accumulator Mp3 Mp4 Tablet Pda Phone Walkie Talkie

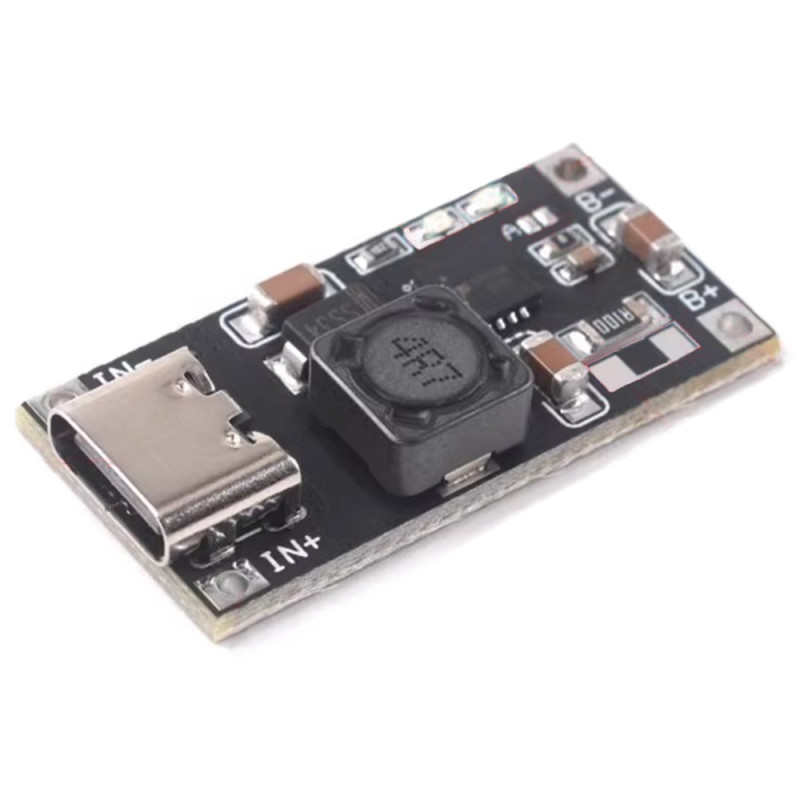

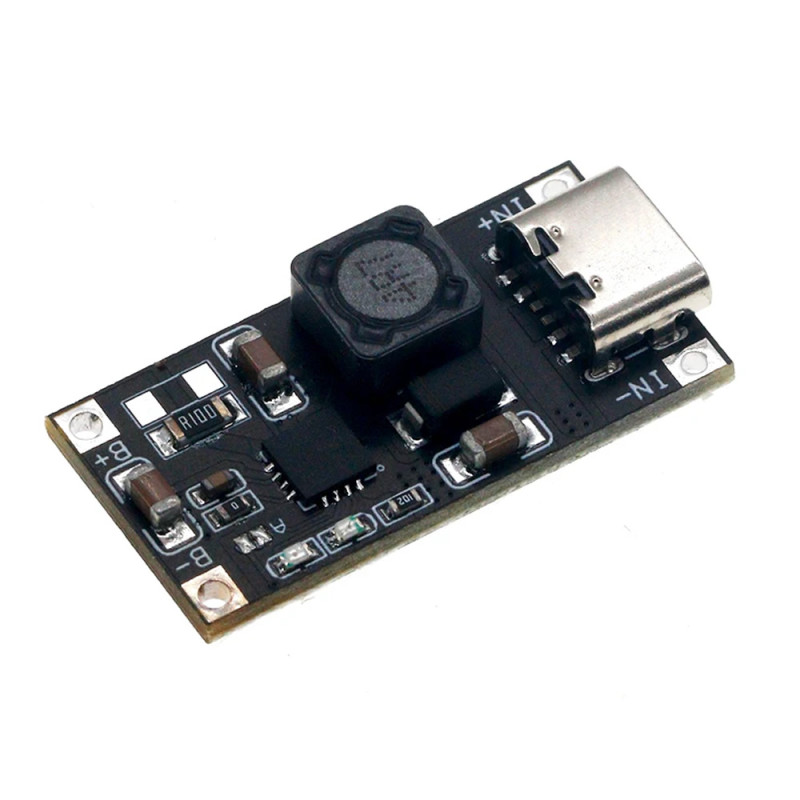

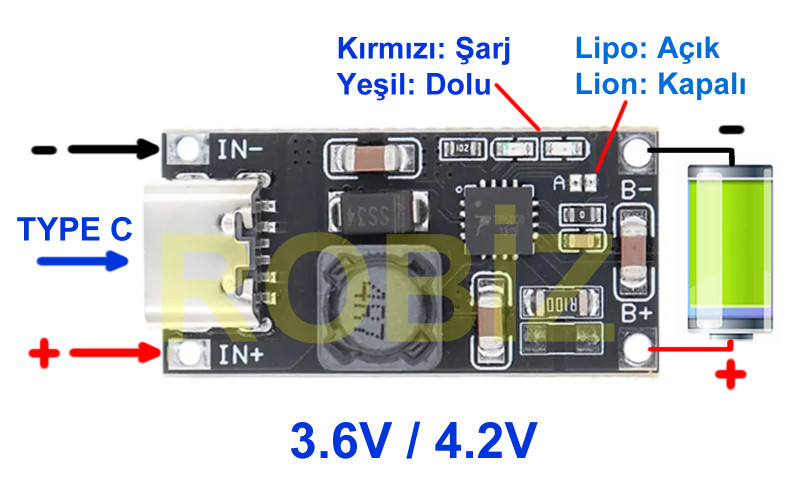

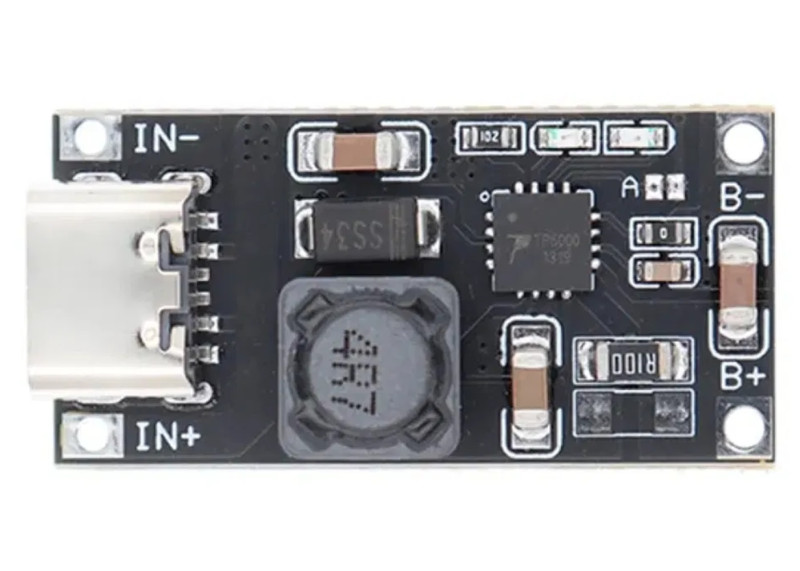

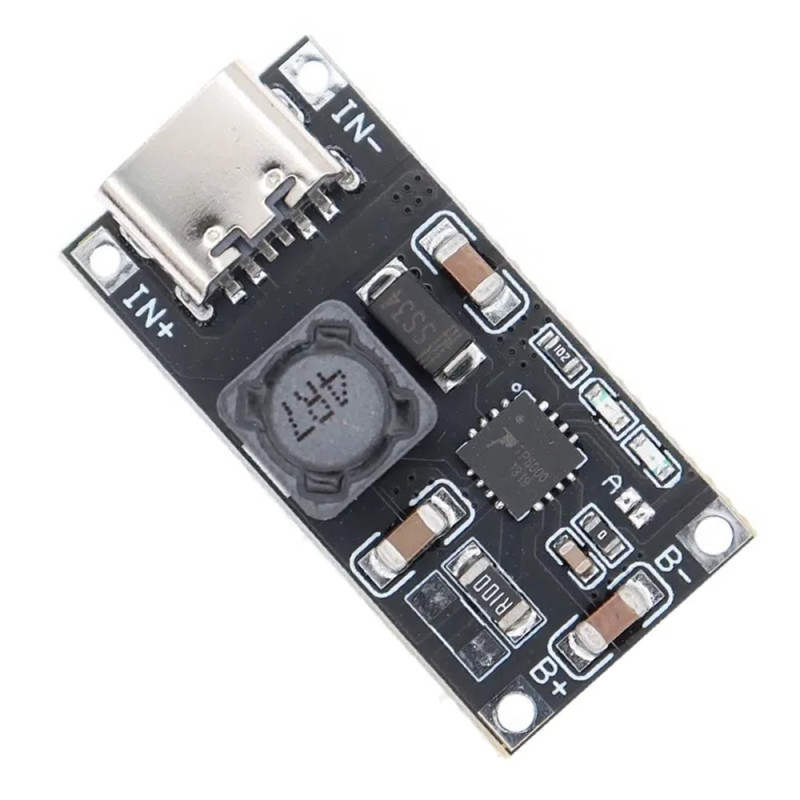

     Tp500 1A  battery charging module. Voltage input can be made over Type C. It can be used for charging Lion and Lipo batteries. It can charge 1S single cell batteries. The factory battery charging voltage is 3.6V. For 4.2V Lithium batteries, the pads at the point marked A on the board must be short circuited. After the short circuit is made, the battery charging voltage rises to 4.2V. There are 2 color leds on the product. Blinking of the red led indicates that charging is continuing. The green led indicates that charging is completed.

     TP5000 has built-in input overcurrent, low voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection. By changing the resistor, the charging current can be changed between 0.5A and 2A.

      Warning: Starting to use the product by soldering causes physical change in the product. Test the product with test cables before use. After determining that there is no problem with the product, continue with the soldering process. Physical change in soldered products removes the return conditions.

Features:

• Integrated: TP5000
• It can charge 1S cell Lion / Lipo batteries.
• Charging voltage: DC 3.6V  ( DC  4.2V  A pad short circuit )
• Charging current: 1A  ( 0.5A / 2A with resistor change )
• Input voltage: Usb Type C DC 5V
• 2 color led charging status indicator. Red charging continues, green charging completed.
• Automatic recharge function
• Overcurrent protection
• Low voltage protection
• High temperature protection
• Reverse battery connection protection
• Accuracy: 1%
• Color: Black
• Operating temperature: -20C  /   +85C

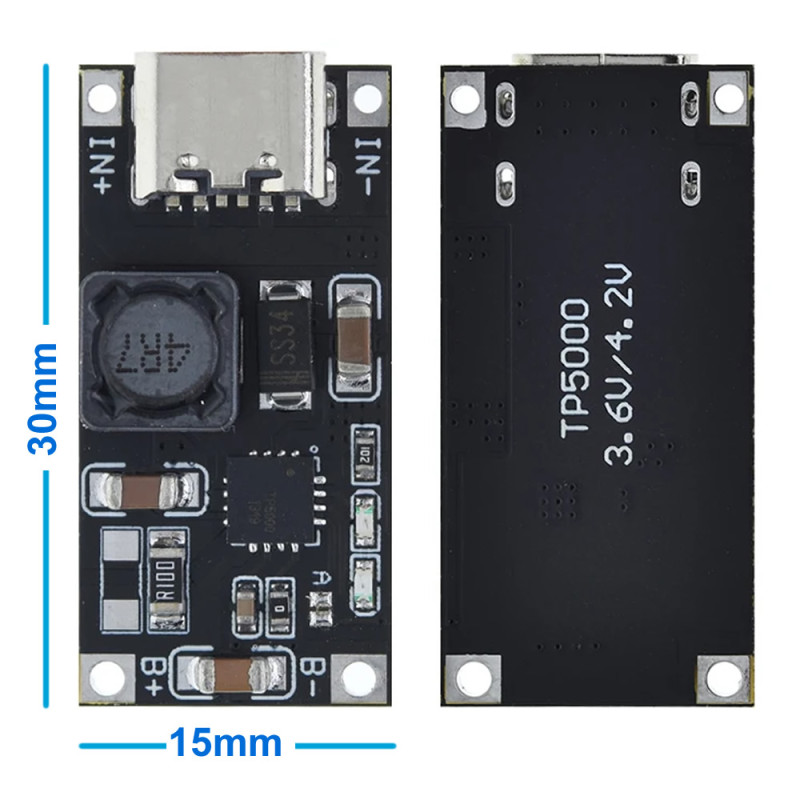

• Dimensions: 15mm x 30mm
• Weight:  3gr

Package contents:

•     1 Piece TP5000 Type C Module
