Atx Power Supply Voltage Output Board

Atx Power Supply Voltage Output Distribution Board XH-M229

     ATX power supplies are used in computers. Atx power supplies have become a widespread standard product manufactured by many companies. This board has been developed so that these power supplies can be used in applications other than computers. It provides easy access to the output voltages available on the power supply.  It can be used with 24/20 pin atx supplies.

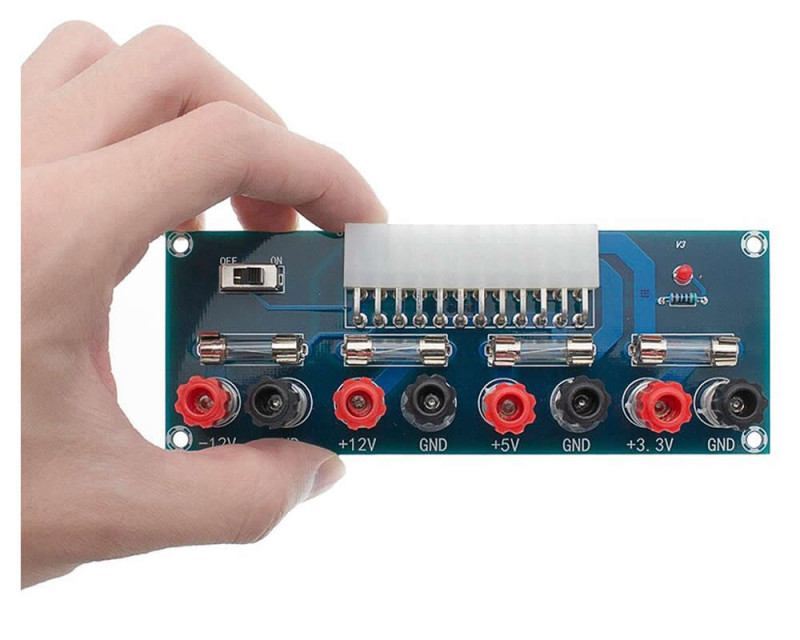

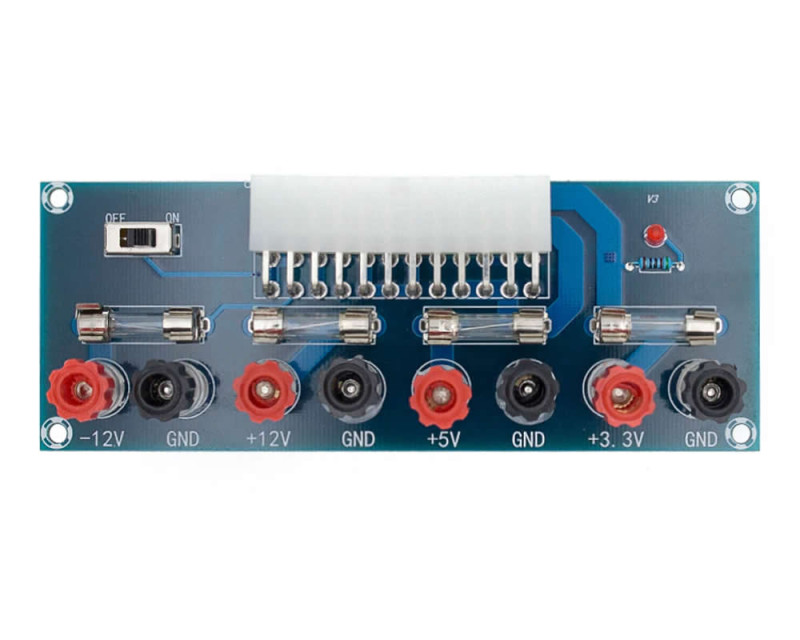

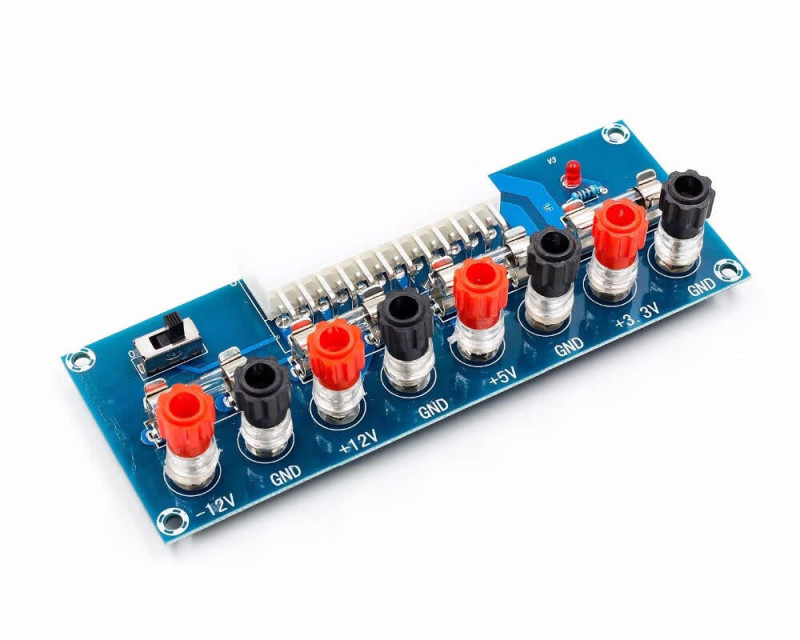

     The power supply connection can be made easily with the 20/24 pin atx connection socket. With 4 pairs of output sockets it allows the fixed voltages to be used. The fixed output voltage levels are -12V, +12V, +5V and +3.3V. There is a fuse on each channel for safety. Even so, we recommend that you pay attention to situations such as incorrect connection and short circuit.

     The product is shipped fully assembled. You can connect your atx supply to the product and start using it by setting the on/off button on the product to the on position. In the Off  position the power supply turns off. In the On position the power supply runs. And the indicator led on the board lights up and informs the user. The supply outputs are made through the 4 pair connection sockets. You can use it by connecting suitable cables to the sockets.

Technical specifications:

•     Model: XH-M229
•     Works with ATX power supply ( partial compatibility with Btx supplies)
•     24 pin power supply connection socket.
•     On/off switch
•     4 Different fixed output socket pairs
•     Easy connection, portable.
•     Output voltage levels:  -12V, +12V, +5V and +3.3V
•     Separate glass fuse protection for each voltage output
•     High quality pcb
•     Color: Blue

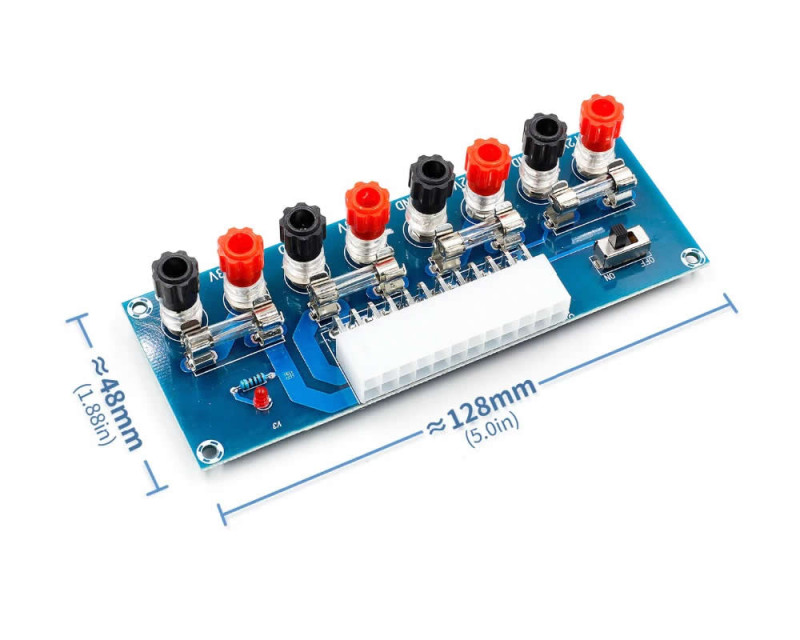

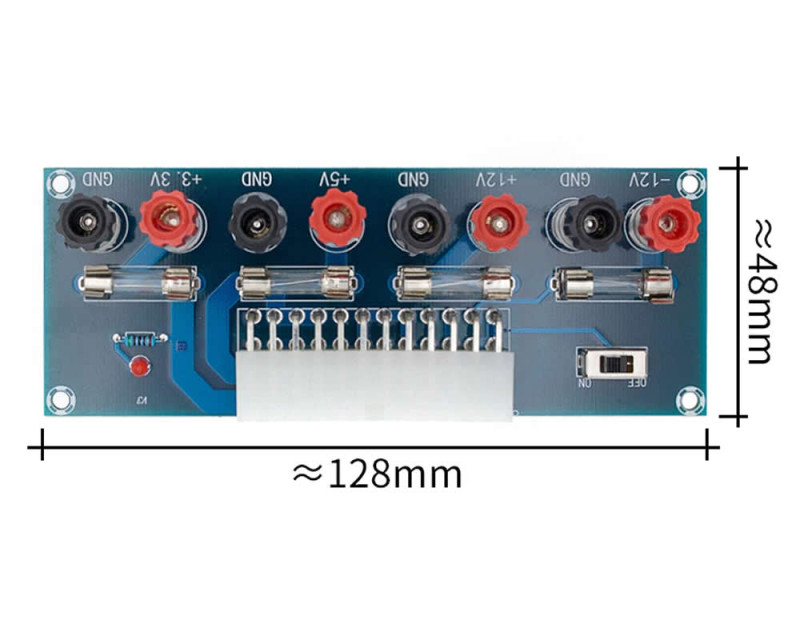

•     Dimensions: 13cm x 4.8cm x 2.80cm
•     Weight: 61gr

Package contents:

•     Atx Power Supply Voltage Output Board XH-M229
